LTC2345-18

PRODUCTION

Octal, 18-Bit, 200ksps Differential SoftSpan ADC with Wide Input Common Mode Range

Part Models: 6
1ku List Price: Starting From $23.07

Viewing:

Overview

200ksps per Channel Throughput
Eight Simultaneous Sampling Channels
±5LSB INL (Maximum, ±4.096V Range)
Guaranteed 18-Bit, No Missing Codes
Differential, Wide Common Mode Range Inputs
Per-Channel SoftSpan Input Ranges:
- ±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V
- ±5V, 0V to 5V, ±2.5V, 0V to 2.5V
91.8dB Single-Conversion SNR (Typical)
−113dB THD (Typical) at f_IN = 2kHz
102dB CMRR (Typical) at f_IN = 200Hz
Rail-to-Rail Input Overdrive Tolerance
Guaranteed Operation to 125°C
Integrated Reference and Buffer (4.096V)
SPI CMOS (1.8V to 5V) and LVDS Serial I/O
Internal Conversion Clock, No Cycle Latency
81mW Power Dissipation (Typical)

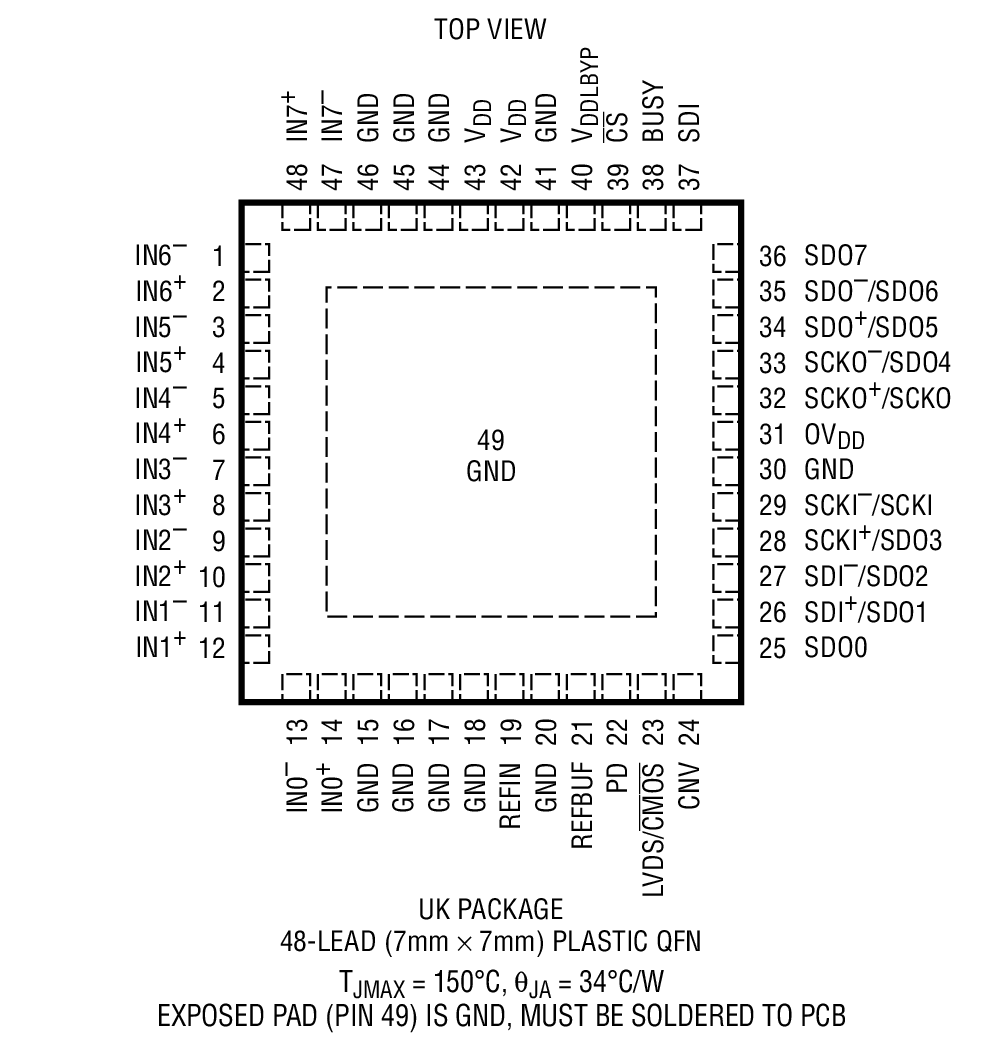

48-Lead (7mm x 7mm) QFN Package

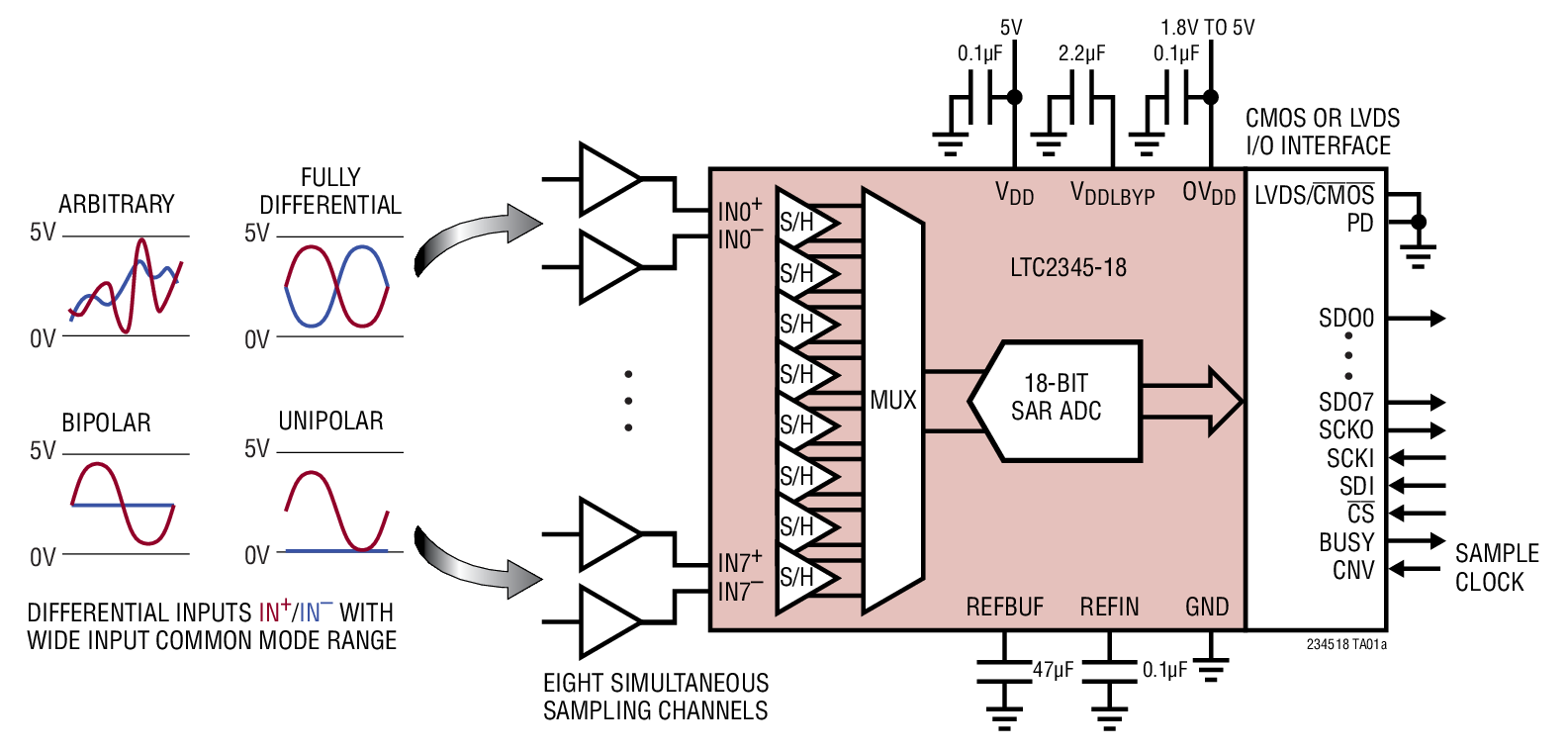

The LTC2345-18 is an 18-bit, low noise 8-channel simultaneous sampling successive approximation register (SAR) ADC with differential, wide common mode range inputs. Operating from a 5V low voltage supply and using the internal reference and buffer, each channel of this SoftSpanTM ADC can be independently configured on a conversion-by-conversion basis to accept ±4.096, 0V to 4.096V, ±2.048V, or 0V to 2.048V signals. Individual channels may also be disabled to increase throughput on the remaining channels.

The wide input common mode range and 102dB CMRR of the LTC2345-18 analog inputs allow the ADC to directly digitize a variety of signals, simplifying signal chain design. This input signal flexibility, combined with ±5LSB INL, no missing codes at 18 bits, and 91.8dB SNR, makes the LTC2345-18 an ideal choice for many applications requiring wide dynamic range.

The LTC2345-18 supports pin-selectable SPI CMOS (1.8V to 5V) and LVDS serial interfaces. Between one and eight lanes of data output may be employed in CMOS mode, allowing the user to optimize bus width and throughput.

Applications

Programmable Logic Controllers
Industrial Process Control
Medical Imaging
High Speed Data Acquisition

Part Models: 6
1ku List Price: Starting From $23.07
