LTC1735

Name: LTC1735
Brand: Analog Devices
Price: 6.13 USD
Availability: InStock

PRODUCTION

High Efficiency Synchronous Step-Down Switching Regulator

Data Sheet Product Selection Table

Part Models: 14
1ku List Price: Starting From $5.65

Viewing:

Overview

Synchronizable/Programmable Fixed Frequency
OPTI-LOOP^™ Compensation Minimizes C_OUT
±1% Output Voltage Accuracy
Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4V to 36V Operation
V_OUT Range: 0.8V to 6V
Internal Current Foldback
Output Overvoltage Crowbar Protection
Latched Short-Circuit Shutdown Timer with Defeat Option

Very Low Dropout Operation: 99% Duty Cycle
Forced Continuous Control Pin
Optional Programmable Soft-Start
Remote Output Voltage Sense
Power Good Output (LTC1735F Only)
Logic Controlled Micropower Shutdown: I_Q < 25µA
LTC1435 Pin Compatible with Minor Component Changes
Available in 16-Lead Narrow SSOP, SO Packages and 20-Lead TSSOP Package (LTC1735F Only)

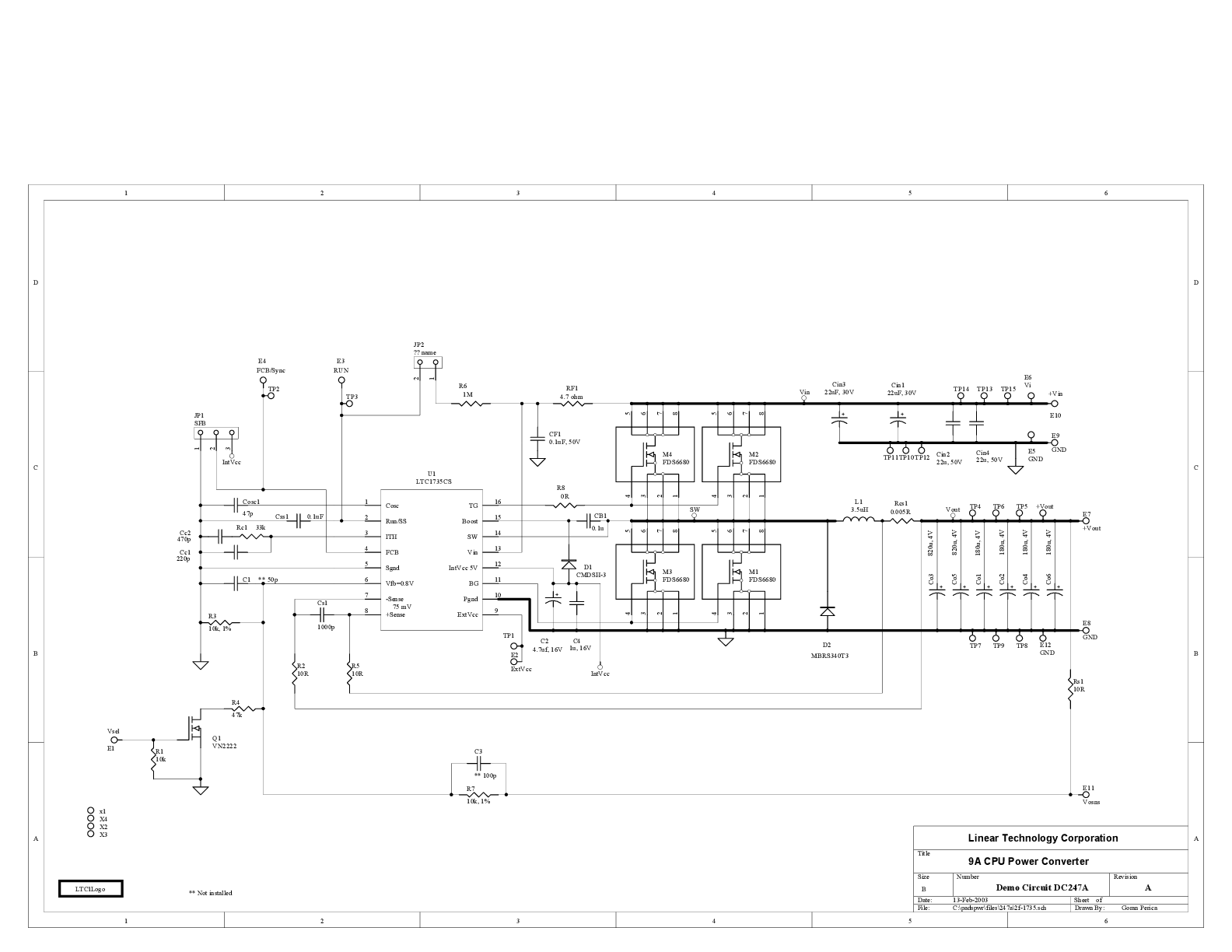

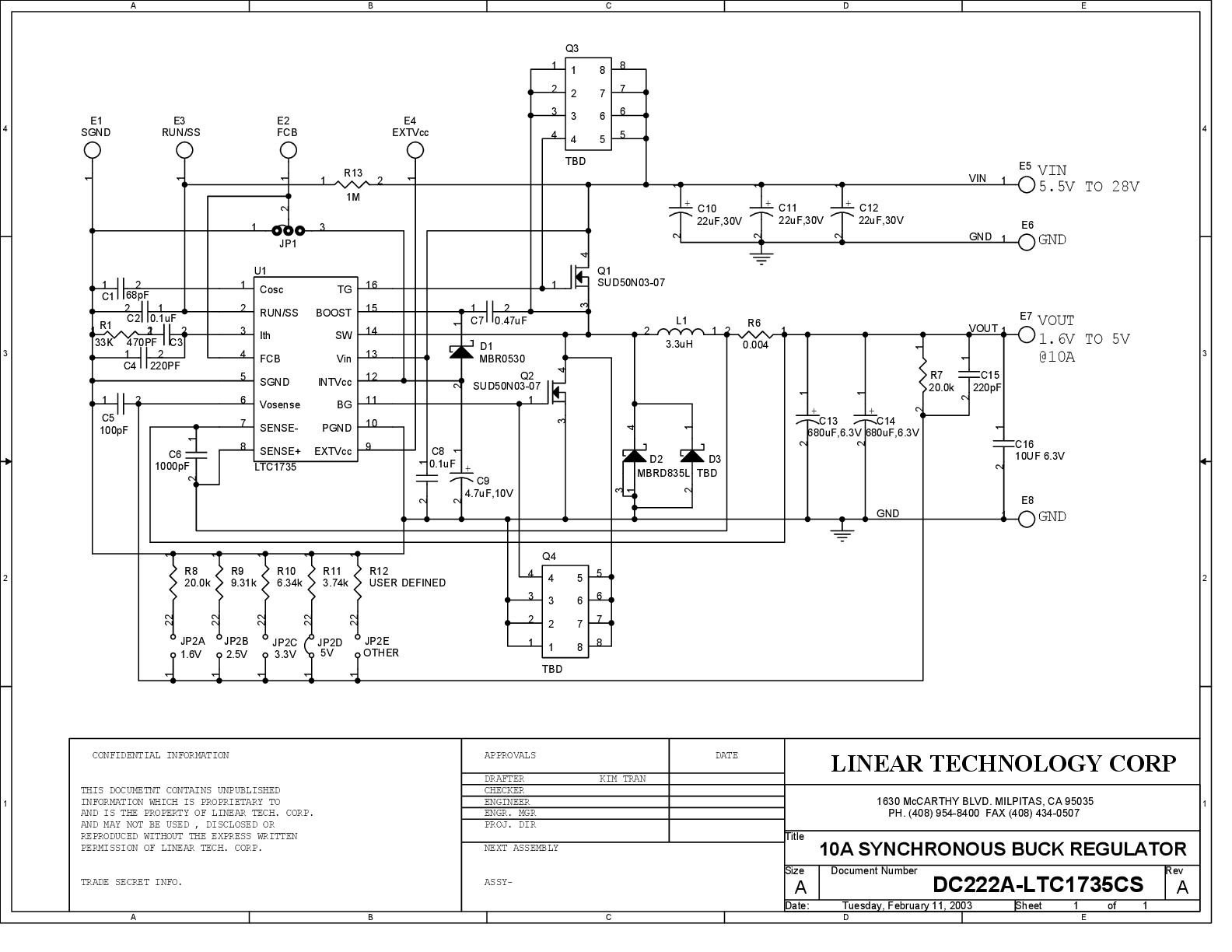

The LTC1735 is a synchronous step-down switching regulator controller that drives external N-channel power MOSFETs using a fixed frequency architecture. Burst Mode operation provides high efficiency at low load currents. The precision 0.8V reference is compatible with future generation microprocessors. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values.

The operating frequency (synchronizable up to 500kHz) is set by an external capacitor allowing maximum flexibility in optimizing efficiency. A forced continuous control pin reduces noise and RF interference and can assist secondary winding regulation by disabling Burst Mode operation when the main output is lightly loaded.

Protection features include internal foldback current limiting, output overvoltage crowbar and optional short-circuit shutdown. Soft-start is provided by an external capacitor that can be used to properly sequence supplies. The operating current level is user-programmable via an external current sense resistor. Wide input supply range allows operation from 4V to 30V (36V maximum).


	Features
LTC1735	-
LTC1735-1	Power Good

Applications

Notebook and Palmtop Computers, PDAs
Cellular Telephones and Wireless Modems
DC Power Distribution Systems

Part Models: 14
1ku List Price: Starting From $5.65

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1735CF#PBF	20-Lead TSSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735CF#TRPBF	20-Lead TSSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735CS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735CS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735EGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735EGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IF#PBF	20-Lead TSSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IF#TRPBF	20-Lead TSSOP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1735IS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 18, 2026 - 26_0072 Epoxy Change for Select TSSOP Products
		PCN26_0072_Form Material_Report
LTC1735CF#PBF	PRODUCTION
LTC1735CF#TRPBF	PRODUCTION
LTC1735IF#PBF	PRODUCTION
LTC1735IF#TRPBF	PRODUCTION
Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report
LTC1735CF#PBF	PRODUCTION
LTC1735CF#TRPBF	PRODUCTION
LTC1735IF#PBF	PRODUCTION
LTC1735IF#TRPBF	PRODUCTION
Oct 3, 2024 - 24_0235 (QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking
		PCN24_0235_Form Material_Report Other
LTC1735CGN#PBF	PRODUCTION
LTC1735CGN#TRPBF	PRODUCTION
LTC1735EGN#PBF	PRODUCTION
LTC1735EGN#TRPBF	PRODUCTION
LTC1735IGN#PBF	PRODUCTION
LTC1735IGN#TRPBF	PRODUCTION
Oct 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package
		PCN22_0235_Form Material_Report
LTC1735CGN#PBF	PRODUCTION
LTC1735CGN#TRPBF	PRODUCTION
LTC1735EGN#PBF	PRODUCTION
LTC1735EGN#TRPBF	PRODUCTION
LTC1735IGN#PBF	PRODUCTION
LTC1735IGN#TRPBF	PRODUCTION
Apr 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
		PCN22_0066_Form Material_Report
LTC1735CGN#PBF	PRODUCTION
LTC1735CGN#TRPBF	PRODUCTION
LTC1735EGN#PBF	PRODUCTION
LTC1735EGN#TRPBF	PRODUCTION
LTC1735IGN#PBF	PRODUCTION
LTC1735IGN#TRPBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison
LTC1735CS#PBF	PRODUCTION
LTC1735CS#TRPBF	PRODUCTION
LTC1735IS#PBF	PRODUCTION
LTC1735IS#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report
LTC1735CS#PBF	PRODUCTION
LTC1735CS#TRPBF	PRODUCTION
LTC1735IS#PBF	PRODUCTION
LTC1735IS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Hot Swap Controllers 1
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit
Oscillators 1
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation

Parts	Product Life Cycle	Description
LTC3851A	RECOMMENDED FOR NEW DESIGNS	Synchronous Step-Down Switching Regulator Controller

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC1735
LTC1735-1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
