Overview

Features and Benefits

  • Six Programmable Output Ranges
    • Unipolar Mode: 0V to 5V, 0V to 10V
    • Bipolar Mode: ±5V, ±10V, ±2.5V, –2.5V to 7.5V
  • 1LSB Max DNL and INL Over the Industrial Temperature Range
  • Glitch Impulse < 2nV-s
  • 16-Lead SSOP Package
  • Power-On Reset to 0V
  • Asynchronous Clear to 0V for All Ranges

Product Details

The LTC1588/LTC1589/LTC1592 are serial input 12-/14-/16-bit multiplying current output DACs that operates from a single 5V supply. These SoftSpan™ DACs can be software-programmed for either unipolar or bipolar mode through a 3-wire SPI interface. In either mode, the voltage output range can also be software-programmed. Two output ranges in unipolar mode and four output ranges in bipolar mode are available.

INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar and bipolar modes. True 16-bit 4-quadrant multiplication is achieved with on-chip four quadrant multiplication resistors. The LTC1588/LTC1589/LTC1592 are available in a 16-lead SSOP package.

These devices include an internal deglitcher circuit that reduces the glitch impulse to less than 2nV-s (typ).

The asynchronous clear pin resets the LTC1588/LTC1589/ LTC1592 to 0V in unipolar or bipolar mode.

Applications

  • Process Control and Industrial Automation
  • Precision Instrumentation
  • Direct Digital Waveform Generation
  • Software-Controlled Gain Adjustment
  • Automatic Test Equipment

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

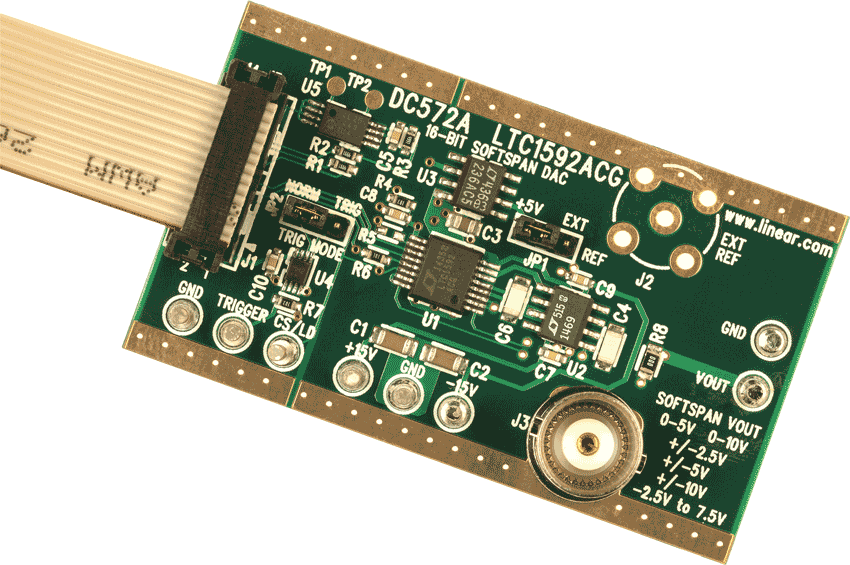

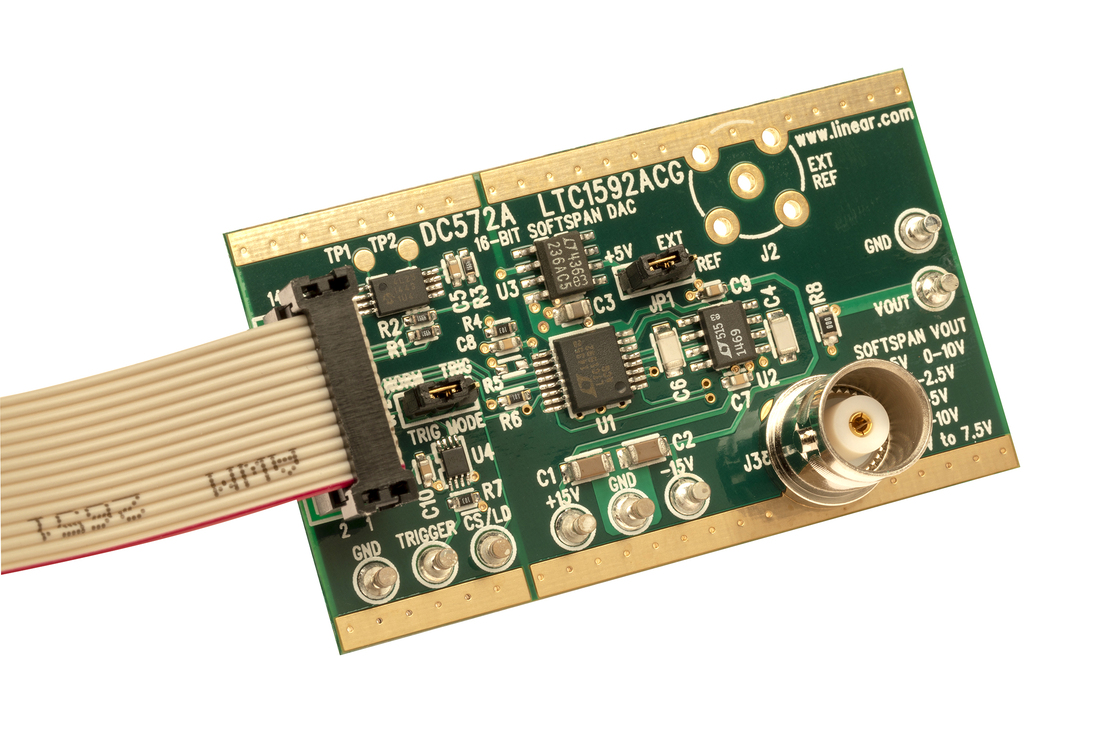

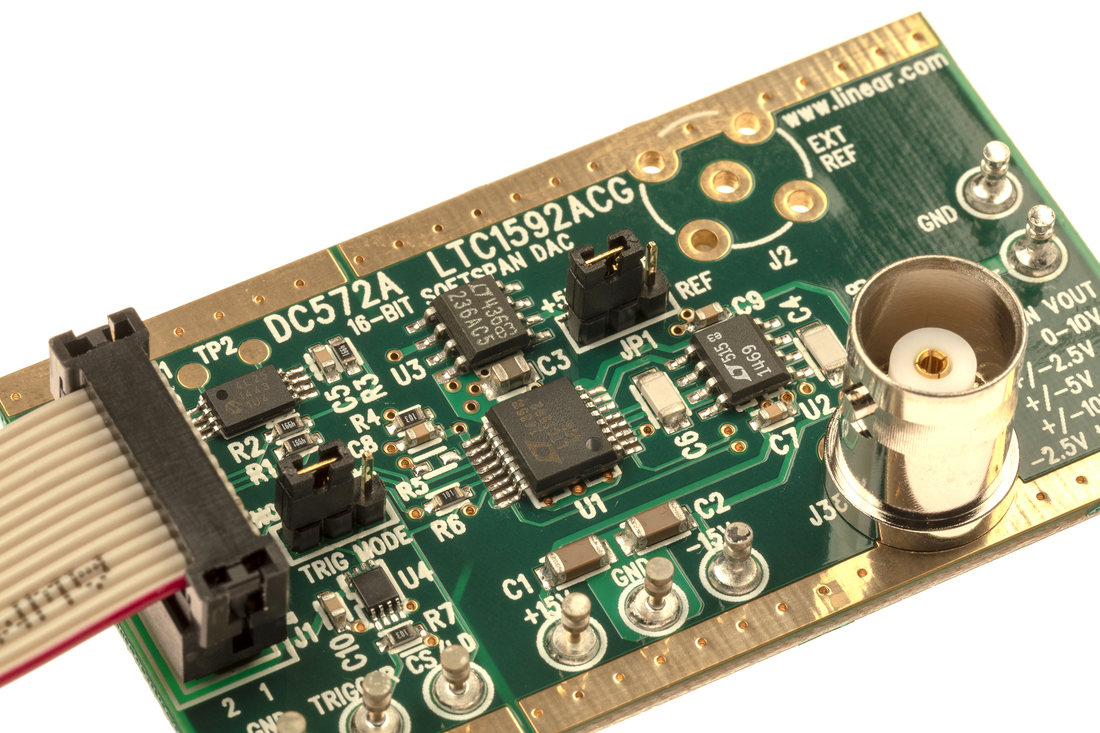

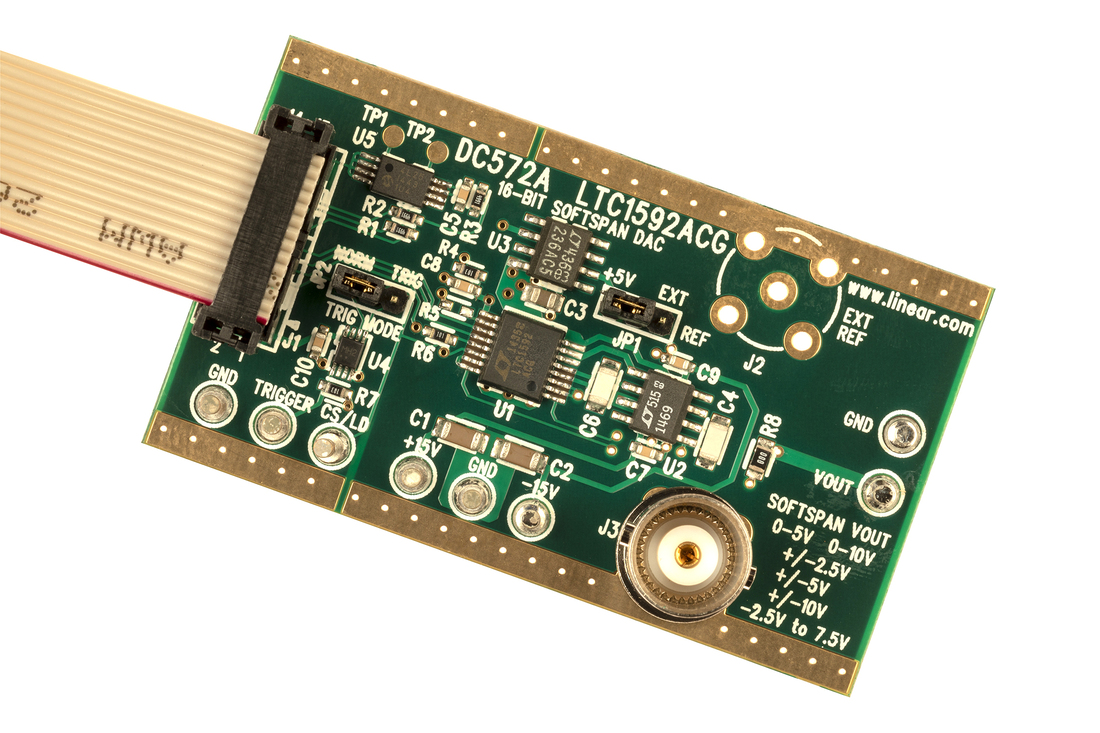

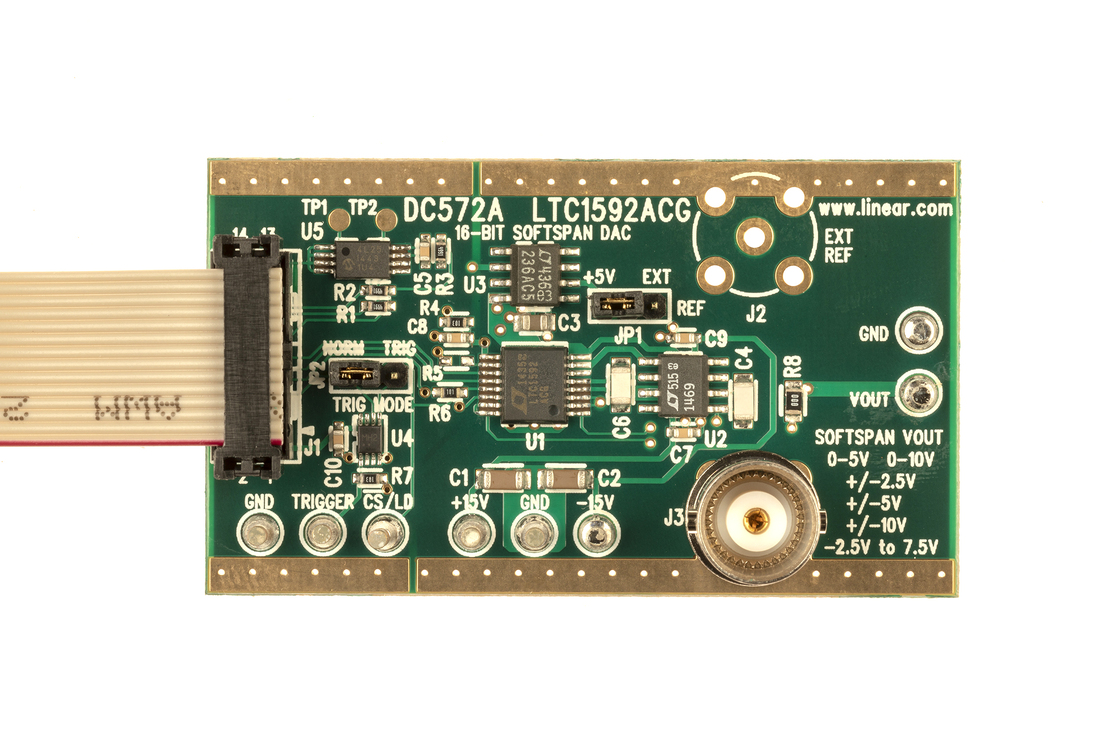

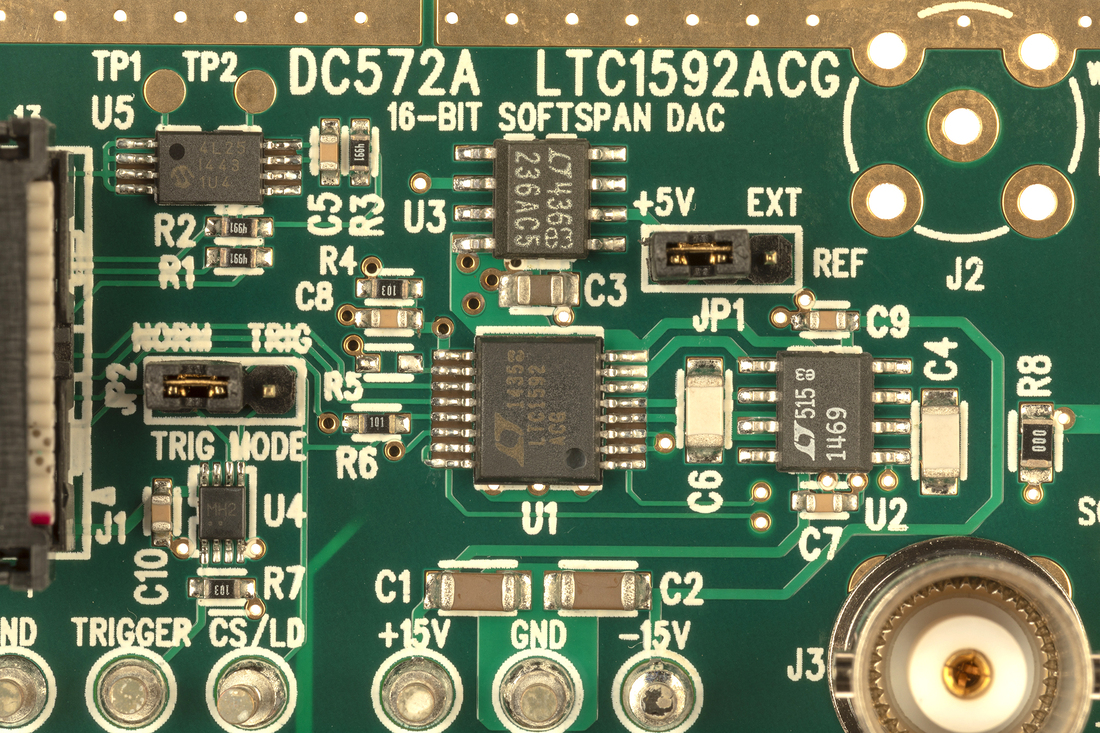

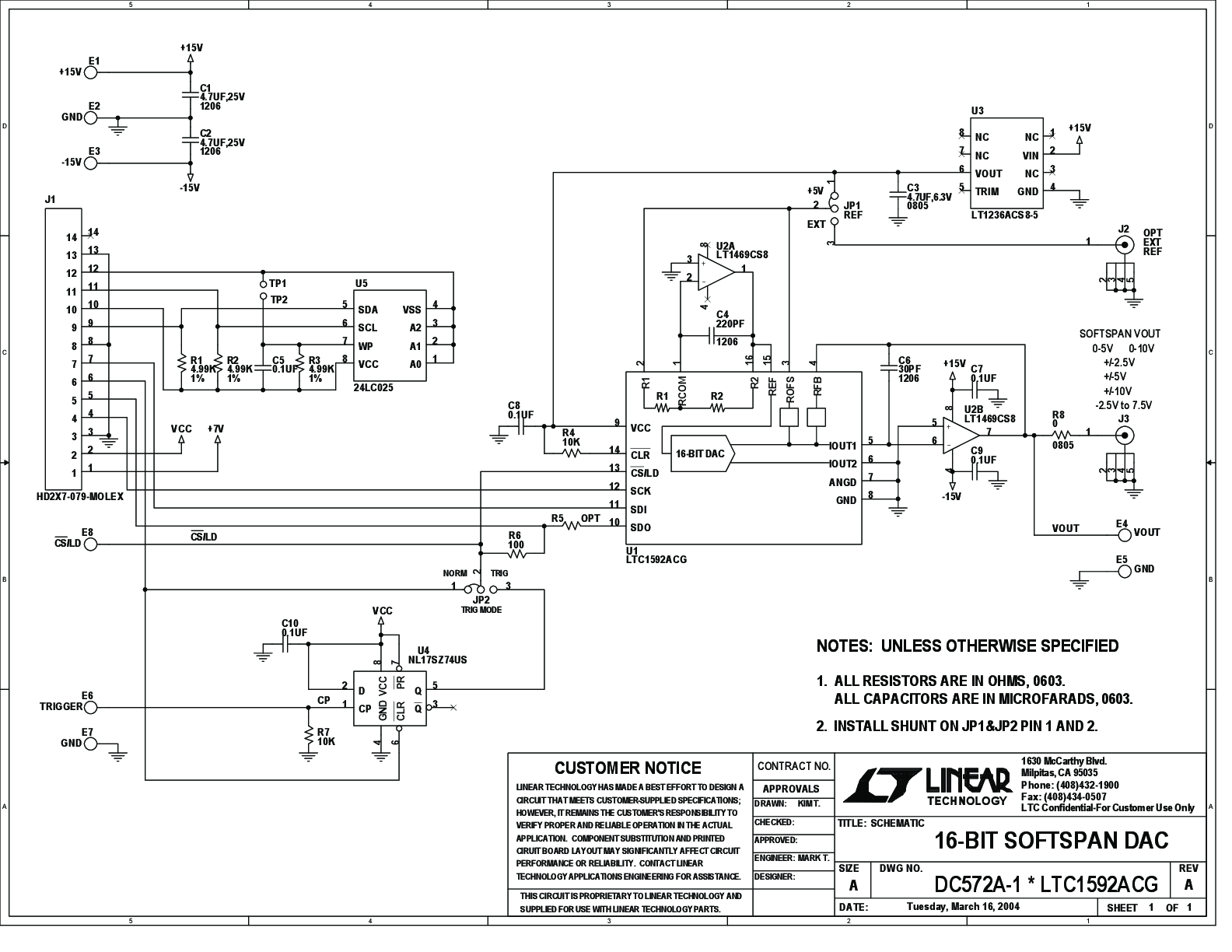

Evaluation Kits (1)

Documentation & Resources

  • View All (9)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (2)
  • Product Selector Card (3)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC1592 Linduino Header File
    LTC1592 Linduino.CPP
    LTC1592 - DC572A Linduino.INO File
