LTC1150

±15V Zero-Drift Operational Amplifier with Internal Capacitors

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 3
1ku List Price Starting From $4.95
Features
  • High Voltage Operation: ±16V
  • No External Components Required
  • Maximum Offset Voltage: 10µV
  • Maximum Offset Voltage Drift 0.05µV/°C
  • Low Noise 1.8µVP-P (0.1Hz to 10Hz)
  • Minimum Voltage Gain: 135dB
  • Minimum PSRR: 120dB
  • Minimum CMRR: 110dB
  • Low Supply Current: 0.8mA
  • Single Supply Operation: 4.75V to 36V
  • Input Common Mode Range Includes Ground
  • 200µA Supply Current with Pin 1 Grounded
  • Typical Overload Recovery Time 20ms
Additional Details
show more Icon

The LTC1150 is a high-voltage, high-performance zero-drift operational amplifier. The two sample-and-hold capacitors usually required externally by other chopper amplifiers are integrated on-chip. Further, LTC’s proprietary high-voltage CMOS structures allow the LTC1150 to operate at up to 32V total supply voltage.

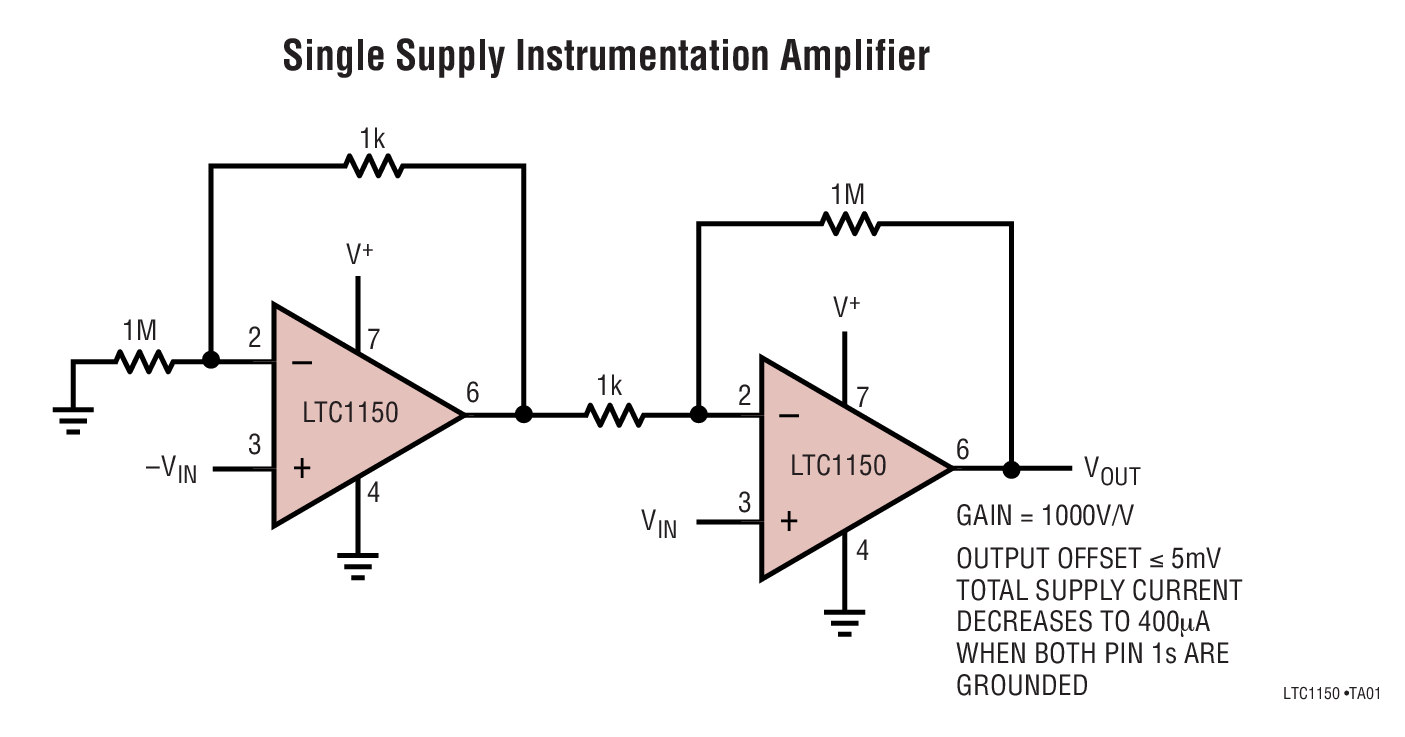

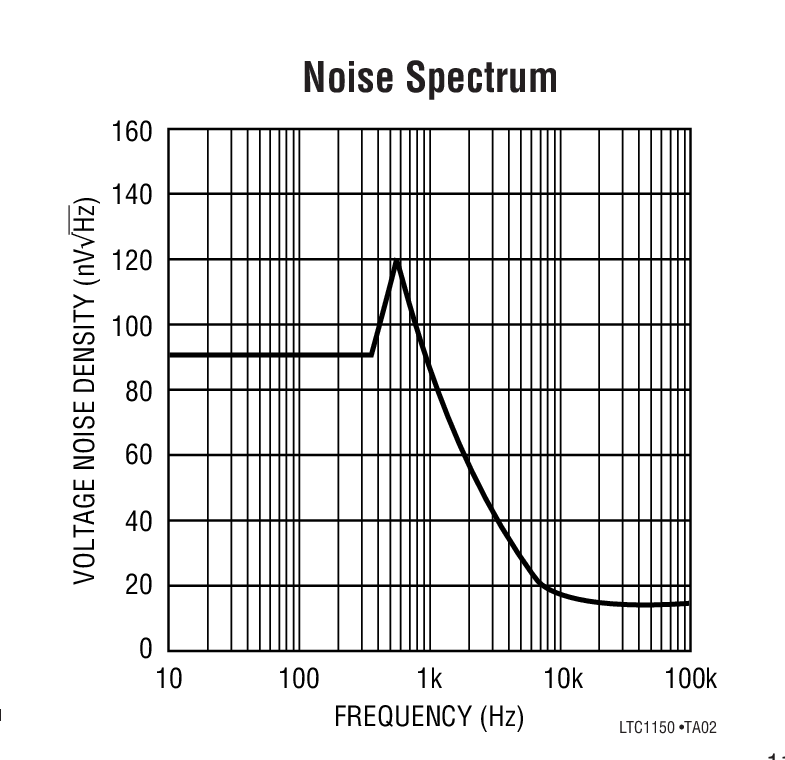

The LTC1150 has an offset voltage of 0.5µV, drift of 0.01µV/°C, 0.1Hz to 10Hz input noise voltage of 1.8µVP-P and a typical voltage gain of 180dB. The slew rate of 3V/µs and a gain bandwidth productof 2.5MHz are achieved with 0.8mA of supply current. Overload recovery times from positive and negative saturation conditions are 3ms and 20ms, respectively.

For applications demanding low power consumption, Pin 1 can be used to program the supply current. Pin 5 is an optional AC-coupled clock input, useful for synchronization.

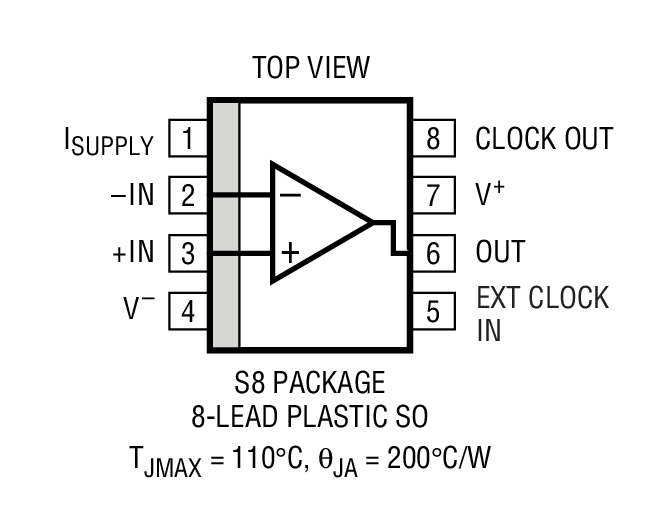

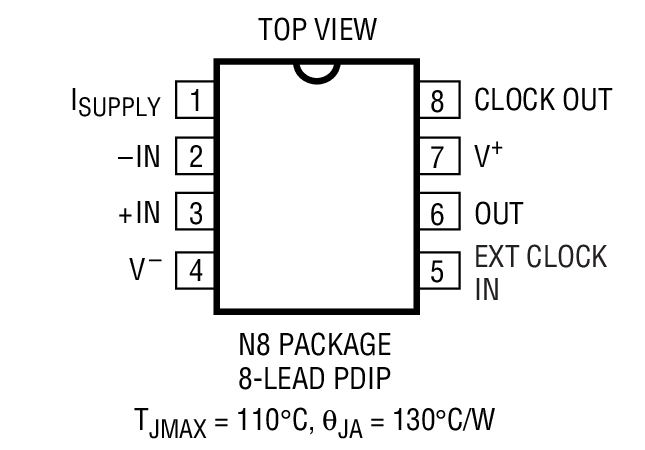

The LTC1150 is available in standard 8-lead, plastic dual-in-line package, as well as an 8-lead SO package. The LTC1150 can be a plug-in replacement for most standard bipolar op amps with significant improvement in DC performance.

Applications

  • Strain Gauge Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Thermocouple Amplifiers
  • High Resolution Data Acquisition
