LTC1049

PRODUCTION

Low Power Zero-Drift Operational Amplifier with Internal Capacitors

Part Models: 3
1ku List Price: Starting From $2.88

Viewing:

Overview

Low Supply Current: 200µA
No External Components Required
Maximum Offset Voltage: 10µV
Maximum Offset Voltage Drift: 0.1µV/°C
Single Supply Operation: 4.75V to 16V
Input Common Mode Range Includes Ground
Output Swings to Ground
Typical Overload Recovery Time: 6ms

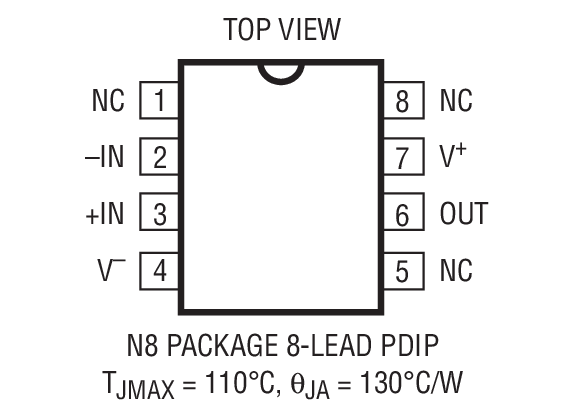

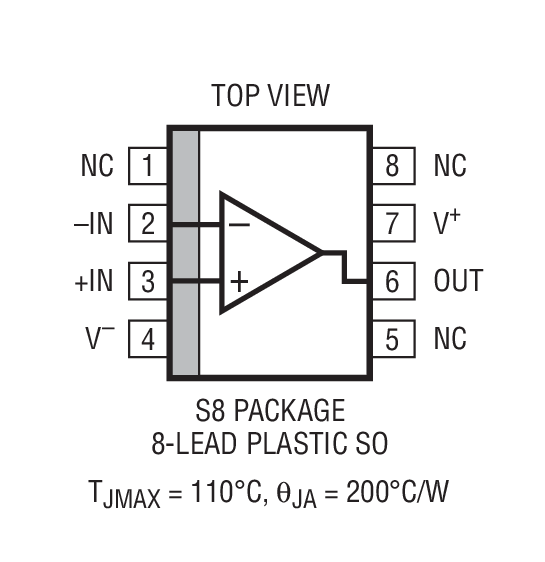

Available in 8-Pin SO and PDIP Packages

The LTC1049 is a high performance, low power zero-drift operational amplifier. The two sample-and-hold capacitors usually required externally by other chopper stabilized amplifiers are integrated on the chip. Further, the LTC1049 offers superior DC and AC performance with a nominal supply current of only 200µA.

The LTC1049 has a typical offset voltage of 2µV, drift of 0.02µV/°C, 0.1Hz to 10Hz input noise voltage of 3µV_P-P and typical voltage gain of 160dB. The slew rate is 0.8V/µs with a gain bandwidth product of 0.8MHz.

Overload recovery time from a saturation condition is 6ms, a significant improvement over chopper amplifiers using external capacitors.

The LTC1049 is available in a standard 8-pin plastic dual in line, as well as an 8-pin SO package. The LTC1049 can be a plug-in replacement for most standard op amps with improved DC performance and substantial power savings.

Applications

4mA to 20mA Current Loops

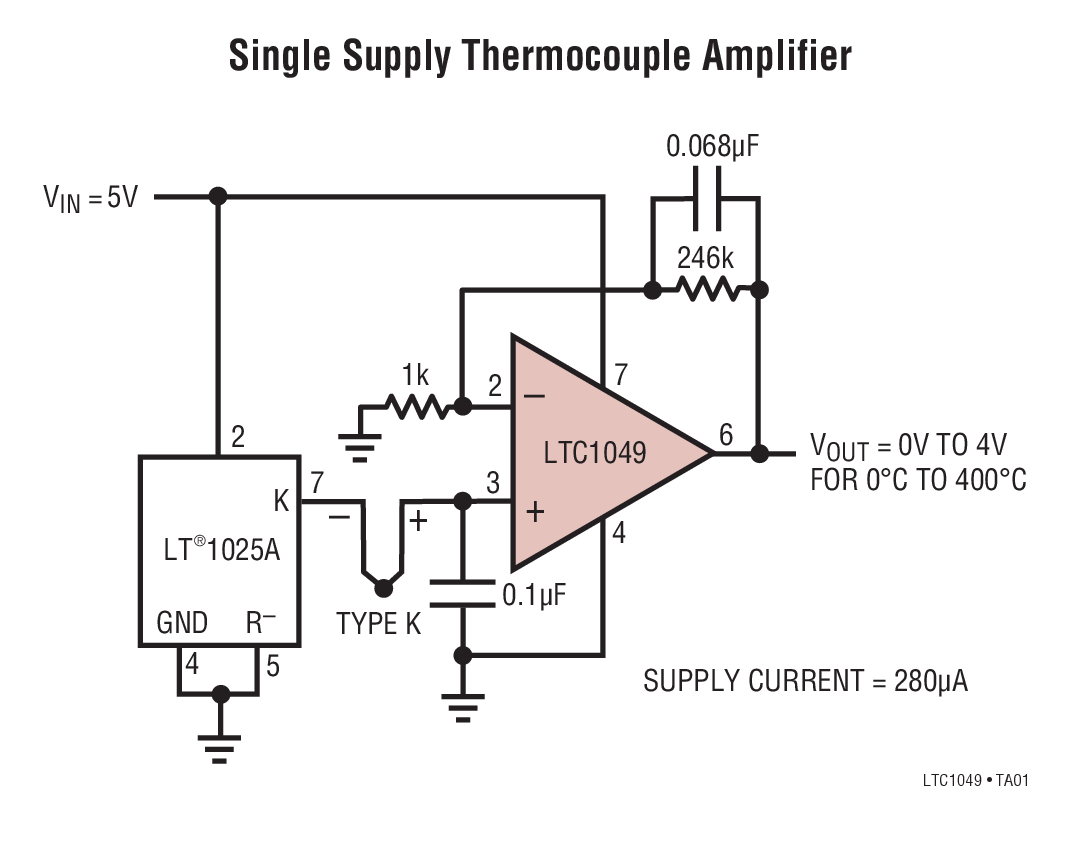

Thermocouple Amplifiers
Electronic Scales
Medical Instrumentation
Strain Gauge Amplifiers
High Resolution Data Acquisition

Part Models: 3
1ku List Price: Starting From $2.88
