Overview
Features and Benefits
- Ultralow Quiescent Current
- 8.5μA in Active Mode
- 0μA in Shutdown Mode
- Comparator Built into SHDN pin
- Low Noise Control Scheme
- Adjustable FB reference voltage
- Wide Input Range: 2.5V to 16V
- Wide Output Range: Up to 40V
- Integrated Power NPN Switch
- 25mA Current Limit (LT8410)
- 8mA Current Limit (LT8410-1)
- Integrated Schottky Diode
- Integrated Output Disconnect
- High Value (12.4M/0.4M) Feedback Resistors Integrated
- Built in Soft-Start (Optional Capacitor from VREF to GND)
- Overvoltage Protection for CAP and VOUT pins

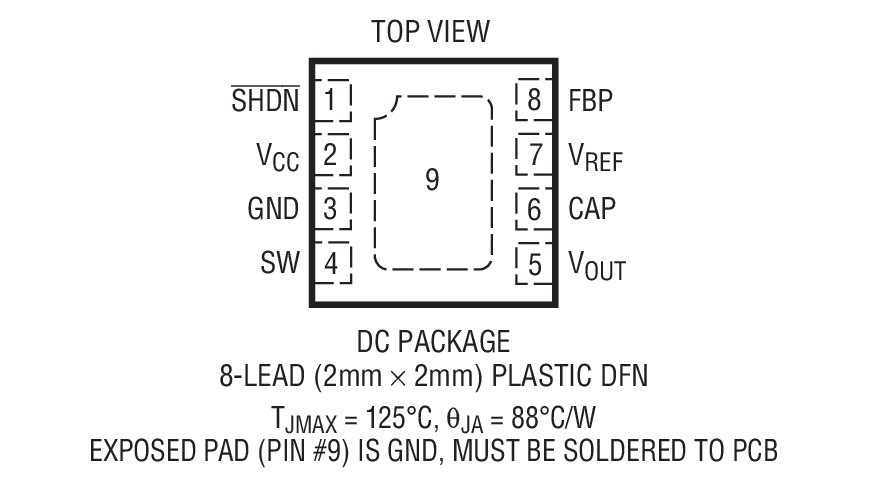

- Tiny 8-Pin 2mm × 2mm DFN package

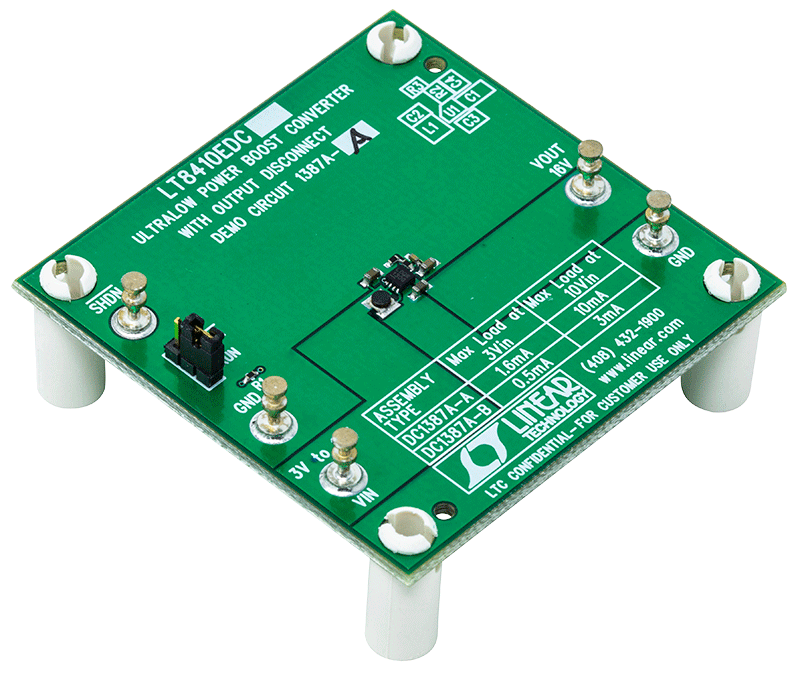

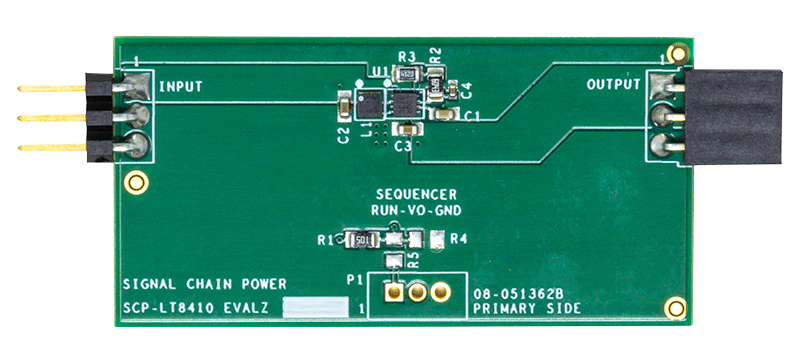

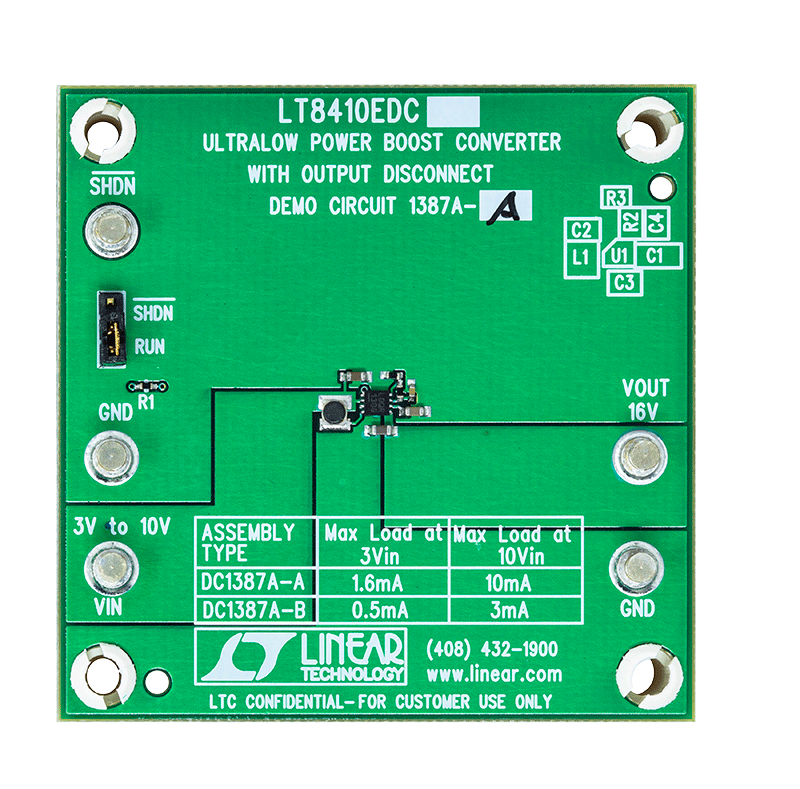

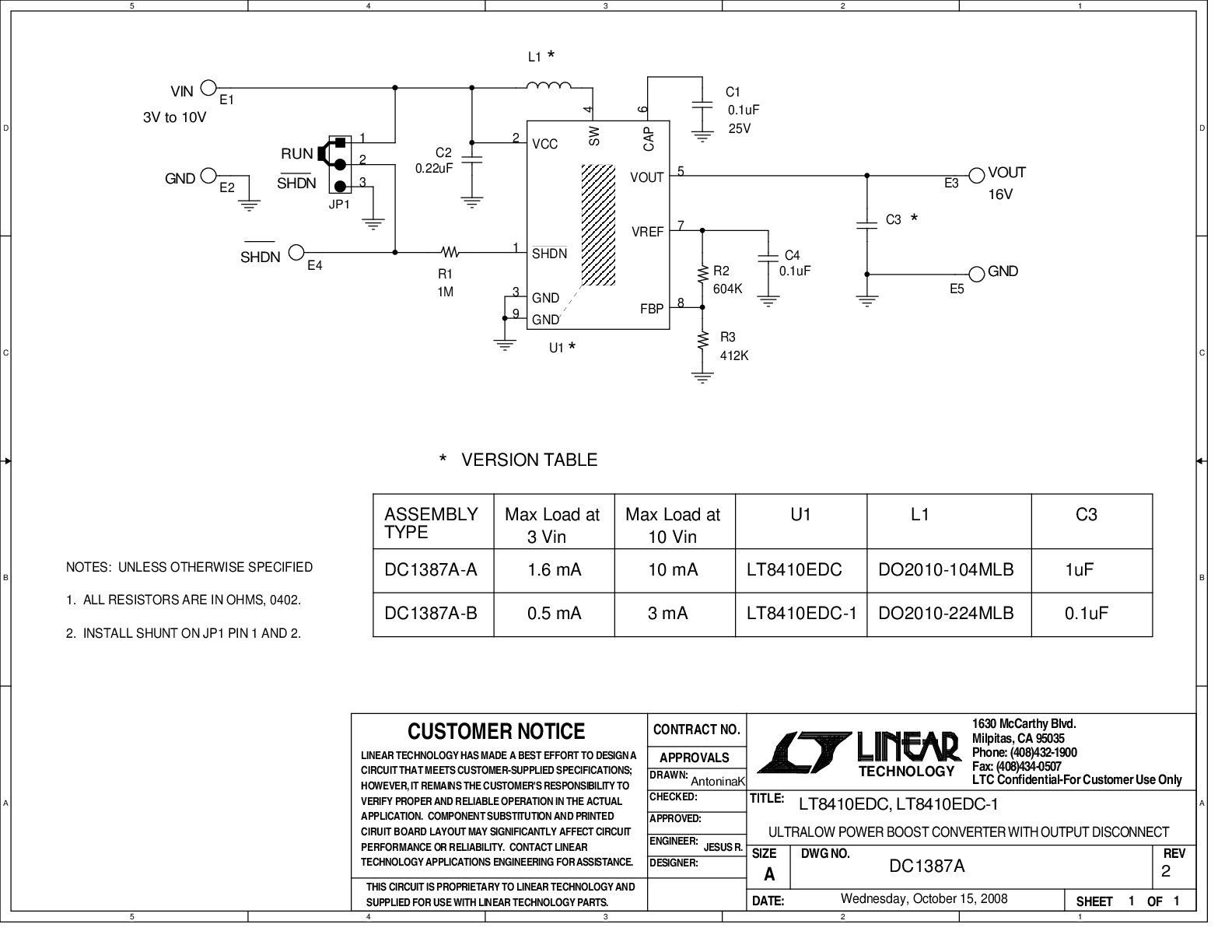

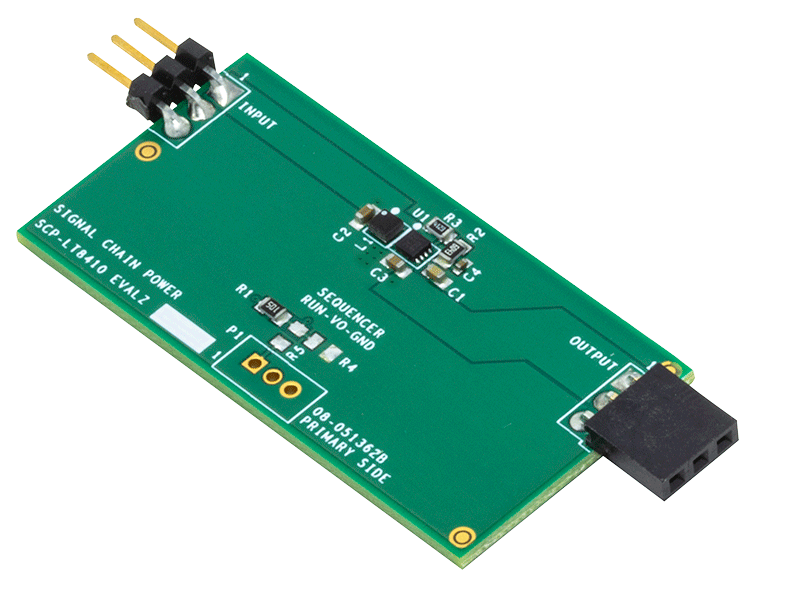

Product Details

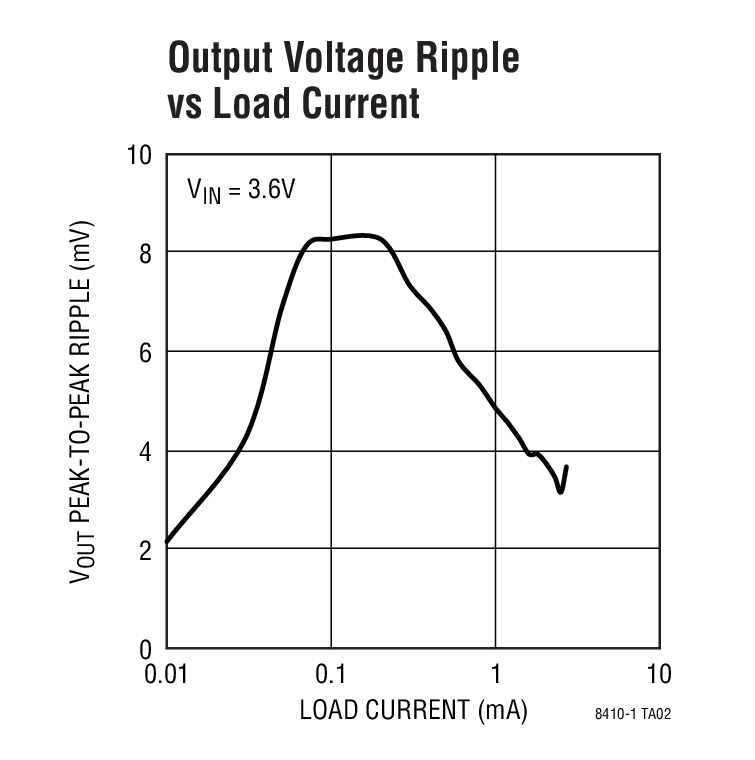

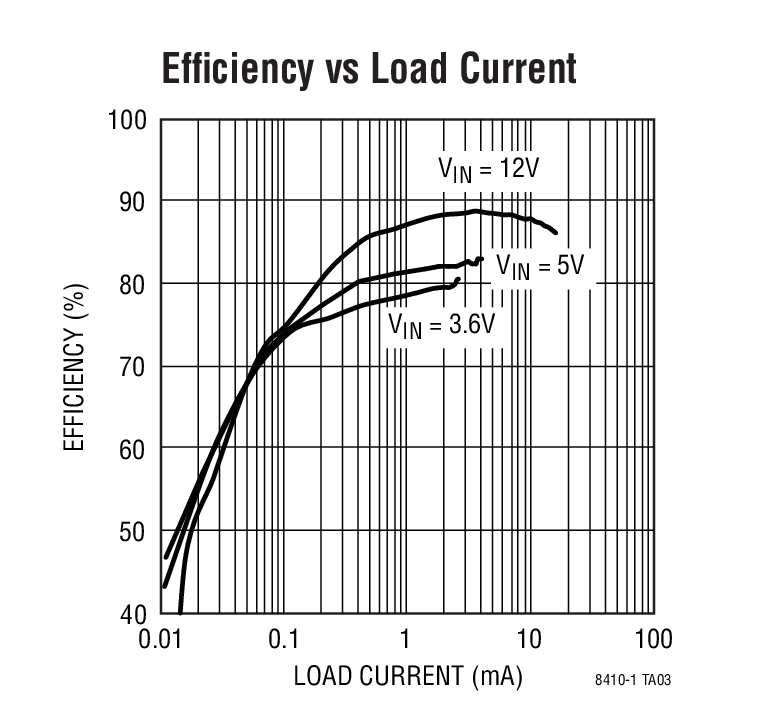

The LT8410/LT8410-1 are ultralow power boost converters with integrated power switch, Schottky diode and output disconnect circuitry. The parts control power delivery by varying both the peak inductor current and switch off-time. This control scheme results in low output voltage ripple as well as high efficiency over a wide load range. The quiescent current is a low 8.5μA, which is further reduced to 0μA in shutdown. The internal disconnect circuitry allows the output voltage to be blocked from the input during shutdown. High value (12.4M/0.4M) resistors are integrated on chip for output voltage detection, significantly reducing input referred quiescent current. The LT8410/LT8410-1 also features a comparator built into the SHDN pin, over voltage protection for the CAP and VOUT pins, built in soft-start and comes in a tiny 8-pin 2mm × 2mm DFN package.
Applications
- Sensor Power
- RF Mems Relay Power

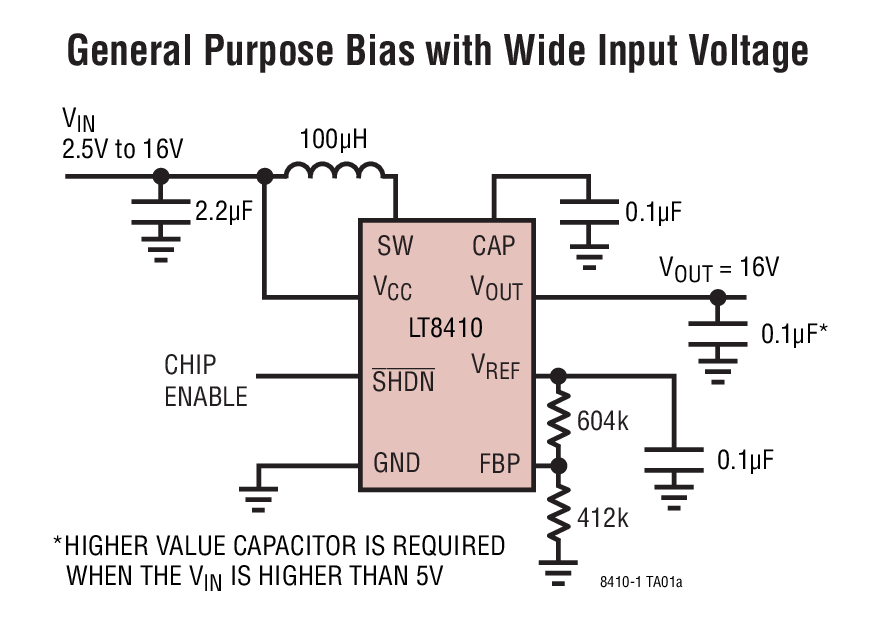

- General Purpose Bias
