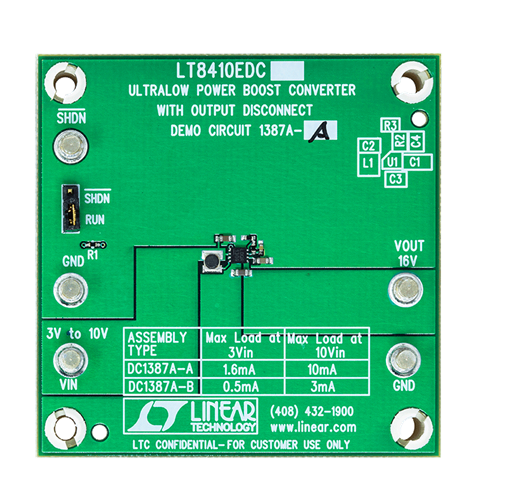

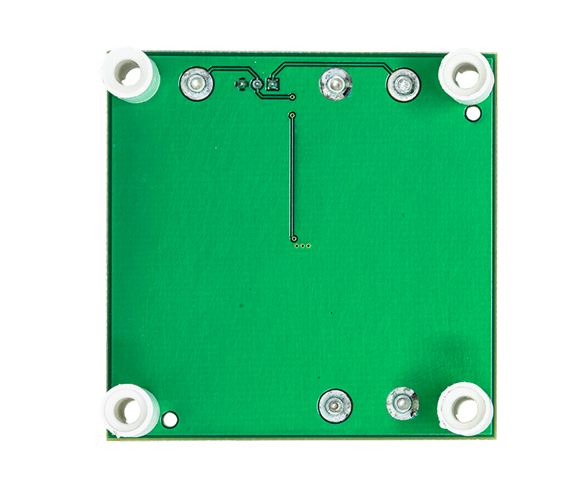

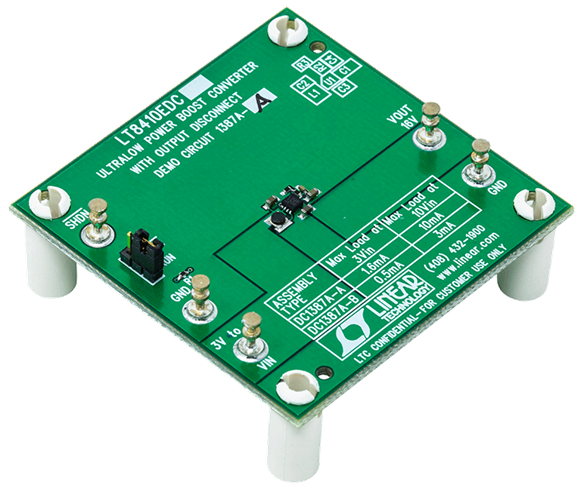

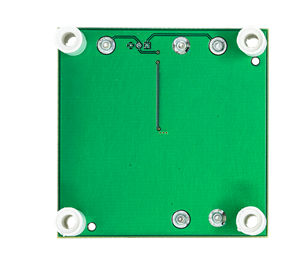

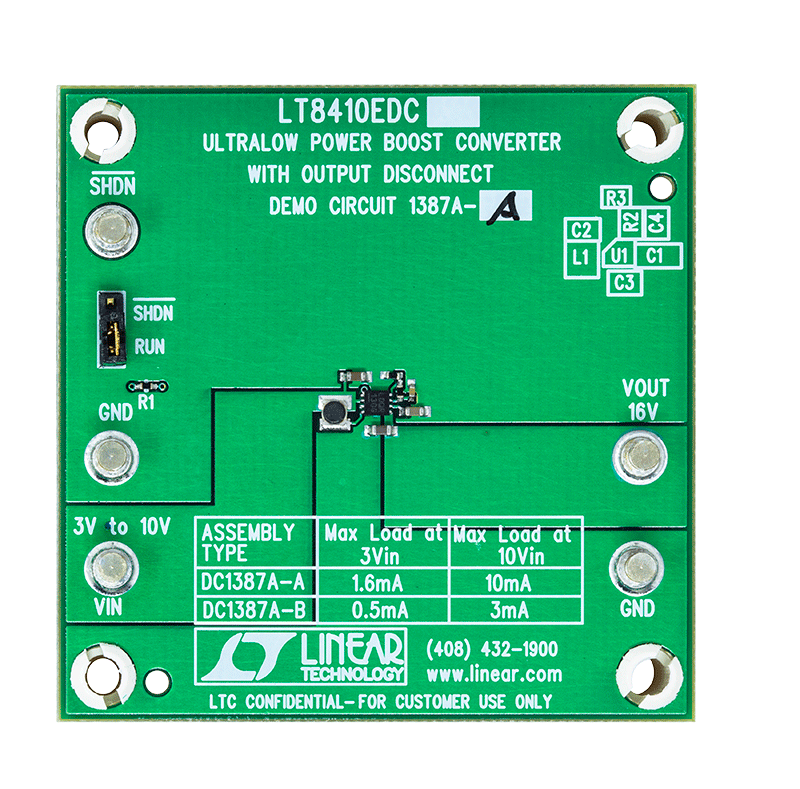

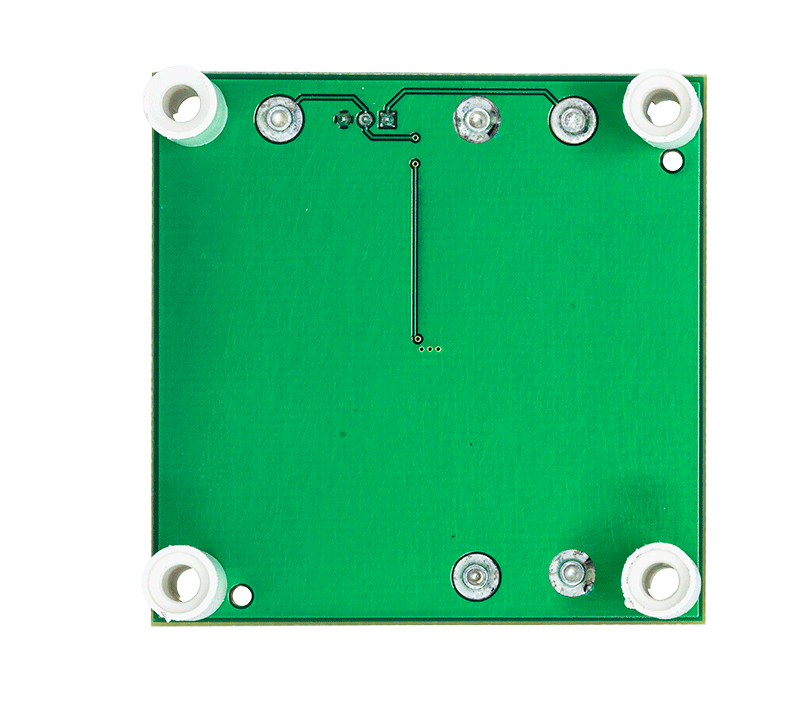

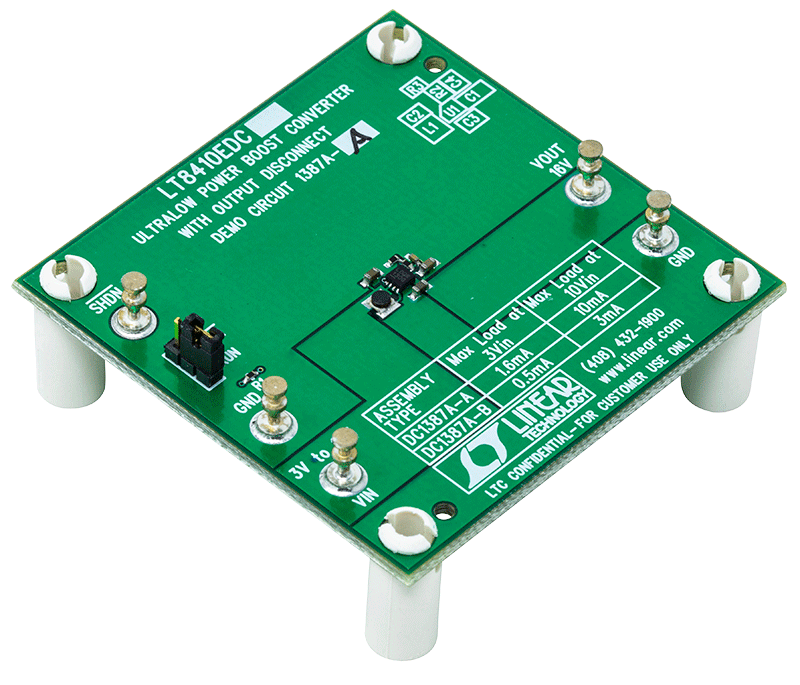

DC1387A-A
LT8410EDC Demo Board | 16VOUT @ 1.6mA (min), 3V to 10VIN Ultralow Power Boost Converter with Output Disconnect
Top
Overview
Product Details
Demonstration circuits 1387A-A and A-B are Ultralow Power Boost Converters with Output Disconnect featuring the LT8410 and LT8410-1. Both versions convert a 3V-10V source. The -A version supplies 1.6mA at 3VIN and the -B supplies 0.5mA
Both versions feature a low noise variable off-time and variable peak current control scheme, integrated Schottky diode and output disconnect function, ultralow quiescent current, built-in soft-start and overvoltage protection.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

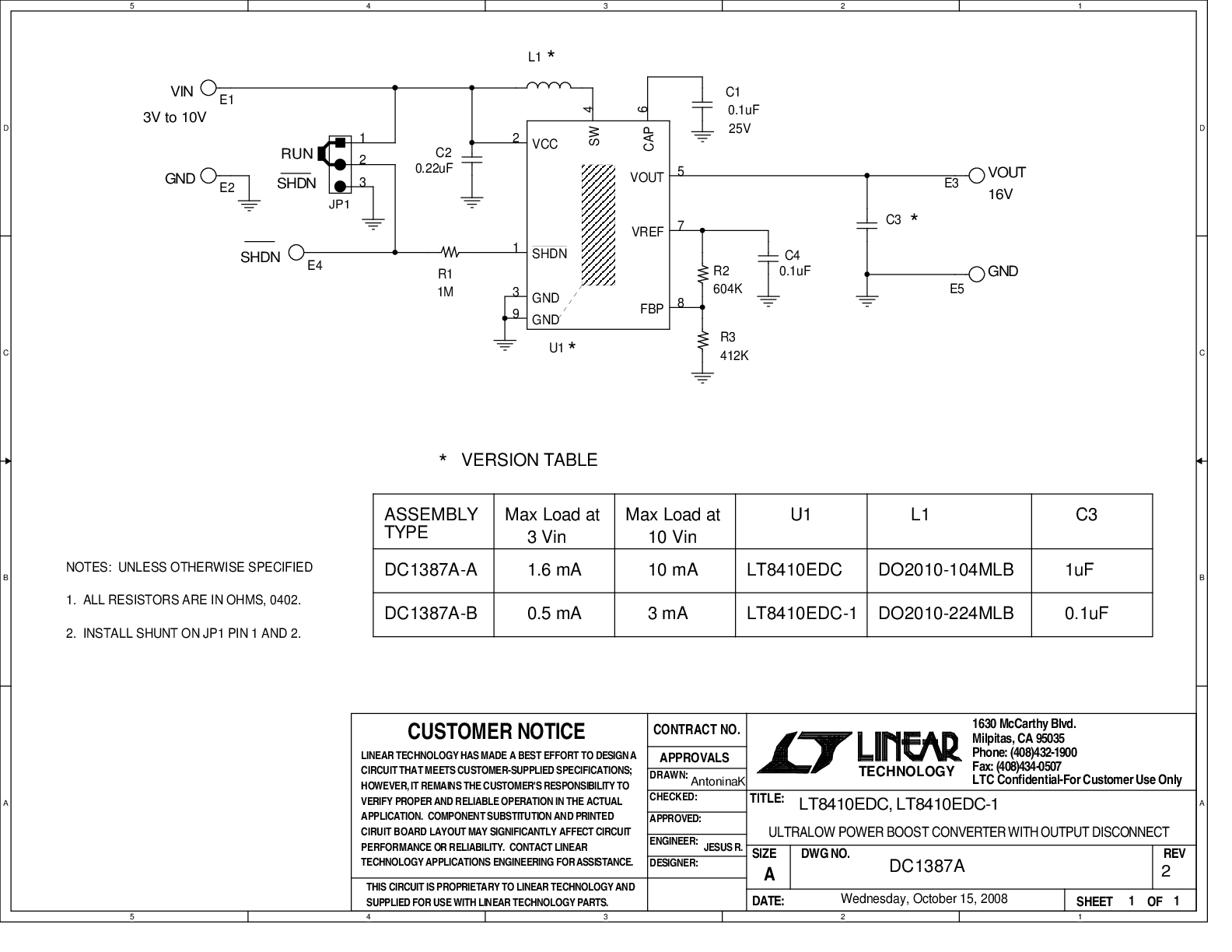

DC1387A - Schematic9/24/2009PDF29K
-
DC1387A - Demo Manual9/24/2009PDF193K
-
DC1387A - Design File9/24/2009ZIP501K
