LT8337
LT8337-1

28V, 5A Low I_Q Synchronous Step-Up Silent Switcher with PassThru

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Silent Switcher^® Architecture
Ultralow EMI Emissions
Optional Spread Spectrum Frequency Modulation
Integrated 28V, 5A Power Switches
Wide Input Voltage Range: 2.7V to 28V
Output Voltage Programmable Up to 26V

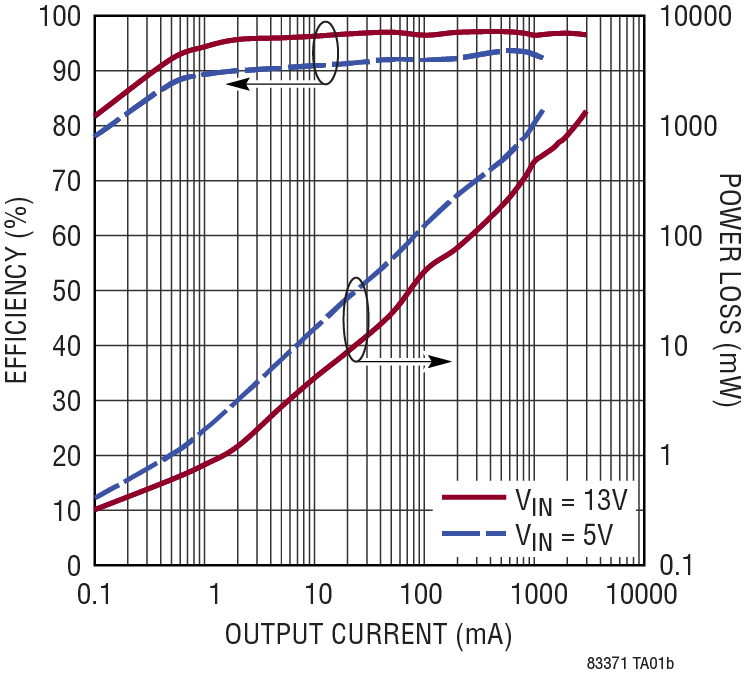

Low V_IN Pin Quiescent Current
0.3μA in Shutdown
4μA in Burst Mode^® Operation (LT8337)
15μA in PassThru^™ (LT8337)

100% Duty Cycle Capability for Synchronous MOSFET
External Compensation: Fast Transient Response (LT8337-1)
Power Good Monitor (LT8337)
Adjustable and Synchronizable: 300kHz to 3MHz
Pulse-Skipping or Burst Mode Operation at Light Load

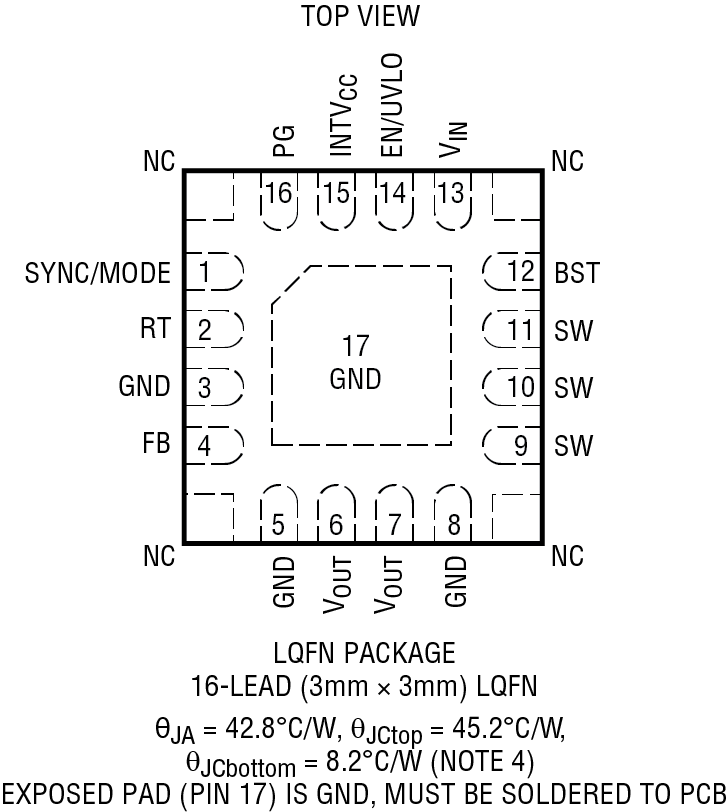

Small 16-Lead (3mm × 3mm) LQFN Package

Product Details

The LT8337/LT8337-1 is a low I_Q, synchronous step-up DC/DC converter. It features Silent Switcher architecture and optional spread spectrum frequency modulation (SSFM) to minimize EMI emissions while delivering high efficiencies at high switching frequencies.

The wide input/output voltage range, low V_IN pin quiescent current in Burst Mode operation, and 100% duty-cycle capability for the synchronous MOSFET in PassThru operation (V_IN > V_OUT) makes the LT8337/LT8337-1 ideally suited for battery-powered systems and general purpose step-up applications.

The LT8337/LT8337-1 integrates 28V, 5A power switches, operating at a fixed switching frequency programmable between 300kHz and 3MHz and synchronizable to an external clock. The LT8337/LT8337-1 features output soft-start and output overvoltage lockout.

The LT8337-1 allows external compensation via the V_C pin for fast transient response. The LT8337 offers an output power good flag via the PG pin.

APPLICATIONS

Battery-Powered Systems
General Purpose Step-Up

Product Categories

Power Management

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

EVAL-LT8337-1-AZ

LT8337-1 | 28V, 5A Low I_Q Synchronous Step-Up Silent Switcher with PassThru and V_C Pin

EVAL-LT8337-AZ

LT8337 |
28V, 5A Low I_Q Synchronous Step-Up Silent Switcher with PassThru

EVAL-LT8337-1-AZ

View Detailed Evaluation Kit Information

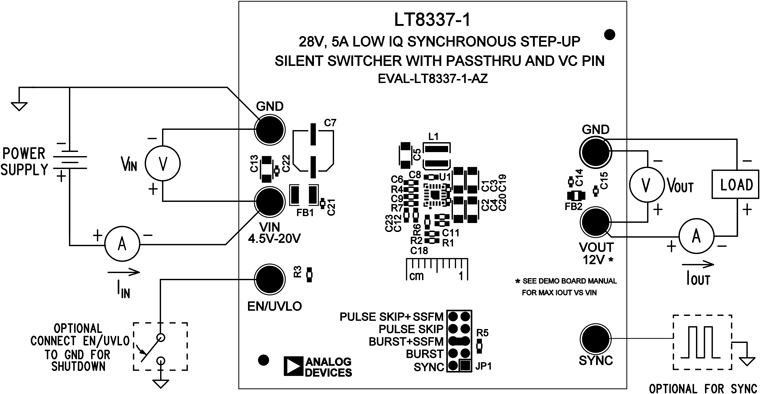

Evaluation circuit EVAL-LT8337-1-AZ features the LT8337-1 as a 2MHz low I_Q, synchronous boost converter with a 12V output from 4.5V to 12V input. When V_IN goes above the 12V output regulation setpoint, the LT8337-1 smoothly transitions between regulation and PassThru^™ mode. This evaluation circuit features Spread Spectrum Frequency Modulation (SSFM), Silent Switcher^® technology, and EMI filters to provide optimum EMI performance. The converter can output 1.2A or more depending on input voltage (see Figure 3 in the user guide for the Maximum Output Current vs V_IN curve). When placed in shutdown, the converter has very low quiescent current, ideal in automotive and other battery-powered applications. PULSE SKIP and BURST modes are selectable with jumper JP1. Each user-selectable option enables low quiescent current at light load and can also be combined with SSFM operation using JP1.

The LT8337-1 boost converter IC operates over an input range of 2.7V to 28V, suitable for automotive, telecom and industrial applications. It exhibits a low quiescent current of 23μA, making it ideal for battery-operated systems. The converter provides adjustable and synchronizable operation from 300kHz to 3MHz with SSFM option. At light load, either PULSE SKIP or low-ripple BURST mode can be selected to improve the efficiency. The LT8337-1 packs popular features such as soft-start, input undervoltage lockout, adjustable switching frequency and clock synchronization. The V_C pin grants easy accessibility to change loop compensation to complement most applications.

The LT8337-1 comes in a small 16-lead plastic LQFN package for optimal size and emissions. The LT8337-1 data sheet gives a complete description of the part, pins, features, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT8337-1-AZ.

Resources

EVAL-LT8337-AZ

View Detailed Evaluation Kit Information

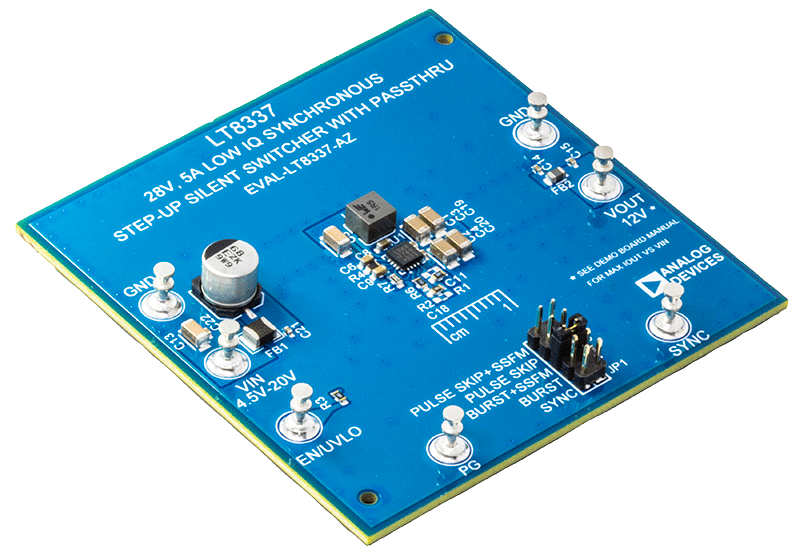

Evaluation circuit EVAL-LT8337-AZ features the LT8337 as a 2MHz low I_Q, synchronous boost converter with a 12V output from 4.5V to 12V input. When V_IN goes above the 12V output regulation setpoint, the LT8337 smoothly transitions between regulation and PassThru™ mode. This evaluation circuit features Spread Spectrum Frequency Modulation (SSFM), Silent Switcher® technology, and EMI filters to provide optimum EMI performance. The converter can output 1.2A or more depending on input voltage (see Figure 3 for the Maximum Output Current vs V_IN curve). When placed in shutdown, the converter has very low quiescent current, ideal in automotive and other battery-powered applications. PULSE SKIP and BURST modes are selectable with jumper JP1. Each user-selectable option enables low quiescent current at light load and can also be combined with SSFM operation using JP1.

The LT8337 boost converter IC operates over an input range of 2.7V to 28V, suitable for automotive, telecom and industrial applications. It exhibits a low quiescent current of 4μA, making it ideal for battery-operated systems. The converter provides adjustable and synchronizable operation from 300kHz to 3MHz with SSFM option. At light load, either PULSE SKIP or low-ripple BURST mode can be selected to improve the efficiency. The LT8337 packs popular features such as soft-start, input undervoltage lockout, adjustable switching frequency and clock synchronization. The Power Good (PG) flag indicates when the output voltage is in regulation.

The LT8337 comes in a small 16-lead plastic LQFN package for optimal size and emissions. The LT8337 data sheet gives a complete description of the part, pins, features, operation, and application information. The data sheet must be read in conjunction with the demo manual for EVAL-LT8337-AZ.
