LT8228

Bidirectional Synchronous 100V Buck/Boost Controller with Reverse Supply, Reverse Current and Fault Protection

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT8228 - Step-Down (Buck) Regulators Download 8.9 KB
Part Models 12
1ku List Price Starting From $7.77
Features
  • Bidirectional Voltage or Current Regulation
  • Bidirectional Reverse Current Protection
  • Input and Output Negative Voltage Protection to –40V
  • Bidirectional Inrush Current Limit and Boost Output Short Protection
  • Switching MOSFET Short Detection and Protection
  • 10V Gate Drive
  • Wide Input and Output Voltage Range Up to 100V
  • Feedback Voltage Tolerance: ±1.0% Over Temperature
  • Bidirectional Programmable Current Regulation and Monitoring
  • Extensive Self-Test, Diagnostics and Fault Reporting
  • Programmable Fixed or Synchronizable Switching Frequency: 80kHz to 600kHz
  • Programmable Soft-Start and Dynamic Current Limit
  • Masterless, Fault Tolerant Current Sharing

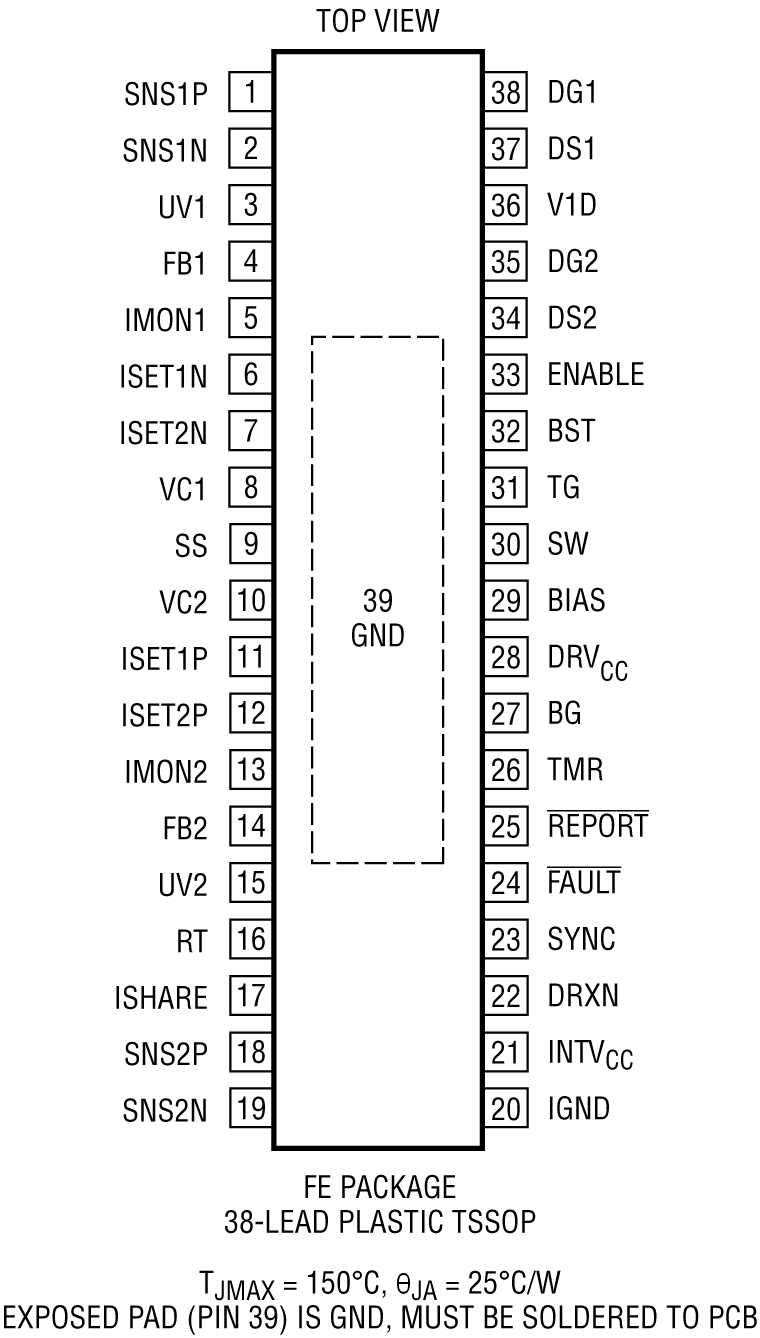

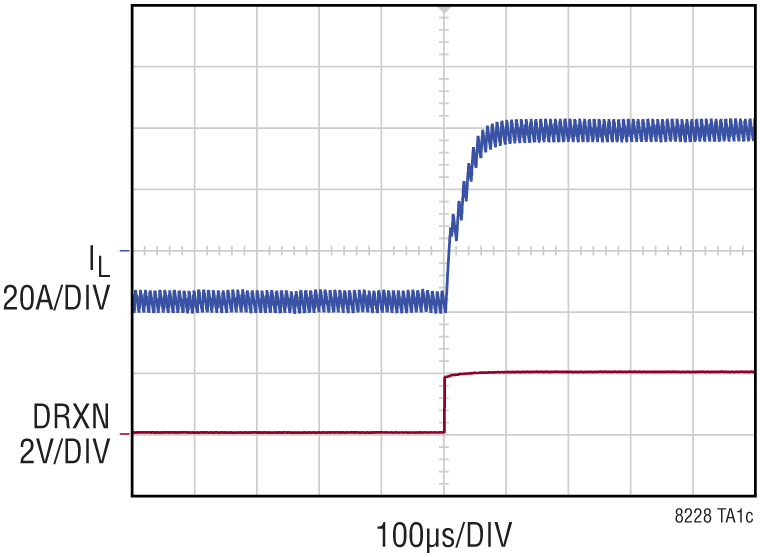

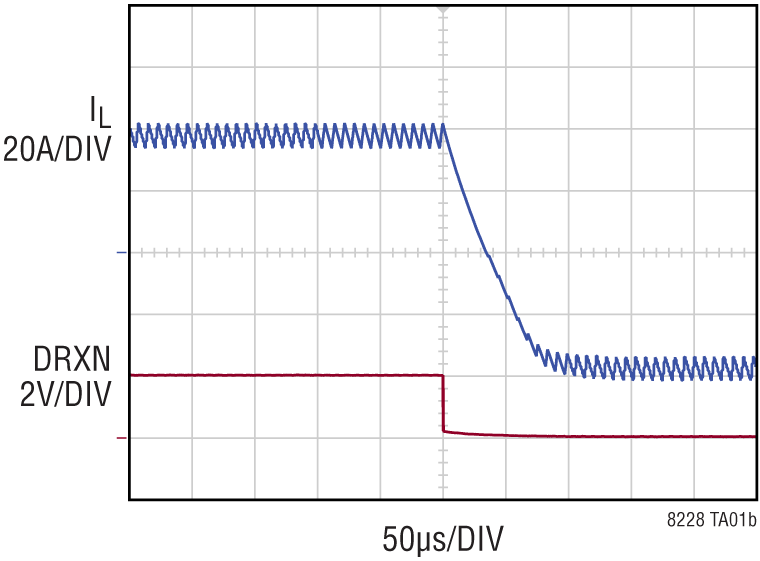

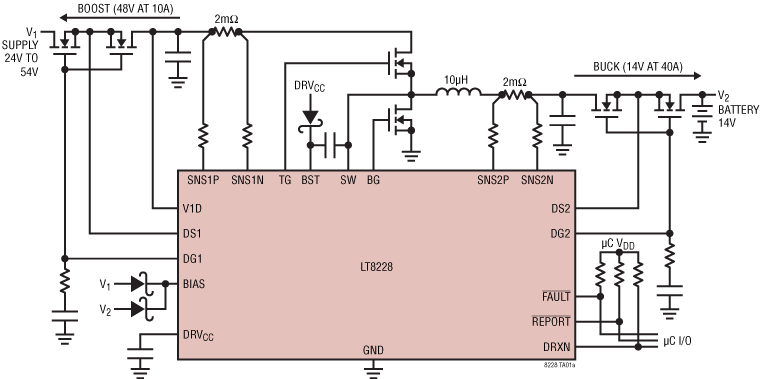

Additional Details
show more Icon

The LT8228 is a 100V bidirectional constant-current or constant-voltage synchronous buck or boost controller with independent compensation network. The direction of the power flow is automatically determined by the LT8228 or externally controlled. The input and output protection MOSFETs protect against negative voltages, control inrush currents and provide isolation between terminals under fault conditions such as switching MOSFET shorts. In buck mode, the protection MOSFETs at the V1 terminal prevents reverse current. In boost mode, the same MOSFETs regulate the output inrush current and protects itself with an adjustable timer circuit breaker.

The LT8228 offers bidirectional input and output current limit as well as independent current monitoring. Masterless, fault tolerant current sharing allows any LT8228 in parallel to be added or subtracted while maintaining current sharing accuracy. Internal and external fault diagnostics and reporting are available via the FAULT and REPORT pins. The LT8228 is available in a 38-lead TSSOP package.

Applications

  • Dual Battery Automotive and Industrial Systems
  • High Power System Backup and Supply Stabilization
  • “N+1” Redundant, High Reliability Power Supplies
  • Power Interrupt Protection System
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT8228 - Step-Down (Buck) Regulators Download 8.9 KB
Part Models 12
1ku List Price Starting From $7.77
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT8228

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Informational
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/14/2019
English

LT8228: Bidirectional Synchronous 100V Buck/Boost Controller with Reverse Supply, Reverse Current and Fault Protection Data Sheet (Rev.C)

Open PDF File

redirect
6.2 M
download

Download PDF

PDF Vector

PDF

UPDATED 11/14/2019
Japanese

LT8228: 逆電源、逆電流、および障害保護回路を内蔵した双方向同期整流式100V 降圧／昇圧コントローラ データシート

Open PDF File

redirect
3.71 M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 11/19/2019
English
DC2351A - Demo Manual redirect icon

835.9 K

download

Download PDF

Informational

1

PDF Vector

URL

UPDATED 06/15/2023
English
Industrial Battery Powered Solutions redirect icon

Technical Articles

3

PDF Vector

HTML

UPDATED 02/01/2020
English
New IC Eases the Design of 48 V/12 V Dual Battery Automotive Systems redirect icon

PDF Vector

HTML

UPDATED 02/01/2020
Chinese
新型IC简化48 V/12 V双电池汽车系统的设计 redirect icon

PDF Vector

HTML

UPDATED 02/01/2020
Japanese
デュアルバッテリの車載システムに最適な昇降圧コントローラ、48V/12Vを使用する設計が容易に redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Book & eBook 1

Power You Can Trust: Achieving Efficient Battery-Powered Solutions

Solutions Bulletin & Brochure 1

Industrial Battery-Powered Solutions

Analog Dialogue 2

Smart Battery Backup for Uninterrupted Energy Part 2: BBU Microcontroller Functions and Operations
Smart Battery Backup for Uninterrupted Energy Part 1: Electrical and Mechanical Design

Webcast 1

Powering Tomorrow's Data Centers: Battery Backup Unit Design and Challenges

Video

1

Thumbnail Image

Video

2019-12-05

01:00

LT8228 - 100V Bidirectional Buck/Boost Controller with Protection

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8228EFE#PBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228EFE#TRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228HFE#PBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228HFE#TRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228HFE#WPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228HFE#WTRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228IFE#PBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228IFE#TRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228IFE#WPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228IFE#WTRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228JFE#PBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8228JFE#TRPBF 38-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8228EFE#PBF

PRODUCTION

LT8228EFE#TRPBF

PRODUCTION

LT8228HFE#PBF

PRODUCTION

LT8228HFE#TRPBF

PRODUCTION

LT8228HFE#WPBF

LT8228HFE#WTRPBF

LT8228IFE#PBF

PRODUCTION

LT8228IFE#TRPBF

PRODUCTION

LT8228IFE#WPBF

PRODUCTION

LT8228IFE#WTRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Mar 20, 2020

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8228EFE#PBF

PRODUCTION

LT8228EFE#TRPBF

PRODUCTION

LT8228HFE#PBF

PRODUCTION

LT8228HFE#TRPBF

PRODUCTION

LT8228IFE#PBF

PRODUCTION

LT8228IFE#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8228EFE#PBF

PRODUCTION

LT8228EFE#TRPBF

PRODUCTION

LT8228HFE#PBF

PRODUCTION

LT8228HFE#TRPBF

PRODUCTION

LT8228HFE#WPBF

LT8228HFE#WTRPBF

LT8228IFE#PBF

PRODUCTION

LT8228IFE#TRPBF

PRODUCTION

LT8228IFE#WPBF

PRODUCTION

LT8228IFE#WTRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Mar 20, 2020

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8228EFE#PBF

PRODUCTION

LT8228EFE#TRPBF

PRODUCTION

LT8228HFE#PBF

PRODUCTION

LT8228HFE#TRPBF

PRODUCTION

LT8228IFE#PBF

PRODUCTION

LT8228IFE#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Software & Part Ecosystem

Evaluation Kits 1

reference details image

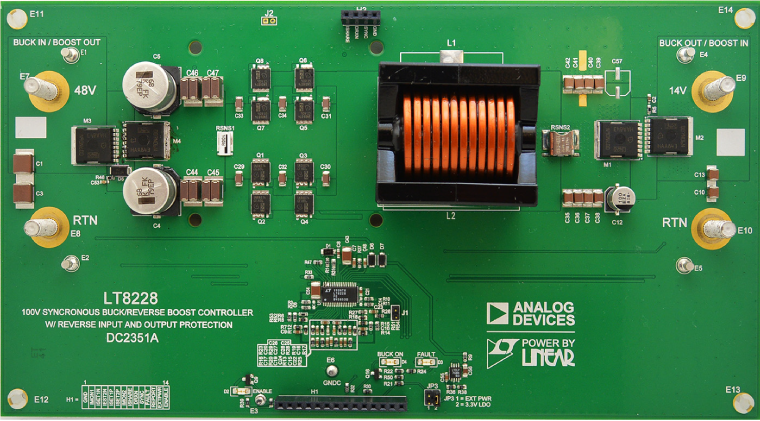

DC2351A

LT8228 Bidirectional Demo Board | 36V ≥ V1 ≥ 56V; 8V ≥ V2 ≥ 14V; V1 Max IOUT = 7A, V2 Max IOUT = 35A

zoom

DC2351A

LT8228 Bidirectional Demo Board | 36V ≥ V1 ≥ 56V; 8V ≥ V2 ≥ 14V; V1 Max IOUT = 7A, V2 Max IOUT = 35A

download icon

Download

 print icon

Print
DC2351A
LT8228 Bidirectional Demo Board | 36V ≥ V1 ≥ 56V; 8V ≥ V2 ≥ 14V; V1 Max IOUT = 7A, V2 Max IOUT = 35A
Buy Now View Details

Product Detail

Demonstration circuit 2351A is a high voltage, high efficiency synchronous buck or boost DC/DC converter. It is designed to have 36V to 56V on one side and 8V to 14V on the other side. It can supply a 35A maximum output current in buck mode and delivers 7A of current in boost mode. The demo board features the LT8228EFE controller. This part can seamlessly transition from bucking to boosting. With built-in circuit breaker function and other protection features, the LT8228 is ideal for high reliability systems requiring N+1 redundancy or other protections in industrial, automotive, medical, military, and avionics applications.

The DC2351A is designed to be paralleled with other DC2351A boards to increase the total output current. With adequate heatsinking or airflow, the output current can be increased.

Resources

pdf icon

PDF

DC2351A - Demo Manual Download

835.9 K

pdf icon

ZIP

DC2351A - Design Files Download

5.48 M

pdf icon

PDF

DC2351A - Schematic Download

143.15 K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC2351A

LT8228 Bidirectional Demo Board | 36V ≥ V1 ≥ 56V; 8V ≥ V2 ≥ 14V; V1 Max IOUT = 7A, V2 Max IOUT = 35A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT8228 - Step-Down (Buck) Regulators Download

8.9 K

Reference Designs 1

Figure 1. CN0556 Simplified Block Diagram

CN0556

Programmable High Current and Voltage Source/Sink Power Supply

zoomopens a dialog

CN0556

Programmable High Current and Voltage Source/Sink Power Supply

download icon

Download

 print icon

Print
CN0556

Circuits from the lab

tooltip Info:Circuits from the lab
Programmable High Current and Voltage Source/Sink Power Supply

Features and Benefits

  • High Efficiency Buck or Boost DC-DC Converter
  • 14 V to 56 V Buck Input Voltage and 8 V to 14 V Boost Input Voltage
  • Fully Programmable Bidirectional Control and Monitoring
  • Seamless Buck-to-Boost Transition and Vice Versa
  • Buck Mode: 35 A Maximum Output Current
  • Boost Mode: 10 A Maximum Output Current
  • Undervoltage, Overvoltage, Overcurrent, and Reverse Current Protection
View Detailed Reference Design external link
