LT6105

Precision, Rail-to-Rail Input Current Sense Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT6105 - Specialty Amplifiers Download 1.14 KB LTspice LT6105 Demo Circuit - Unidirectional Current Sense Amplifier for Negative Supplies Download 2.00KB LTspice LT6105 Demo Circuit - Current Sense Monitor for +15V & -15V Supplies (0A to 2A) Download 3.00KB LTspice LT6105 Demo Circuit - Unidirectional Current Sense Amplifier for a 1V Supply (0A to 10A) Download 2.00KB
Part Models 12
1ku List Price Starting From $1.22
Features
  • Very Wide, Over-the-Top®, Input Common Mode Range
      - Extends 44V Above V – (Independent of V +)
      - Extends –0.3V Below V –
  • Wide Power Supply Range: 2.85V to 36V
  • Input Offset Voltage: 300µV Maximum
  • Gain Accuracy: 1% Max
  • Gain Configurable with External Resistors
  • Operating Current: 150µA
  • Slew Rate: 2V/µs
  • Sense Input Current When Powered Down: 1nA
  • Full-Scale Output Current: 1mA Minimum
  • Operating Temperature Range –40°C to 125°C
  • Available in 2mm × 3mm DFN and 8-Lead MSOP Packages
Additional Details
show more Icon

The LT6105 is a micropower, precision current sense amplifier with a very wide input common mode range. The LT6105 monitors unidirectional current via the voltage across an external sense resistor. The input common mode range extends from –0.3V to 44V, with respect to the negative supply voltage (V –). This allows the LT6105 to operate as a high side current sense monitor or a low side current sense monitor. It also allows the LT6105 to monitor current on a negative supply voltage, as well as continuously monitor a battery from full charge to depletion. The inputs of LT6105 can withstand differential voltages up to ±44V, which makes it ideal for monitoring a fuse or MOSFET switch.

Gain is configured with external resistors from 1V/V to 100V/V. The input common mode rejection and power supply rejection are in excess of 100dB and the input offset voltage is less than 300µV. A minimum slew rate of 2V/µs ensures fast response to unexpected current changes.

The LT6105 can operate from an independent power supply of 2.85V to 36V and draws only 150µA. When V + is powered down, the sense pins are biased off. This prevents loading of the monitored circuit, irrespective of the sense voltage. The LT6105 is available in a 6-lead DFN and 8-lead MSOP package.

Applications
  • High Side or Low Side Current Sensing
  • Current Monitoring on Positive or Negative Supply Voltages
  • Battery Monitoring
  • Fuse/MOSFET Monitoring
  • Automotive
  • Power Management
  • Portable Test/Measurement Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT6105 - Specialty Amplifiers Download 1.14 KB LTspice LT6105 Demo Circuit - Unidirectional Current Sense Amplifier for Negative Supplies Download 2.00KB LTspice LT6105 Demo Circuit - Current Sense Monitor for +15V & -15V Supplies (0A to 2A) Download 3.00KB LTspice LT6105 Demo Circuit - Unidirectional Current Sense Amplifier for a 1V Supply (0A to 10A) Download 2.00KB
Part Models 12
1ku List Price Starting From $1.22
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT6105

Documentation

11
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/15/2008
English

LT6105: Precision, Rail-to-Rail Input Current Sense Amplifier Data Sheet

Open PDF File

redirect
374.00K
download

Download PDF

PDF Vector

PDF

UPDATED 03/12/2008
Japanese

LT6105: 入力範囲が拡張された高精度の電流センス･アンプ データシート

Open PDF File

redirect
2.00M
download

Download PDF

Design Note

4

PDF Vector

PDF

UPDATED 09/11/2008
English
DN451 - Current Sense Amp Inputs Work from –0.3V to 44V Independent of Supply redirect icon

84.00K

download

Download PDF

PDF Vector

PDF

UPDATED 03/11/2009
Chinese
DN451 - 电流检测放大器输入的工作范围从 - 0.3V 至 44V 而不受电源的影响 redirect icon

691.00K

download

Download PDF

PDF Vector

PDF

UPDATED 12/16/2014
Japanese
DN451 - 電源には関係なく－0.3V～44Vで動作する電流検出アンプの入力 redirect icon

558.00K

download

Download PDF

PDF Vector

HTML

UPDATED 10/01/2008
English
Design Note 451: Current Sense Amp Inputs Work from –0.3V to 44V Independent of Supply redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1192A - Demo Manual redirect icon

398.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R417 Reliability Data redirect icon

31.47 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 03/01/2008
English
Versatile Current Sense Amplifiers Offer Rail-to-Rail Input, 150°C Operating Temperature redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 12/01/2005
English
AN-105: Current Sense Circuit Collection Making Sense of Current redirect icon

PDF Vector

HTML

UPDATED 12/01/2005
Japanese
AN-105: 電流センス（検出）回路集 電流に対するセンスを養う redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 7
show more Icon

Data Sheet 1

LT6105: Precision, Rail-to-Rail Input Current Sense Amplifier Data Sheet

Reliability Data 1

R417 Reliability Data

User Guide 1

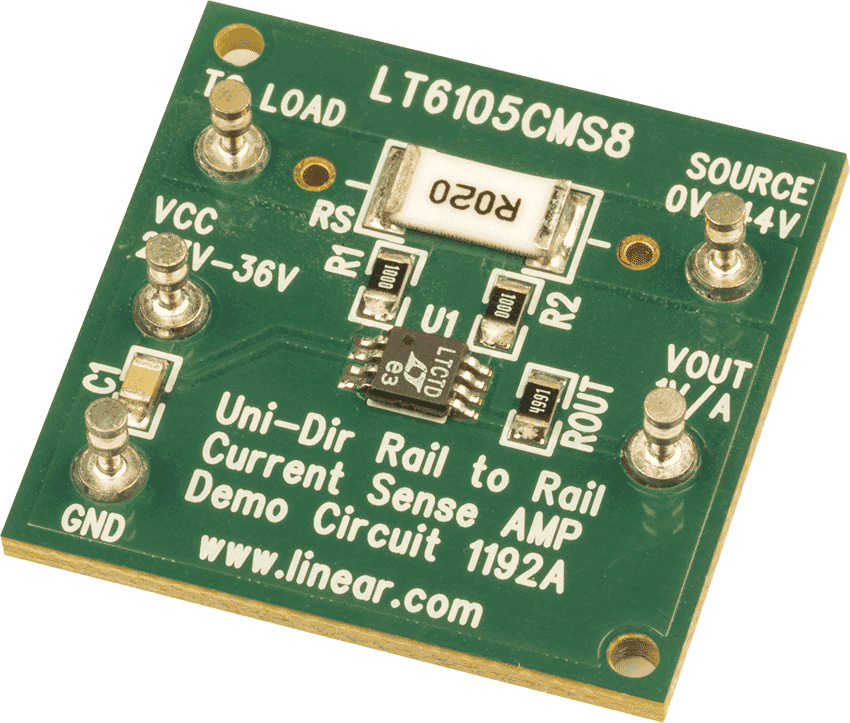

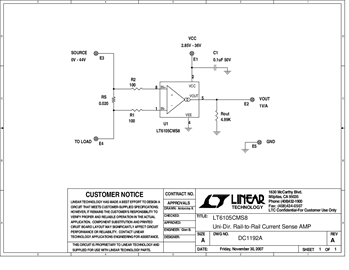

DC1192A - Demo Manual
