LT5560

PRODUCTION

LT5560

0.01MHz to 4GHz Low Power Active Mixer

PRODUCTION

Part Details

Low Cost 900MHz Downconverting Mixer slide

IFOUT and IM3 Levels vs RF Input Power slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.98

Features

Up or Downconverting Applications
Noise Figure: 9.3dB Typical at 900MHz Output
Conversion Gain: 2.4dB Typical
IIP3: 9dBm Typical at I_CC = 10mA
Adjustable Supply Current: 4mA to 13.4mA
Low LO Drive Level: –2dBm
Single-Ended or Differential LO
High Port-to-Port Isolation
Enable Control with Low Off-State Leakage Current
Single 2.7V to 5V Supply
Small 3mm × 3mm DFN Package

Additional Details

The LT5560 is a low power, high performance broadband active mixer. This double-balanced mixer can be driven by a single-ended LO source and requires only –2dBm of LO power. The balanced design results in low LO leakage to the output, while the integrated input ampliﬁer provides excellent LO to IN isolation. The signal ports can be impedance matched to a broad range of frequencies, which allows the LT5560 to be used as an up- or down-conversion mixer in a wide variety of applications.

The LT5560 is characterized with a supply current of 10mA; however, the DC current is adjustable, which allows the performance to be optimized for each application with a single resistor. For example, when biased at its maximum supply current (13.4mA), the typical upconverting mixer IIP3 is +10.8dBm for a 900MHz output.

Applications

Portable Wireless
CATV/DBS Receivers
WiMAX Radios
PHS Basestations
RF Instrumentation
Microwave Data Links
VHF/UHF 2-Way Radios

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.98

Documentation

Technical Documents 5

LT5560: 0.01MHz to 4GHz Low Power Active Mixer Data Sheet 04/10/2006

R409 Reliability Data 03/23/2018

DC991A - Demo Manual 09/24/2009

DC1027A - Demo Manual 09/24/2009

DC963B - Demo Manual 09/24/2009

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT5560EDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT5560EDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LT5560EDD#PBF
Pin/Package Drawing
8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT5560EDD#TRPBF
Pin/Package Drawing
8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Companion Parts 1

Parts	Product Life Cycle	Description
Integer-N PLL1
LTC6946	LAST TIME BUY	Ultralow Noise and Spurious 0.37GHz to 6.39GHz Integer-N Synthesizer with Integrated VCO

Alternative Parts 1

Parts	Product Life Cycle	Description
LT5526	PRODUCTION	High Linearity, Low Power Downconverting Mixer

Evaluation Kit

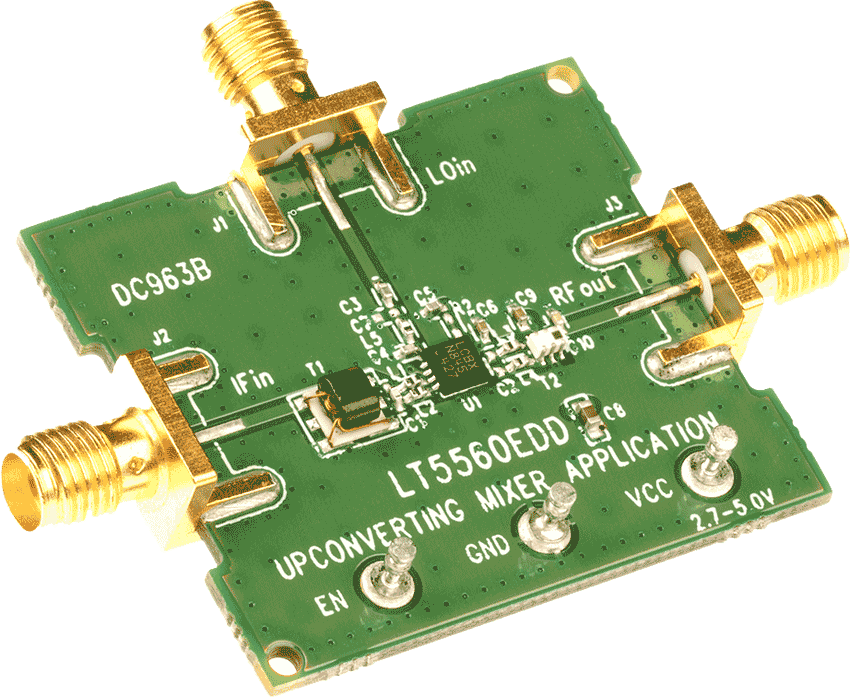

DC963B

LT5560EDD | Low Power Up-Converting Mixer, Input 45-190MHz, Output 850-935MHz.

LT5560EDD | Low Power Up-Converting Mixer, Input 45-190MHz, Output 850-935MHz.

Download

DC963B

LT5560EDD | Low Power Up-Converting Mixer, Input 45-190MHz, Output 850-935MHz.

Buy Now View Details

Product Detail

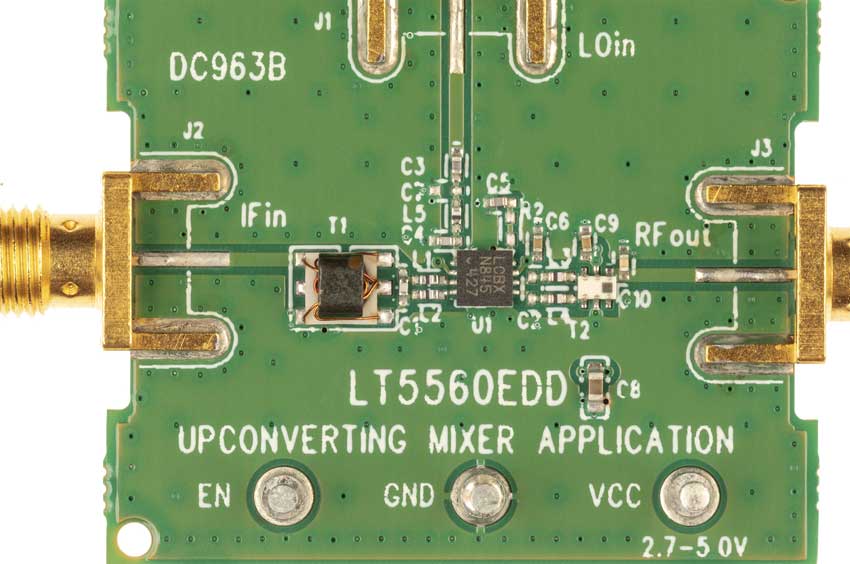

DC963B: Demo Board for the LT5560 0.01MHz to 4GHz Low Power Active Mixer.

Resources

PDF

DC963B - Demo Manual

356.00K

ZIP

DC963B - Design File

614.00K

PDF

DC963B - Schematic

23.00K

DC1027A

LT5560EDD | Low Power Down-Conversion Mixer, Input 79-300MHz, Output 3-67MHz.

DC1027A

LT5560EDD | Low Power Down-Conversion Mixer, Input 79-300MHz, Output 3-67MHz.

Buy Now View Details

Product Detail

DC1027A - Demo Board for LT5560 0.01MHz to 4GHz Low Power Active Mixer

Resources

PDF

DC1027A - Demo Manual

0.00M

ZIP

DC1027A - Design File

606.00K

PDF

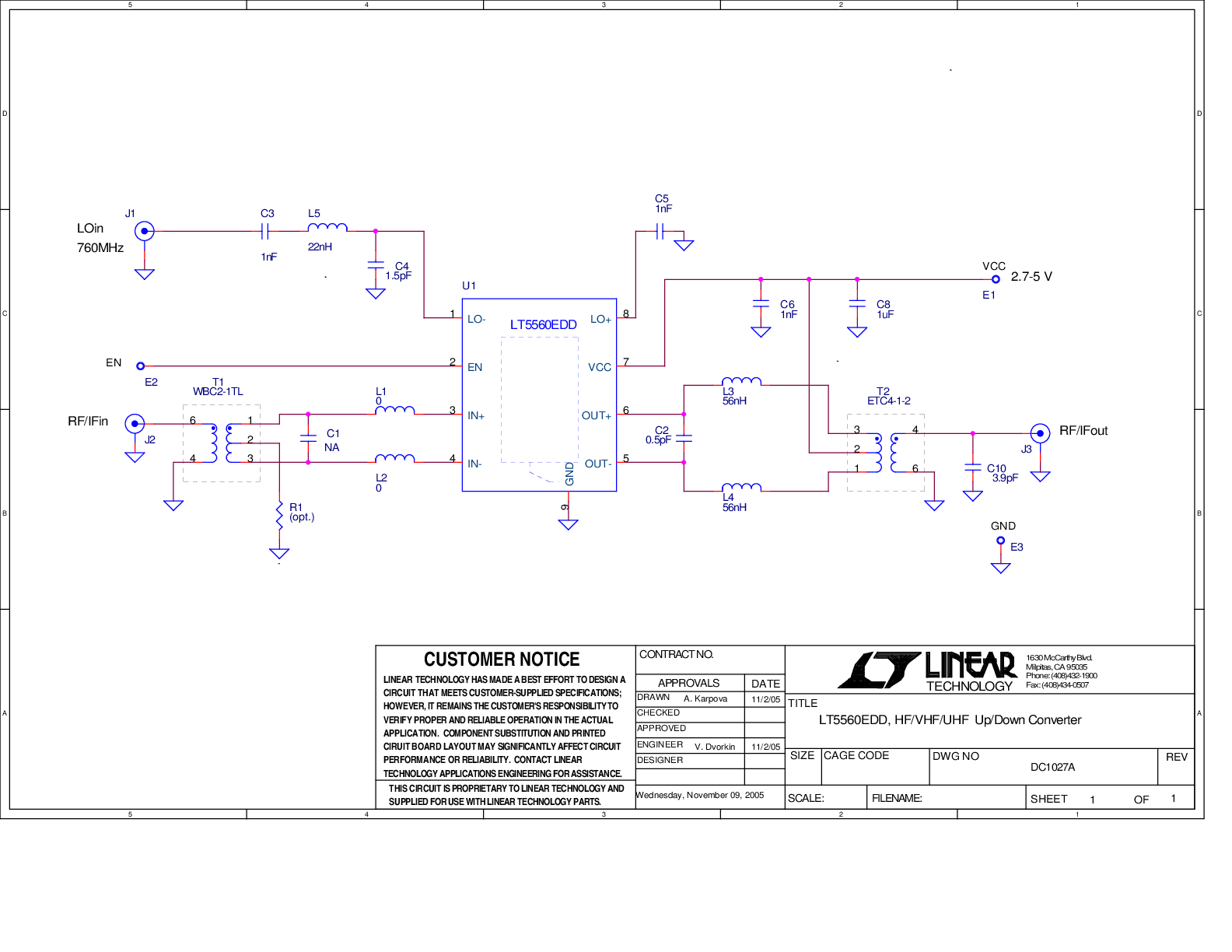

DC1027A - Schematic

25.00K

DC991A

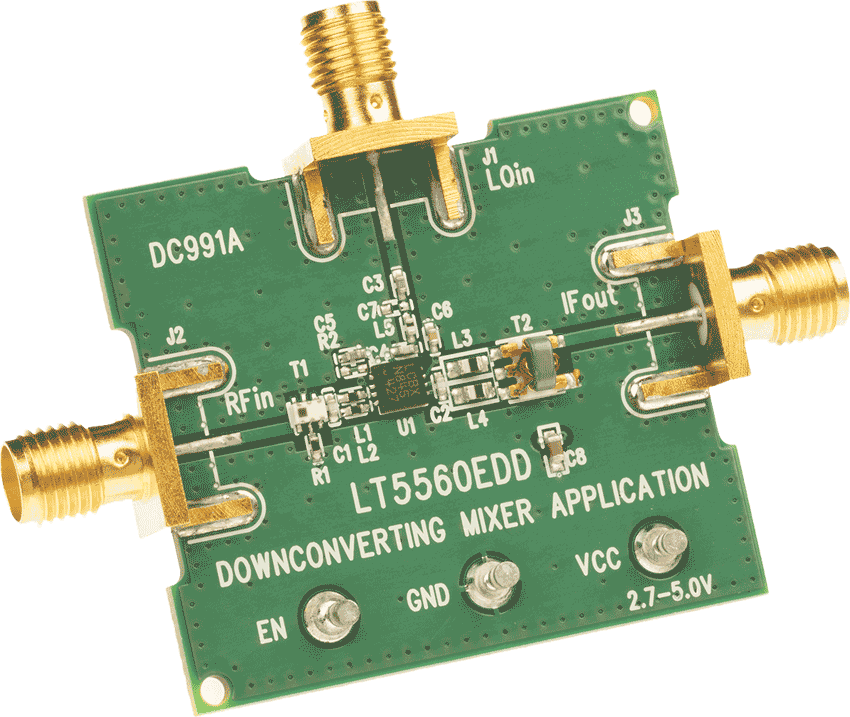

LT5560EDD | Low Power Down-Converting Mixer, RFin = 660-1150MHz, IFout = 90-190M

LT5560EDD | Low Power Down-Converting Mixer, RFin = 660-1150MHz, IFout = 90-190M

Download

DC991A

LT5560EDD | Low Power Down-Converting Mixer, RFin = 660-1150MHz, IFout = 90-190M

Buy Now View Details

Product Detail

DC991A: Demo Board for the LT5560 0.01MHz to 4GHz Low Power Active Mixer.

Resources

PDF

DC991A - Schematic

23.00K

PDF

DC991A - Demo Manual

1.00M

ZIP

DC991A - Design File

669.00K

DC963B

LT5560EDD | Low Power Up-Converting Mixer, Input 45-190MHz, Output 850-935MHz.

DC1027A

LT5560EDD | Low Power Down-Conversion Mixer, Input 79-300MHz, Output 3-67MHz.

DC991A

LT5560EDD | Low Power Down-Converting Mixer, RFin = 660-1150MHz, IFout = 90-190M

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
