Overview

Features and Benefits

  • Wide RF Output Frequency Range: 1.3GHz to 2.3GHz
  • 15.9dBm Typical Input IP3 at 1.9GHz
  • On-Chip RF Output Transformer
  • No External LO or RF Matching Required
  • Single-Ended LO and RF Operation
  • Integrated LO Buffer: –5dBm Drive Level
  • Low LO to RF Leakage: – 41dBm Typical
  • Wide IF Frequency Range: DC to 400MHz
  • Enable Function with Low Off-State Leakage Current
  • Single 5V Supply
  • Small 16-Lead QFN Plastic Package

Product Details

The LT5520 mixer is designed to meet the high linearity requirements of wireless and cable infrastructure transmission applications. A high-speed, internally matched, LO amplifier drives a double-balanced mixer core, allowing the use of a low power, single-ended LO source. An RF output transformer is integrated, thus eliminating the need for external matching components at the RF output, while reducing system cost, component count, board area and system-level variations. The IF port can be easily matched to a broad range of frequencies for use in many different applications.

The LT5520 mixer delivers 15.9dBm typical input 3rd order intercept point at 1.9GHz with IF input signal levels of –10dBm. The input 1dB compression point is typically 4dBm. The IC requires only a single 5V supply.

Applications

  • Wireless Infrastructure
  • Cable Downlink Infrastructure
  • Point-to-Point Data Communications
  • High Linearity Frequency Conversion

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

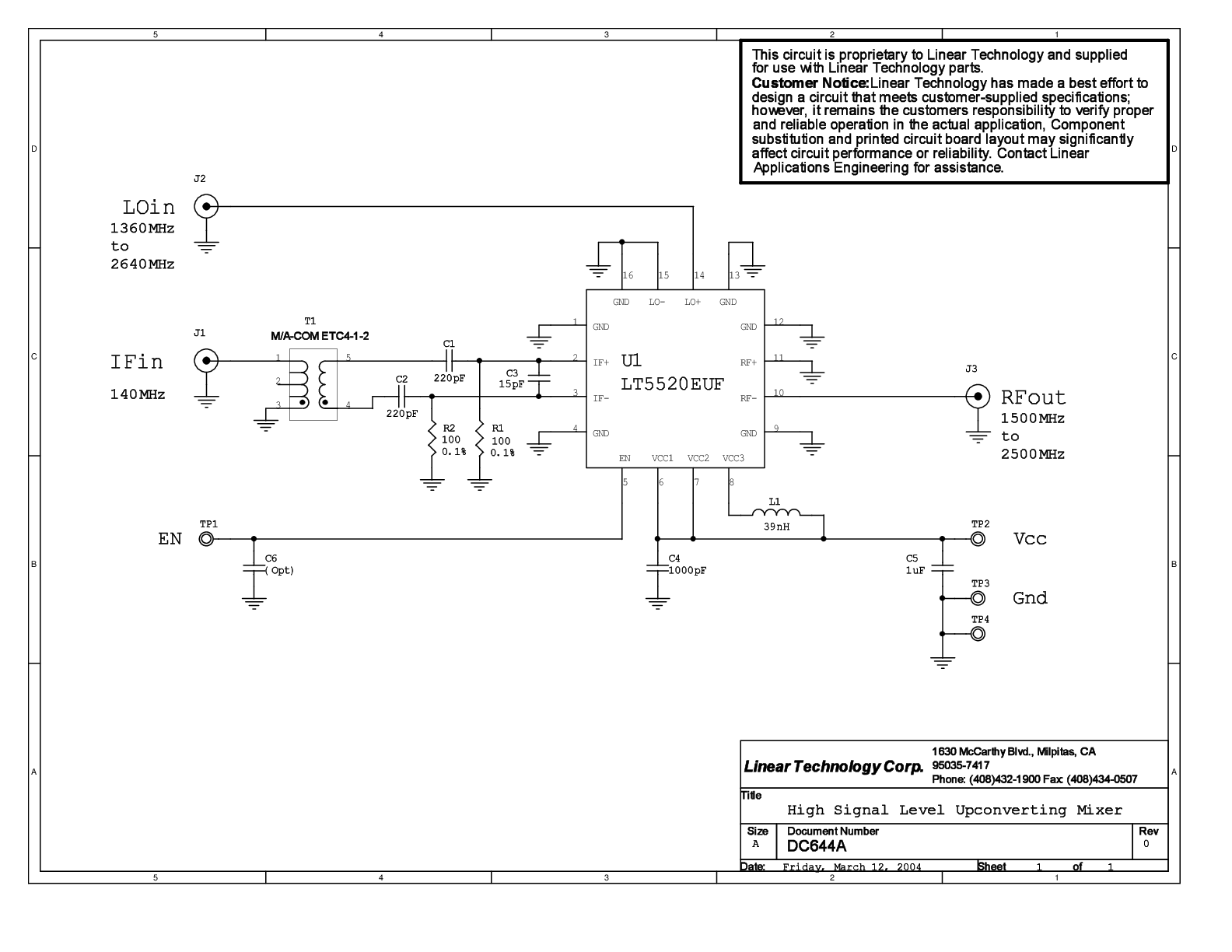

Evaluation Kits (1)

Tools & Simulations

Design Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Product Recommendations

LT5520 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT5520EUF#PBF Material Declaration Reliability Data 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LT5520EUF#TRPBF Material Declaration Reliability Data 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
Wafer Fabrication Data R409 Reliability Data
