Overview

Features and Benefits

  • RF Input Frequency Range: 40MHz to 900MHz

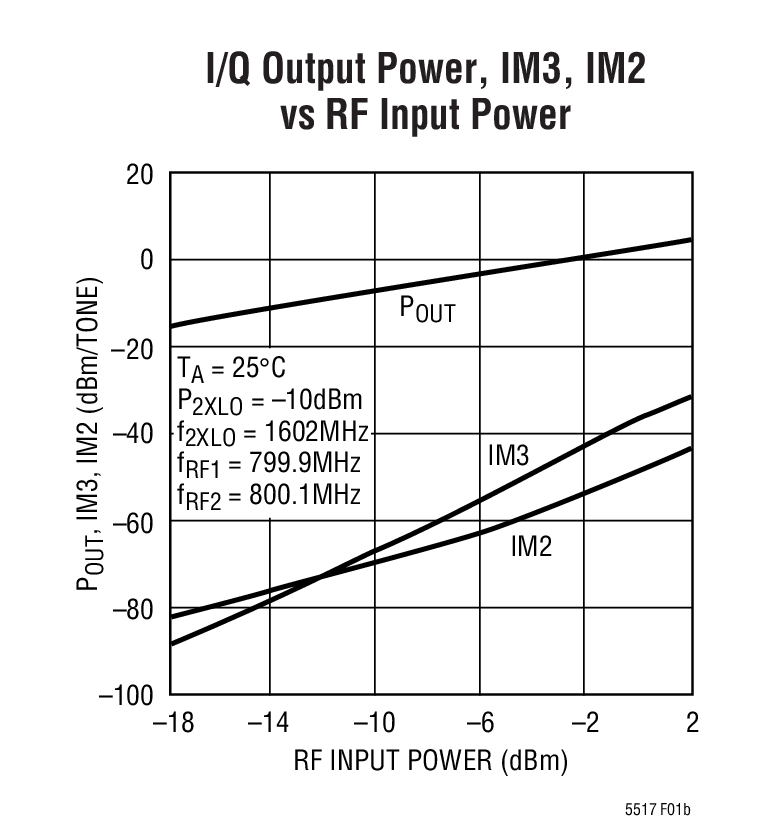

  • High IIP3: 21dBm at 800MHz
  • High IIP2: 58dBm at 800MHz
  • I/Q Gain Mismatch: 0.3dB Max
  • I/Q Phase Mismatch: 0.7°
  • Noise Figure: 12.4dB at 800MHz
  • Conversion Gain: 3.3dB at 800MHz
  • Baseband Bandwidth: 130MHz
  • Single Ended, 50Ω Matched 2XLO Input
  • Shutdown Mode

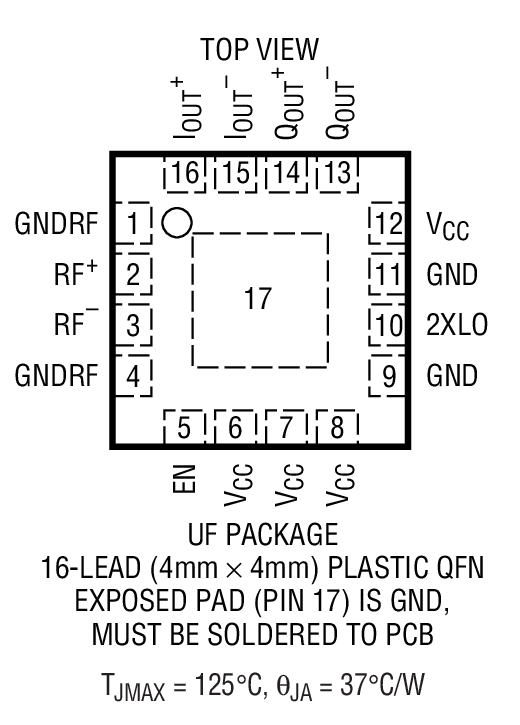

  • 16-Lead QFN (4mm × 4mm) Package with Exposed Pad

Product Details

The LT5517 is a 40MHz to 900MHz quadrature demodulator optimized for high linearity receiver applications where high dynamic range is important. It is suitable for communications receivers where an RF or IF signal is directly converted into I and Q baseband signals with a bandwidth up to 130MHz. The LT5517 incorporates balanced I and Q mixers, LO buffer amplifiers and a precision, broadband quadrature generator derived from an on-chip divide-by-two circuit.

The superior linearity and low noise performance of the LT5517 is achieved across its full frequency range. A well-balanced divide-by-two circuit generates precision quadrature LO carriers to drive the I mixer and the Q mixer. Consequently, the outputs of the I-channel and the Q-channel are well matched in amplitude, and their phases are 90° apart. The LT5517 also provides excellent 50Ω impedance matching at the 2XLO port across its entire frequency range.

Applications

  • Wireless Infrastructure
  • High Linearity Direct Conversion I/Q Receiver
  • High Linearity I/Q Demodulator

Product Categories

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

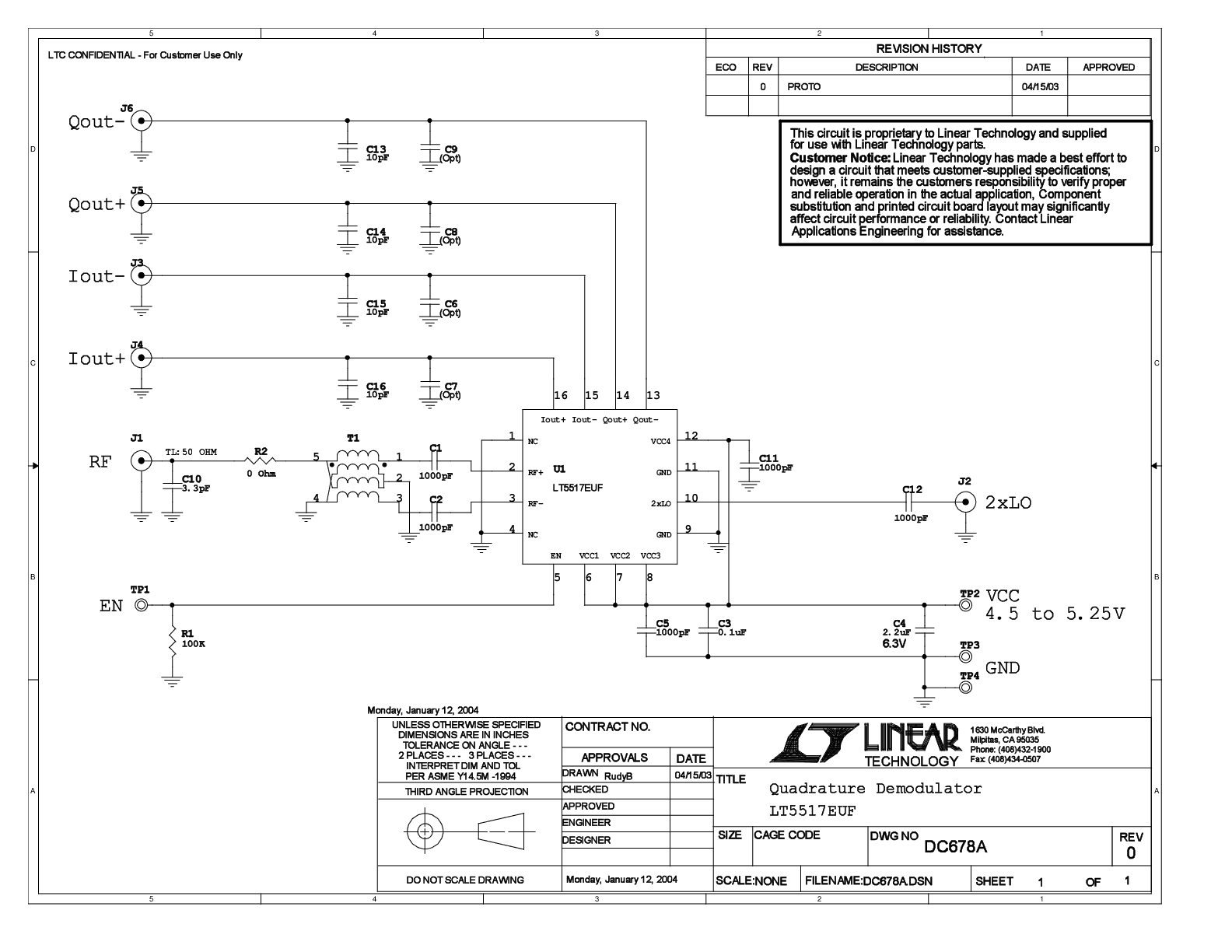

Evaluation Kits (1)

Tools & Simulations

Design Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Product Recommendations

LT5517 Companion Parts

Recommended Related Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT5517EUF#PBF Material Declaration Reliability Data 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LT5517EUF#TRPBF Material Declaration Reliability Data 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
Wafer Fabrication Data R409 Reliability Data
