Features and Benefits
- Dual Differential Ampliﬁer with 10MHz Lowpass Filters
- 4th Order Filters
- Approximates Chebyshev Response
- Guaranteed Phase and Gain Matching
- Resistor-Programmable Differential Gain
- 82dB Signal-to-Noise (3V Supply, 2VP-P Output)
- Low Distortion, 2VP-P, 800Ω Load
- 1MHz: 88dBc 2nd, 97dBc 3rd
- 5MHz: 74dBc 2nd, 77dBc 3rd
- Speciﬁed for Operation with 3V, 5V and ±5V Supplies
- Fully Differential Inputs and Outputs
- Adjustable Output Common Mode Voltage
- Small 4mm × 7mm × 0.75mm QFN Package

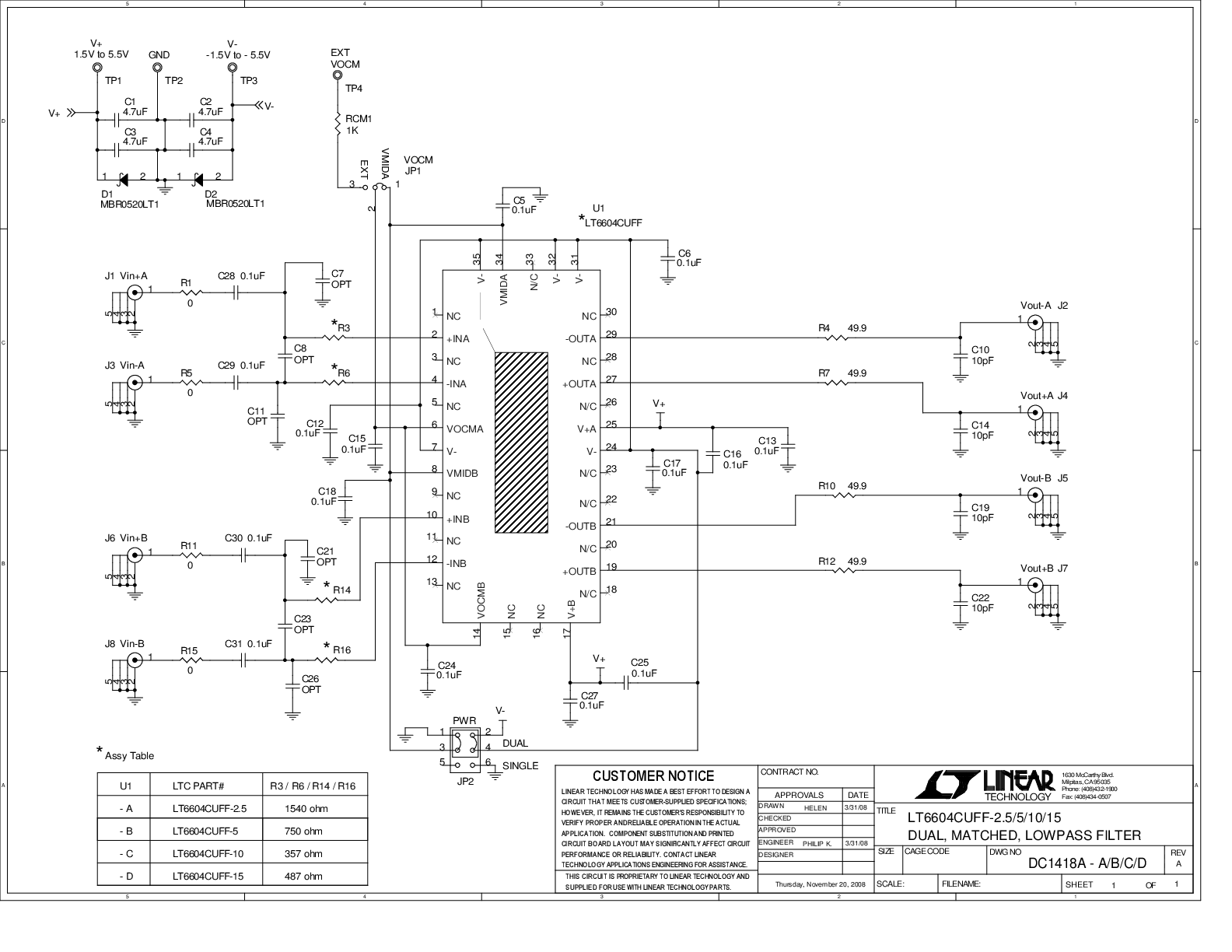

The LT6604-10 consists of two matched, fully differential amplifiers, each with a 4th order, 10MHz lowpass ﬁlter. The ﬁxed frequency lowpass ﬁlter approximates a Chebyshev response. By integrating a ﬁlter and a differential amplifier, distortion and noise are made exceptionally low. At unity gain, the measured in band signal-to-noise ratio is an impressive 82dB. At higher gains, the input referred noise decreases, allowing the part to process smaller input differential signals without significantly degrading the signal-to-noise ratio.
Gain and phase are highly matched between the two channels. Gain for each channel is independently programmed using two external resistors. The LT6604-10 enables level shifting by providing an adjustable output common mode voltage, making it ideal for directly interfacing to ADCs.
The LT6604-10 is fully specified for 3V operation. The differential design enables outstanding performance at a 2VP-P signal level for a single 3V supply. See the back page of this datasheet for a complete list of related single and dual differential amplifiers with integrated 2.5MHz to 20MHz lowpass ﬁlters.
- Dual Differential ADC Driver Plus Filter
- Single-Ended to Differential Converter
- Matched, Dual, Differential Filter Stage
- Common Mode Translation of Differential Signals
- High Speed ADC Antialiasing and DAC Smoothing in Wireless Infrastructure or Networking Applications
- High Speed Test and Measurement Equipment
- Medical Imaging
