LT3992

Monolithic Dual Tracking 3A Step-Down Switching Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $5.54
Features
  • Wide Input Range:
    • – Operation from 3V to 60V
  • Independent Supply, Shutdown, Soft-Start, UVLO, Programmable Current Limit and Programmable Power Good for Each 3A Regulator
  • Die Temperature Monitor
  • Adjustable/Synchronizable Fixed Frequency Operation from 250kHz to 2MHz with Synchronized Clock Output

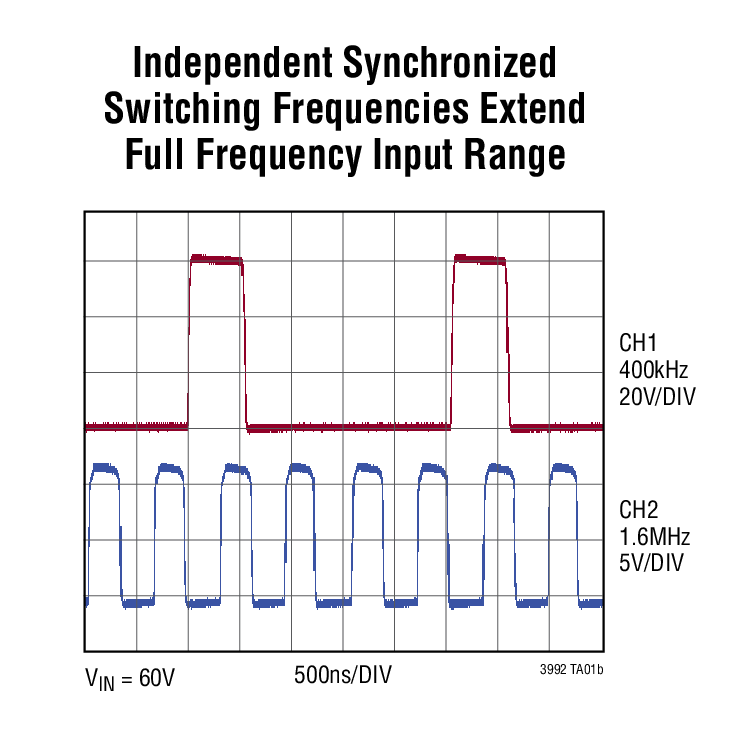

  • Independent Synchronized Switching Frequencies Optimize Component Size
  • Antiphase Switching
  • Outputs Can Be Paralleled
  • Flexible Output Voltage Tracking
  • Low Dropout: 95% Maximum Duty Cycle

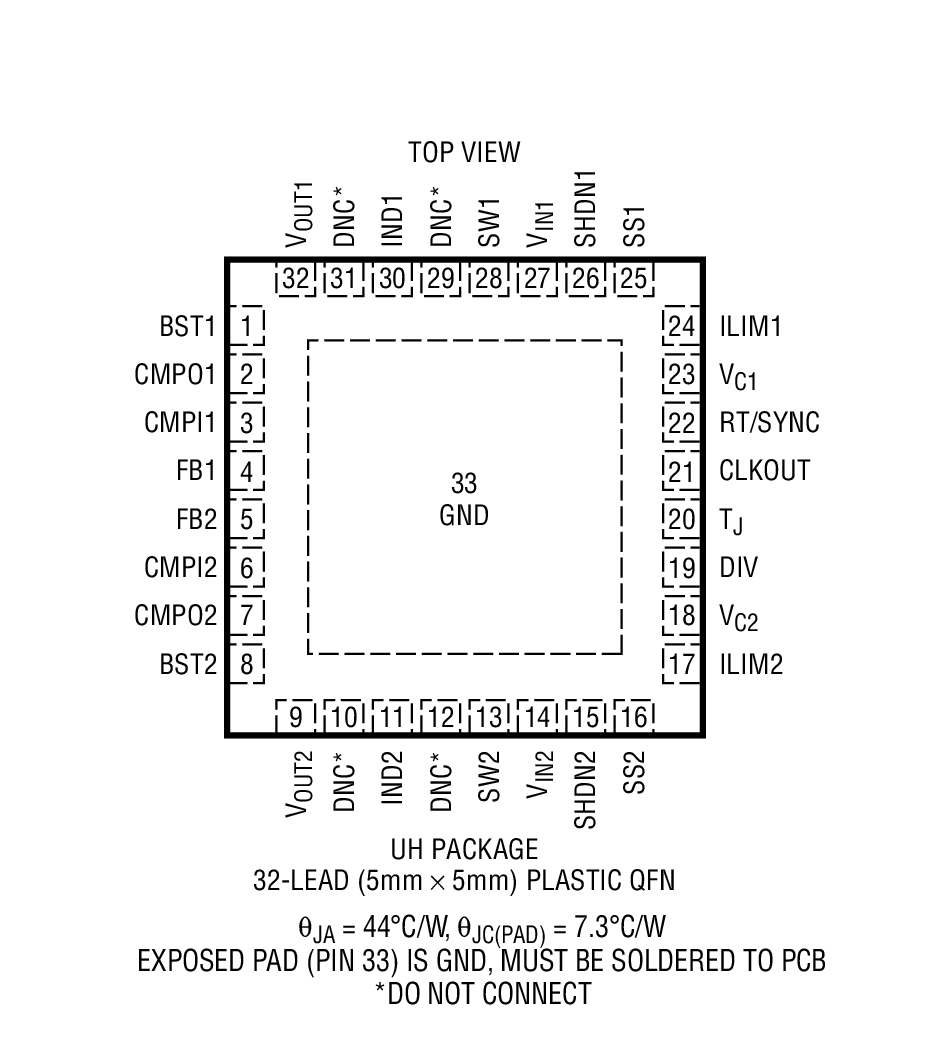

  • 5mm × 5mm QFN Package

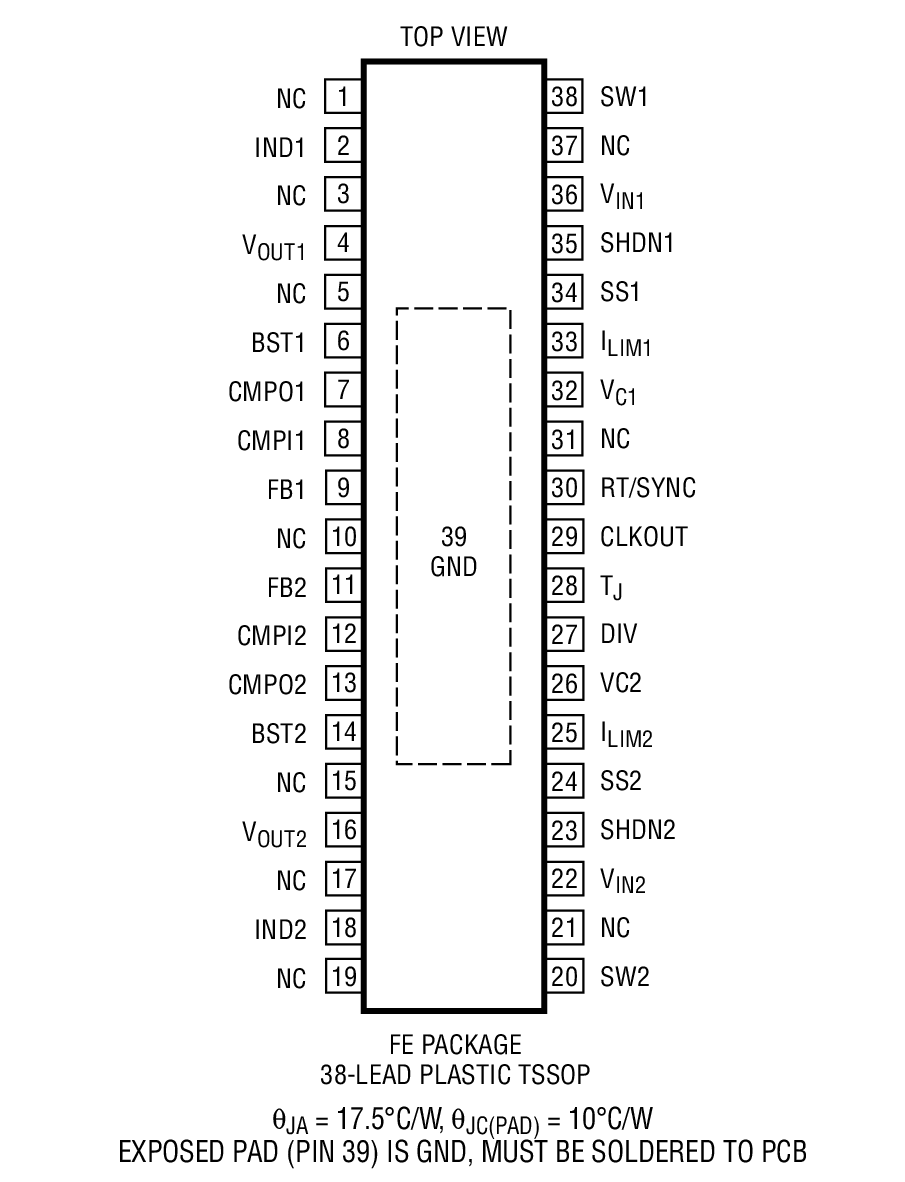

  • FMEA Compliant 38-Pin Exposed Pad TSSOP Package
Additional Details
show more Icon

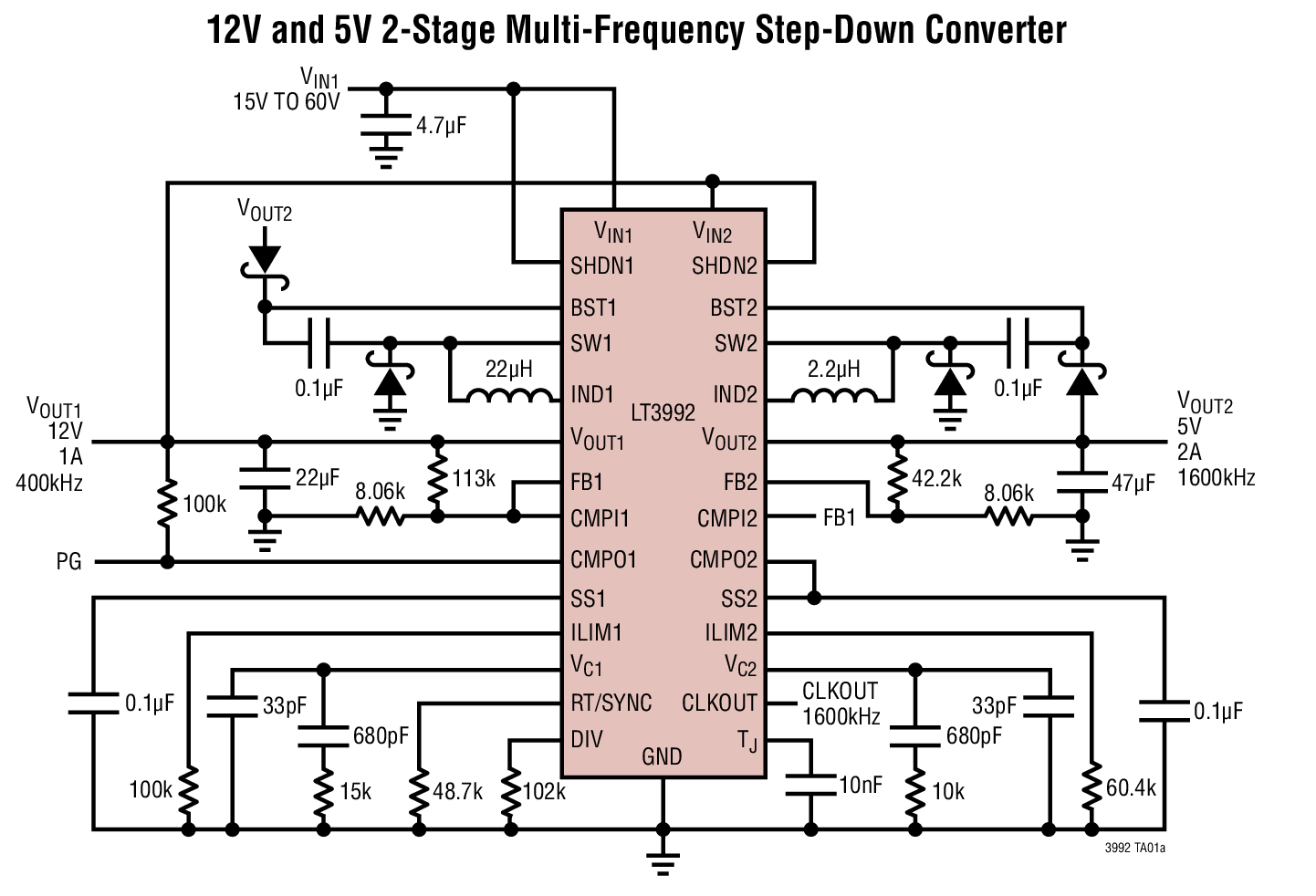

The LT3992 is a dual current mode PWM step-down DC/DC converter with two internal 4.6A switches. Independent input voltage, shutdown, feedback, soft-start, UVLO current limit and comparator pins for each channel simplify complex power supply tracking and sequencing requirements.

To optimize efficiency and component size, both converters have a programmable maximum current limit and are synchronized to either a common external clock input, or a resistor settable fixed 250kHz to 2MHz internal oscillator. A frequency divider is provided for channel 1 to further optimize component size. At all frequencies, a 180° phase relationship between channels is maintained, reducing voltage ripple and component size. A clock output is available for synchronizing multiple regulators.

Minimum input to output voltage ratios are improved by allowing the switch to stay on through multiple clock cycles only switching off when the boost capacitor needs recharging. Independent channel operation can be programmed using the SHDN pin. Disabling both converters reduces the total quiescent current to <10μA.

Applications

  • Automotive Supplies
  • Distributed Supply Regulation
Part Models 10
1ku List Price Starting From $5.54

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3992EFE#PBF
  • HTML
  • HTML
LT3992EFE#TRPBF
  • HTML
  • HTML
LT3992EUH#PBF
  • HTML
  • HTML
LT3992EUH#TRPBF
  • HTML
  • HTML
LT3992HFE#PBF
  • HTML
  • HTML
LT3992HFE#TRPBF
  • HTML
  • HTML
LT3992IFE#PBF
  • HTML
  • HTML
LT3992IFE#TRPBF
  • HTML
  • HTML
LT3992IUH#PBF
  • HTML
  • HTML
LT3992IUH#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3992EFE#PBF

PRODUCTION

LT3992EFE#TRPBF

PRODUCTION

LT3992HFE#PBF

PRODUCTION

LT3992HFE#TRPBF

PRODUCTION

LT3992IFE#PBF

PRODUCTION

LT3992IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3992EFE#PBF

PRODUCTION

LT3992EFE#TRPBF

PRODUCTION

LT3992HFE#PBF

PRODUCTION

LT3992HFE#TRPBF

PRODUCTION

LT3992IFE#PBF

PRODUCTION

LT3992IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1537A

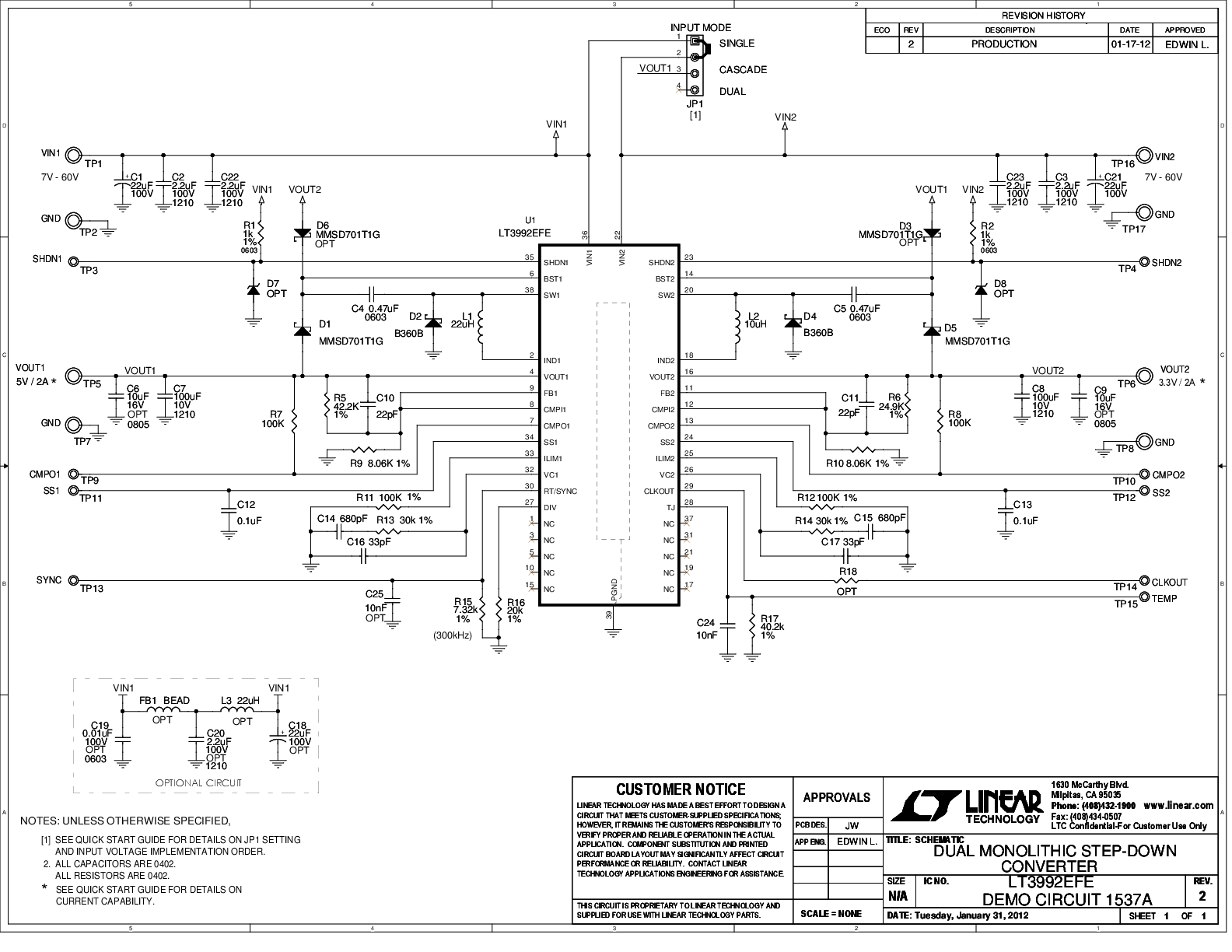

LT3992EFE Demo Board | Dual Buck with Tracking, 7V ≤ VIN ≤ 60V, VOUT1 = 5V @ 2A, VOUT2 = 3.3V @ 2A
