LT3845A
High Voltage Synchronous Current Mode Step-Down Controller with Adjustable Operating Frequency
Top
Overview
Features and Benefits
- High Voltage Operation: Up to 60V
- Synchronizable Up to 600kHz
- Adjustable Constant Frequency: 100kHz to 500kHz
- Output Voltages Up to 36V
- Stable Operation in Current Limit
- Adaptive Nonoverlap Circuitry Prevents Switch Shoot-Through
- Reverse Inductor Current Inhibit for Discontinuous Operation Improves Efficiency with Light Loads
- Programmable Soft-Start
- 120μA No Load Quiescent Current
- 10μA Shutdown Supply Current
- 1% Regulation Accuracy
- Standard Gate N-Channel Power MOSFETs
- Reverse Overcurrent Protection
- 16-Lead Thermally Enhanced TSSOP Package
Product Details
The LT3845A is a high voltage, synchronous, current mode controller used for medium to high power, high efficiency supplies. It offers a wide 4V to 60V input range (7.5V minimum start-up voltage). An onboard regulator simplifies the biasing requirements by providing IC power directly from VIN.

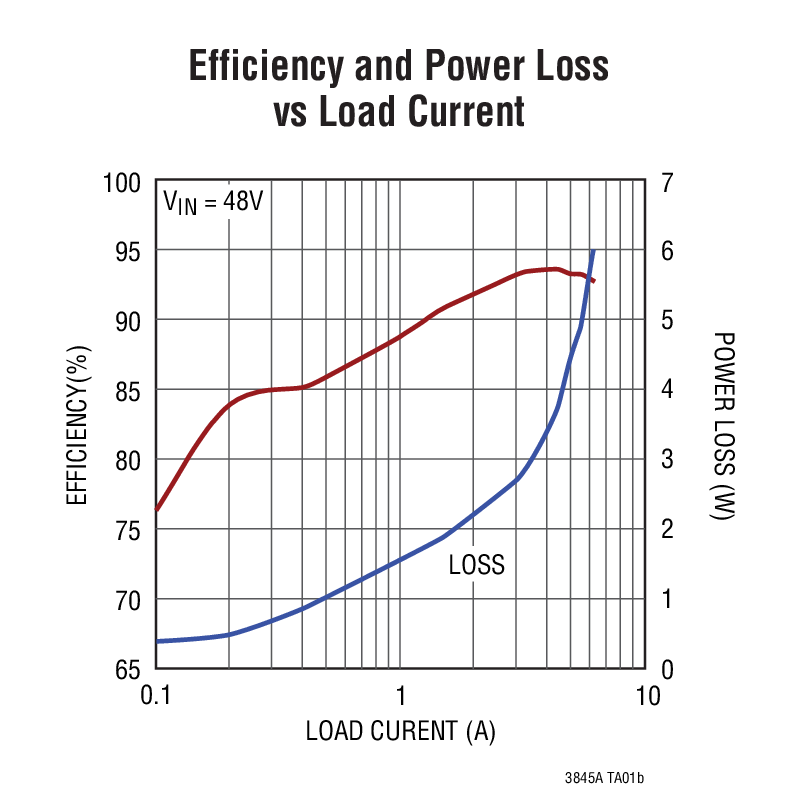

Burst Mode® operation maintains high efficiency at light loads by reducing IC quiescent current to 120μA. Light load efficiency is also improved with the reverse inductor current inhibit function which supports discontinuous operation.
Additional features include adjustable fixed operating frequency that can be synchronized to an external clock for noise sensitive applications, gate drivers capable of driving large N-channel MOSFETs, a precision undervoltage lockout, 10μA shutdown current, short-circuit protection and a programmable soft-start.

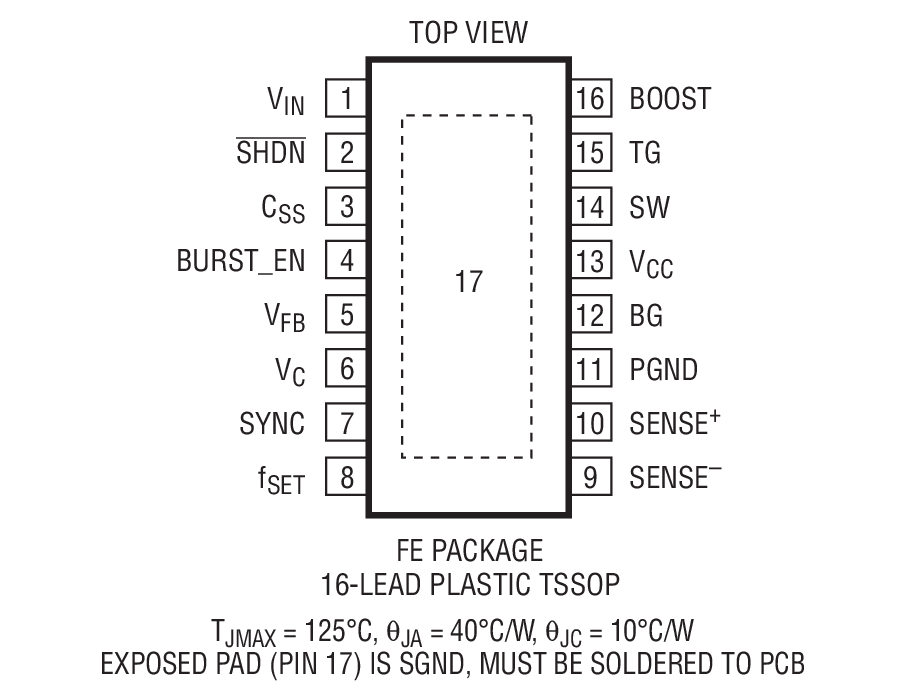

The LT3845A is available in a 16-lead thermally enhanced TSSOP package.
| Features | |
| LT3845 | - |
| LT3845A | Improved Performance In Over Current Conditions |
Applications
- 12V and 42V Automotive and Heavy Equipment
- 48V Telecom Power Supplies
- Avionics and Industrial Control Systems
- Distributed Power Converters
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
R365 Reliability Data3/23/2018
-

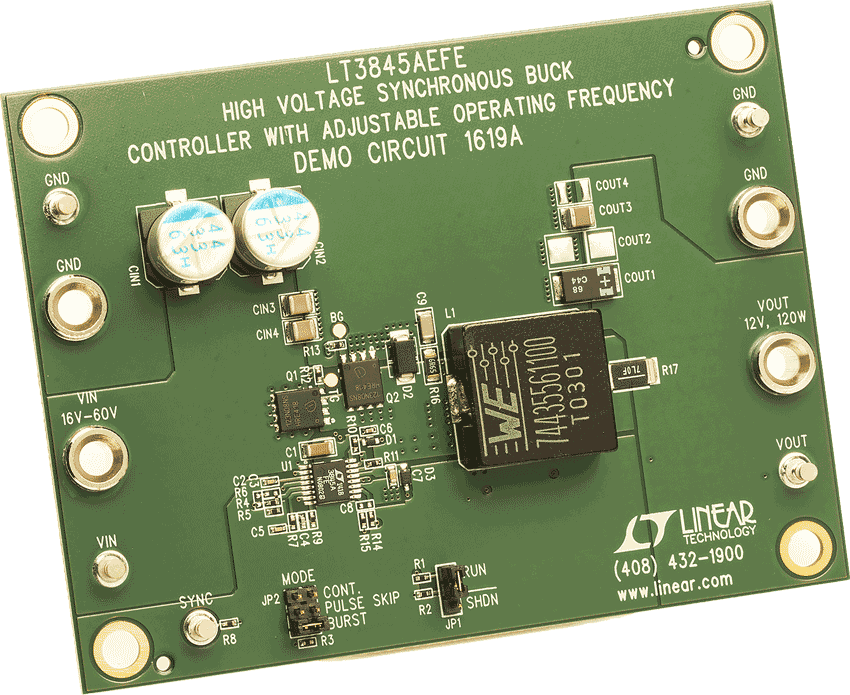

DC1619A - Demo Manual3/14/2011
