Overview
Features and Benefits
- Isolated PFC LED Driver with Minimum Number of External Components
- TRIAC Dimmable
- VIN and VOUT Limited Only by External Components
- Active Power Factor Correction (Typical PFC > 0.97)
- Low Harmonic Content
- No Opto-Coupler Required
- Accurate Regulated LED Current (±5% Typical)
- Open LED and Shorted LED Protection
- Thermally Enhanced 16-lead MSOP Package
Product Details
The LT3799 is an isolated flyback controller with power factor correction specifically designed for driving LEDs. The controller operates using critical conduction mode allowing the use of a small transformer. Using a novel current sensing scheme, the controller is able to deliver a well regulated current to the secondary side without using an opto-coupler. A strong gate driver is included to drive an external high voltage MOSFET. Utilizing an onboard multiplier, the LT3799 typically achieves power factors of 0.97. The FAULT pin provides notification of open and short LED conditions.
The LT3799 uses a micropower hysteretic start-up to efficiently operate at offline input voltages, with a third winding to provide power to the part. An internal LDO provides a well regulated supply for the part’s internal circuitry and gate driver.
| TRIAC Dimmable | LED Current Regulation | |
| LT3799 | YES | ±10% |
| LT3799-1 | NO | ±5% |
Applications
- Offline 4W to 100W+ LED Applications
- High DC VIN LED Applications
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (3)
Documentation & Resources
-
R530 Reliability Data3/26/2018
-

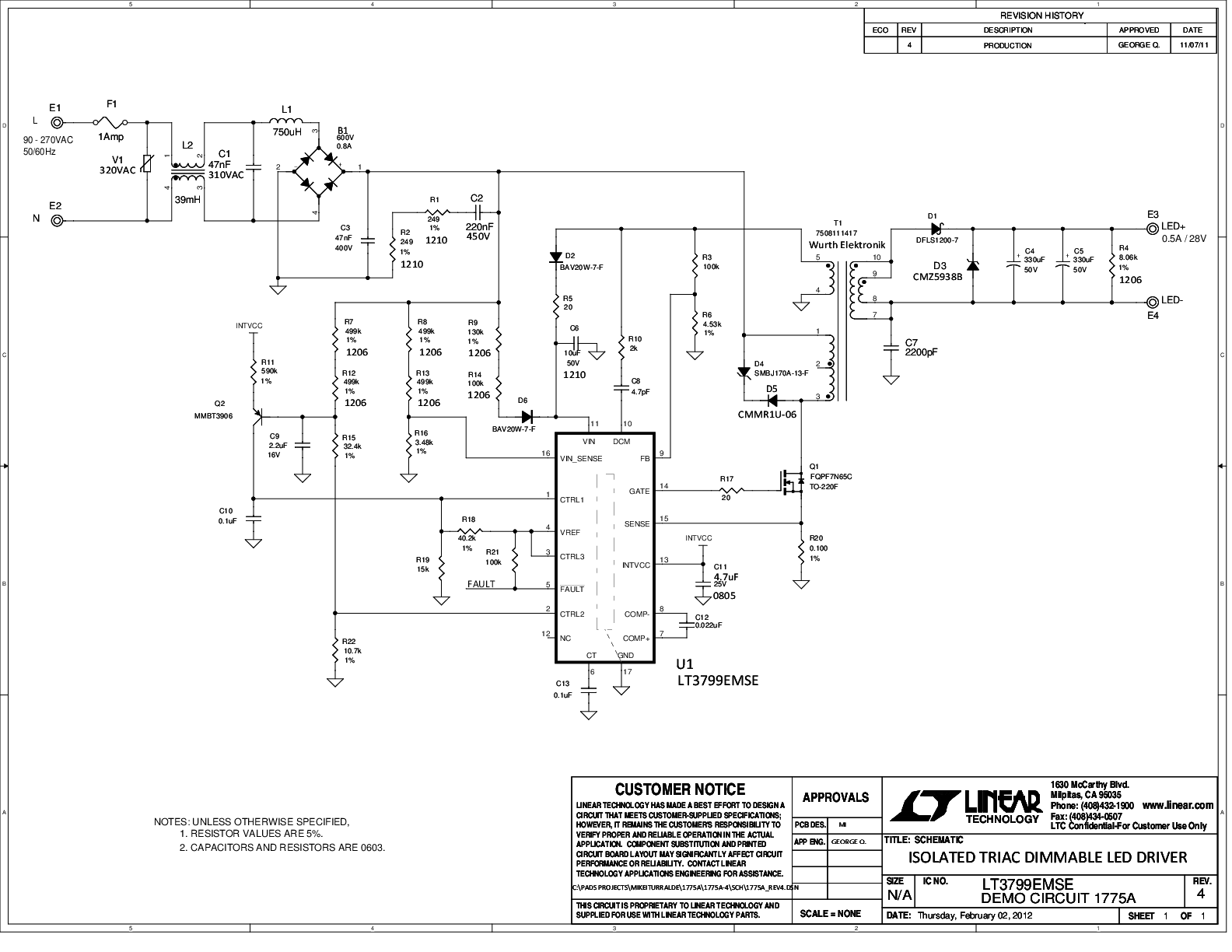

DC1775A - Demo Manual2/8/2012
-

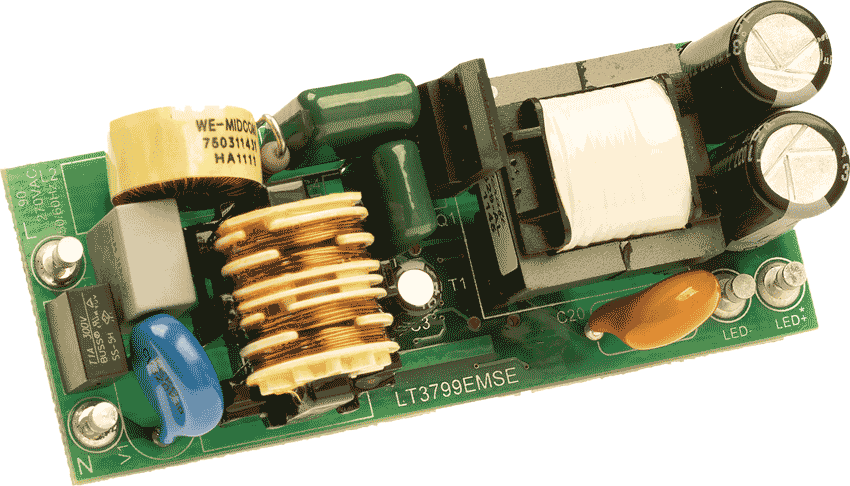

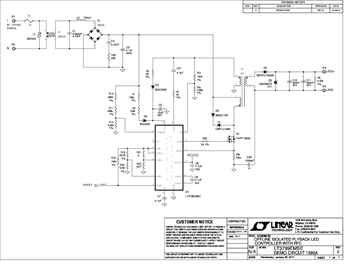

DC1595A - Demo Manual11/8/2011
-

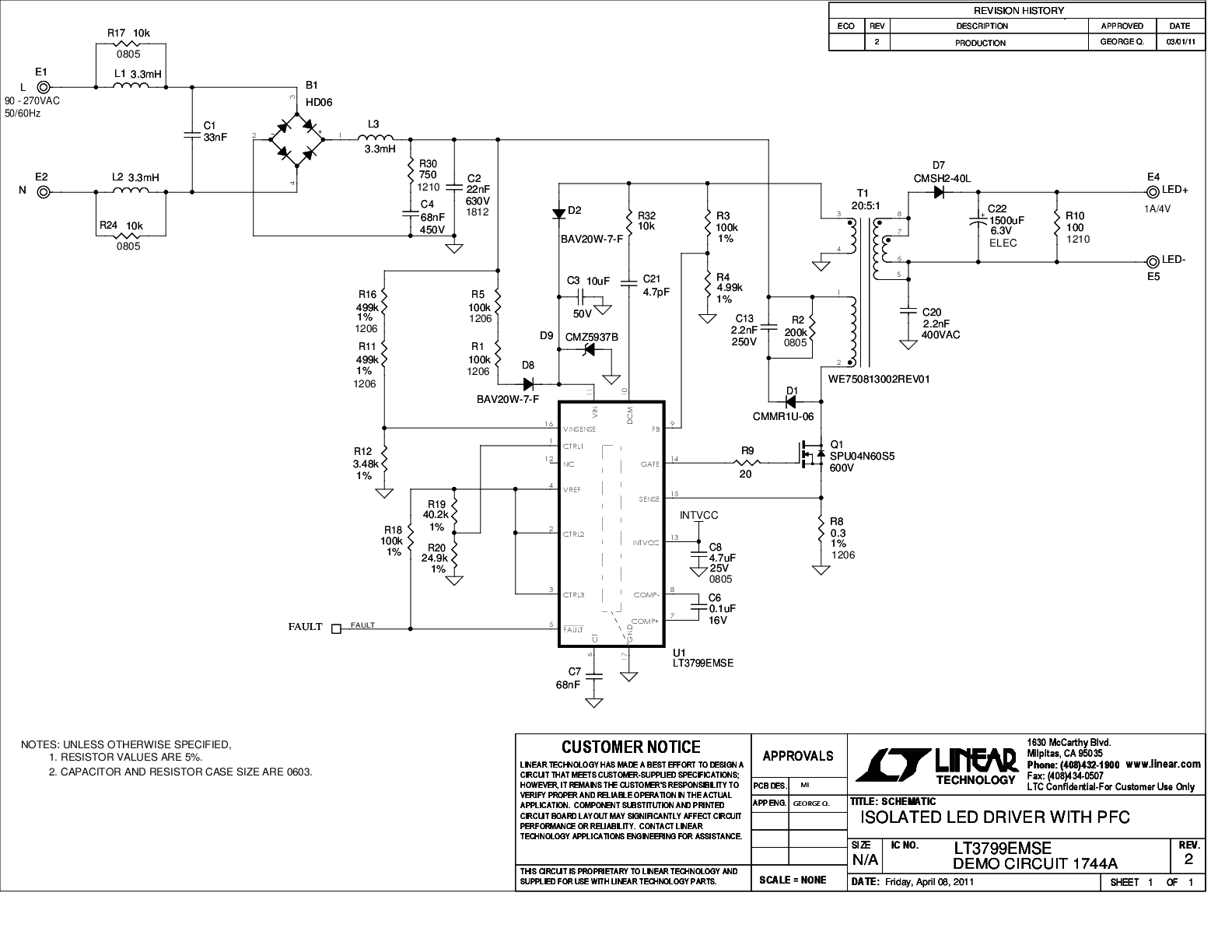

DC1744A - Demo Manual7/15/2011
-
LTspice: Using Transformers1/31/2023 -
Offline Isolated Flyback LED Controller with Active PFC10/15/2018 -
LT3799 Video Product Brief10/15/2018
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT3799
LT3799-1
