LT3693: 36V, 3.5A, 2.4MHz Step-Down Switching Regulator Data Sheet9/18/2007PDF307K
Overview
Features and Benefits
- Wide Input Range: 3.6V to 36V
- 3.5A Maximum Output Current
- Adjustable Switching Frequency: 200kHz to 2.4MHz
- Low Shutdown Current: IQ < 1µA
- Integrated Boost Diode
- Synchronizable Between 250kHz to 2MHz
- Power Good Flag
- Saturating Switch Design: 95mΩ On-Resistance
- 0.790V Feedback Reference Voltage
- Output Voltage: 0.79V to 30V
- Thermal Protection
- Soft-Start Capability

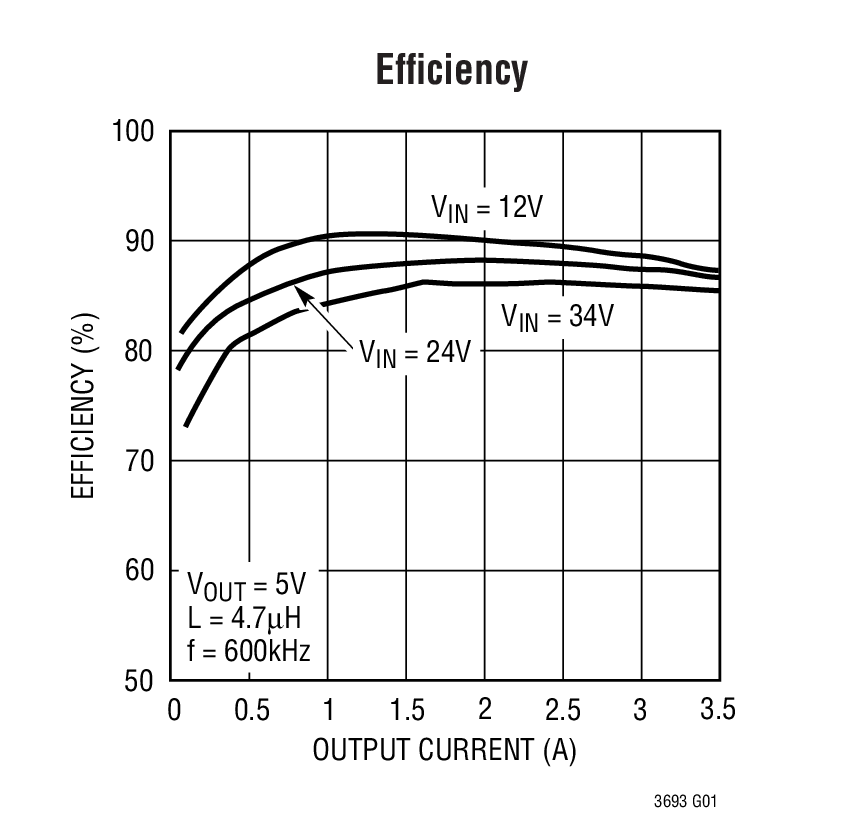

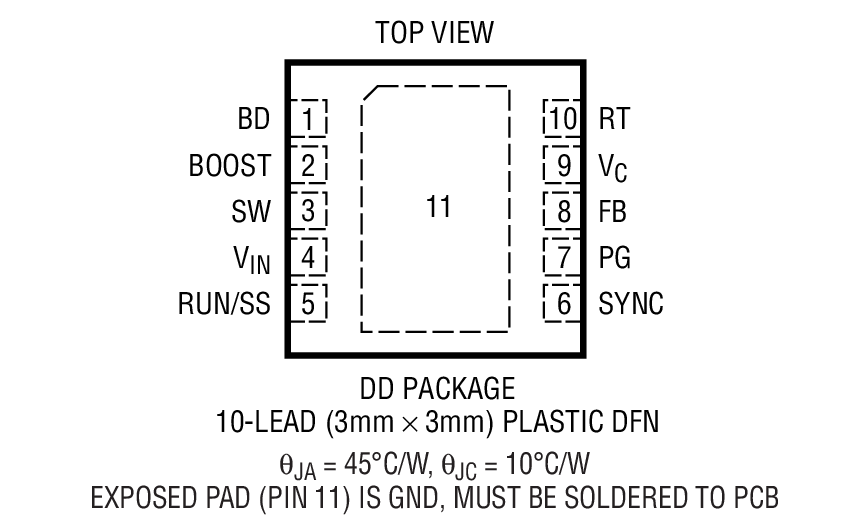

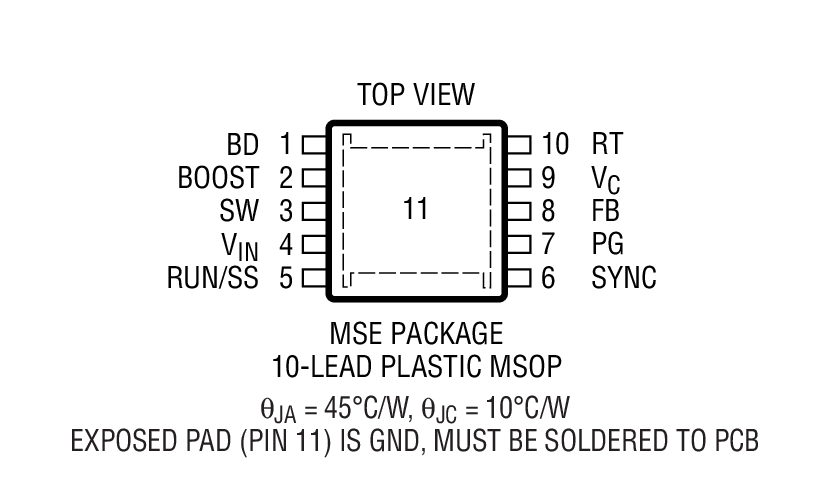

- Small 10-Pin Thermally Enhanced MSOP and (3mm × 3mm) DFN Packages
Product Details
The LT3693 is an adjustable frequency (200kHz to 2.4MHz) monolithic buck switching regulator that accepts input voltages up to 36V. A high efficiency 95mΩ switch is included on the die along with a boost Schottky diode and the necessary oscillator, control, and logic circuitry. Current mode topology is used for fast transient response and good loop stability. Shutdown reduces input supply current to less than 1µA while a resistor and capacitor on the RUN/SS pin provide a controlled output voltage ramp (soft-start). A power good flag signals when VOUT reaches 91% of the programmed output voltage. The LT3693 is available in 10-Pin MSOP and 3mm × 3mm DFN packages with exposed pads for low thermal resistance.
Applications
- Automotive Battery Regulation
- Power for Portable Products
- Distributed Supply Regulation
- Industrial Supplies
- Wall Transformer Regulation
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R530 Reliability Data3/26/2018PDF20 K
-

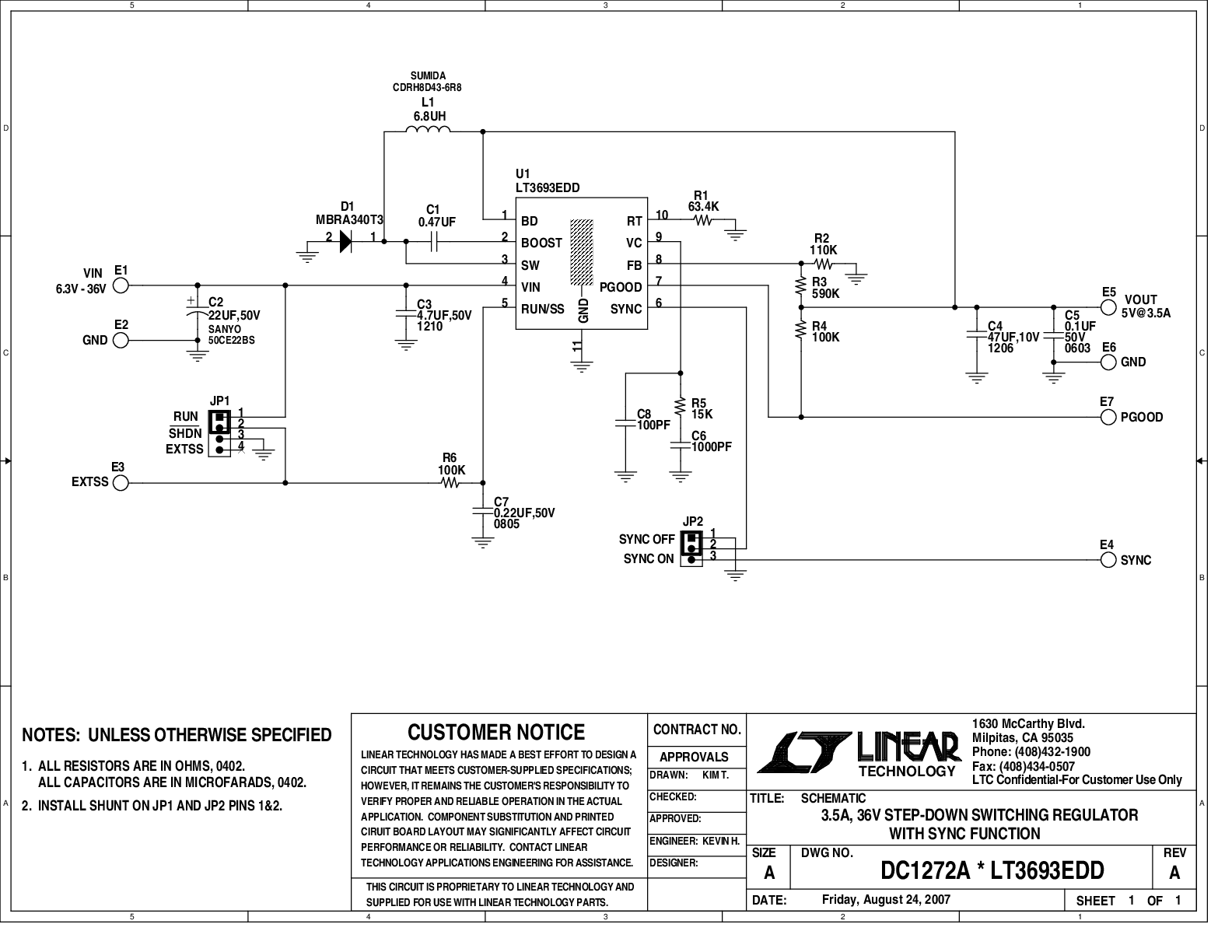

DC1272A - Demo Manual9/24/2009PDF646K
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
LTspice Simulations
Models for the following parts are available in LTspice:
LT3693
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT3693EDD#PBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LT3693EDD#TRPBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LT3693EMSE#PBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LT3693EMSE#TRPBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LT3693IDD#PBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LT3693IDD#TRPBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LT3693IMSE#PBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LT3693IMSE#TRPBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| Wafer Fabrication Data | R530 Reliability Data |
