DC1272A
LT3693EMSE Demo Board | 6.3V ≤ VIN ≤ 36V, VOUT = 5V @ 3.5A
Top
Overview
Product Details
Demonstration circuit 1272 is a monolithic stepdown DC/DC switching regulator featuring LT3693. The demo board is designed for 5V@3.5A output from a 6.3V to 36V input.
Applicable Parts
Documentation & Resources
-

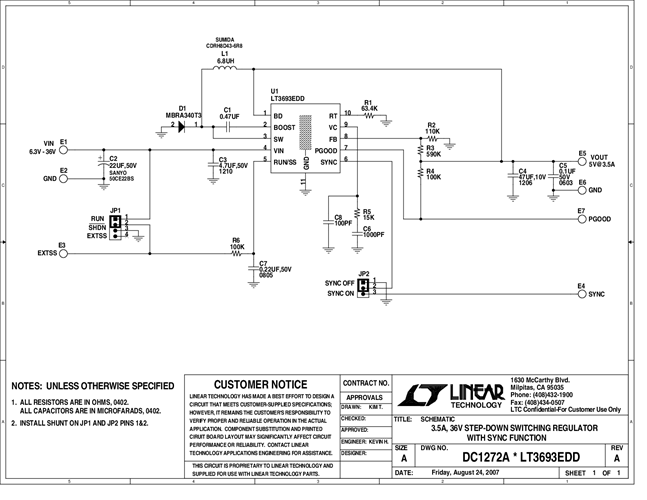

DC1272A - Schematic9/24/2009PDF28K
-
DC1272A - Demo Manual9/24/2009PDF646K
-
DC1272A - Design File9/24/2009ZIP694K
