LT3692A

Monolithic Dual Tracking 3.5A Step-Down Switching Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 12
1ku List Price Starting From $5.07
Features
  • Wide Input Range:
    • Operation from 3V to 36V
    • OVLO Protects Circuit Through 60V Transients
  • Independent Supply, Shutdown, Soft-Start, UVLO, Programmable Current Limit and Programmable Power Good for Each 3.5A Regulator
  • Die Temperature Monitor
  • Adjustable/Synchronizable Fixed Frequency Operation from 250kHz to 2.25MHz with Synchronized Clock Output
  • Independent Synchronized Switching Frequencies Optimize Component Size
  • Antiphase Switching
  • Outputs Can Be Paralleled
  • Flexible Output Voltage Tracking
  • Low Dropout: 95% Maximum Duty Cycle
  • 5mm × 5mm QFN Package
  • FMEA Compliant 38-Pin Exposed Pad TSSOP Package
Additional Details
show more Icon

The LT3692A is a dual current mode PWM step-down DC/DC converter with two internal 3.8A switches. Independent input voltage, shutdown, feedback, soft-start, UVLO current limit and comparator pins for each channel simplify complex power supply tracking and sequencing requirements.

To optimize efficiency and component size, both converters have a programmable maximum current limit and are synchronized to either a common external clock input, or a resistor settable fixed 250kHz to 2.25MHz internal oscillator. A frequency divider is provided for channel 1 to further optimize component size. At all frequencies, a 180° phase relationship between channels is maintained, reducing voltage ripple and component size. A clock output is available for synchronizing multiple regulators.

Minimum input to output voltage ratios are improved by allowing the switch to stay on through multiple clock cycles only switching off when the boost capacitor needs recharging. Independent channel operation can be programmed using the SHDN pin. Disabling both converters reduces the total quiescent current to <10μA.

The LT3692A is an improved version of the LT3692 with reduced minimum on-time.

Min On-Time Features Package
LT3692 180ns - 5 × 5 QFN-32
LT3692A 140ns Programmable Shutdown UVLO TSSOP-38E, 5 × 5 QFN-32

Applications

  • Automotive Supplies
  • Distributed Supply Regulation
Part Models 12
1ku List Price Starting From $5.07

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3692AEFE#PBF
  • HTML
  • HTML
LT3692AEFE#TRPBF
  • HTML
  • HTML
LT3692AEUH#PBF
  • HTML
  • HTML
LT3692AEUH#TRPBF
  • HTML
  • HTML
LT3692AHFE#PBF
  • HTML
  • HTML
LT3692AHFE#TRPBF
  • HTML
  • HTML
LT3692AHUH#PBF
  • HTML
  • HTML
LT3692AHUH#TRPBF
  • HTML
  • HTML
LT3692AIFE#PBF
  • HTML
  • HTML
LT3692AIFE#TRPBF
  • HTML
  • HTML
LT3692AIUH#PBF
  • HTML
  • HTML
LT3692AIUH#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3692AEFE#PBF

PRODUCTION

LT3692AEFE#TRPBF

PRODUCTION

LT3692AHFE#PBF

PRODUCTION

LT3692AHFE#TRPBF

PRODUCTION

LT3692AIFE#PBF

PRODUCTION

LT3692AIFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3692AEFE#PBF

PRODUCTION

LT3692AEFE#TRPBF

PRODUCTION

LT3692AHFE#PBF

PRODUCTION

LT3692AHFE#TRPBF

PRODUCTION

LT3692AIFE#PBF

PRODUCTION

LT3692AIFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC1403A

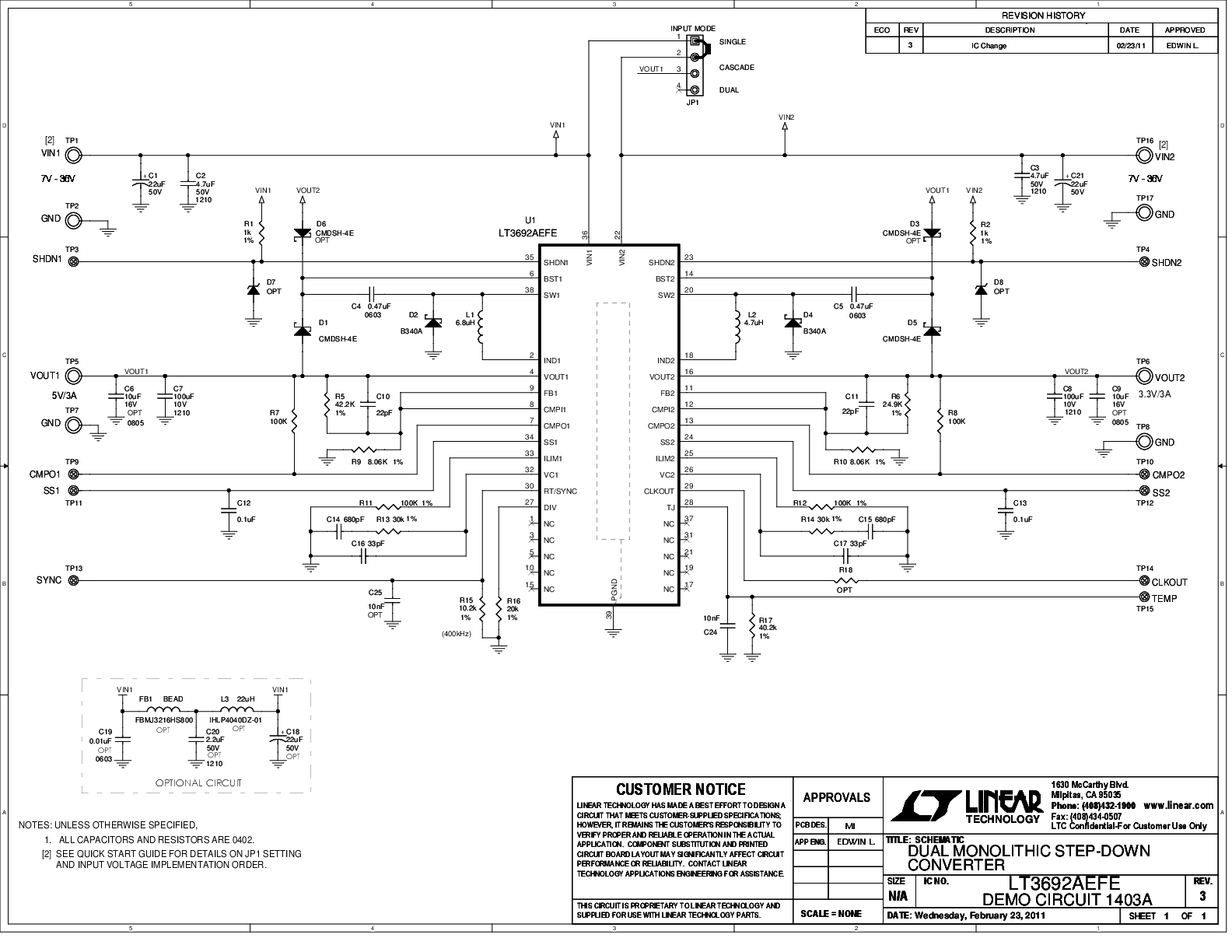

LT3692A Demo Board I 7V to 36V Input, VOUT1 = 5V @ 3A, VOUT2 = 3.3V @ 3A
