LT3688

Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3688 - Step-Down (Buck) Regulators Download 2.65 KB LTspice LT3688 Demo Circuit - Dual 800mA Step-Down Switching Regulator with POR and WDT (12V to 5V @ 800mA) Download 4.00KB
Part Models 10
1ku List Price Starting From $4.31
Features
  • Wide Input Range:
    • Operation from 3.8V to 36V
  • Low Ripple (<25mVP-P ) Burst Mode Operation:
    • IQ = 115μA at 12VIN to 3.3V and 5V
  • Programmable, Defeatable Window Watchdog Timer
  • Two Independently Programmable Power-On-Reset Timers
  • Synchronizable, Adjustable 350kHz-2.2MHz Switching Frequency
  • Two 800mA Output Switching Regulators with Internal Power Switches
  • Programmable Input Undervoltage Lockout with Hysteresis
  • Thermally Enhanced 24-Pin TSSOP and 4mm × 4mm QFN Packages
Additional Details
show more Icon

The LT3688 is an adjustable frequency (350kHz to 2.2MHz) dual monolithic step-down switching regulator with two power-on reset timers and a watchdog timer. The regulator operates off inputs up to 36V. Low ripple Burst Mode® operation maintains high efficiency at low output current while keeping output ripple below 25mV in a typical application, with input quiescent current of just 115μA. Shutdown circuitry reduces input supply current to less than 1μA while EN/UVLO is pulled low.

The reset and watchdog timeout periods are both adjustable using external capacitors. Tight accuracy specifications and glitch immunity ensure reliable reset operation without false triggering. The open collector RST pins will pull down if the monitored output voltage drops 10% below the programmed value. The LT3688 watchdog timer monitors for watchdog falling edges grouped too close together or too far apart.

The LT3688 is available in 24-Pin TSSOP and 4mm × 4mm QFN packages, each with an exposed pad for low thermal resistance.

Applications

  • Automotive Electronic Control Units
  • Industrial Power Supplies
  • High-Reliability μProcessor Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3688 - Step-Down (Buck) Regulators Download 2.65 KB LTspice LT3688 Demo Circuit - Dual 800mA Step-Down Switching Regulator with POR and WDT (12V to 5V @ 800mA) Download 4.00KB
Part Models 10
1ku List Price Starting From $4.31
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3688

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/14/2011
English

LT3688: Dual 800mA Step-Down Switching Regulator with Power-On Reset and Watchdog Timer Data Sheet

Open PDF File

redirect
420.00K
download

Download PDF

PDF Vector

PDF

UPDATED 03/17/2011
Japanese

LT3688: パワーオン・リセット・タイマとウォッチドッグ・タイマを備えたデュアル800mA 降圧スイッチング・レギュレータ データシート

Open PDF File

redirect
4.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 03/25/2011
English
DC1439A - Demo Manual redirect icon

404.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3688EFE#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688EFE#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688EUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688EUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688HFE#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688HFE#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688IFE#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688IFE#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688IUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3688IUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3688EFE#PBF

PRODUCTION

LT3688EFE#TRPBF

PRODUCTION

LT3688HFE#PBF

PRODUCTION

LT3688HFE#TRPBF

PRODUCTION

LT3688IFE#PBF

PRODUCTION

LT3688IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3688EUF#PBF

PRODUCTION

LT3688EUF#TRPBF

PRODUCTION

LT3688IUF#PBF

PRODUCTION

LT3688IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3688EFE#PBF

PRODUCTION

LT3688EFE#TRPBF

PRODUCTION

LT3688HFE#PBF

PRODUCTION

LT3688HFE#TRPBF

PRODUCTION

LT3688IFE#PBF

PRODUCTION

LT3688IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3688EUF#PBF

PRODUCTION

LT3688EUF#TRPBF

PRODUCTION

LT3688IUF#PBF

PRODUCTION

LT3688IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

High Voltage Hot Swap Controllers1
LTC4364
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Surge Stopper with Ideal Diode

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kits 1

reference details image

DC1439A

LT3688EFE Demo Board | 7V ≤ VIN ≤ 36V, 60V Transients, VOUT1 = 5V @ 0.8A, VOUT2 = 3.3V @ 0.8A

zoom

DC1439A

LT3688EFE Demo Board | 7V ≤ VIN ≤ 36V, 60V Transients, VOUT1 = 5V @ 0.8A, VOUT2 = 3.3V @ 0.8A

download icon

Download

 print icon

Print
DC1439A
LT3688EFE Demo Board | 7V ≤ VIN ≤ 36V, 60V Transients, VOUT1 = 5V @ 0.8A, VOUT2 = 3.3V @ 0.8A
Buy Now View Details

Product Detail

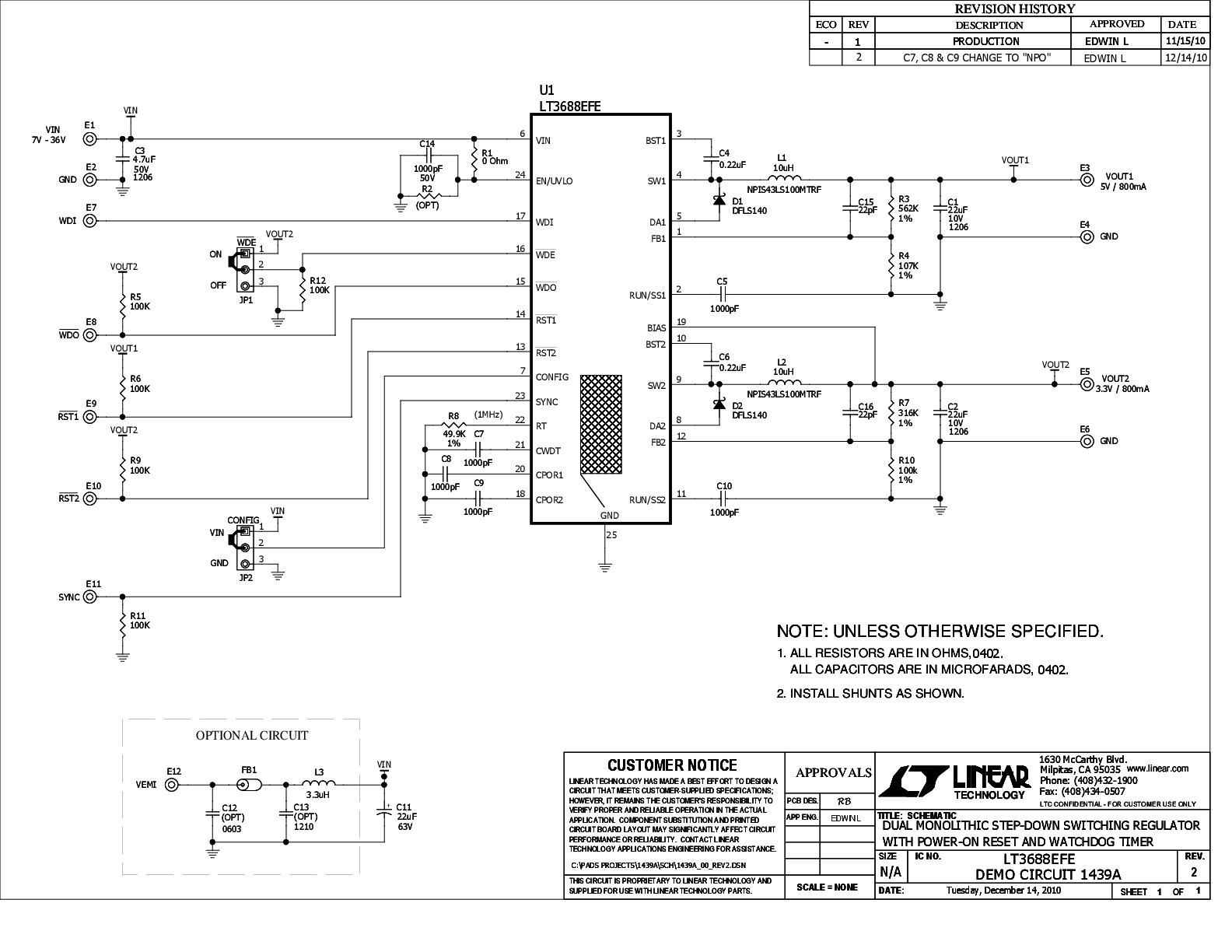

Demonstration circuit 1439A is an adjustable dual monolithic step-down switching regulator with two adjustable power-on reset timers and an adjustable watchdog timer. The regulator operates off inputs up to 36V and withstands transients up to 60V. The two buck outputs are capable of generating up to 800mA each and both of them have independent RUN/SS function.

Resources

pdf icon

PDF

DC1439A - Demo Manual Download

404.00K

pdf icon

ZIP

DC1439A - Design Files Download

2.00M

pdf icon

PDF

DC1439A - Schematic Download

73.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1439A

LT3688EFE Demo Board | 7V ≤ VIN ≤ 36V, 60V Transients, VOUT1 = 5V @ 0.8A, VOUT2 = 3.3V @ 0.8A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT3688 - Step-Down (Buck) Regulators Download

2.65 K

spice tool Lt Spice

LT3688 Demo Circuit - Dual 800mA Step-Down Switching Regulator with POR and WDT (12V to 5V @ 800mA) Download

4.00K
