LT3686A

37V/1.2A Step-Down Regulator in 3mm × 3mm DFN and MSE

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3686A - Step-Down (Buck) Regulators Download 1.91 KB LTspice LT3686A Demo Circuit - 37V Step-Down Regulator (12V to 3.3V@1.2A) Download 2.00KB
Part Models 10
1ku List Price Starting From $3.02

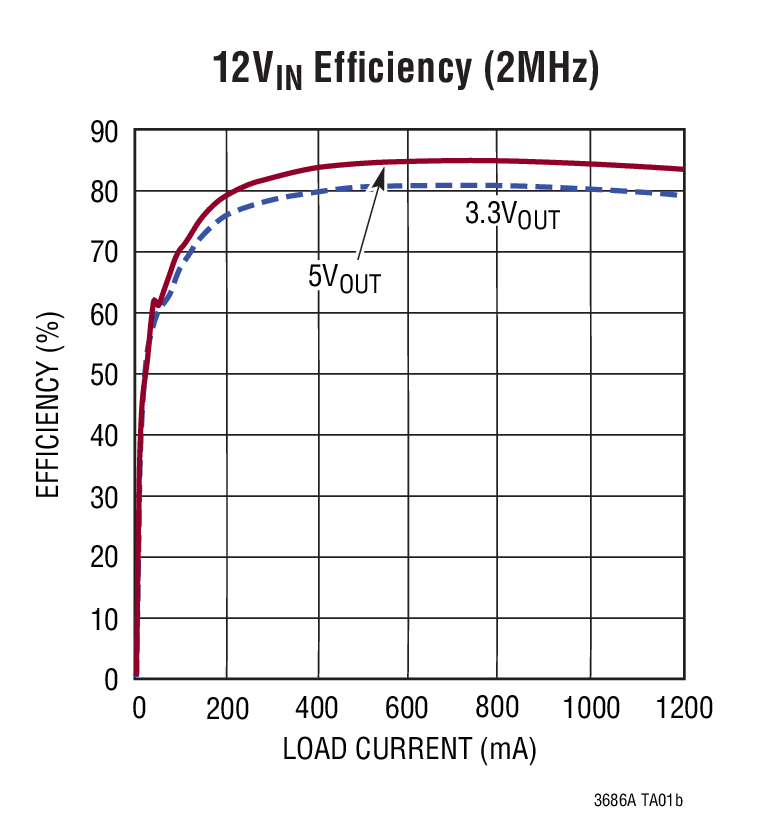

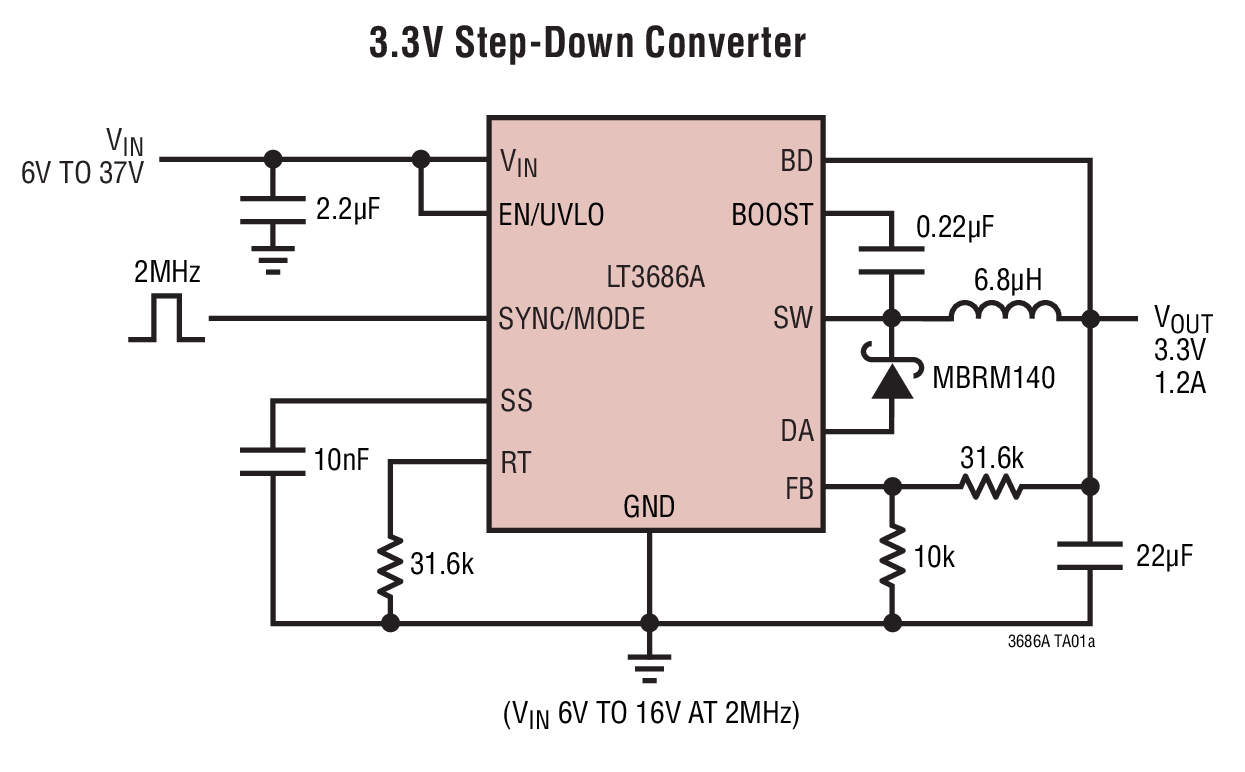

Features
  • Wide Input Range:
    • Operation from 3.6V to 37V
    • Overvoltage Lockout Protects Circuit Through 60V Transients
  • Low Minimum On-Time:
    • Converts 16VIN to 3.3VOUT at 2MHz
  • 1.2A Output Current
  • Adjustable Frequency: 300kHz to 2.5MHz
  • Constant Switching Frequency at Light Loads
  • Can Be Synchronized to External Clock
  • Tracking and Soft-Start
  • Precision UVLO
  • Short-Circuit Robust
  • IQ in Shutdown <1μA
  • Internally Compensated
  • Thermally Enhanced eMSOP and 3mm × 3mm DFN Packages
Additional Details
show more Icon

The LT3686A is a current mode PWM step-down DC/DC converter with an internal power switch. The wide input range of 3.6V to 37V makes the LT3686A suitable for regulating power from a wide variety of sources, including 24V industrial supplies and automotive batteries. Its high maximum frequency allows the use of tiny inductors and capacitors, resulting in a very small solution. Operating frequency above the AM band avoids interfering with radio reception, making the LT3686A particularly suitable for automotive applications.

Cycle-by-cycle current limit, thermal shutdown and DA current sense provide protection against fault conditions. Soft-start and frequency foldback eliminate input current surge during start-up. An optional internal regulated active load at the output via the BD pin keeps the LT3686A at full switching frequency at light loads, resulting in low, predictable output ripple above the audio and AM bands. Internal compensation and an internal boost diode reduce external component count.

The LT3686A offers external synchronization capability, whereas the LT3686 does not.

  Overvoltage Protections Features
LT3686 55V -
LT3686A 60V External Synchronization

Applications

  • Automotive Systems
  • Battery-Powered Equipment
  • Wall Transformer Regulation
  • Distributed Supply Regulation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3686A - Step-Down (Buck) Regulators Download 1.91 KB LTspice LT3686A Demo Circuit - 37V Step-Down Regulator (12V to 3.3V@1.2A) Download 2.00KB
Part Models 10
1ku List Price Starting From $3.02
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3686A

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/31/2011
English

LT3686A: 37V/1.2A Step-Down Regulator in 3mm × 3mm DFN and MSE Data Sheet

Open PDF File

redirect
509.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/06/2011
Japanese

LT3686A: 3mm×3mm DFNおよびMSEパッケージの37V/1.2A降圧レギュレータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 11/24/2010
English
DC1647A- Demo Manual redirect icon

561.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

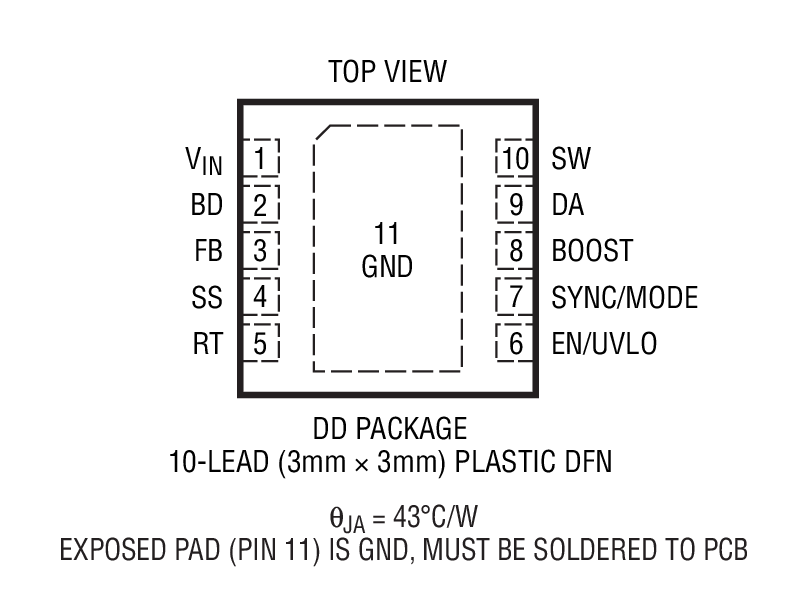

LT3686AEDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AEDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

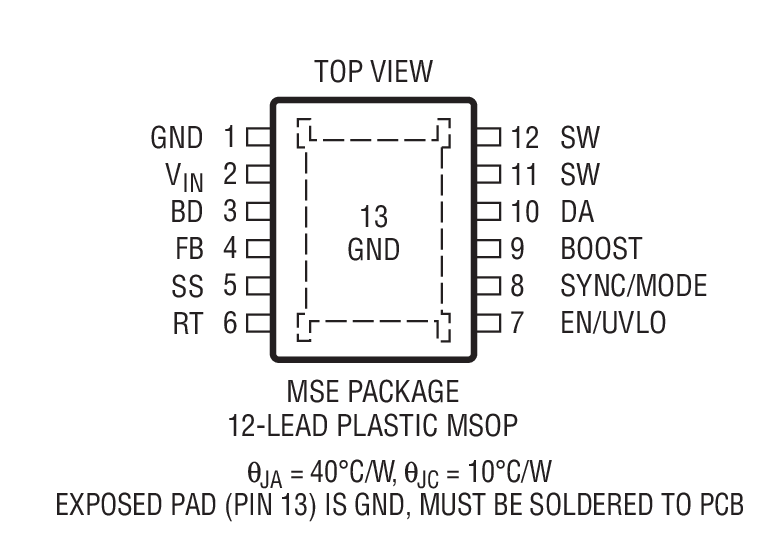

LT3686AEMSE#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AEMSE#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AHMSE#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AHMSE#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AIDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AIDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AIMSE#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3686AIMSE#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT3686AEMSE#PBF

PRODUCTION

LT3686AEMSE#TRPBF

PRODUCTION

LT3686AHMSE#PBF

PRODUCTION

LT3686AHMSE#TRPBF

PRODUCTION

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3686AEMSE#PBF

PRODUCTION

LT3686AEMSE#TRPBF

PRODUCTION

LT3686AHMSE#PBF

PRODUCTION

LT3686AHMSE#TRPBF

PRODUCTION

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download

Apr 18, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT3686AEMSE#PBF

PRODUCTION

LT3686AEMSE#TRPBF

PRODUCTION

LT3686AHMSE#PBF

PRODUCTION

LT3686AHMSE#TRPBF

PRODUCTION

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3686AEMSE#PBF

PRODUCTION

LT3686AEMSE#TRPBF

PRODUCTION

LT3686AHMSE#PBF

PRODUCTION

LT3686AHMSE#TRPBF

PRODUCTION

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download
Apr 18, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3686AIMSE#PBF

PRODUCTION

LT3686AIMSE#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Evaluation Kits 1

reference details image

DC1647A

LT3686AEDD Demo Board | 5V ≤ VIN ≤ 37V (55V Transients), VOUT = 3.3V @ 1.2A, SYNC Pin

zoom

DC1647A

LT3686AEDD Demo Board | 5V ≤ VIN ≤ 37V (55V Transients), VOUT = 3.3V @ 1.2A, SYNC Pin

download icon

Download

 print icon

Print
DC1647A
LT3686AEDD Demo Board | 5V ≤ VIN ≤ 37V (55V Transients), VOUT = 3.3V @ 1.2A, SYNC Pin
Buy Now View Details

Product Detail

Demo circuit 1647 is a current-mode PWM step-down DC/DC regulator with an internal power switch featuring the LT3686A. The LT3686A differs from the LT3686 in that it offers higher transient voltage protection and a SYNC pin. The demo circuit is designed for 3.3V/1.2A output from a 5V to 37V input with transients up to 55V. Its high 2.5MHz maximum frequency allows the use of tiny inductors and capacitors. Operating frequency above the AM band avoids interfering with radio reception, making the LT3686 particularly suitable for automotive applications. The LT3686A offers external synchronization capability, whereas the LT3686 does not.

Resources

pdf icon

PDF

DC1647A - Schematic Download

36.00K

pdf icon

PDF

DC1647A- Demo Manual Download

561.00K

pdf icon

ZIP

DC1647A - Design Files Download

584.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1647A

LT3686AEDD Demo Board | 5V ≤ VIN ≤ 37V (55V Transients), VOUT = 3.3V @ 1.2A, SYNC Pin

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT3686A - Step-Down (Buck) Regulators Download

1.91 K

spice tool Lt Spice

LT3686A Demo Circuit - 37V Step-Down Regulator (12V to 3.3V@1.2A) Download

2.00K
