Overview
Features and Benefits
- High Voltage Buck Regulator:
- 4V to 35V Operating Range
- 1.3A Output Current
- OVLO Protects Input to 55V
- Low Voltage Synchronous Buck Regulator:
- 2.5V to 5.5V Input Voltage Range
- 1.1A Output Current
- Synchronizable, Adjustable 350kHz to 2.5MHz Switching Frequency
- Programmable Power-On Reset Timer
- Programmable Window Mode Watchdog Timer
- Typical Quiescent Current: 290μA
- Short-Circuit Robust
- Programmable Soft-Start
- Low Shutdown Current: IQ < 1μA
- Available in Thermally Enhanced 28-Lead (4mm × 5mm) QFN and 28-Lead TSSOP Packages
Product Details
The LT3640 is a dual channel, current mode monolithic buck switching regulator with a power-on reset and a watchdog timer. Both regulators are synchronized to a single oscillator with an adjustable frequency (350kHz to 2.5MHz). At light loads, both regulators operate in low ripple Burst Mode® to maintain high efficiency and low output ripple.
The high voltage channel is a nonsynchronous buck with an internal 2.4A top switch that operates from an input of 4V to 35V; a 36.5V OVLO protects the device to 55V. The low voltage channel operates from an input of 2.5V to 5.5V. Internal synchronous power switches provide high efficiency without the need of external Schottky diode. Both channels have cycle-by-cycle current limit, providing protection against shorted outputs.
The power-on reset and watchdog timeout periods are both adjustable using external capacitors. The window mode watchdog timer flags when the μP pulses group too close together or too far apart.
The LT3640 is available in a 28-pin 4mm × 5mm QFN package and 28-pin TSSOP package. Both packages have an exposed pad for low thermal resistance.
Applications
- Industrial Power Supplies
- Automotive Electronic Control Units
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R526 Reliability Data3/26/2018
-

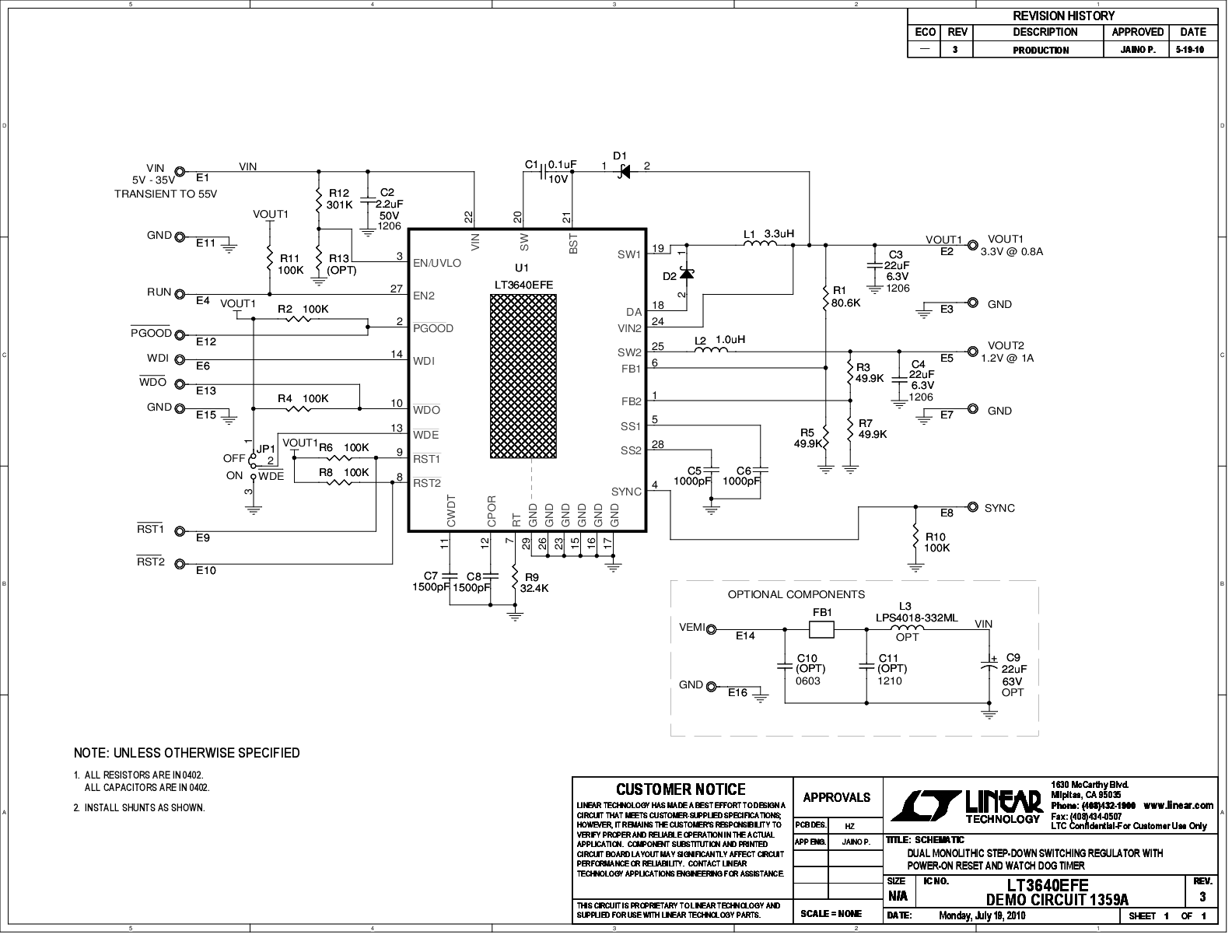

DC1359A - Demo Board Manual8/18/2010
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT3640
Product Recommendations
LT3640 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT3640EFE#PBF | Material Declaration | Reliability Data | 28-Lead TSSOP w/ EP | |
| LT3640EFE#TRPBF | Material Declaration | Reliability Data | 28-Lead TSSOP w/ EP | |
| LT3640EUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT3640EUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT3640IFE#PBF | Material Declaration | Reliability Data | 28-Lead TSSOP w/ EP | |
| LT3640IFE#TRPBF | Material Declaration | Reliability Data | 28-Lead TSSOP w/ EP | |
| LT3640IUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT3640IUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R526 Reliability Data |
