LT3508

Dual Monolithic 1.4A Step-Down Switching Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.E)
Documentation View All Documentation
LTspice LT3508 Demo Circuit - Dual Monolithic 1.4A Step-Down Switching Regulator (12V to 3.3V @ 1.4A & 5V @ 1.4A) Download 5.00KB LTspice LT3508 - Step-Down (Buck) Regulators Download 4.84 KB
Part Models 16
1ku List Price Starting From $4.01
Features
  • Wide Input Voltage Range: 3.7V to 36V
  • Two 1.4A Output Switching Regulators with Internal Power Switches
  • Adjustable 250kHz to 2.5MHz Switching Frequency
  • Synchronizable over the Full Frequency Range
  • Anti-Phase Switching Reduces Ripple
  • Uses Small Inductors and Ceramic Capacitors
  • Accurate Programmable Undervoltage Lockout
  • Independent Tracking, Soft-Start and Power Good Circuits Ease Supply Sequencing
  • Output Adjustable Down to 800mV

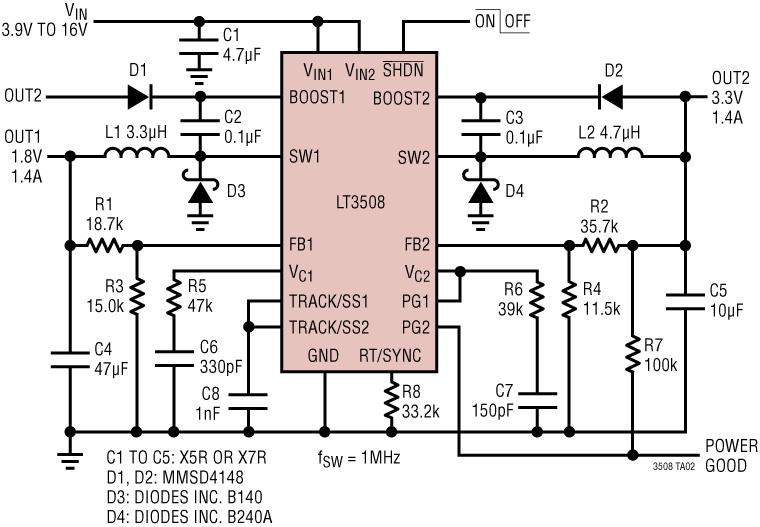

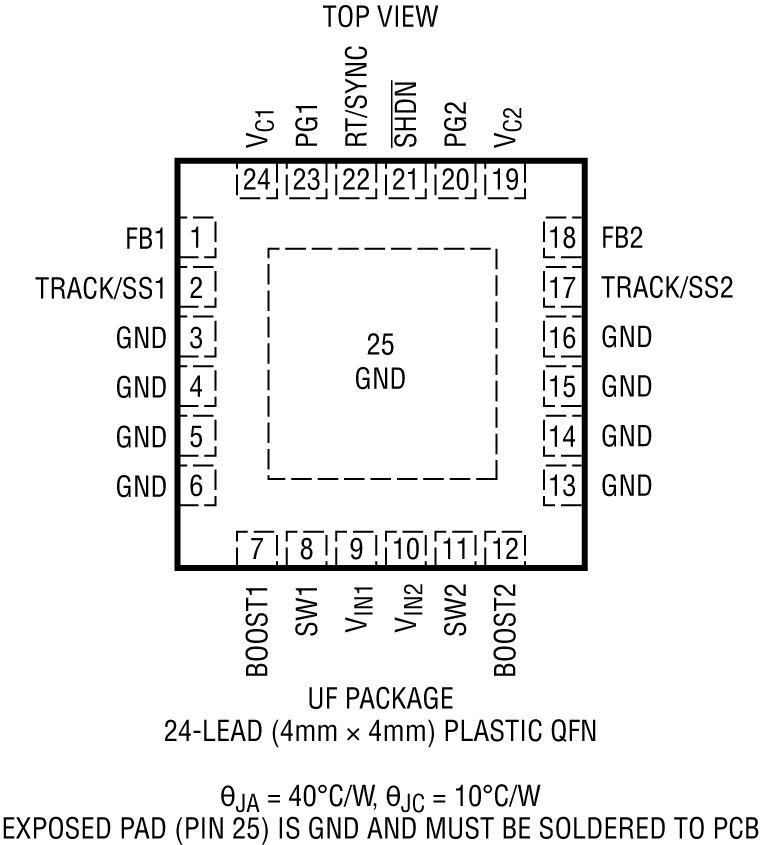

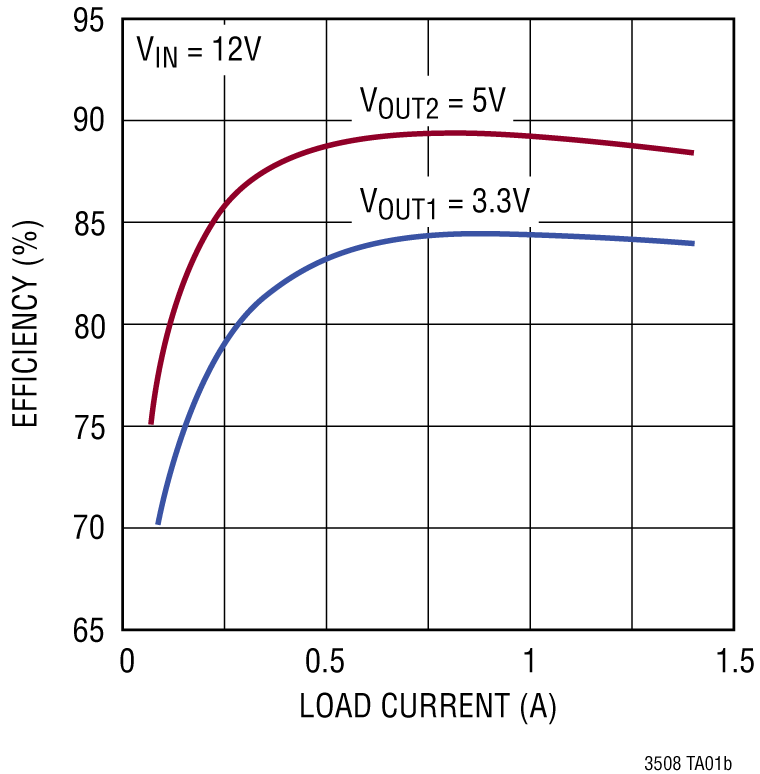

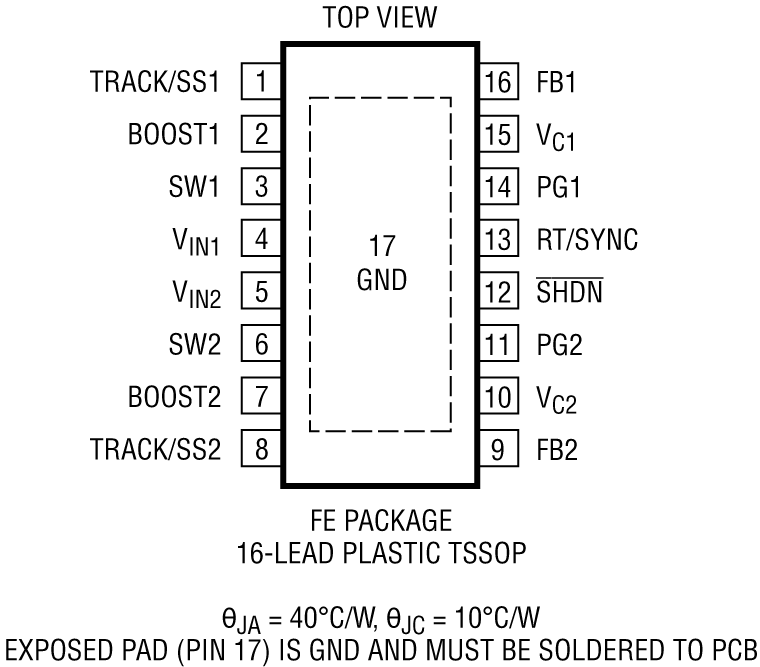

  • Small 4mm × 4mm 24-Pin QFN or 16-Pin Thermally Enhanced TSSOP Surface Mount Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3508 is a dual current mode PWM step-down DC/DC converter with internal power switches capable of generating two 1.4A outputs. The wide input voltage range of 3.7V to 36V makes the LT3508 suitable for regulating power from a wide variety of sources, including automotive batteries, 24V industrial supplies and unregulated wall adapters. Both converters are synchronized to a single oscillator programmable up to 2.5MHz and run with opposite phases, reducing input ripple current. Its high operating frequency allows the use of small, low cost inductors and ceramic capacitors, resulting in low, predictable output ripple. Each regulator has independent tracking and soft-start circuits and generates a power good signal when its output is in regulation, easing power supply sequencing and interfacing with microcontrollers and DSPs.

Cycle-by-cycle current limit, frequency foldback and thermal shutdown provide protection against shorted outputs, and soft-start eliminates input current surge during startup. The low current (<2µA) shutdown mode enables easy power management in battery-powered systems.

Applications

  • Automotive
  • DSP Power Supplies
  • Wall Transformer Regulation
  • DSL and Cable Modems
  • PCI Express
Show More Arrow image
file View Data Sheet (Rev.E)
Documentation View All Documentation
LTspice LT3508 Demo Circuit - Dual Monolithic 1.4A Step-Down Switching Regulator (12V to 3.3V @ 1.4A & 5V @ 1.4A) Download 5.00KB LTspice LT3508 - Step-Down (Buck) Regulators Download 4.84 KB
Part Models 16
1ku List Price Starting From $4.01
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3508

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Reliability Data
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/04/2020
English

LT3508: Dual Monolithic 1.4A Step-Down Switching Regulator Data Sheet (Rev.E)

Open PDF File

redirect
1.21 M
download

Download PDF

PDF Vector

PDF

UPDATED 05/28/2009
Japanese

LT3508: デュアル･モノリシック1.4A降圧スイッチング・レギュレータ データシート

Open PDF File

redirect
2.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1060A - Demo Manual redirect icon

606.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3508EFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508EFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508EUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508EUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HFE#WPBF TSSOP W/ THERMAL PAD
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HFE#WTRPBF TSSOP W/ THERMAL PAD
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508HUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IFE#WPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IFE#WTRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3508IUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3508EFE#PBF

PRODUCTION

LT3508EFE#TRPBF

PRODUCTION

LT3508HFE#PBF

PRODUCTION

LT3508HFE#TRPBF

PRODUCTION

LT3508HFE#WPBF

LT3508HFE#WTRPBF

LT3508IFE#PBF

PRODUCTION

LT3508IFE#TRPBF

PRODUCTION

LT3508IFE#WPBF

LT3508IFE#WTRPBF

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3508EUF#PBF

PRODUCTION

LT3508EUF#TRPBF

PRODUCTION

LT3508HUF#PBF

PRODUCTION

LT3508HUF#TRPBF

PRODUCTION

LT3508IUF#PBF

PRODUCTION

LT3508IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3508EFE#PBF

PRODUCTION

LT3508EFE#TRPBF

PRODUCTION

LT3508HFE#PBF

PRODUCTION

LT3508HFE#TRPBF

PRODUCTION

LT3508HFE#WPBF

LT3508HFE#WTRPBF

LT3508IFE#PBF

PRODUCTION

LT3508IFE#TRPBF

PRODUCTION

LT3508IFE#WPBF

LT3508IFE#WTRPBF

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3508EUF#PBF

PRODUCTION

LT3508EUF#TRPBF

PRODUCTION

LT3508HUF#PBF

PRODUCTION

LT3508HUF#TRPBF

PRODUCTION

LT3508IUF#PBF

PRODUCTION

LT3508IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Silicon Oscillators1
LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kit

Evaluation Kits 1

reference details image

DC1060A

LT3508EFE/LT3508EUF Demo Board

zoom

DC1060A

LT3508EFE/LT3508EUF Demo Board

download icon

Download

 print icon

Print
DC1060A
LT3508EFE/LT3508EUF Demo Board
Buy Now View Details

Product Detail

Demonstration circuit 1060 features two LT3508 step-down DC/DC switching converters. One circuit uses the LT3508EFE and the other circuit has the LT3508EUF. The LT3508 dual output step-down switching regulator has two internal power switches, a wide input voltage range, adjustable switching frequency synchronizable over the frequency range, programmable soft-start, tracking, power-good, and channel sequencing. The anti-phase switching reduces the input capacitor. The wide VIN range of the LT3508 allows step-down configurations with up to 36V input. The high power internal switches have current limit that allows for up to 1.4A output on each output.


The demonstration circuit has two circuits. The top is optimized for high efficiency, wide input range and maximum output current; the bottom is optimized for the size. The top circuit is rated for 3.3V at 1.4A and 5V at 1.4A output from a 6V–36V input using the FE package. The frequency is set to 700kHz to allow for the high VIN to VOUT ratio and provides high efficiency throughout the range. The bottom circuit generates 1.8V at 1A and 3.3V at 1A from a 5V to 16V DC input using the QFN package and shows off the compact size with 1.6MHz switching frequency.

Resources

pdf icon

PDF

DC1060A - Demo Manual Download

606.00K

pdf icon

PDF

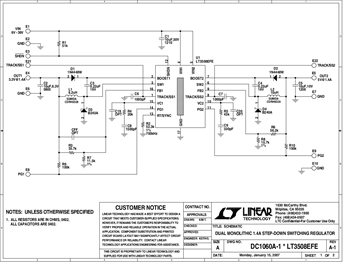

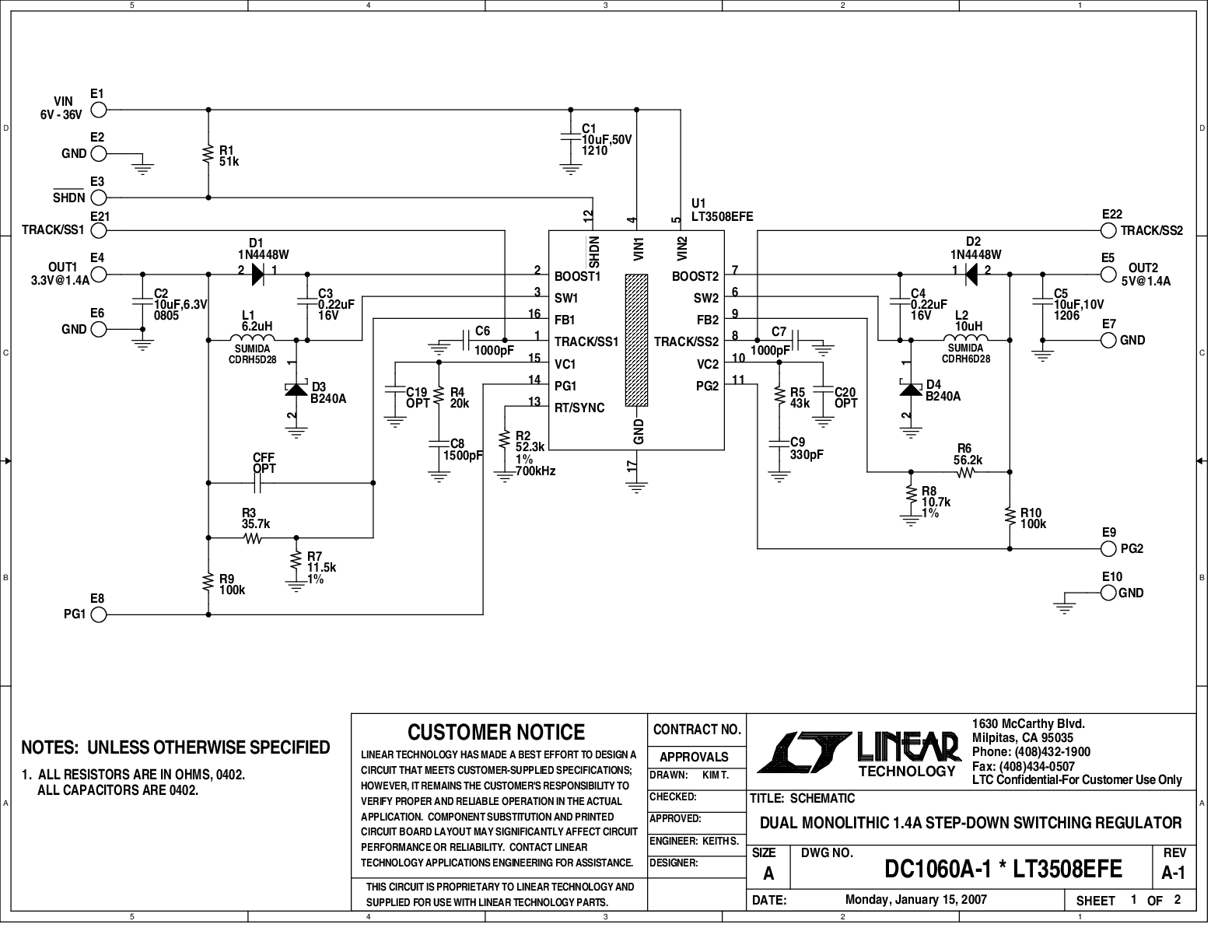

DC1060A - Schematic Download
