LT3086
LT3086
RECOMMENDED FOR NEW DESIGNS40V, 2.1A Low Dropout Adjustable Linear Regulator with Monitoring and Cable Drop Compensation
- Part Models
- 23
- 1ku List Price
- Starting From $4.57
Viewing:
Overview
- Wide Input Voltage Range: 1.4V to 40V
- 1 Resistor Sets Output Voltage: 0.4V to 32V
- Output Current: 2.1A
- ±2% Tolerance Over Line, Load and Temperature
- Output Current Monitor: IMON = IOUT/1000
- Temperature Monitor with Programmable Thermal Limit
- Programmable Cable Drop Compensation
- Parallel Multiple Devices for Higher Current
- Dropout Voltage: 330mV
- 1 Capacitor Soft-Starts Output and Decreases Noise
- Low Output Noise: 40μVRMS (10Hz to 100kHz)
- Precision, Programmable External Current Limit
- Power Good Flag with Programmable Threshold
- Ceramic Output Capacitors: 10μF Minimum
- Quiescent Current in Shutdown: <1μA
- Reverse-Battery, -Current and -Output Protection
- Available in 5mm × 4mm 16-Lead DFN, 16-Lead TSSOP, 7-Lead DD-Pak and 7-Lead TO-220.
LT3086-EP Supports defense and aerospace applications (AQEC standard)
- Download LT3086-EP data sheet (pdf)
- Military temperature range (−55°C to +125°C)
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Product change notification
- Qualification data available on request
- V62/22602
The LT3086 is a multi-feature, low dropout, low noise 2.1A linear regulator that operates over a 1.4V to 40V input supply range. Dropout voltage at 2.1A is typically 330mV. One resistor sets output voltage from 0.4V to 32V. Output voltage tolerance is guaranteed to ±2% over line, load and temperature. The LT3086 is stable with ceramic output capacitors, requiring a minimum of 10μF.
The LT3086’s programmable cable drop compensation cancels output voltage errors caused by resistive connections to the load. A master/slave configuration allows paralleling of multiple devices for higher load current and heat spreading without external ballast resistor requirements.
Output current and temperature monitoring along with a power good flag provide system diagnostic and debug capability. Internal fault circuitry includes thermal shutdown and current limit with foldback. Thermal limit and current limit are also externally programmable.
Packages include the thermally enhanced 16-lead (5mm × 4mm) DFN, 16-lead TSSOP, 7-lead DD-Pak and 7-lead TO-220.
Applications
- Programmable Linear Regulator
- Post Regulator for Switching Supplies
- USB Power Supplies
- High Reliability Power Supplies
Documentation
Data Sheet 3
User Guide 1
Technical Articles 3
Video 2
Product Selector Card 2
Brochure 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LT3086EDHD#PBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LT3086EDHD#TRPBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LT3086EFE#PBF | 16-Lead TSSOP w/ EP | ||
| LT3086EFE#TRPBF | 16-Lead TSSOP w/ EP | ||
| LT3086ER#PBF | 7-Lead DD Pak | ||
| LT3086ER#TRPBF | 7-Lead DD Pak | ||
| LT3086ET7#PBF | 7-Lead TO-220 | ||
| LT3086FE#TRZ-EP | 16-Lead TSSOP w/ EP | ||
| LT3086FE#Z-EP | 16-Lead TSSOP w/ EP | ||
| LT3086HFE#PBF | 16-Lead TSSOP w/ EP | ||
| LT3086HFE#TRPBF | 16-Lead TSSOP w/ EP | ||
| LT3086IDHD#PBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LT3086IDHD#TRPBF | 16-Lead DFN (5mm x 4mm w/ EP) | ||
| LT3086IFE#PBF | 16-Lead TSSOP w/ EP | ||
| LT3086IFE#TRPBF | 16-Lead TSSOP w/ EP | ||
| LT3086IR#PBF | 7-Lead DD Pak | ||
| LT3086IR#TRPBF | 7-Lead DD Pak | ||
| LT3086IT7#PBF | 7-Lead TO-220 | ||
| LT3086MPFE#PBF | 16-Lead TSSOP w/ EP | ||
| LT3086MPFE#TRPBF | 16-Lead TSSOP w/ EP | ||
| LT3086MPR#PBF | 7-Lead DD Pak | ||
| LT3086MPR#TRPBF | 7-Lead DD Pak | ||
| LT3086MPT7#PBF | 7-Lead TO-220 |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL |
||
| LT3086EFE#PBF | PRODUCTION | |
| LT3086EFE#TRPBF | PRODUCTION | |
| LT3086FE#TRZ-EP | PRODUCTION | |
| LT3086FE#Z-EP | PRODUCTION | |
| LT3086HFE#PBF | PRODUCTION | |
| LT3086HFE#TRPBF | PRODUCTION | |
| LT3086IFE#PBF | PRODUCTION | |
| LT3086IFE#TRPBF | PRODUCTION | |
| LT3086MPFE#PBF | PRODUCTION | |
| LT3086MPFE#TRPBF | PRODUCTION | |
|
Aug 10, 2022 - 22_0175 Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark |
||
| LT3086ER#PBF | PRODUCTION | |
| LT3086ER#TRPBF | PRODUCTION | |
| LT3086ET7#PBF | PRODUCTION | |
| LT3086IR#PBF | PRODUCTION | |
| LT3086IR#TRPBF | PRODUCTION | |
| LT3086IT7#PBF | PRODUCTION | |
| LT3086MPR#PBF | PRODUCTION | |
| LT3086MPR#TRPBF | PRODUCTION | |
| LT3086MPT7#PBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Hot Swap Controllers 1 | ||
|
LTC4361-1 LTC4361-2 |
Overvoltage/Overcurrent Protection Controller | |
| Power System Management (PSM) & Sequencers 1 | ||
| LTC2977 | RECOMMENDED FOR NEW DESIGNS | 8-Channel PMBus Power System Manager Featuring Accurate Output Voltage Measurement |
| Parts | Product Life Cycle | Description |
|---|---|---|
| LT3081 | RECOMMENDED FOR NEW DESIGNS | 1.5A Single Resistor Rugged Linear Regulator with Monitors |
Tools & Simulations
LTspice 2
- LT3086 Demo Circuit - Adjustable Voltage Controlled Current Source
- LT3086 Demo Circuit - USB Supply with Cable Drop Compensation (1.55-40V to 5V @ 2.1A)
Models for the following parts are available in LTspice:
- LT3086
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

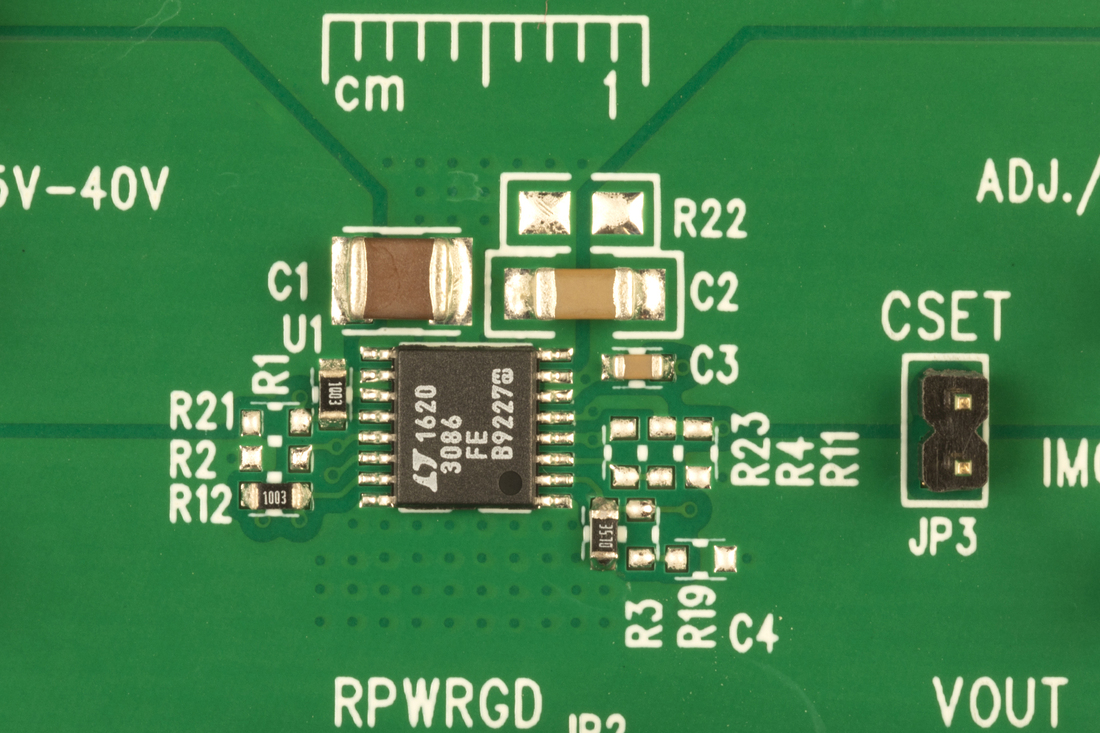

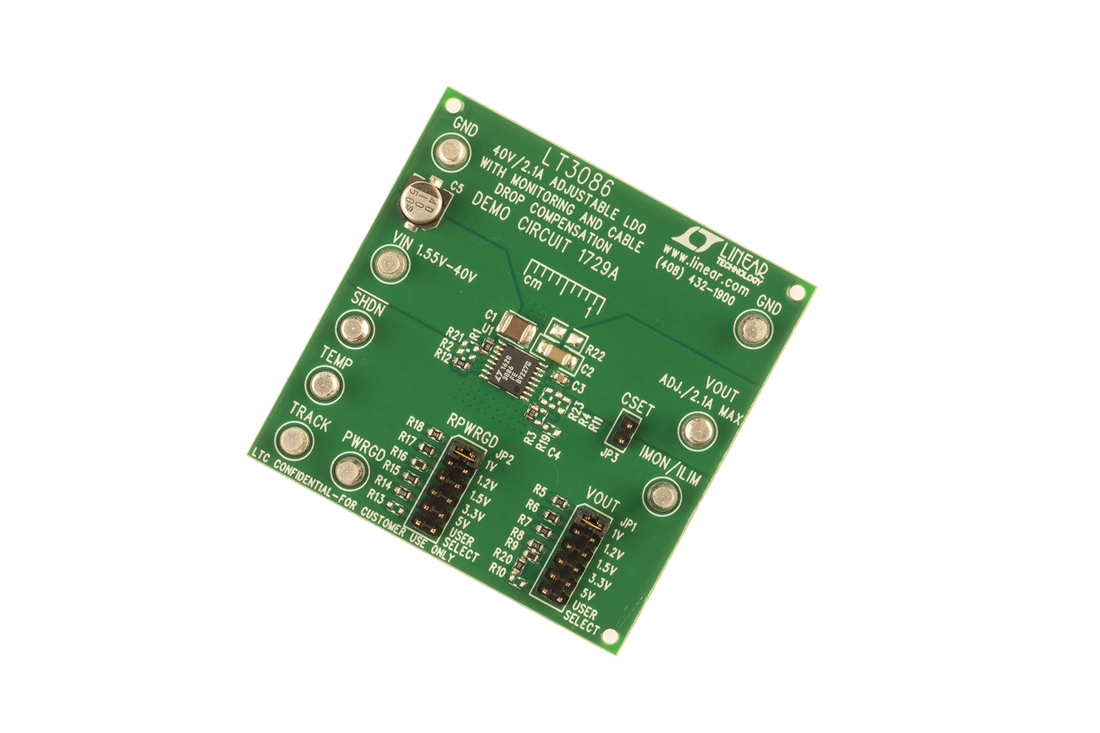

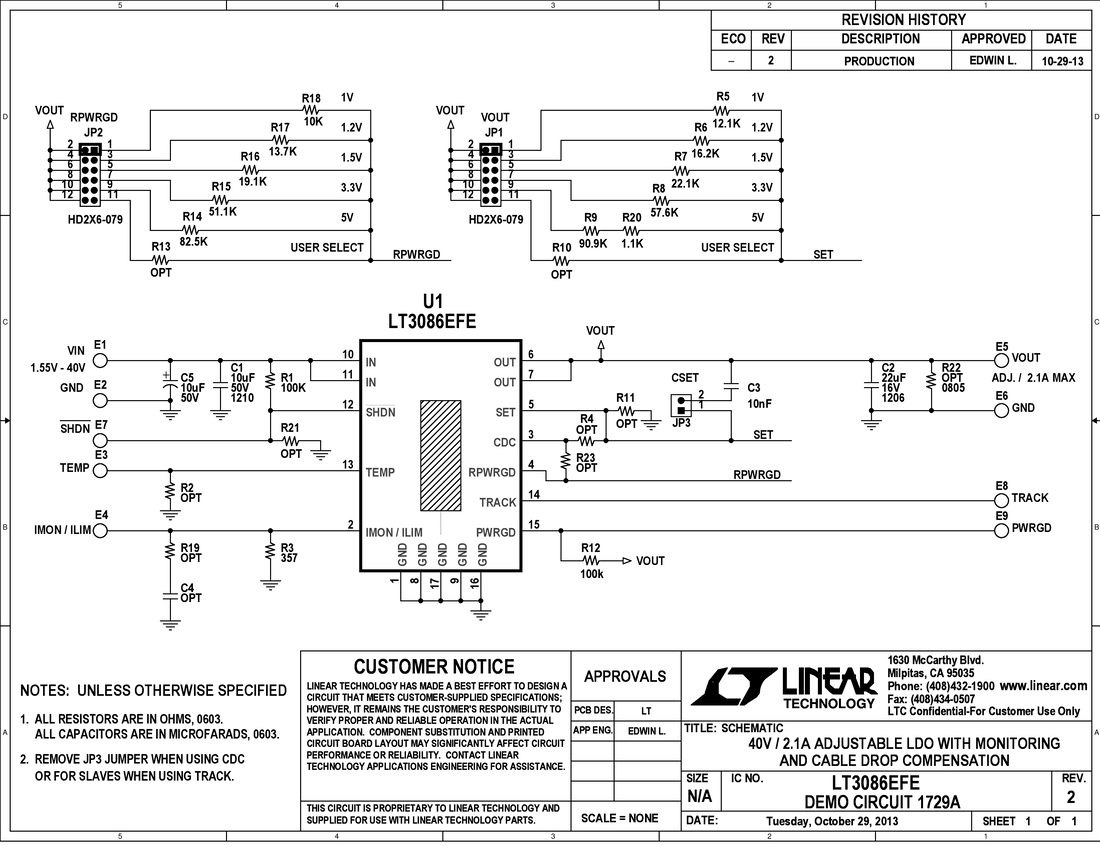

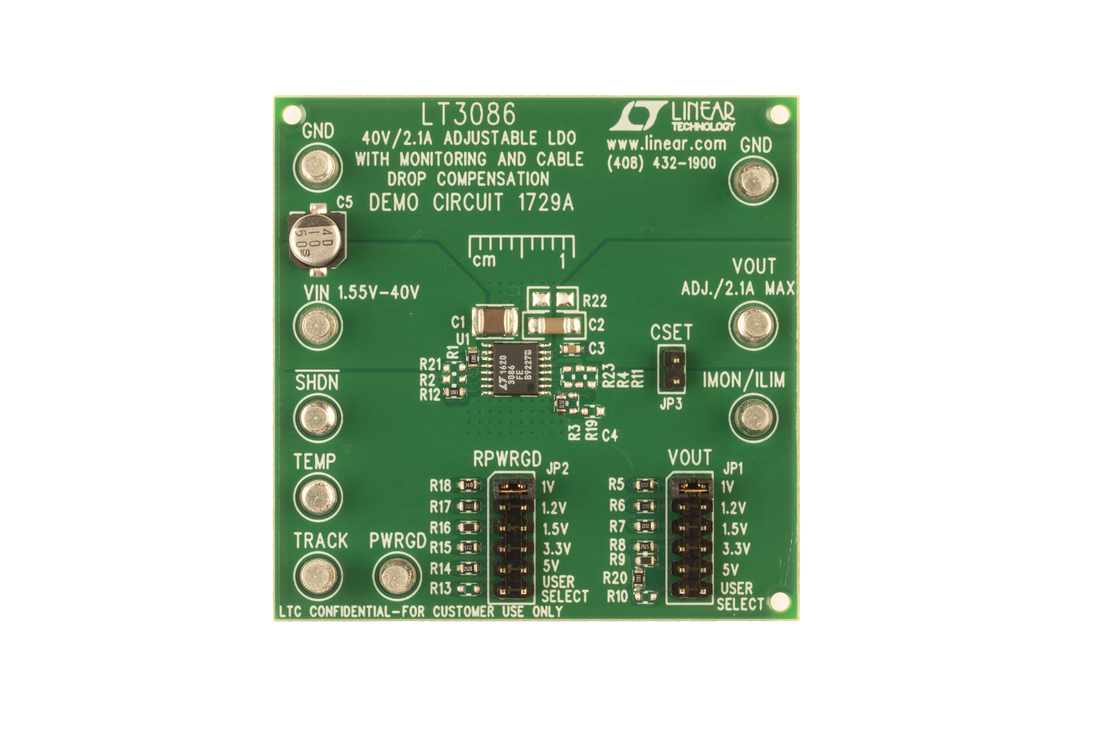

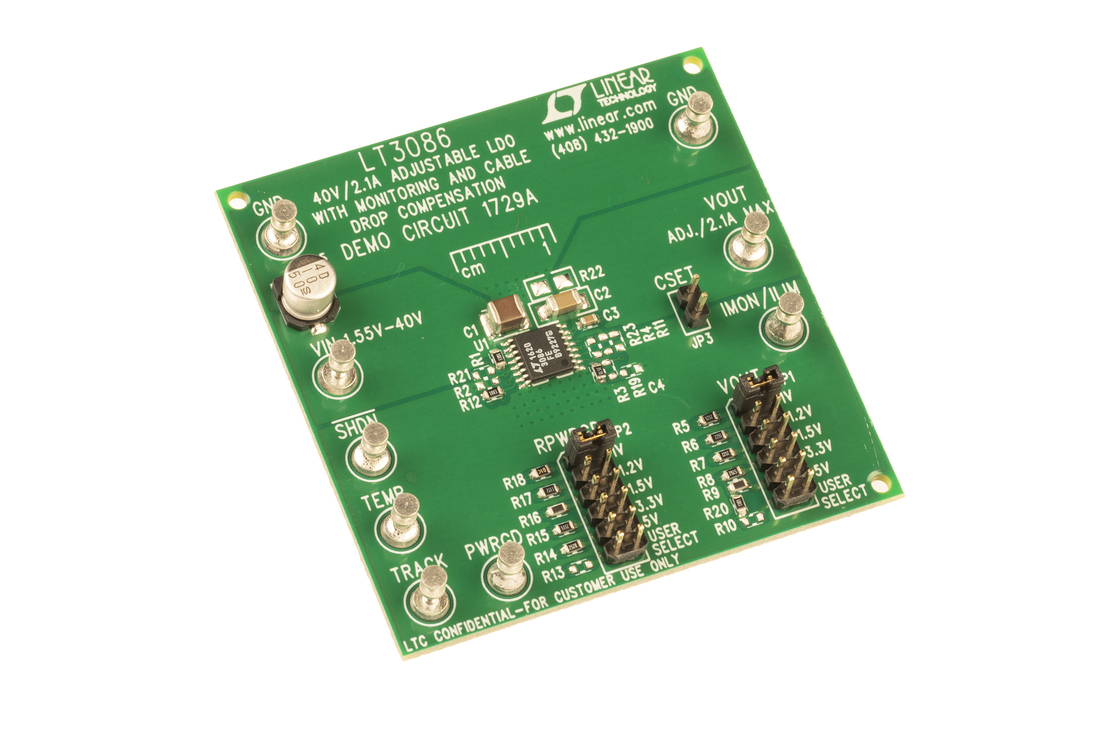

LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A
Resources
LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A
