LT3086

40V, 2.1A Low Dropout Adjustable Linear Regulator with Monitoring and Cable Drop Compensation

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT3086 - LDO Linear Regulators Download 5.38 KB LTspice LT3086 Demo Circuit - USB Supply with Cable Drop Compensation (1.55-40V to 5V @ 2.1A) Download 2.00KB LTspice LT3086 Demo Circuit - Adjustable Voltage Controlled Current Source Download 2.00KB
Part Models 23
1ku List Price Starting From $3.61
Features
  • Wide Input Voltage Range: 1.4V to 40V
  • 1 Resistor Sets Output Voltage: 0.4V to 32V
  • Output Current: 2.1A
  • ±2% Tolerance Over Line, Load and Temperature
  • Output Current Monitor: IMON = IOUT/1000
  • Temperature Monitor with Programmable Thermal Limit

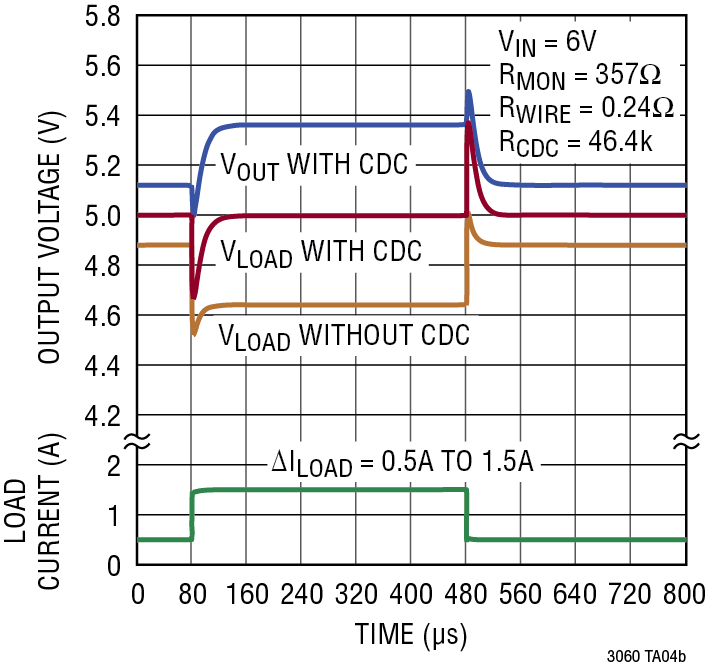

  • Programmable Cable Drop Compensation
  • Parallel Multiple Devices for Higher Current
  • Dropout Voltage: 330mV
  • 1 Capacitor Soft-Starts Output and Decreases Noise
  • Low Output Noise: 40μVRMS (10Hz to 100kHz)
  • Precision, Programmable External Current Limit
  • Power Good Flag with Programmable Threshold
  • Ceramic Output Capacitors: 10μF Minimum
  • Quiescent Current in Shutdown: <1μA
  • Reverse-Battery, -Current and -Output Protection

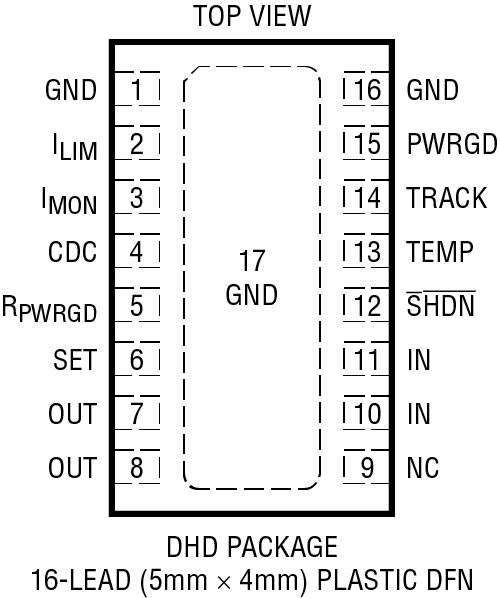

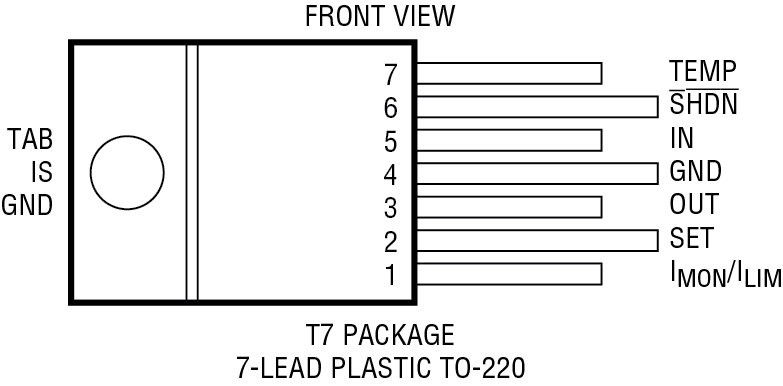

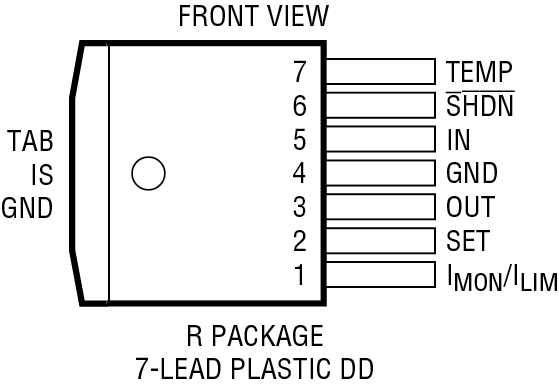

  • Available in 5mm × 4mm 16-Lead DFN, 16-Lead TSSOP, 7-Lead DD-Pak and 7-Lead TO-220.

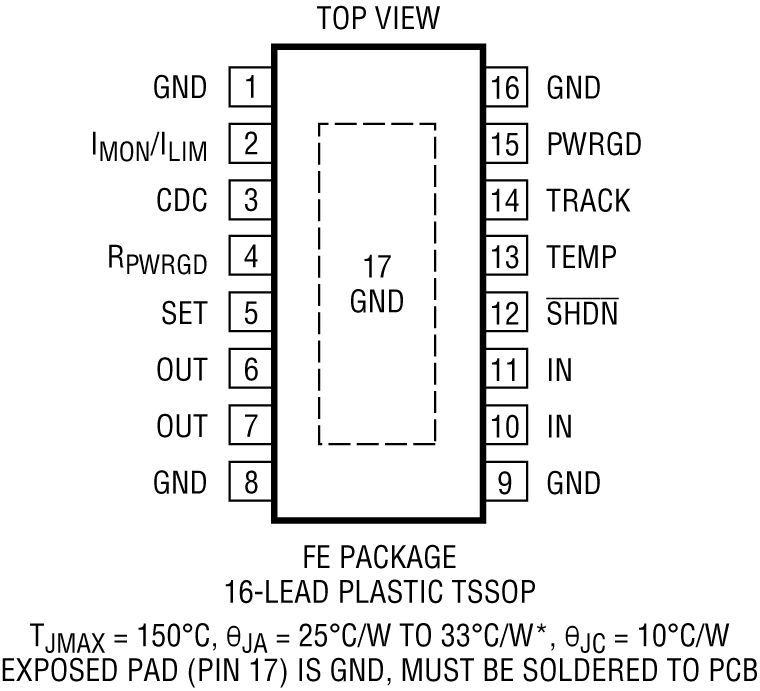

LT3086-EP Supports defense and aerospace applications (AQEC standard)

  • Download LT3086-EP data sheet (pdf)
  • Military temperature range (−55°C to +125°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Product change notification
  • Qualification data available on request
  • V62/22602
Additional Details
show more Icon

The LT3086 is a multi-feature, low dropout, low noise 2.1A linear regulator that operates over a 1.4V to 40V input supply range. Dropout voltage at 2.1A is typically 330mV. One resistor sets output voltage from 0.4V to 32V. Output voltage tolerance is guaranteed to ±2% over line, load and temperature. The LT3086 is stable with ceramic output capacitors, requiring a minimum of 10μF.

The LT3086’s programmable cable drop compensation cancels output voltage errors caused by resistive connections to the load. A master/slave configuration allows paralleling of multiple devices for higher load current and heat spreading without external ballast resistor requirements.

Output current and temperature monitoring along with a power good flag provide system diagnostic and debug capability. Internal fault circuitry includes thermal shutdown and current limit with foldback. Thermal limit and current limit are also externally programmable.

Packages include the thermally enhanced 16-lead (5mm × 4mm) DFN, 16-lead TSSOP, 7-lead DD-Pak and 7-lead TO-220.

Applications

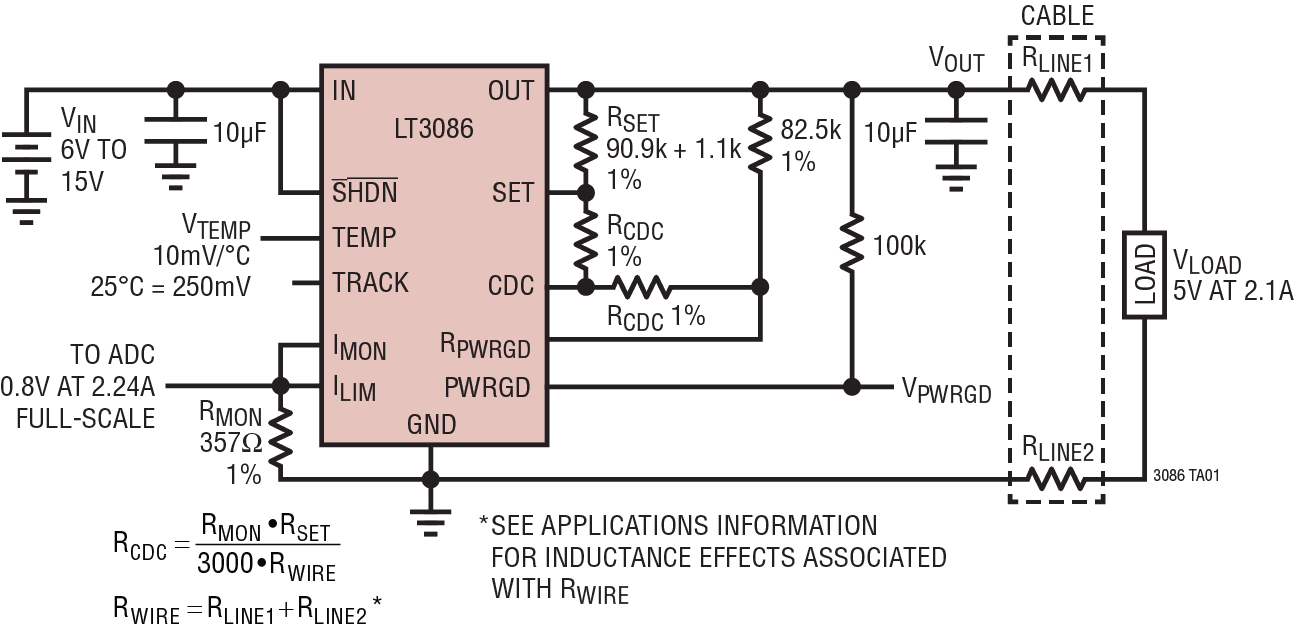

  • Programmable Linear Regulator
  • Post Regulator for Switching Supplies
  • USB Power Supplies
  • High Reliability Power Supplies
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT3086 - LDO Linear Regulators Download 5.38 KB LTspice LT3086 Demo Circuit - USB Supply with Cable Drop Compensation (1.55-40V to 5V @ 2.1A) Download 2.00KB LTspice LT3086 Demo Circuit - Adjustable Voltage Controlled Current Source Download 2.00KB
Part Models 23
1ku List Price Starting From $3.61
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3086

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 03/01/2024
English

LT3086: 40V, 2.1A Low Dropout Adjustable Linear Regulator Data Sheet (Rev.C)

Open PDF File

redirect
4.41 M
download

Download PDF

PDF Vector

PDF

UPDATED 11/24/2021
English

LT3086 Military Data Sheet

Open PDF File

redirect
264.61 K
download

Download PDF

PDF Vector

PDF

UPDATED 06/09/2021
English

LT3086-EP: 40V, 2.1A Low Dropout Adjustable Linear Regulator with Monitoring and Cable Drop Compensation Data Sheet

Open PDF File

redirect
510.56 K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 01/11/2014
English
DC1729A - Demo Manual redirect icon

307.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R531 Reliability Data redirect icon

23.66 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selector Card 2

High Performance Low Dropout Linear Regulators (LDOs)
New 3-Terminal Regulators Add Functionality

Solutions Bulletin & Brochure 2

Linear Low Dropout (LDO) Regulator Solutions
The Voltage You Want Where You Want It

Video

2

Thumbnail Image

Video

2017-09-18

2.1A LDO+ Regulator Features Cable Drop Compensation and Monitors Current and Temperature

Learn More
Thumbnail Image

Video

2017-09-18

Low Voltage Power Supplies

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3086EDHD#PBF 16-Lead DFN (5mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086EDHD#TRPBF 16-Lead DFN (5mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086EFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086EFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086ER#PBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086ER#TRPBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086ET7#PBF 7-Lead TO-220 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086FE#TRZ-EP 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086FE#Z-EP 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086HFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086HFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IDHD#PBF 16-Lead DFN (5mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IDHD#TRPBF 16-Lead DFN (5mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IR#PBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IR#TRPBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086IT7#PBF 7-Lead TO-220 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086MPFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086MPFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086MPR#PBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086MPR#TRPBF 7-Lead DD Pak external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3086MPT7#PBF 7-Lead TO-220 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3086EFE#PBF

PRODUCTION

LT3086EFE#TRPBF

PRODUCTION

LT3086FE#TRZ-EP

PRODUCTION

LT3086FE#Z-EP

PRODUCTION

LT3086HFE#PBF

PRODUCTION

LT3086HFE#TRPBF

PRODUCTION

LT3086IFE#PBF

PRODUCTION

LT3086IFE#TRPBF

PRODUCTION

LT3086MPFE#PBF

PRODUCTION

LT3086MPFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Aug 10, 2022

- 22_0175

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3086ER#PBF

PRODUCTION

LT3086ER#TRPBF

PRODUCTION

LT3086ET7#PBF

PRODUCTION

LT3086IR#PBF

PRODUCTION

LT3086IR#TRPBF

PRODUCTION

LT3086IT7#PBF

PRODUCTION

LT3086MPR#PBF

PRODUCTION

LT3086MPR#TRPBF

PRODUCTION

LT3086MPT7#PBF

PRODUCTION

pdf

PCN22_0175_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3086EFE#PBF

PRODUCTION

LT3086EFE#TRPBF

PRODUCTION

LT3086FE#TRZ-EP

PRODUCTION

LT3086FE#Z-EP

PRODUCTION

LT3086HFE#PBF

PRODUCTION

LT3086HFE#TRPBF

PRODUCTION

LT3086IFE#PBF

PRODUCTION

LT3086IFE#TRPBF

PRODUCTION

LT3086MPFE#PBF

PRODUCTION

LT3086MPFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Aug 10, 2022

- 22_0175

arrow down

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3086ER#PBF

PRODUCTION

LT3086ER#TRPBF

PRODUCTION

LT3086ET7#PBF

PRODUCTION

LT3086IR#PBF

PRODUCTION

LT3086IR#TRPBF

PRODUCTION

LT3086IT7#PBF

PRODUCTION

LT3086MPR#PBF

PRODUCTION

LT3086MPR#TRPBF

PRODUCTION

LT3086MPT7#PBF

PRODUCTION

pdf

PCN22_0175_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2977
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

8-Channel PMBus Power System Manager Featuring Accurate Output Voltage Measurement

Low Voltage Hot Swap Controllers1
LTC4361-1
LTC4361-2
popup image
Cart

Overvoltage/Overcurrent Protection Controller

Parts Product Life Cycle Description
LT3081
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

1.5A Single Resistor Rugged Linear Regulator with Monitors

Evaluation Kits 1

reference details image

DC1729A

LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A

zoom

DC1729A

LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A

download icon

Download

 print icon

Print
DC1729A
LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A
Buy Now View Details

Product Detail

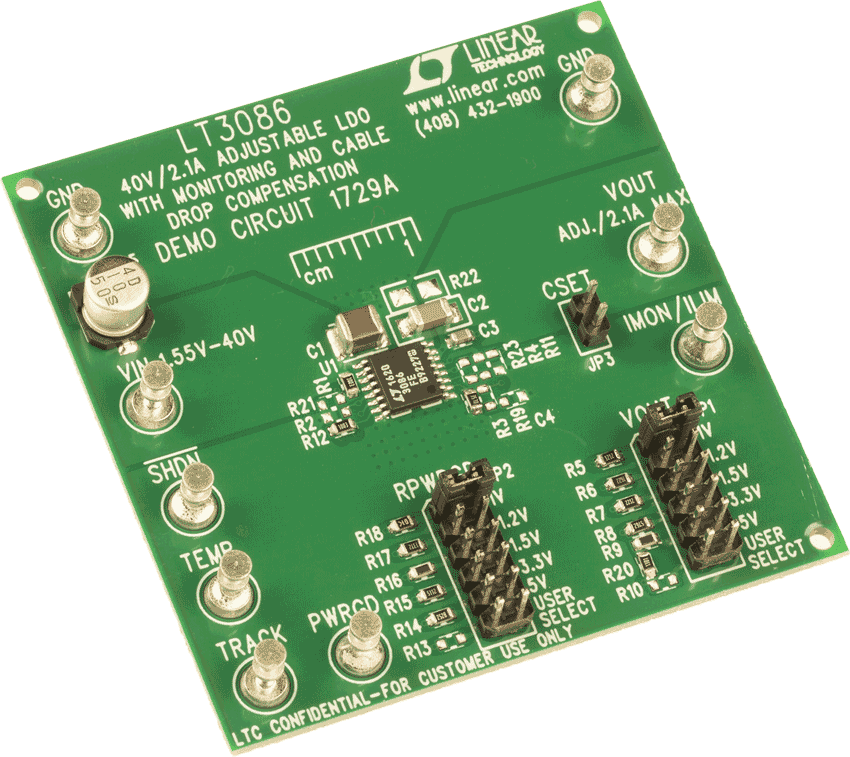

Demonstration circuit 1729A is a 2.1A low dropout adjustable linear regulator featuring the LT3086. The device is designed with multiple features and operates over a wide 1.4V to 40V input supply range. The LT3086 requires only one resistor to set the output voltage from 0.4V to 32V and it is stable with ceramic output capacitors requiring a minimum of 10μF.

Resources

pdf icon

PDF

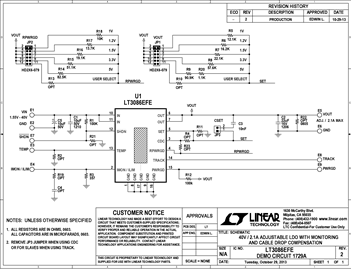

DC1729A - Schematic Download

43.00K

pdf icon

ZIP

DC1729A - Design Files Download

727.00K

pdf icon

PDF

DC1729A - Demo Manual Download

307.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1729A

LT3086 Demo Board | Low Dropout Linear Regulator, Monitoring and Cable Drop Compensation, 1.55V ≤ VIN ≤ 40V, VOUT = 1.0V/1.2V/1.5V/3.3V/5V/12V @ 2.1A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT3086 Demo Circuit - Adjustable Voltage Controlled Current Source Download

2.00K

spice tool Lt Spice

LT3086 Demo Circuit - USB Supply with Cable Drop Compensation (1.55-40V to 5V @ 2.1A) Download

2.00K

spice tool Lt Spice

LT3086 - LDO Linear Regulators Download

5.38 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
