Features and Benefits

  • 3% LED Current Matching
  • Up to 350mA Continuous Current per LED String
  • Up to 3000:1 True Color PWM Dimming Range
  • PWM Input Disconnects LED Strings
  • Can Operate in Buck, Boost and Buck-Boost Modes
  • Wide Input Range: 3V to 40V
  • Overtemperature Outputs
  • Works with LT1618, LT3477, LT3474, LT3475, LT3476, LTC3783
  • Thermally Enhanced 10-Pin MSOP Package

Product Details

The LT3003 drives three separate strings of LEDs up to 350mA/channel with 3% accurate current matching, resulting in uniform LED brightness and intensity. This approach is superior to conventional methods of running three separate channels with external ballast resistors requiring expensive factory calibration.

The LT3003 operates in boost, buck and buck-boost mode. A True Color PWM Dimming ratio of up to 3000:1 is achievable using a logic-level signal at the PWM pin for all modes without the need for external level-shifting circuitry. For applications with input supply above and below the output voltage of the LED strings, the LT3003 allows the LEDs to be returned to the input supply (buck-boost mode) instead of being limited to only SEPIC solutions.

The LT3003 is ideal for high power LED driver applications such as TFT LCD backlighting and heads-up displays. Additional overtemperature outputs allow appropriate system management for increased reliability.

The LT3003 is available in a small 10-pin MSE package.


  • High Power LED Ballaster
  • Automotive Lighting
  • Video Cameras
  • TFT LCD Backlighting

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

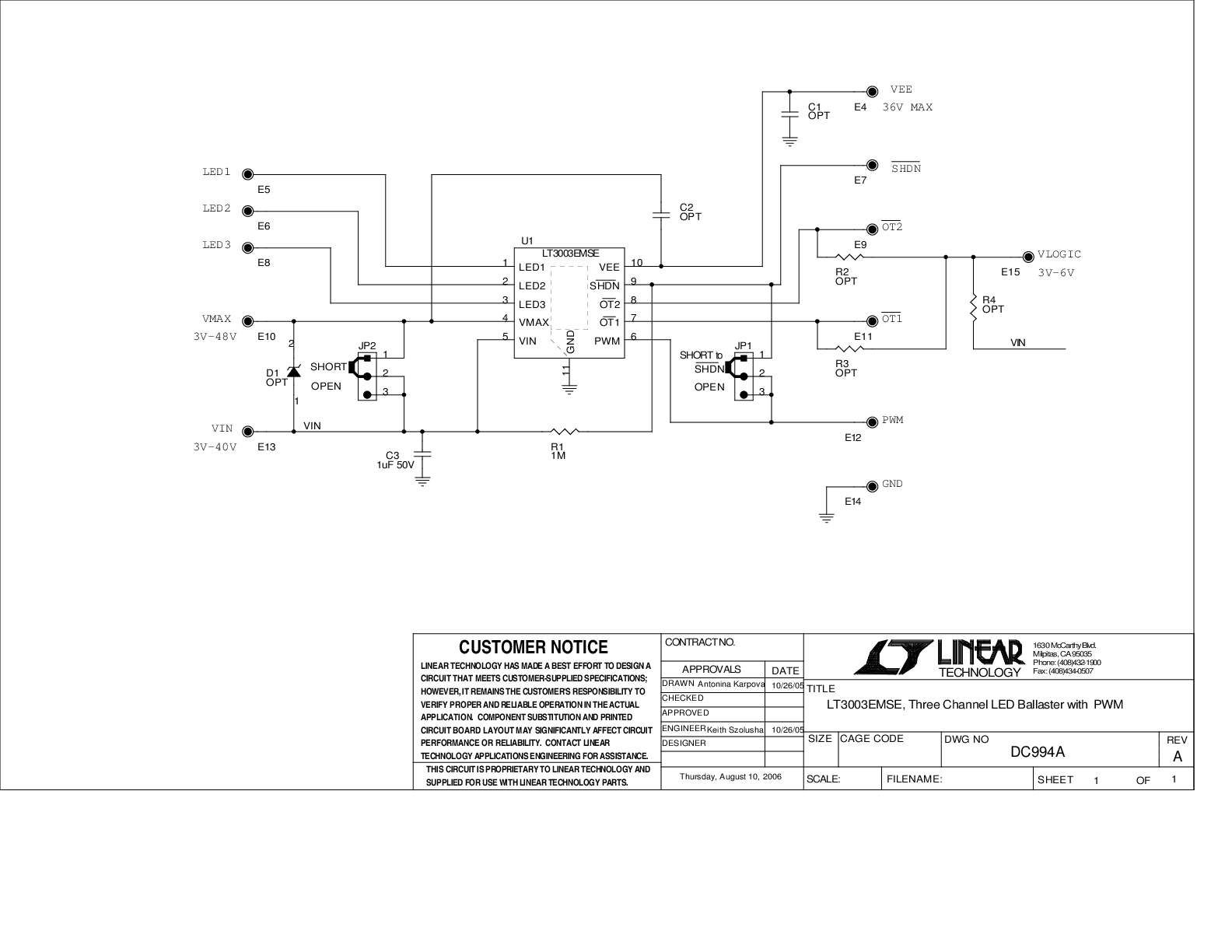

Evaluation Kits (1)

Product Recommendations

LT3003 Companion Parts

Recommended Related Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT3003EMSE#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
LT3003EMSE#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
Wafer Fabrication Data R518 Reliability Data
