LT1956

High Voltage, 1.5A, 500kHz Step-Down Switching Regulators

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1956 - Step-Down (Buck) Regulators Download 1.91 KB
Part Models 16
1ku List Price Starting From $4.37
Features
  • Wide Input Range: 5.5V to 60V
  • 1.5A Peak Switch Current
  • Small 16-Pin SSOP Package or Thermally Enhanced TSSOP Package
  • Saturating Switch Design: 0.2Ω
  • Peak Switch Current Maintained Over Full Duty Cycle Range
  • Constant 500kHz Switching Frequency
  • Effective Supply Current: 2.5mA
  • Shutdown Current: 25µA
  • 1.2V Feedback Reference (LT1956)
  • 5V Fixed Output (LT1956-5)
  • Easily Synchronizable
  • Cycle-by-Cycle Current Limiting
Additional Details
show more Icon

The LT1956/LT1956-5 are 500kHz monolithic buck switching regulators with an input voltage capability up to 60V. A high efficiency 1.5A, 0.2Ω switch is included on the die along with all the necessary oscillator, control and logic circuitry. A current mode architecture provides fast transient response and good loop stability.

Special design techniques and a new high voltage process achieve high efficiency over a wide input range. Efficiency is maintained over a wide output current range by using the output to bias the circuitry and by utilizing a supply boost capacitor to saturate the power switch. Patented circuitry maintains peak switch current over the full duty cycle range*. A shutdown pin reduces supply current to 25µA and the device can be externally synchronized from 580kHz to 700kHz with a logic level input.

The LT1956/LT1956-5 are available in fused-lead 16-pin SSOP and thermally enhanced TSSOP packages.

Applications

  • High Voltage, Industrial and Automotive
  • Portable Computers
  • Battery-Powered Systems
  • Battery Chargers
  • Distributed Power Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT1956 - Step-Down (Buck) Regulators Download 1.91 KB
Part Models 16
1ku List Price Starting From $4.37
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT1956

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • Design Note
  • Technical Articles
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 08/23/2007
English

LT1956: High Voltage, 1.5A, 500kHz Step-Down Switching Regulators Data Sheet

Open PDF File

redirect
308.00K
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 02/01/2021
English
SCP-LT1956-IEVALZ - Demo Manual (Rev.0) redirect icon

2.31 M

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English

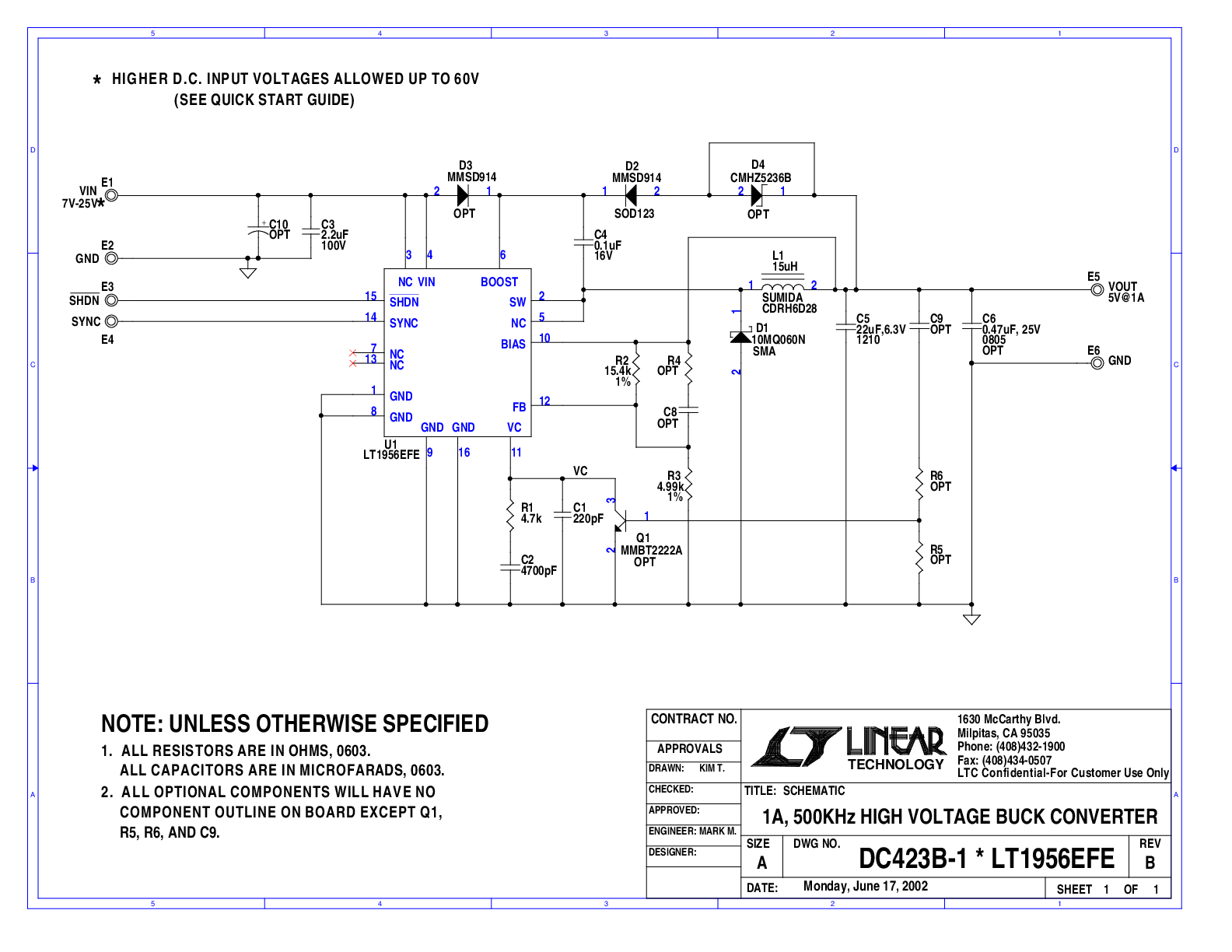

DC423B - Demo Manual redirect icon

507.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R365 Reliability Data redirect icon

19.13 K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 08/01/2003
English
Design Note 318: Efficient Dual Polarity Output Converter Fits into Tight Spaces redirect icon

Technical Articles

1

PDF Vector

HTML

UPDATED 08/01/2002
English
60V/3A Step-Down DC/DC Converter Maintains High Efficiency over a Wide Range of Input Voltages redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

LT1956: High Voltage, 1.5A, 500kHz Step-Down Switching Regulators Data Sheet

Reliability Data 1

R365 Reliability Data

User Guide 2

SCP-LT1956-IEVALZ - Demo Manual (Rev.0)
DC423B - Demo Manual

Design Note 1

Design Note 318: Efficient Dual Polarity Output Converter Fits into Tight Spaces

Technical Articles 1

60V/3A Step-Down DC/DC Converter Maintains High Efficiency over a Wide Range of Input Voltages

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT1956EFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EFE-5#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EFE-5#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EGN-5#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956EGN-5#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IFE#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IFE#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IFE-5#PBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IFE-5#TRPBF 16-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IGN-5#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1956IGN-5#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT1956EFE#PBF

PRODUCTION

LT1956EFE#TRPBF

PRODUCTION

LT1956EFE-5#PBF

PRODUCTION

LT1956EFE-5#TRPBF

PRODUCTION

LT1956IFE#PBF

PRODUCTION

LT1956IFE#TRPBF

PRODUCTION

LT1956IFE-5#PBF

PRODUCTION

LT1956IFE-5#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Oct 3, 2024

- 24_0235

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT1956EFE#PBF

PRODUCTION

LT1956EFE#TRPBF

PRODUCTION

LT1956EFE-5#PBF

PRODUCTION

LT1956EFE-5#TRPBF

PRODUCTION

LT1956IFE#PBF

PRODUCTION

LT1956IFE#TRPBF

PRODUCTION

LT1956IFE-5#PBF

PRODUCTION

LT1956IFE-5#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Oct 3, 2024

- 24_0235

arrow down

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download
Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LT1956EGN#PBF

PRODUCTION

LT1956EGN#TRPBF

PRODUCTION

LT1956EGN-5#PBF

PRODUCTION

LT1956EGN-5#TRPBF

PRODUCTION

LT1956IGN#PBF

PRODUCTION

LT1956IGN#TRPBF

PRODUCTION

LT1956IGN-5#PBF

PRODUCTION

LT1956IGN-5#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Silicon Oscillators1
LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Evaluation Kits 3

reference details image

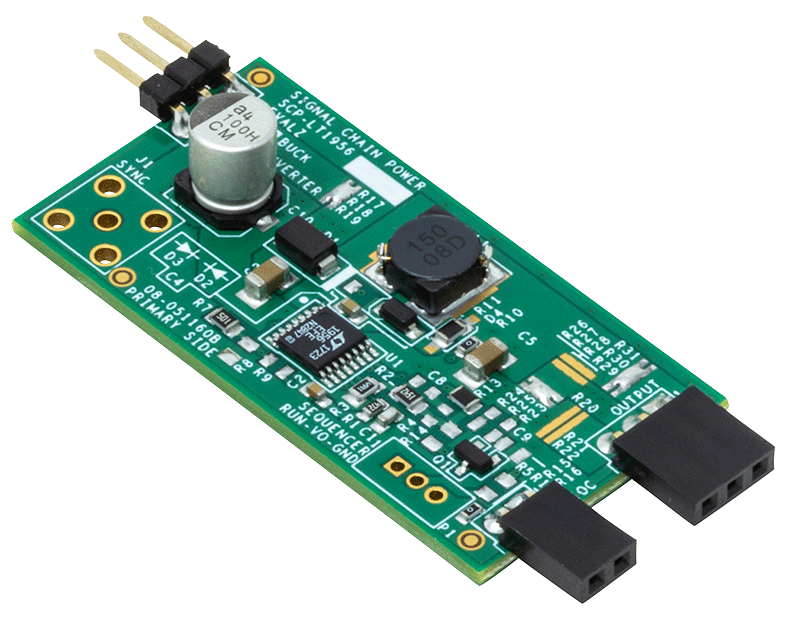

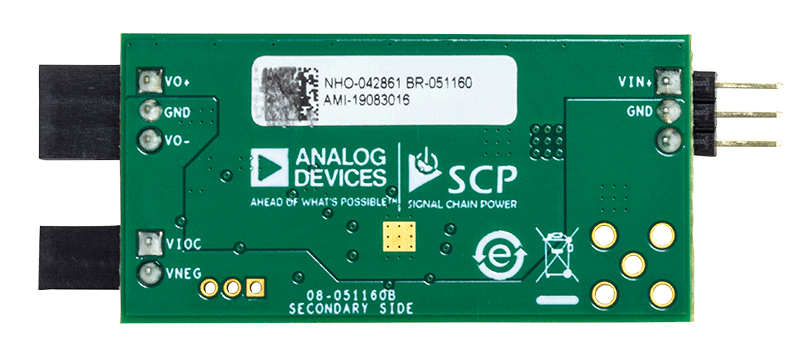

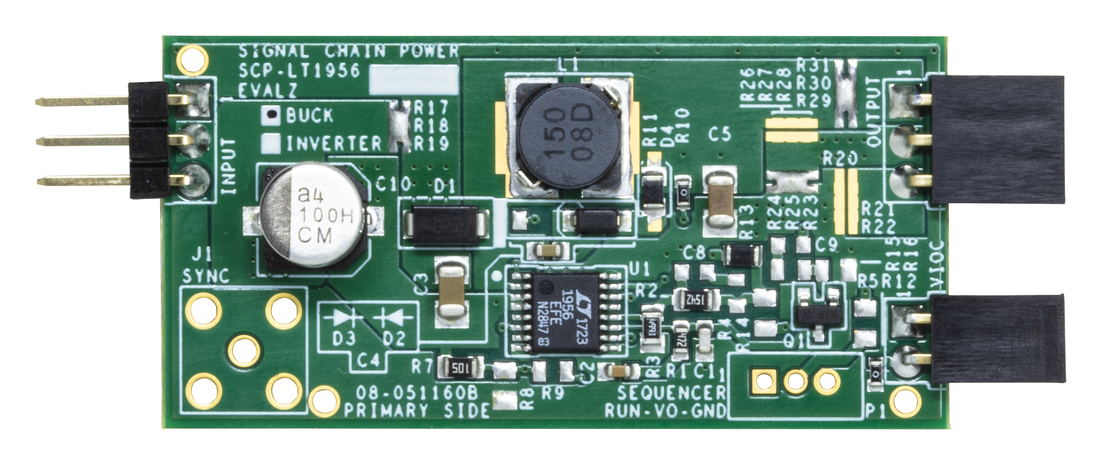

SCP-LT1956-BEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Buck Converter

zoom

SCP-LT1956-BEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Buck Converter

download icon

Download

 print icon

Print
SCP-LT1956-BEVALZ
LT1956 Signal Chain Evaluation Board | 60V/1.5A Buck Converter
Buy Now View Details

Product Detail

Demonstration circuit SCP-LT1956-BEVALZ is a 48V, 1A load current, monolithic step-down DC/DC switching converter with a wide input range for applications which require higher input voltage.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-THRUBRD-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-5X1-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that the Demo Manual does not cover details important to the operation and configuration regarding the LT1956. Please refer to the LT1956 data sheet for a complete description of the part.

Resources

pdf icon

PDF

SCP-LT1956-BEVALZ - Demo Manual (Rev.0) Download

2.29 M

pdf icon

ZIP

SCP-LT1956-BEVALZ - Design Files Download

4.11 M

pdf icon

PDF

SCP-LT1956-BEVALZ - Schematic Download

95.75 K

Show More Arrow image
reference details image

SCP-LT1956-IEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Inverting Buck Converter

zoom

SCP-LT1956-IEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Inverting Buck Converter

download icon

Download

 print icon

Print
SCP-LT1956-IEVALZ
LT1956 Signal Chain Evaluation Board | 60V/1.5A Inverting Buck Converter
Buy Now View Details

Product Detail

Demonstration circuit SCP-LT1956-IEVALZ is a 48V, 1.5A buck regulator configured as an inverting buck topology for positive to negative DC voltage conversion. This board has ample current output to drive multiple signal chains.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-THRUBRD-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-5X1-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that this Demo Manual does not cover details important to the operation and configuration regarding the LT1956. Please refer to the LT1956 datasheet for a complete description of the part.

Resources

pdf icon

PDF

SCP-LT1956-IEVALZ - Demo Manual (Rev.0) Download

2.31 M

pdf icon

ZIP

SCP-LT1956-IEVALZ - Design Files Download

1.85 M

pdf icon

PDF

SCP-LT1956-IEVALZ - Schematic Download

41.28 K

Show More Arrow image
reference details image

DC423B

LT1956EFE | 1A, 500kHz High Voltage Buck Converter, VIN = 7V - 25V, VOUT = 5V @ 1A

Evaluation Kits3

evaluation kit item images

SCP-LT1956-BEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Buck Converter
evaluation kit item images

SCP-LT1956-IEVALZ

LT1956 Signal Chain Evaluation Board | 60V/1.5A Inverting Buck Converter
evaluation kit item images

DC423B

LT1956EFE | 1A, 500kHz High Voltage Buck Converter, VIN = 7V - 25V, VOUT = 5V @ 1A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT1956 - Step-Down (Buck) Regulators Download

1.91 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
