LT1800

80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amp

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1800 - Operational Amplifiers (Op Amps) Download 2.65 KB
Part Models 8
1ku List Price Starting From $1.55
Features
  • Gain Bandwidth Product: 80MHz
  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Quiescent Current: 2mA Max
  • Input Offset Voltage: 350µV Max
  • Input Bias Current: 250nA Max
  • Low Voltage Noise: 8.5nV/√Hz
  • Slew Rate: 25V/µs
  • Common Mode Rejection: 105dB
  • Power Supply Rejection: 97dB
  • Open-Loop Gain: 85V/mV
  • Operating Temperature Range: –40°C to 85°C
  • Available in the 8-Pin SO and 5-Pin Low Profile (1mm) ThinSOT™ Packages
Additional Details
show more Icon

The LT1800 is a low power, high speed rail-to-rail input and output operational amplifier with excellent DC performance. The LT1800 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.

The LT1800 has an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications.

The LT1800 maintains its performance for supplies from 2.3V to 12.6V and is specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

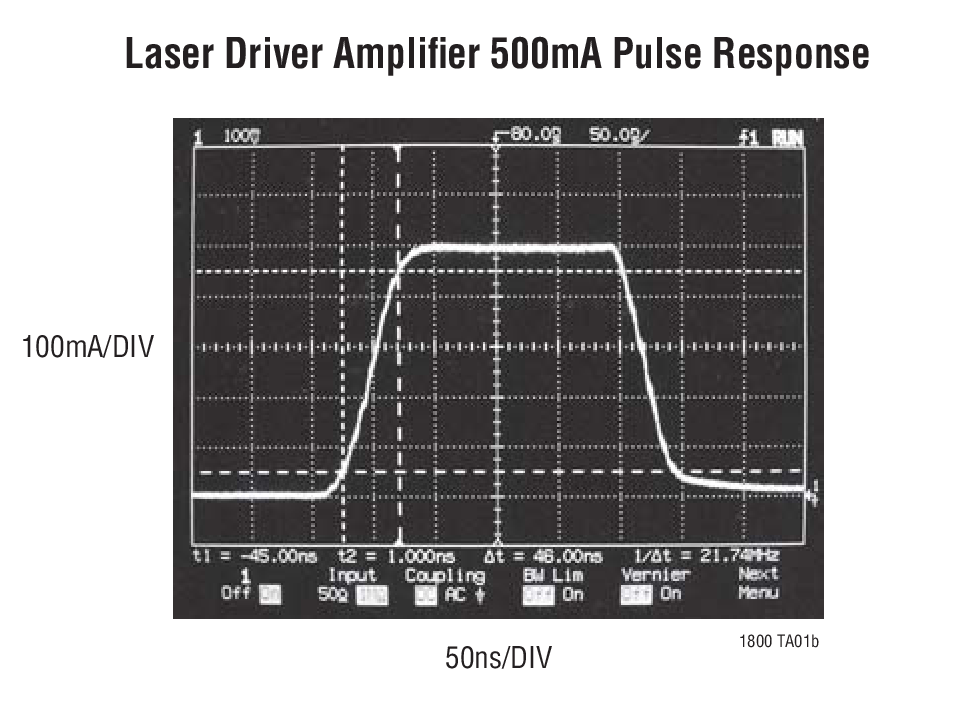

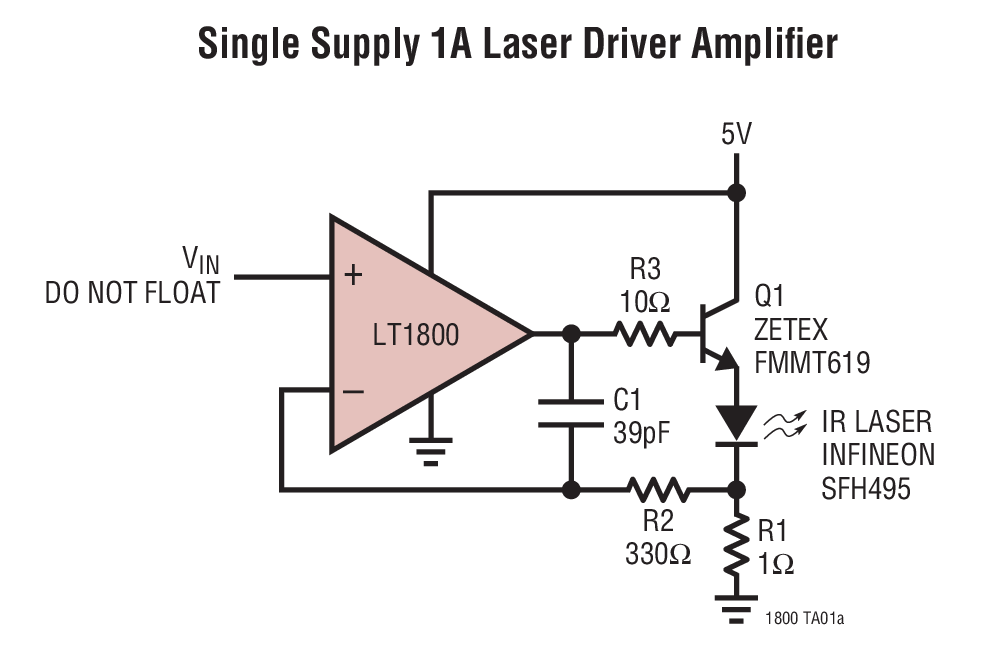

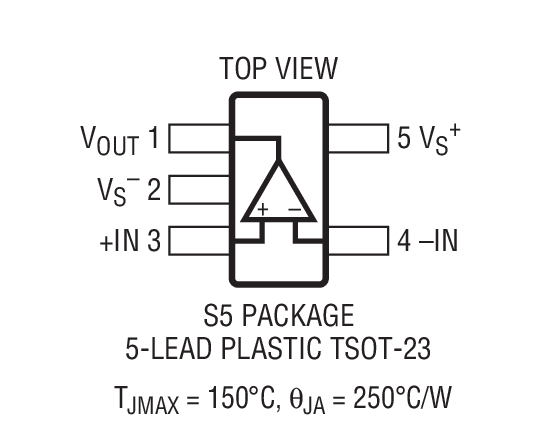

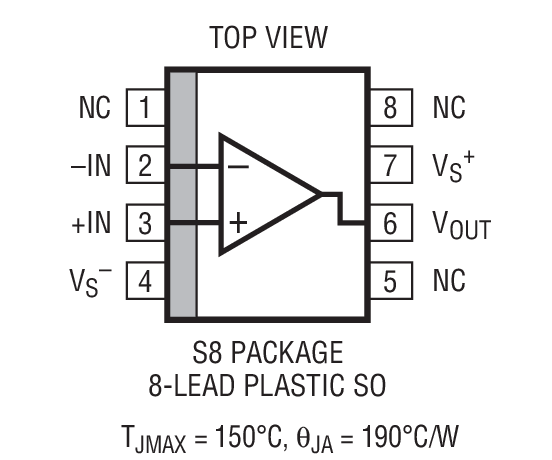

The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin TSOT-23 package. For dual and quad versions of the LT1800, see the LT1801/LT1802 data sheet. The LT1800 can be used as a plug-in replacement for many op amps to improve input/output range and performance.

Applications

  • Low Voltage, High Frequency Signal Processing
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers
  • Active Filters
  • Video Line Driver
