LT1777: Low Noise Step-Down Switching Regulator Data Sheet8/30/2007PDF279K
Overview
Features and Benefits
- Programmable dI/dt Limit

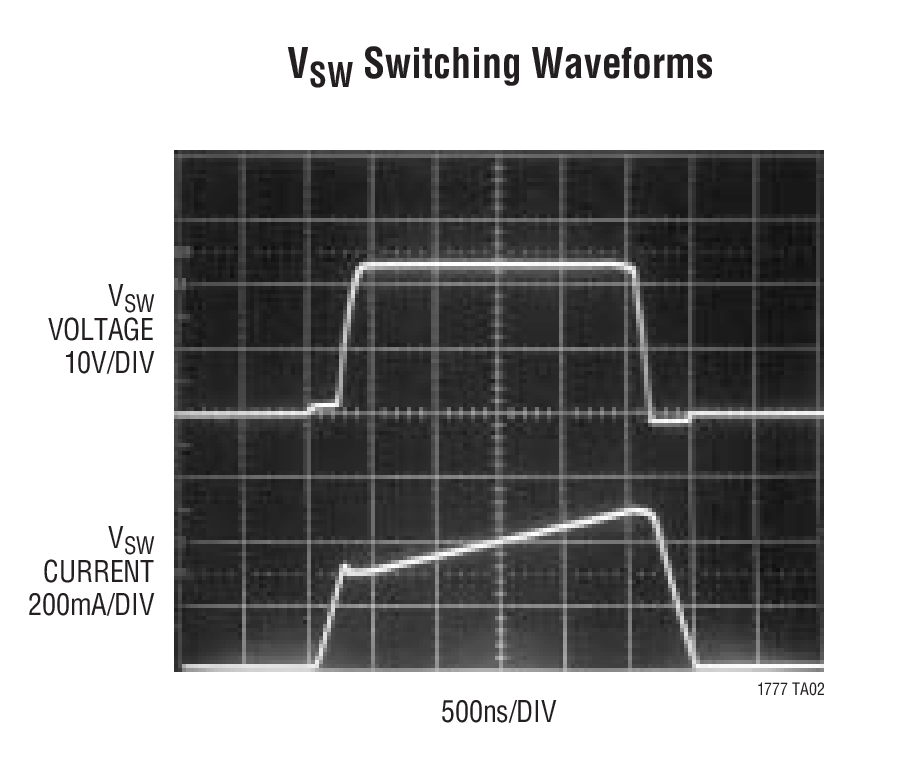

- Internally Limited dV/dt
- High Input Voltage: 48V Max
- 700mA Peak Switch Rating
- True Current Mode Control
- 100kHz Fixed Operating Frequency
- Synchronizable to 250kHz
- Low Supply Current in Shutdown: 30µA
- Low Thermal Resistance 16-Pin SO Package
Product Details
The LT1777 is a Buck (step-down) regulator designed for noise sensitive applications. It contains a dI/dt limiting circuit programmed via a small external inductor in the switching path. Internal circuitry also generates controlled dV/dt ramp rates.
The monolithic die includes all oscillator, control and protection circuitry. The part can accept operating input voltages as high as 48V, and contains an output switch rated at 700mA peak current. Current mode control offers excellent dynamic input supply rejection and short-circuit protection. The internal control circuitry is normally powered via the VCC pin, thereby minimizing power drawn directly from the VIN supply (see Applications Information). The fused-lead SO16 package and 100kHz switching frequency allow for minimal PC board area requirements.
Applications
- Automotive Cellular and GPS Receivers
- Telecom Power Supplies
- Industrial Instrument Power Supplies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R012 Reliability Data3/23/2018PDF31 K
-

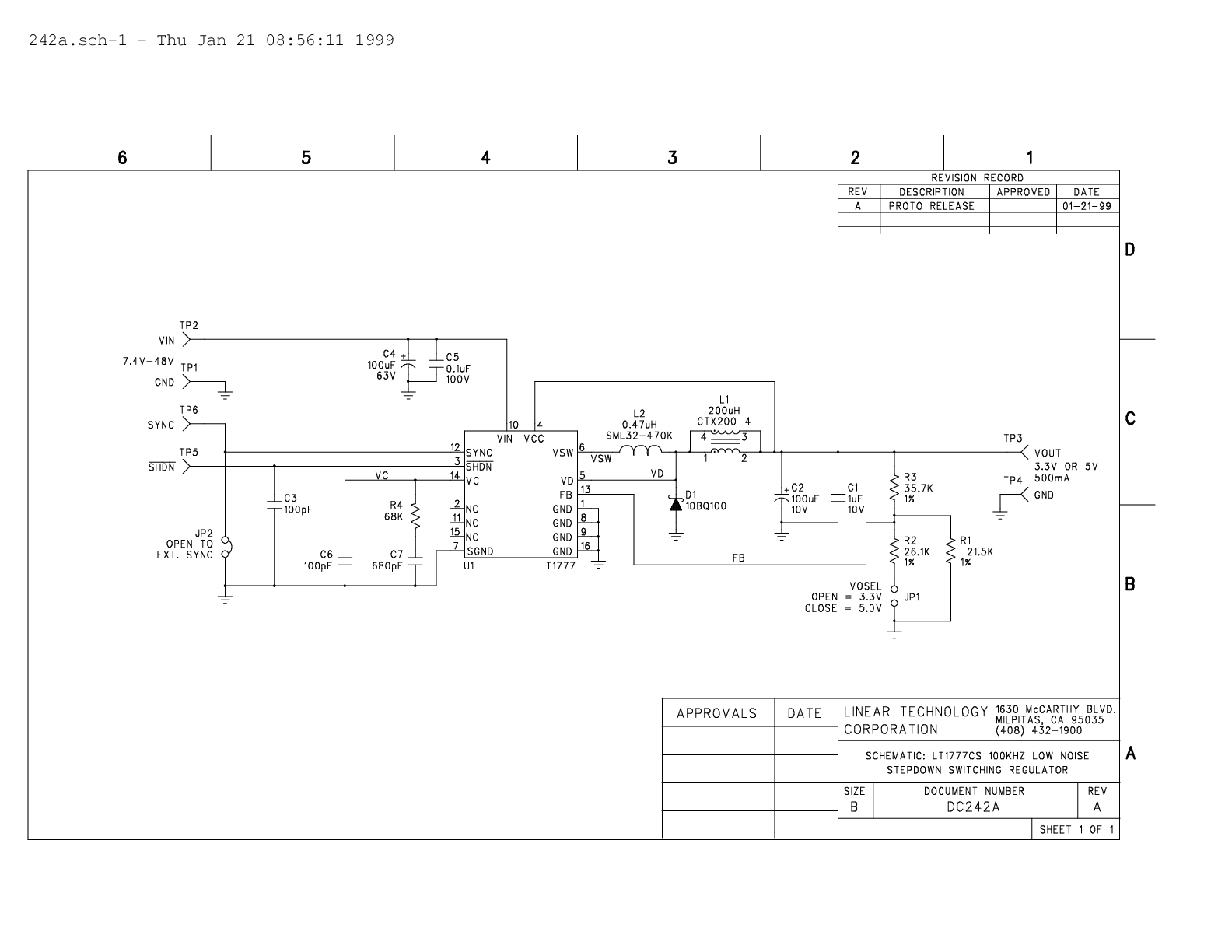

DC242A - Demo Manual9/24/2009PDF189K
-
Generating Low Cost, Low Noise, Dual-Voltage Supplies2/1/1999 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Models for the following parts are available in LTspice:
Product Recommendations
LT1777 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|

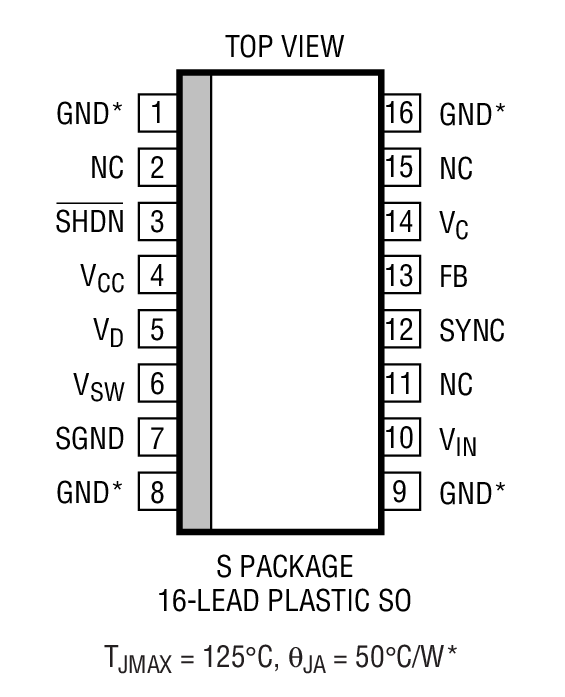

LT1777CS#PBF | Material Declaration | Reliability Data | 16-Lead SOIC (Narrow 0.15 Inch) | |
LT1777CS#TRPBF | Material Declaration | Reliability Data | 16-Lead SOIC (Narrow 0.15 Inch) | |
LT1777IS#PBF | Material Declaration | Reliability Data | 16-Lead SOIC (Narrow 0.15 Inch) | |
LT1777IS#TRPBF | Material Declaration | Reliability Data | 16-Lead SOIC (Narrow 0.15 Inch) | |
Wafer Fabrication Data | R012 Reliability Data |
