LT1764

PRODUCTION

3A, Fast Transient Response, Low Noise, LDO Regulators

Part Models: 30
1ku List Price: Starting From $4.68

Viewing:

Overview

Optimized for Fast Transient Response
Output Current: 3A

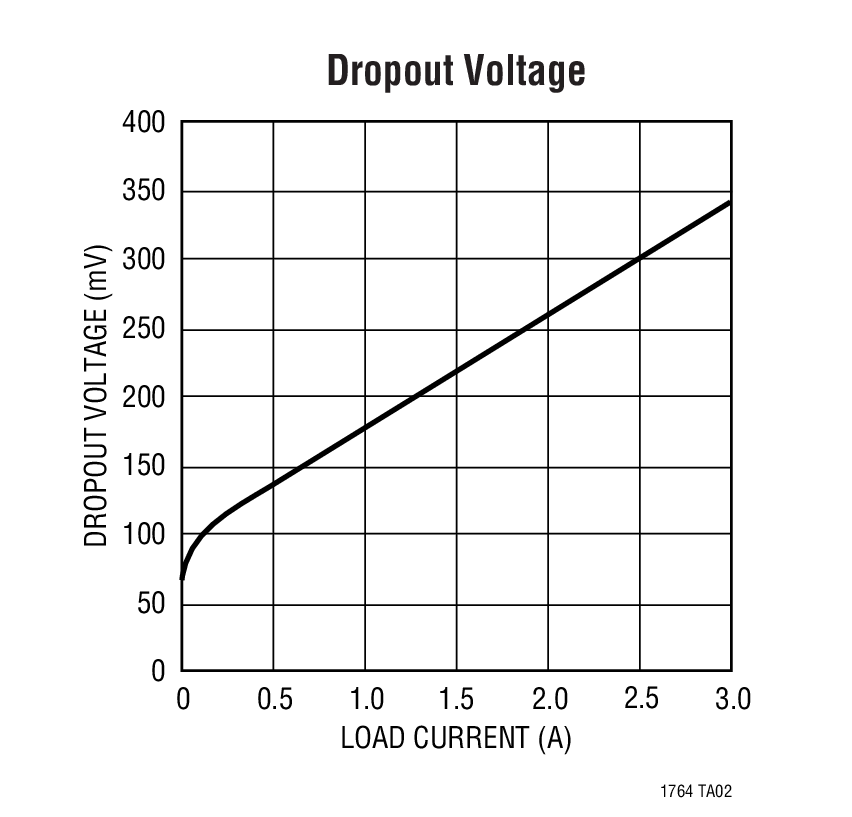

Dropout Voltage: 340mV at 3A
Low Noise: 40µV_RMS (10Hz to 100kHz)
1mA Quiescent Current
Wide Input Voltage Range: 2.7V to 20V
No Protection Diodes Needed
Controlled Quiescent Current in Dropout

Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V
Adjustable Output from 1.21V to 20V
<1µA Quiescent Current in Shutdown
Stable with 10µF Output Capacitor
Reverse Battery Protection
No Reverse Current
Thermal Limiting

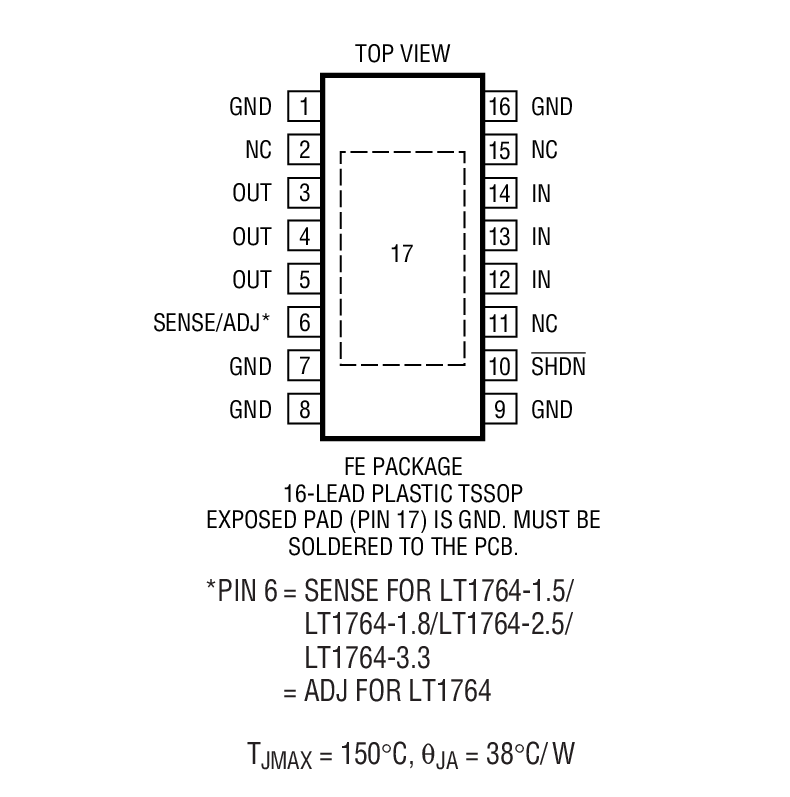

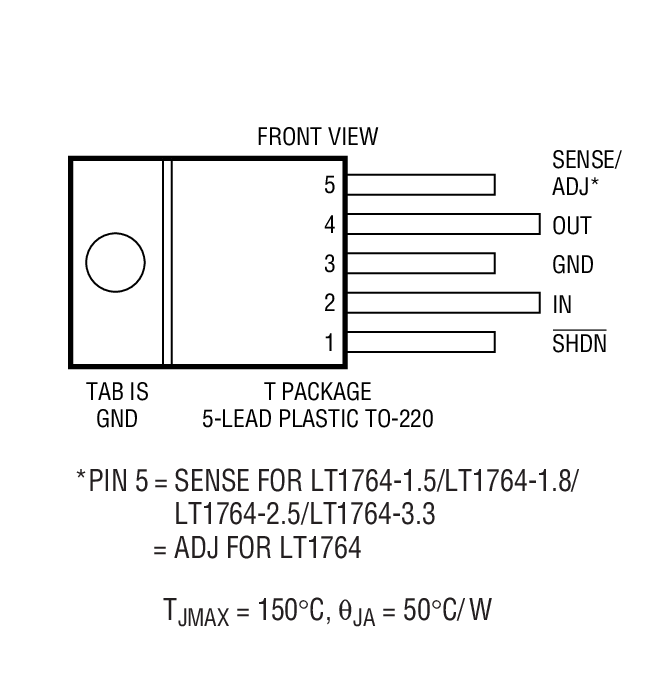

Available in 5-Lead TO-220, DD and 16-Lead TSSOP Packages

The LT1764 is a low dropout regulator optimized for fast transient response. The device is capable of supplying 3A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to <1µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1764 has very low output voltage noise which makes the device ideal for sensitive RF supply applications.

Output voltage range is from 1.21V to 20V. The LT1764 regulators are stable with output capacitors as low as 10µF. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The device is available in fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V and as an adjustable device with a 1.21V reference voltage. The LT1764 regulators are available in 5-lead TO-220, DD and Exposed Pad 16-lead TSSOP packages.


	Features
LT1764	-
LT1764A	Stable With Ceramic Output Capacitors

Applications

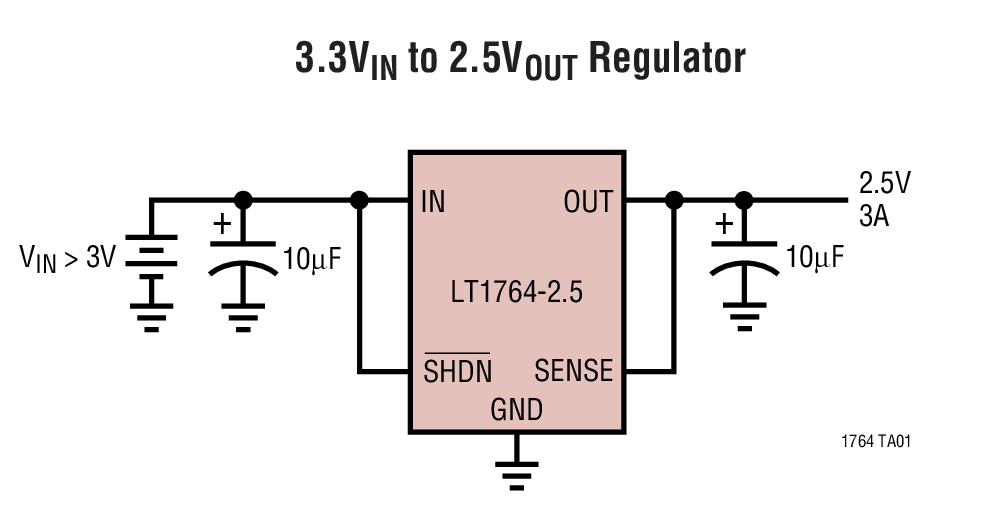

3.3V to 2.5V Logic Power Supply
Post Regulator for Switching Supplies

Part Models: 30
1ku List Price: Starting From $4.68
