LT1512

PRODUCTION

LT1512

SEPIC Constant-Current/Constant-Voltage Battery Charger

PRODUCTION

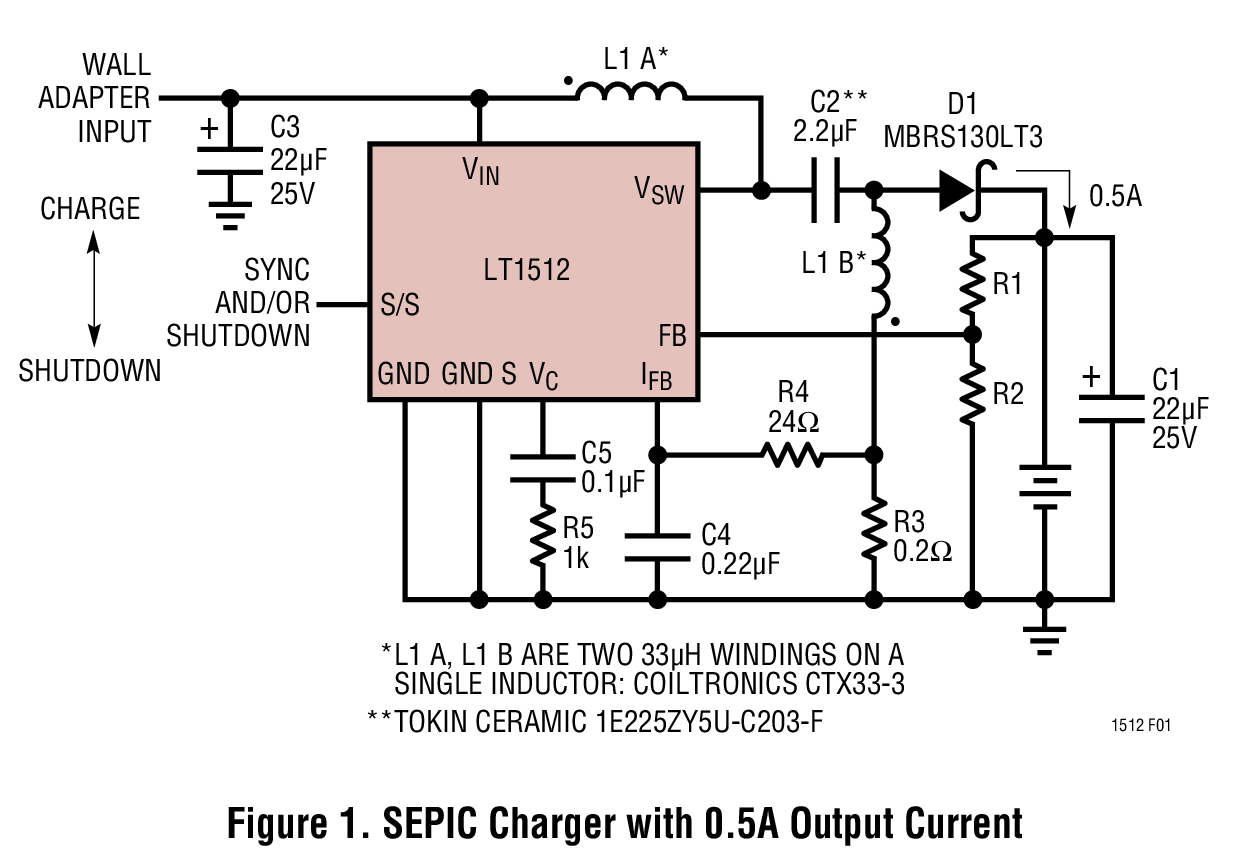

Figure 1. SEPIC Charger with 0.5A Output Current slide

Figure 1. SEPIC Charger with 0.5A Output Current

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 10

1ku List Price Starting From $4.43

Features

Charger Input Voltage May Be Higher, Equal to or Lower Than Battery Voltage
Charges Any Number of Cells Up to 30V*
1% Voltage Accuracy for Rechargeable Lithium Batteries
500kHz Switching Frequency Minimizes Inductor Size
100mV Current Sense Voltage for High Efficiency
Battery Can Be Directly Grounded
Charging Current Easily Programmable or Shut Down

*Maximum Input Voltage = 40V – V_BAT

Additional Details

The LT1512 is a 500kHz current mode switching regulator specially configured to create a constant-current/constant-voltage battery charger. In addition to the usual voltage feedback node, it has a current sense feedback circuit for accurately controlling output current of a flyback or SEPIC (Single-Ended Primary Inductance Converter) topology charger. These topologies allow the current sense circuit to be ground referred and completely separated from the battery itself, simplifying battery switching and system grounding problems. In addition, these topologies allow charging even when the input voltage is lower than the battery voltage.

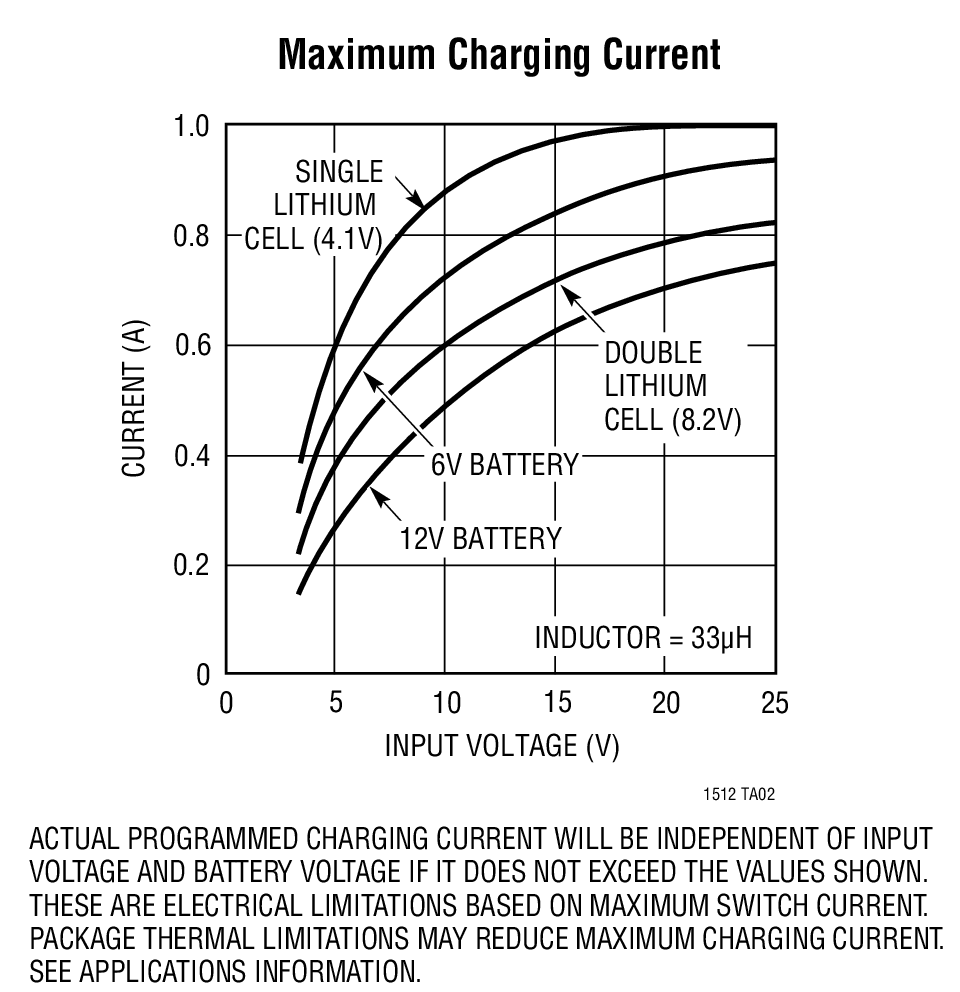

Maximum switch current on the LT1512 is 1.5A. This allows battery charging currents up to 1A for a single lithium-ion cell. Accuracy of 1% in constant-voltage mode is perfect for lithium battery applications. Charging current can be easily programmed for all battery types.

Applications

Battery Charging of NiCd, NiMH, Lead-Acid or Lithium Rechargeable Cells
Precision Current Limited Power Supply
Constant-Voltage/Constant-Current Supply
Transducer Excitation

*Maximum Input Voltage = 40V – V_BAT

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 10

1ku List Price Starting From $4.43

Technical Documents 7

LT1512: SEPIC Constant-Current/Constant-Voltage Battery Charger Data Sheet 03/09/2015

R324 Reliability Data 03/26/2018

AN84 - Linear Technology Magazine Circuit Collection, Volume IV 08/20/2007

Reverse Voltage Protection for Battery Chargers 06/01/2020

Design Note 242: Li-Ion Charge Termination IC Interfaces with PWM Switchers 01/01/2000

Low Voltage PowerPath Driver Switches from a 3.3V or 5V Supply to Battery Backup 06/01/1999

LT1512 - SPECIFICATION NOTICE 11/22/2004

Reference Materials 1

Industrial Battery Chargers Overview 10/17/2023

Design Resources 10

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

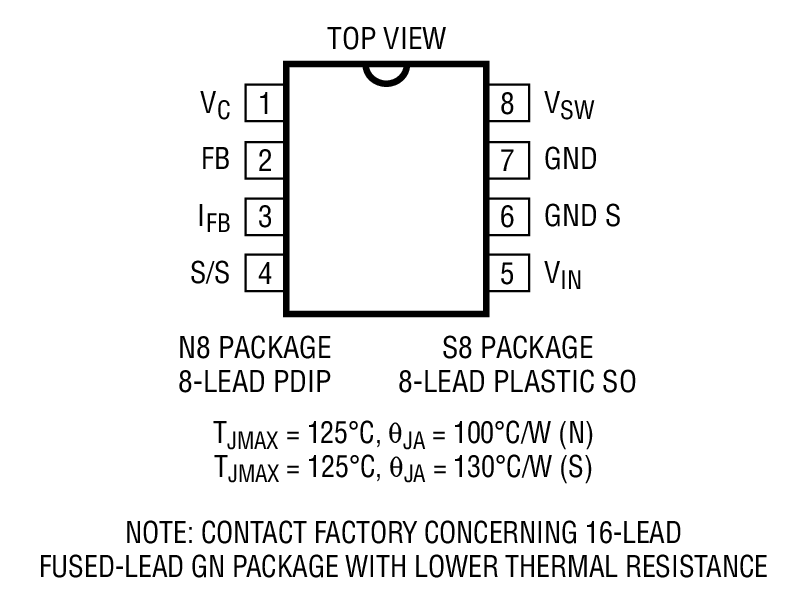

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1512CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT1512IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
