LT1222

500MHz, 3nV/√Hz, AV ≥ 10 Operational Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1222 - Operational Amplifiers (Op Amps) Download 1.06 KB
Part Models 5
1ku List Price Starting From $4.55
Features
  • Gain-Bandwidth: 500MHz
  • Gain of 10 Stable Uncompensated
  • Slew Rate: 200V/μs
  • Input Noise Voltage: 3nV/√Hz
  • C-Load™ Op Amp Drives Capacitive Loads
  • External Compensation Pin
  • Maximum Input Offset Voltage: 300μV
  • Maximum Input Bias Current: 300nA
  • Maximum Input Offset Current: 300nA
  • Minimum Output Swing Into 500Ω: ±12V
  • Minimum DC Gain: 100V/mV, RL = 500Ω
  • Settling Time to 0.1%: 75ns, 10V Step
  • Settling Time to 0.01%: 120ns, 10V Step
  • Differential Gain: 0.4%, AV = 2, RL = 150Ω
  • Differential Phase: 0.1°, AV = 2, RL = 150Ω
Additional Details
show more Icon

The LT1222 is a low noise, very high speed operational amplifier with superior DC performance. The LT1222 is stable in a noise gain of 10 or greater without compensation, or the part can be externally compensated for lower closed-loop gain at the expense of lower bandwidth and slew rate. It features reduced input offset voltage, lower input bias currents, lower noise and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving capacitive loads which makes it useful in buffer or cable driver applications. The compensation node can also be used to clamp the output swing.

The LT1222 is a member of a family of fast, high performance amplifiers that employ our advanced complementary bipolar processing. For unity-gain stable applications the LT1220 can be used, and for gains of 4 or greater the LT1221 can be used.

Applications

  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • 8-, 10-, 12-Bit Data Acquisition Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT1222 - Operational Amplifiers (Op Amps) Download 1.06 KB
Part Models 5
1ku List Price Starting From $4.55
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT1222

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • User Guide
  • Data Sheet
  • Application Note
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 08/24/2007
English

LT1222: 500MHz, 3nV/√Hz, AV ≥10 Operational Amplifier Data Sheet

Open PDF File

redirect
256.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R164 Reliability Data redirect icon

25.66 K

download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 02/01/2012
English
DC417B - Demo Manual redirect icon

137.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/08/2016
English
DC1416A - Demo Manual redirect icon

224.35 K

download

Download PDF

Application Note

2

PDF Vector

PDF

UPDATED 08/20/2007
English
AN74 - Component and Measurement Advances Ensure 16-Bit DAC Settling Time redirect icon

957.00K

download

Download PDF

PDF Vector

PDF

UPDATED 08/20/2007
English
AN47 - High Speed Amplifier Techniques redirect icon

5.00M

download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 07/28/2014
English
DN140 - Updated Operational Amplifier Selection Guide for Optimum Noise Performance redirect icon

72.00K

download

Download PDF

PDF Vector

PDF

UPDATED 02/21/2008
Japanese
DN140 最適なノイズ特性のための最新オペアンプ選択ガイド redirect icon

41.00K

download

Download PDF

PDF Vector

HTML

UPDATED 10/01/1996
English
Design Note 140: Updated Operational Amplifier Selection Guide for Optimum Noise Performance redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 8
show more Icon

Data Sheet 1

LT1222: 500MHz, 3nV/√Hz, AV ≥10 Operational Amplifier Data Sheet

Reliability Data 1

R164 Reliability Data

User Guide 2

DC417B - Demo Manual
DC1416A - Demo Manual

Application Note 2

AN74 - Component and Measurement Advances Ensure 16-Bit DAC Settling Time
AN47 - High Speed Amplifier Techniques

Design Note 2

DN140 - Updated Operational Amplifier Selection Guide for Optimum Noise Performance
Design Note 140: Updated Operational Amplifier Selection Guide for Optimum Noise Performance

Video

1

Thumbnail Image

Video

2017-09-14

Sub-Microamp RMS Current Measurement for Improved 32kHz Quartz Crystal Performance - LT1028, LT1222, LTC1563-2, LTC1968, LT1077

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT1222CN8#PBF 8-Lead PDIP (Narrow 0.3 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1222CS8#PBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1222CS8#TRPBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1222IS8#PBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1222IS8#TRPBF 8-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0241

Epoxy Change from Henkel 8290 to 8290A for PDIP Package

LT1222CN8#PBF

PRODUCTION

pdf

PCN22_0241_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Aug 6, 2022

- 22_0172

Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]

LT1222CN8#PBF

PRODUCTION

pdf

PCN22_0172_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Dec 14, 2023

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LT1222CS8#PBF

PRODUCTION

LT1222CS8#TRPBF

PRODUCTION

LT1222IS8#PBF

PRODUCTION

LT1222IS8#TRPBF

PRODUCTION

pdf

PCN22_0255_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Jun 11, 2021

- 21_0060

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LT1222CS8#PBF

PRODUCTION

LT1222CS8#TRPBF

PRODUCTION

LT1222IS8#PBF

PRODUCTION

LT1222IS8#TRPBF

PRODUCTION

pdf

PCN21_0060_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0241

arrow down

Epoxy Change from Henkel 8290 to 8290A for PDIP Package

LT1222CN8#PBF

PRODUCTION

pdf

PCN22_0241_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Aug 6, 2022

- 22_0172

arrow down

Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]

LT1222CN8#PBF

PRODUCTION

pdf

PCN22_0172_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Dec 14, 2023

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LT1222CS8#PBF

PRODUCTION

LT1222CS8#TRPBF

PRODUCTION

LT1222IS8#PBF

PRODUCTION

LT1222IS8#TRPBF

PRODUCTION

pdf

PCN22_0255_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Jun 11, 2021

- 21_0060

arrow down

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LT1222CS8#PBF

PRODUCTION

LT1222CS8#TRPBF

PRODUCTION

LT1222IS8#PBF

PRODUCTION

LT1222IS8#TRPBF

PRODUCTION

pdf

PCN21_0060_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC417B

DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp

reference details image

DC1416B

LT1222CS8 Demo Board | 500mHz, 3nV√Hz Operational Amplifier

Evaluation Kits2

evaluation kit item images

DC417B

DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp
evaluation kit item images

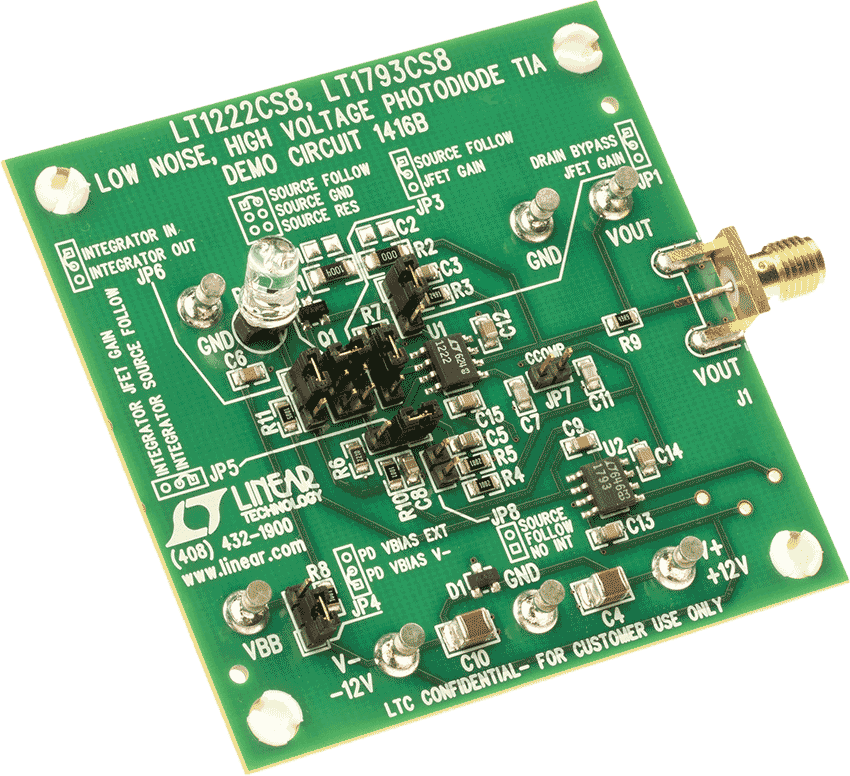

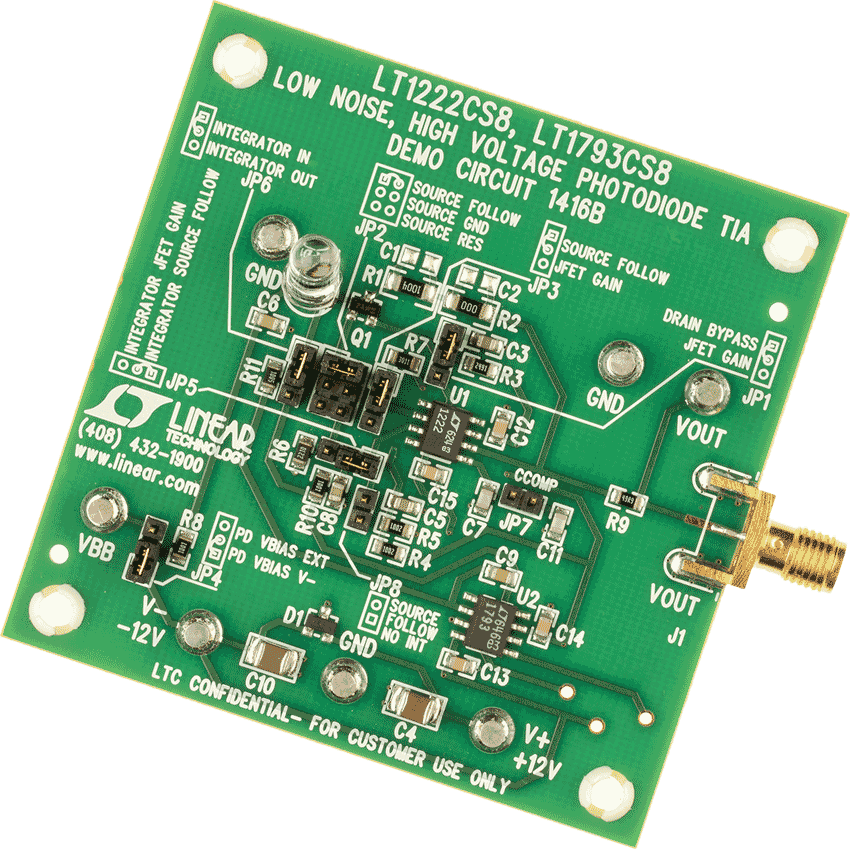

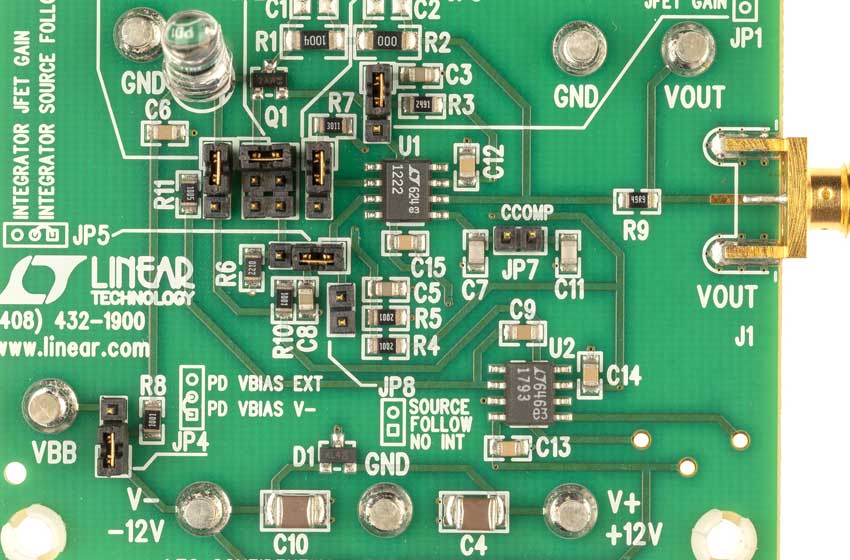

DC1416B
