LT1192: Ultra High Speed Operational Amplifier Data Sheet8/23/2007253K
Features and Benefits
- Gain Bandwidth Product, AV= 5: 350MHz
- Slew Rate: 450V/µs
- Low Cost
- Output Current: ±50mA
- Settling Time: 90ns to 0.1%
- Differential Gain Error: 0.1% (RL = 1k)
- Differential Phase Error: 0.01° (RL = 1k)
- High Open-Loop Gain: 100V/mV Min
- Single Supply +5V Operation
- Output Shutdown
The LT1192 is a video operational amplifier optimized for operation on ±5V and a single 5V supply. Unlike many high speed amplifiers, this amplifier features high open-loop gain, over 100dB, and the ability to drive heavy loads to a full-power bandwidth of 20MHz at 7VP-P. In addition to its very fast slew rate, the LT1192 has a high gain bandwidth of 350MHz and is compensated for a closed-loop gain of 5 or greater.
Because the LT1192 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, active filters, and applications requiring speed, accuracy and low cost.

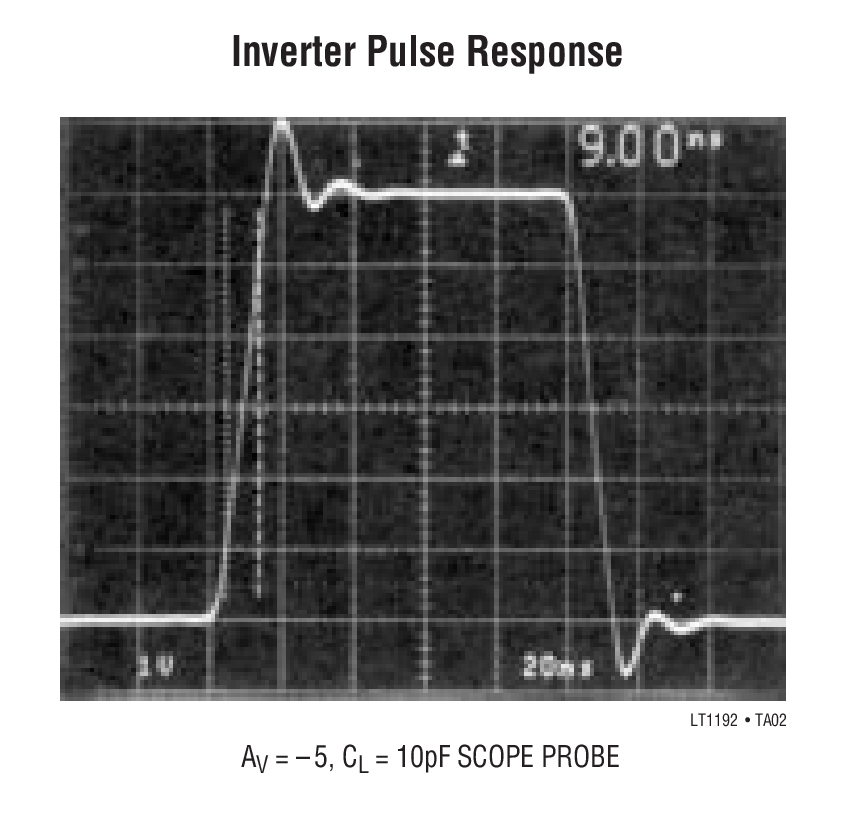

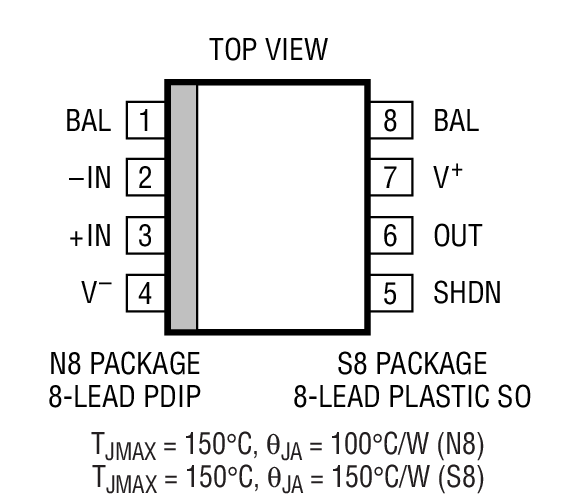

The LT1192 is available in 8-pin PDIP and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.
- Video Cable Drivers
- Video Signal Processing
- Photo Diode Amplifier
- Pulse Amplifiers
- D/A Current to Voltage Conversion
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
Evaluation Kits (1)
DC417B: Demo Board
Documentation & Resources
R183 Reliability Data3/22/201821 K
AN57 - Video Circuit Collection9/4/2008545K
AN47 - High Speed Amplifier Techniques8/20/20075M
DC417B - Demo Manual2/1/2012137K
DN57 - Video Circuits Collection5/19/201477K
Design Note 50: High Frequency Amplifier Evaluation Board6/1/1991
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT1192CN8#PBF||Material Declaration||Reliability Data||8-Lead PDIP (Narrow 0.3 Inch)|
|LT1192CS8#PBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|LT1192CS8#TRPBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|Wafer Fabrication Data||R183 Reliability Data|
