Overview

Features and Benefits

  • Gain Bandwidth Product, AV = 1: 90MHz
  • Slew Rate: 450V/µs
  • Low Cost
  • Output Current: ±50mA
  • Settling Time: 110ns to 0.1%
  • Differential Gain Error: 0.07%, (RL = 1k)
  • Differential Phase Error: 0.02°, (RL = 1k)
  • High Open-Loop Gain 20V/mV Min
  • Single Supply +5V Operation
  • Output Shutdown

Product Details

The LT1191 is a video operational amplifier optimized for operation on ±5V and a single 5V supply. Unlike many high speed amplifiers, this amplifier features high open-loop gain, over 90dB, and the ability to drive heavy loads to a full-power bandwidth of 20MHz at 7VP-P. In addition to its very fast slew rate, the LT1191 features a unity-gain-stable bandwidth of 90MHz.

Because the LT1191 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, fast integrators, active filters, and applications requiring speed, accuracy and low cost.

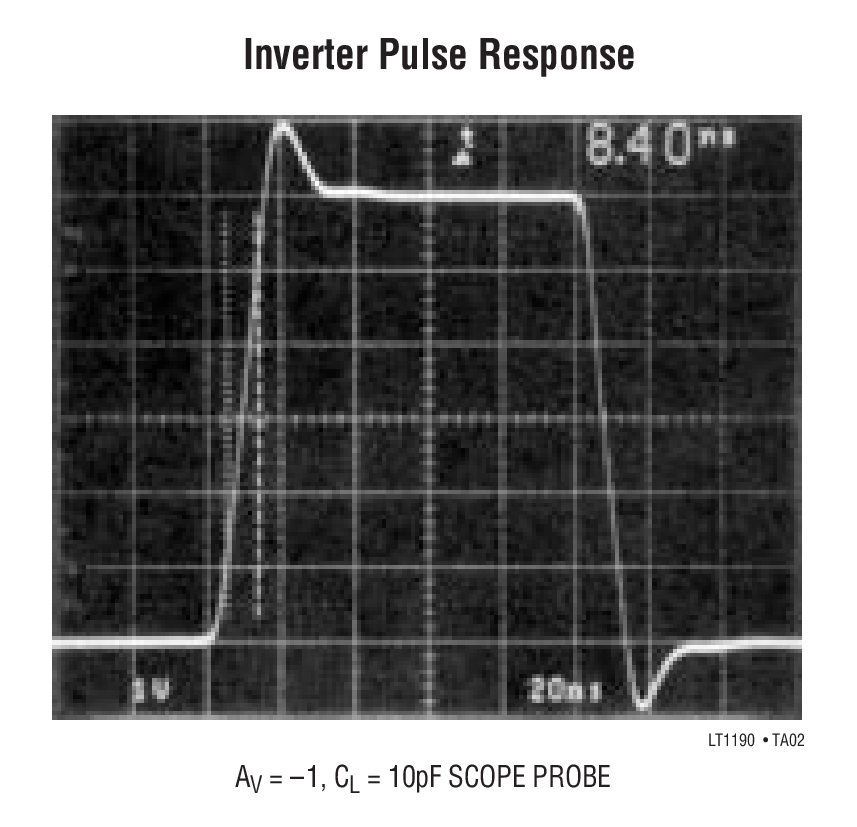

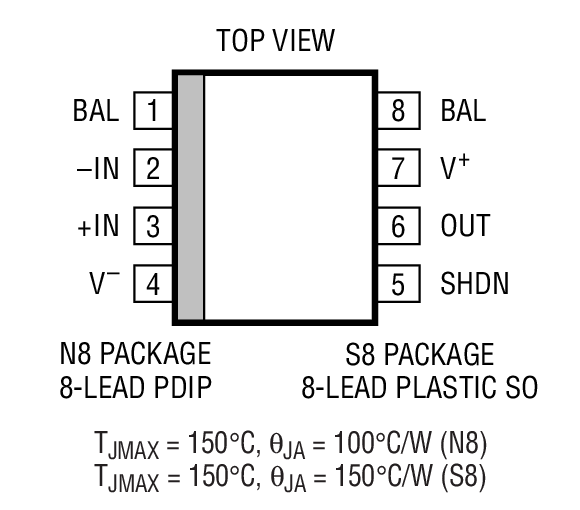

The LT1191 is available in 8-pin PDIP and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.

Applications

  • Video Cable Drivers
  • Video Signal Processing
  • Fast Integrators
  • Pulse Amplifiers
  • D/A Current to Voltage Conversion

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • Application Notes (1)
  • User Guides (1)
  • Design Notes (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT1191

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1191CN8#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)
    LT1191CS8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
    LT1191CS8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
    Wafer Fabrication Data R183 Reliability Data
