Overview
Features and Benefits
- Gain Bandwidth Product, AV = 1: 50MHz
- Slew Rate: 450V/µs
- Low Cost
- Output Current: ±50mA
- Settling Time: 140ns to 0.1%
- Differential Gain Error: 0.1%, (RL = 1k)
- Differential Phase Error: 0.06°, (RL = 1k)
- High Open-Loop Gain: 10V/mV Min
- Single Supply +5V Operation
- Output Shutdown
Product Details
The LT1190 is a video operational amplifier optimized for operation on ±5V, and a single 5V supply. Unlike many high speed amplifiers, this amplifier features high open-loop gain, over 85dB, and the ability to drive heavy loads to a full-power bandwidth of 20MHz at 7VP-P. In addition to its very fast slew rate, the LT1190 features a unity-gain-stable bandwidth of 50MHz and a 75° phase margin, making it extremely easy to use.
Because the LT1190 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, fast integrators, active filters, and applications requiring speed, accuracy and low cost.

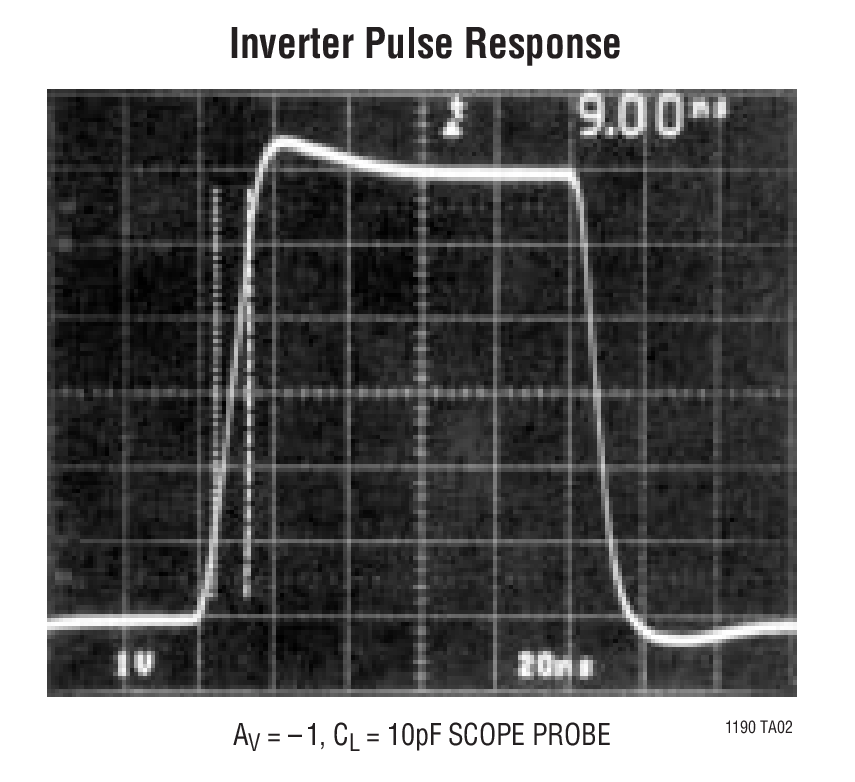

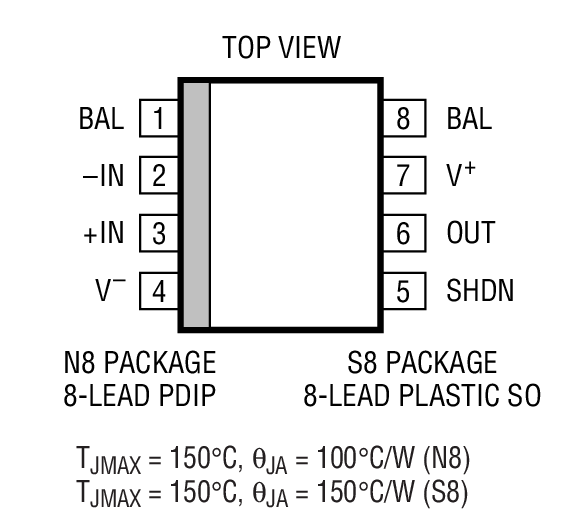

The LT1190 is available in 8-pin PDIP and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.
Applications
- Video Cable Drivers
- Video Signal Processing
- Fast Integrators
- Pulse Amplifiers
- D/A Current to Voltage Conversion
