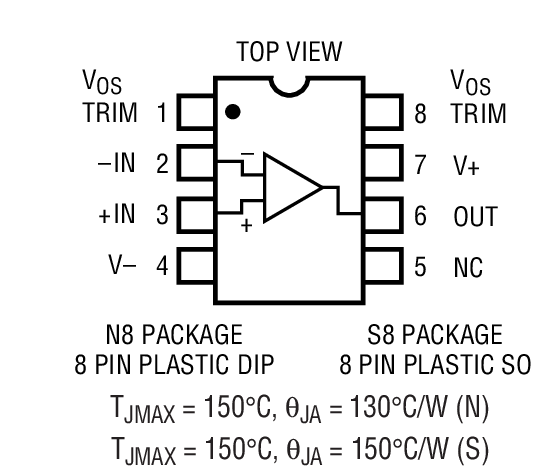

LT1001: Precision Operational Amplifier Data Sheet8/17/2009197K
Features and Benefits
- Guaranteed Low Offset Voltage
- LT1001AM 15µV max
- LT1001C 60µV max
- Guaranteed Low Drift
- LT1001AM 0.6µV/°C max
- LT1001C 1.0µV/°C max
- Guaranteed Low Bias Current
- LT1001AM 2nA max
- LT1001C 4nA max
- Guaranteed CMRR
- LT1001AM 114dB min
- LT1001C 110dB min
- Guaranteed PSRR
- LT1001AM 110dB min
- LT1001C 106dB min
- Low Power Dissipation
- LT1001AM 75mW max
- LT1001C 80mW max
- Low Noise 0.3µVp-p
The LT1001 significantly advances the state-of-the-art of precision operational amplifiers. In the design, processing, and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications of the lowest cost, commercial temperature device, the LT1001C, have been dramatically improved when compared to equivalent grades of competing precision amplifiers.

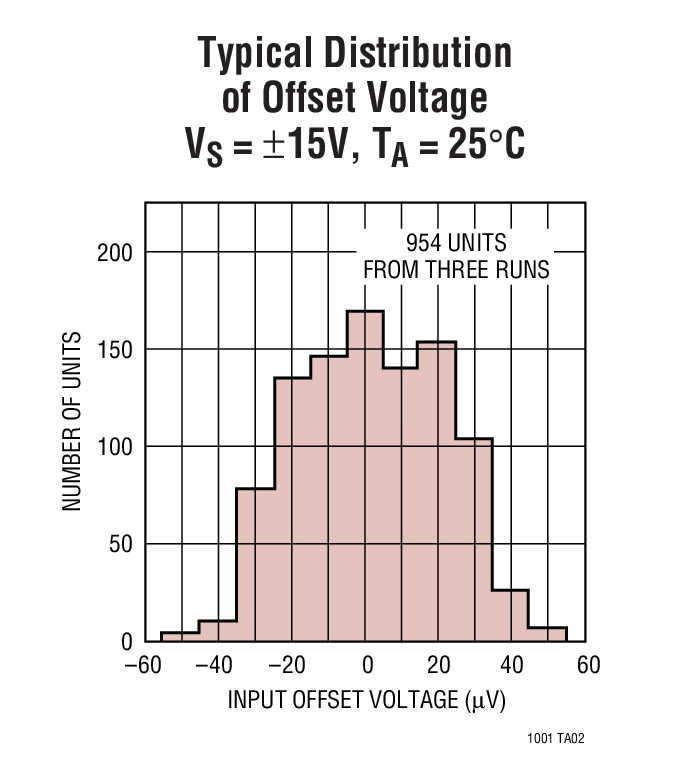

Essentially, the input offset voltage of all units is less than 50µV (see distribution plot below). This allows the LT1001AM/883 to be specified at 15µV. Input bias and offset currents, common-mode and power supply rejection of the LT1001C offer guaranteed performance which were previously attainable only with expensive, selected grades of other devices. Power dissipation is nearly halved compared to the most popular precision op amps, without adversely affecting noise or speed performance. A beneficial by-product of lower dissipation is decreased warm-up drift. Output drive capability of the LT1001 is also enhanced with voltage gain guaranteed at 10mA of load current. For similar performance in a dual precision op amp, with guaranteed matching specifications, see the LT1002. Shown below is a platinum resistance thermometer application.

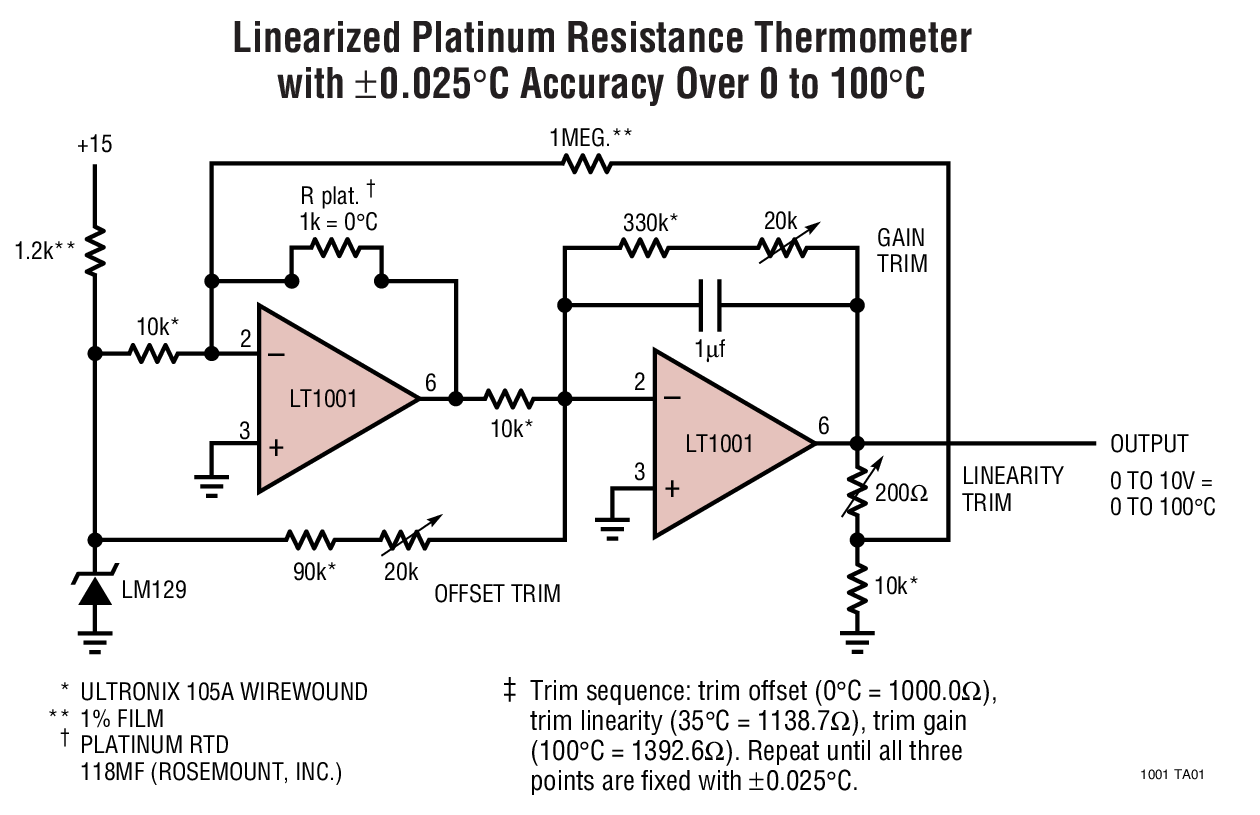

- Thermocouple amplifiers
- Strain gauge amplifiers
- Low level signal processing
- High accuracy data acquisition
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

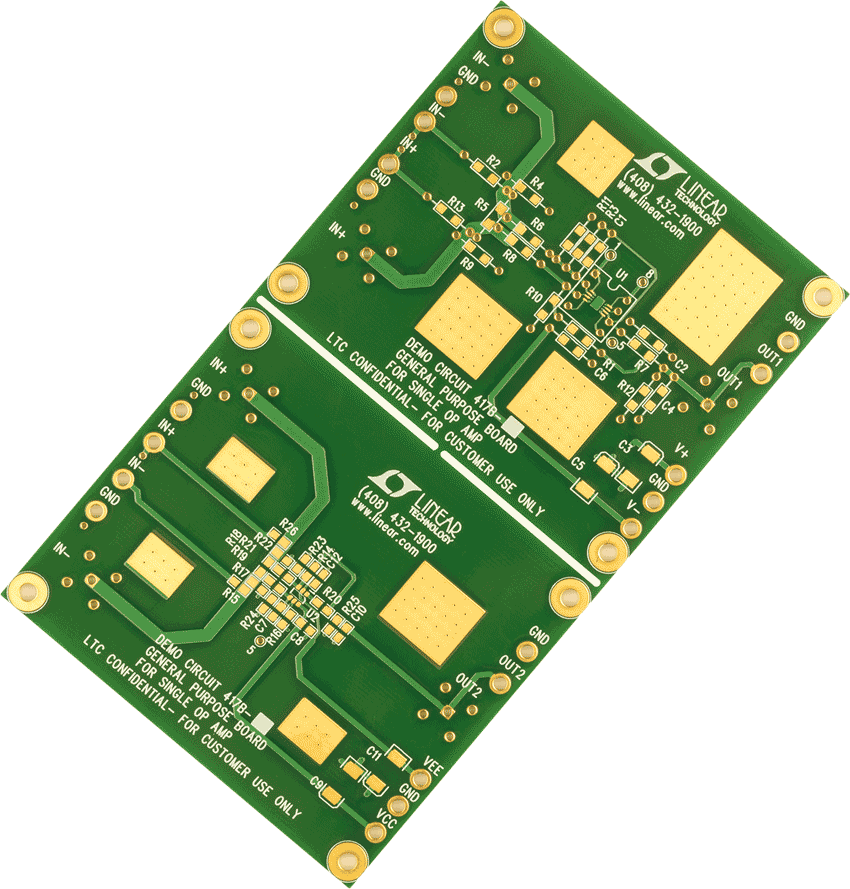

DC417B: Demo Board
