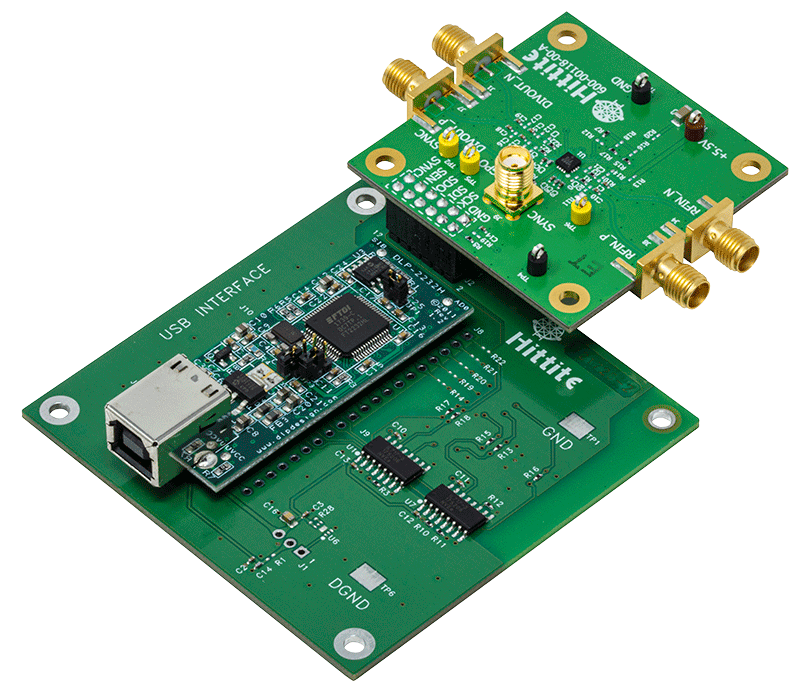

HMC988

Programmable Clock Divider & Delay, DC - 4 GHz

LAST TIME BUY

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Programmable Clock Divide by 1/2/4/8/16/32
Delay Adjustment in Multiples of 1/2 Clock Cycles or in 60 Steps of 20 ps (Typ.)
–170 dBc/Hz Noise Floor @ 100 MHz Output

Up to 4 GHz Operation with 800 mV_P-P LVPECL Output
3.3V Operation (or 5V Operation with Optional On-Chip Regulator for Best Performance)

Additional Details

The HMC988LP3E is a an ultra low noise clock divider capable of dividing by 1/2/4/8/16/32. It is a versatile device with additional functionality including adjustable output phase, adjustable delay in 60 steps of ~ 20 ps, a clock synchronization function, and a clock invert option.

Housed in a compact 3 × 3 mm SMT QFN package, the clock divider offers a high level of functionality. The device works with 3.3V supply or may be connected to 5V supply and utilize the optional on-chip regulator. This on-chip regulator may be bypassed.

Up to 8 addressable HMC988LP3E devices can be used together on the SPI bus.

The HMC988LP3E is ideally suited for data converter applications with extremely low phase noise requirements.

APPLICATIONS

Basestation Digital Pre-Distortion Paths (DPD)
High Performance Automated Test Equipment (ATE)
Backplane Clock Skew Management
Phase Coherence of Multiple Clock Paths
Clock Delay Management ton Improve Setup & Hold Time Margins
PCB Signal Flight Time Offset Circuits
Track and Hold Circuits for ADC/DACs

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Technical Documents 1

HMC988 Data Sheet 04/22/2015

Reference Materials 1

Semiconductor Qualification Test Report: BiCMOS-A (QTR: 2013-00235) 10/29/2015

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC988LP3E	16-Lead QFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC988LP3ETR	16-Lead QFN (3mm x 3mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC988LP3E
Pin/Package Drawing
16-Lead QFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC988LP3ETR
Pin/Package Drawing
16-Lead QFN (3mm x 3mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jun 6, 2022

- 22_0048

Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products

HMC988LP3E

LAST TIME BUY

HMC988LP3ETR

LAST TIME BUY

pdf

PCN22_0048_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Detailed Change Description

Jul 28, 2022

- 22_0023

Product Discontinuance for Select Analog Devices Parts (ADFXXXX, HMCXXX)

HMC988LP3E

LAST TIME BUY

HMC988LP3ETR

LAST TIME BUY

pdf

PDN22_0023_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Jun 6, 2022

- 22_0048

Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products

HMC988LP3E

LAST TIME BUY

HMC988LP3ETR

LAST TIME BUY

pdf

PCN22_0048_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Detailed Change Description

Jul 28, 2022

- 22_0023

Product Discontinuance for Select Analog Devices Parts (ADFXXXX, HMCXXX)

HMC988LP3E

LAST TIME BUY

HMC988LP3ETR

LAST TIME BUY

pdf

PDN22_0023_Form

xls

Material_Report

Alternative Parts 2

Parts	Product Life Cycle	Description
AD9515	RECOMMENDED FOR NEW DESIGNS	1.6 GHz Clock Distribution IC, Dividers, Delay Adjust, Two Outputs
LTC6953	LAST TIME BUY	Ultralow Jitter, 4.5GHz Clock Distributor with 11 Outputs and JESD204B/JESD204C Support
