  5. HMC983

Alternative Parts


Features and Benefits

  • Wideband: DC - 7 GHz Input
    • 20-bit Frequency Divider
  • Low Noise: -160 dBc/Hz
  • Low Spurious: Largest Spurious - 95 dBc
  • 48-bit 100 MHz Delta-Sigma Modulator (DSM)
    • Configurable DSM Size
    • Programmable Seed
    • Phase Step
  • Integrated Frequency Sweeper
    • Linear, Coherent Sweeps
    • 2-Way, 1-Way, & User Defined Sweep Modes
    • Automatic or Triggered
    • Programmable Seed
    • SPI & External Triggering
  • 5-GPIO's, can be used for External DSM
  • Cycle Slip Prevention Support with PFD Chip (HMC984LP4E)
  • Differential VCO Input & Divider Output
  • Programmable Output Current Control:
    • 5 mA to 17.5 mA Open Collector Output Driver
  • 32 Lead 5×5mm SMT Package

Product Details

HMC983LP5E is a fractional frequency divider targeted for fractional-N frequency synthesis, and stand-alone low noise frequency divider applications that require exceptional spurious performance.

Although the HMC983LP5E can work with any VCO and/or compatible Phase Detector, best performance and features will be achieved when paired with the companion part, the HMC984LP4E.

Fabricated in SiGe BiCMOS process, the HMC983LP5E features a 48-bit Delta Sigma Fractional Modulator (DSM) with programmable phase accumulator size, enabling precise control of frequency step size and resolution. Integrated DSM can generate frequencies with nearly 0 Hz frequency error. The DSM also includes a built-in programmable frequency sweep capability, with various automatic and user defined sweep modes and triggering options, including hardware trigger pin, or SPI trigger with optional delayed trigger.

HMC983LP5E is a versatile part capable of various configurations. It has 5 general purpose I/Os (GPIOs). DSM outputs are made available from the GPIO port, enabling the HMC983LP5E to import and/or export DSM sequences for various configuration options.

HMC983LP5E divider outputs are differential, open collector with programmable current to accommodate different off-chip loads.


  • Test Equipment
  • Portable Instruments
  • High Performance Fractional-N Frequency Synthesizers
  • with Ultra Low Spurious
  • Stand-Alone Divider and/or Delta-Sigma Modulator

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

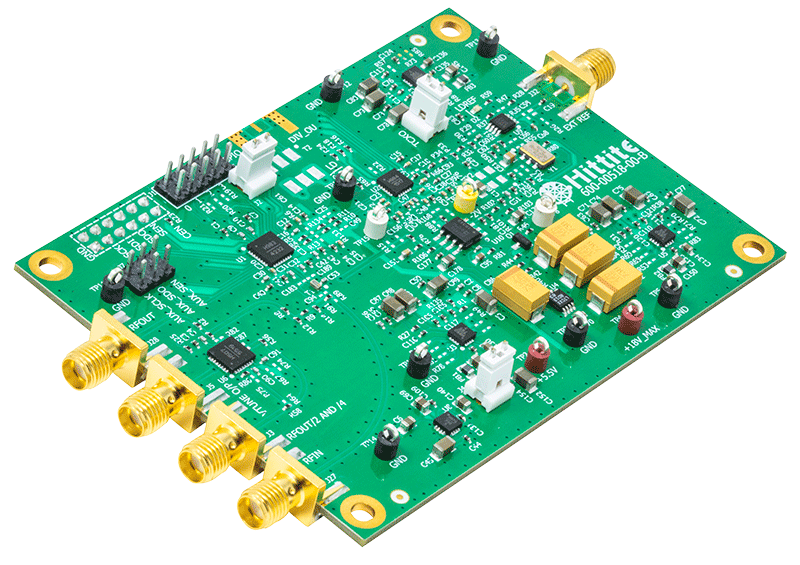

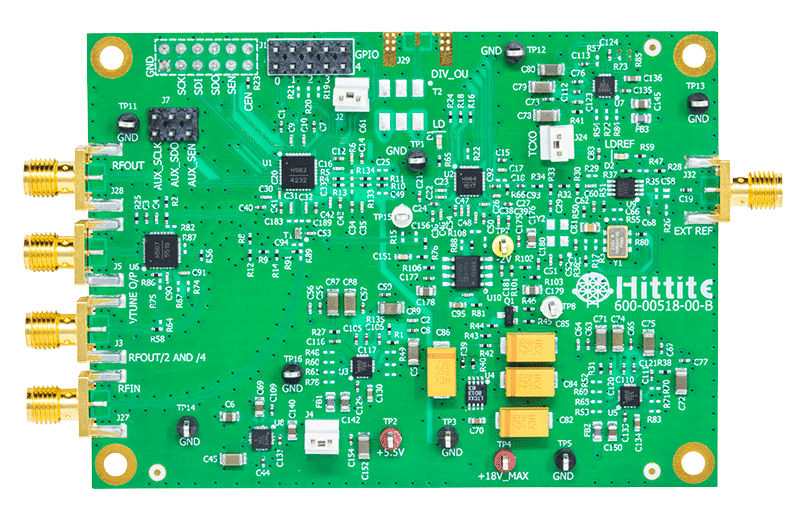

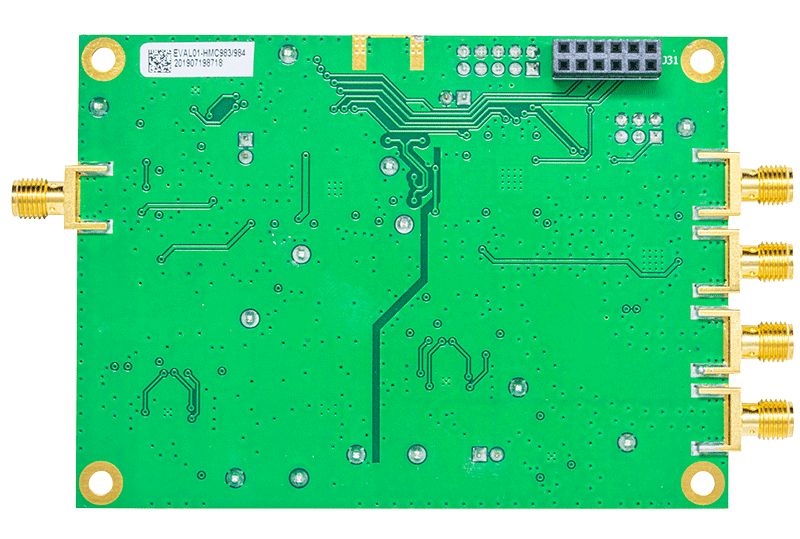

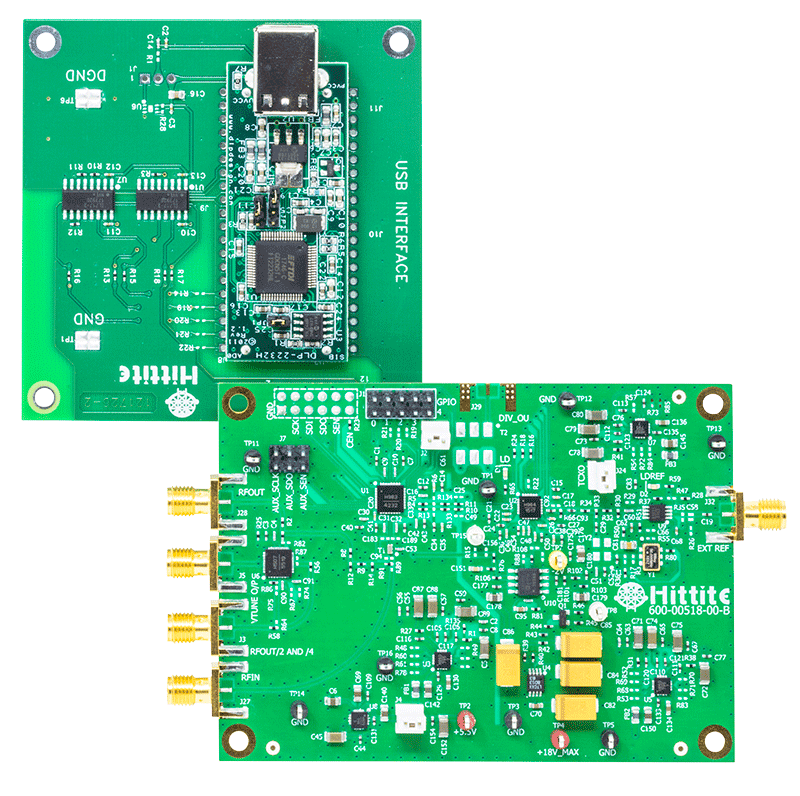

Evaluation Kits (1)
