HMC951

I/Q Downconverter SMT, 5.6 - 8.6 GHz

Obsolete

Suggested Replacement Parts

HMC951A

5.6 GHz to 8.6 GHz, GaAs, MMIC, I/Q Downconverter

Obsolete

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Conversion Gain: 13 dB
Image Rejection: 20 dB
LO to RF Isolation: 48 dB
Noise Figure: 2.3 dB

Input IP3: 3 dBm
24 Lead 4x4mm QFN Package: 16mm²

Additional Details

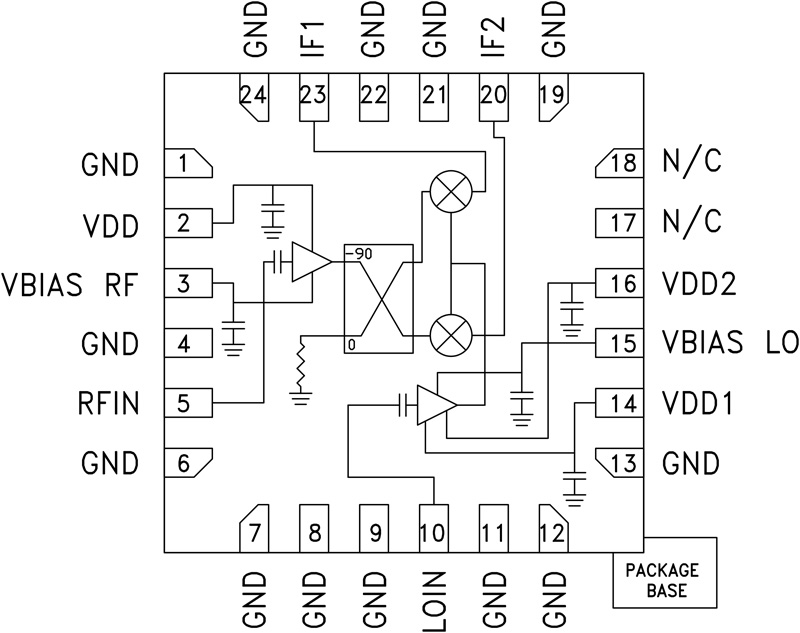

The HMC951LP4E is a compact GaAs MMIC I/Q downconverter in a leadless RoHS compliant SMT package. This device provides a small signal conversion gain of 13 dB with a noise figure of 2 dB and 25 dB of image rejection across the frequency band. The HMC951LP4E utilizes an LNA followed by an image reject mixer which is driven by an LO buffer amplifier. The image reject mixer eliminates the need for a filter following the LNA, and removes thermal noise at the image frequency.

I and Q mixer outputs are provided and an external 90° hybrid is needed to select the required sideband. The HMC951LP4E is a much smaller alternative to hybrid style image reject mixer downconverter assemblies, and is compatible with surface mount manufacturing techniques.

Applications

Point-to-Point & Point-to-Multi-Point Radio
Military Radar, EW & ELINT
Satellite Communications
