HMC828 Data Sheet4/22/2015
Features and Benefits
- RF Bandwidth: 1285 to 1415 MHz
- Ultra Low Phase Noise -108 dBc/Hz in Band Typ.
- Figure of Merit (FOM) -227 dBc
- 24-bit Step Size, Resolution 3 Hz typ
- < 180 fs RMS Jitter
- Exact Frequency Mode
- Built-in Digital Self Test
- 40 Lead 6×6mm SMT Package: 36mm2

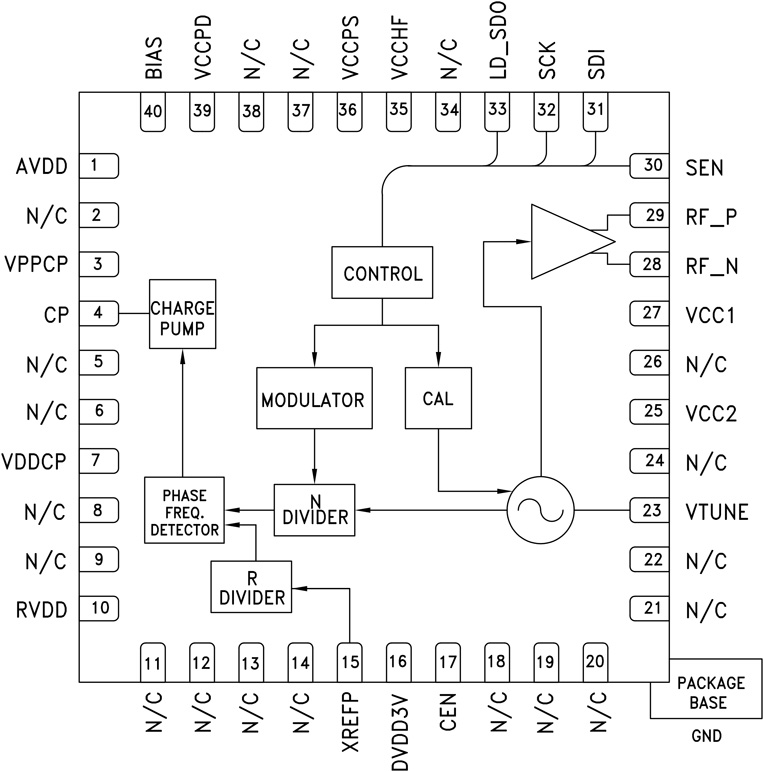

The HMC828LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an Integrated Voltage Controlled Oscillator (VCO). The synthesizer consists of an integrated low noise VCO with divide-by-2 output, an autocalibration subsystem for low voltage VCO tuning, a very low noise digital Phase Detector (PD), a precision controlled charge pump, a low noise reference path divider and a fractional divider.
The fractional synthesizer features an advanced delta-sigma modulator design that allows both ultra-fine step sizes and low spurious products. The phase detector (PD) features cycle slip prevention (CSP) technology to allow faster frequency hopping times. Ultra low in-close phase noise and low spurious also allows wider loop bandwidths for faster frequency hopping and low micro-phonics.
For theory of operation and register map refer to the “PLLs with Integrated VCOs - RF VCOs Operating Guide”. To view the Operating Guide, please visit www.hittite.com and choose HMC828LP6CE from the “Search by Part Number” pull down menu.
- Cellular/4G Infrastructure
- Repeaters and Femtocells
- Communications Test Equipment
- CATV Equipment
- Phased Array Applications
- DDS Replacement
- Very High Data Rate Radios
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

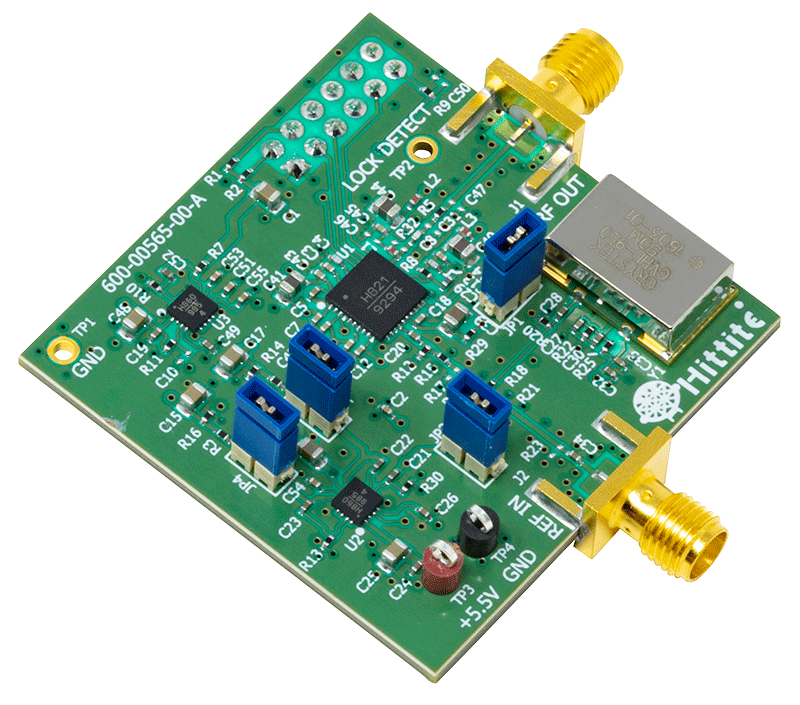

Evaluation Kits (1)
Documentation & Resources
PLL & PLLVCO Serial Programming Interface Mode Selection Application Note2/29/2016
Power-Up & Brown-Out Design Considerations for RF PLL+VCO Products Application Note2/29/2016
Wideband RF PLL+VCO and Clock Generation Products FAQs2/29/2016
Frequency Hopping with Hittite PLLVCOs Application Note2/29/2016
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/2017
Semiconductor Qualification Test Report: BiCMOS-A (QTR: 2013-00235)10/29/2015
Package/Assembly Qualification Test Report: LP6, LP6C, LP6G (QTR: 2014-00368)4/7/2015
HMC Legacy PCN: LP6CE and LP6GE QFN - Alternate assembly source11/30/2012
LP6 Tape and Reel Outline Dimensions3/22/2019
