Features and Benefits

  • Conversion gain: 15 dB typical
  • Sideband rejection: 22 dBc typical
  • Input power for 1 dB compression (P1dB): 4 dBm typical
  • Output third-order intercept (OIP3): 33 dBm typical
  • 2× local oscillator (LO) leakage at RFOUT: 5 dBm typical
  • 2× LO leakage at the intermediate frequency (IF) input: −35 dBm typical
  • RF return loss: 15 dB typical
  • LO return loss: 15 dB typical

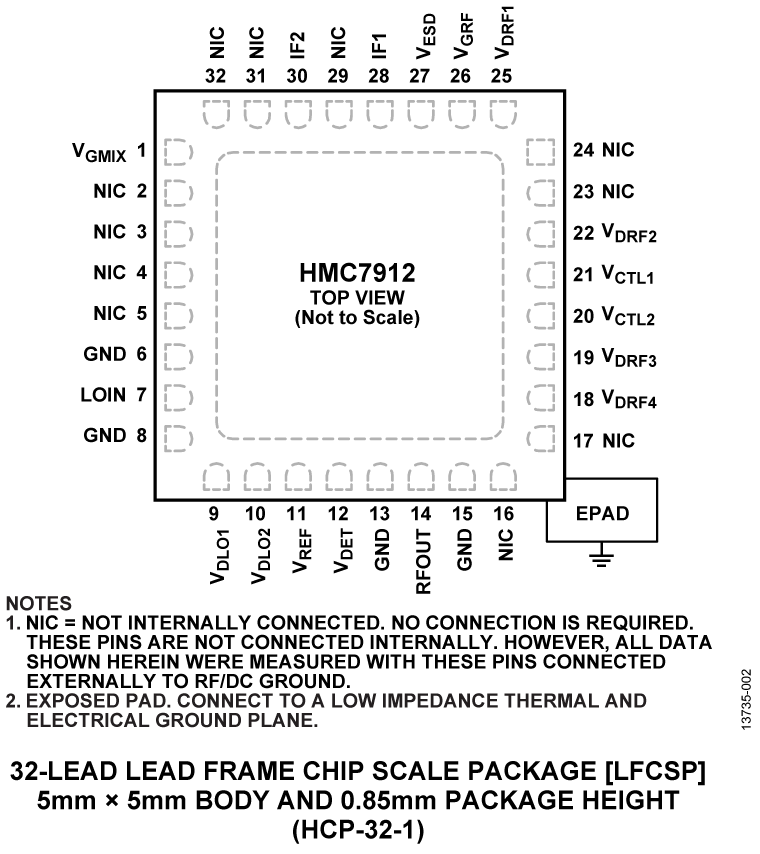

  • 32-lead, 5 mm × 5 mm LFCSP package

Product Details

The HMC7912 is a compact, gallium arsenide (GaAs), pseudomorphic (pHEMT), monolithic microwave integrated circuit (MMIC) upconverter in a RoHS compliant, low stress, injection molded plastic LFCSP package that operates from 21 GHz to 24 GHz. This device provides a small signal conversion gain of 15 dB with 22 dBc of sideband rejection. The HMC7912 uses a variable gain amplifier preceded by an in-phase/quadrature (I/Q) mixer that is driven by an active 2× LO multiplier. IF1 and IF2 mixer inputs are provided, and an external 90° hybrid is needed to select the required sideband. The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC7912 is a much smaller alternative to hybrid style single sideband (SSB) upconverter assemblies, and it eliminates the need for wire bonding by allowing the use of surface-mount manufacturing techniques.


  • Point to point and point to multipoint radios
  • Military radars, electronic warfare (EW), and electronic intelligence (ELINT)
  • Satellite communications
  • Sensors

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

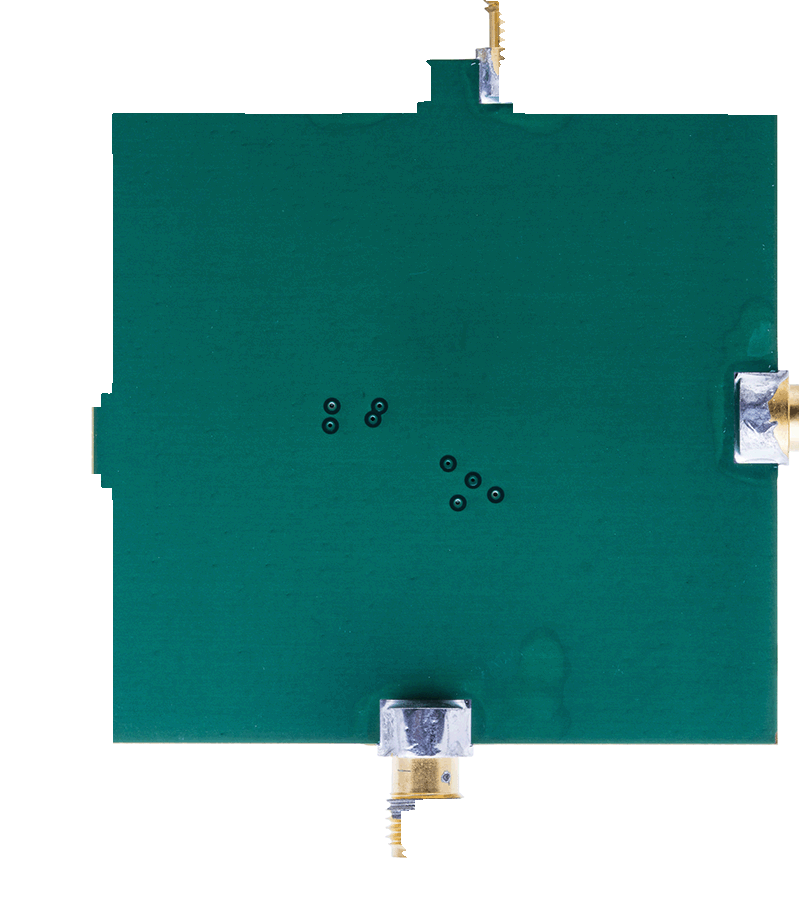

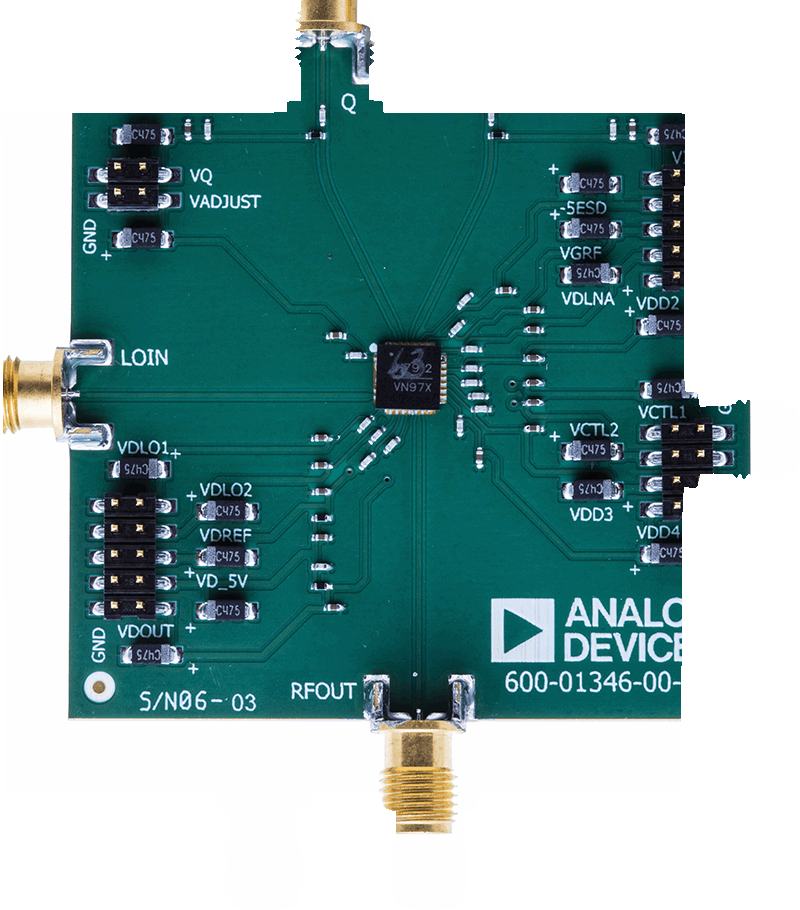

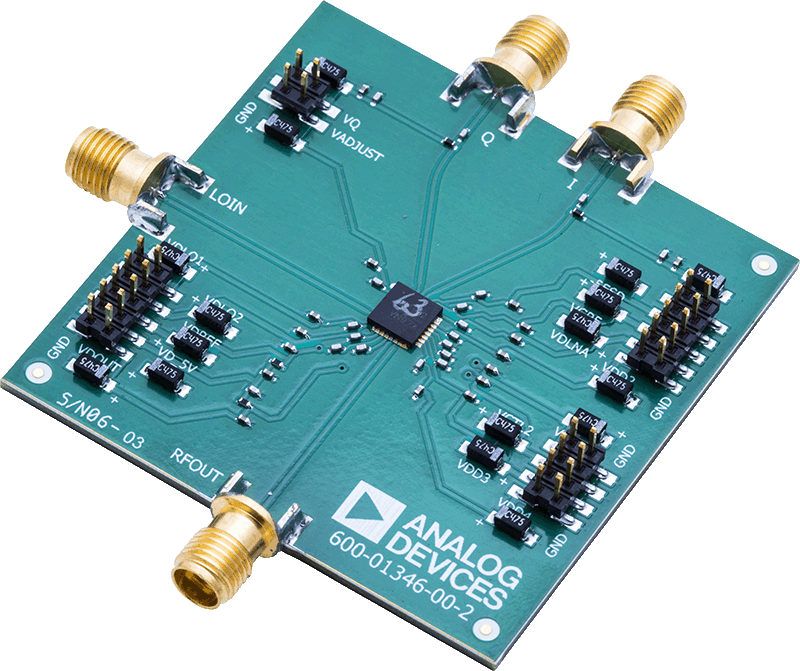

Evaluation Kits (1)
