HMC753
RECOMMENDED FOR NEW DESIGNSLow Noise Amplifier SMT, 1 - 11 GHz
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Noise Figure: 1.5 dB @ 4 GHz
- Gain: 16.5 dB
- P1dB Output Power: +18 dBm
- Supply Voltage: +5V @
55 mA - Output IP3: +30 dBm
- 50 Ohm matched Input/Output

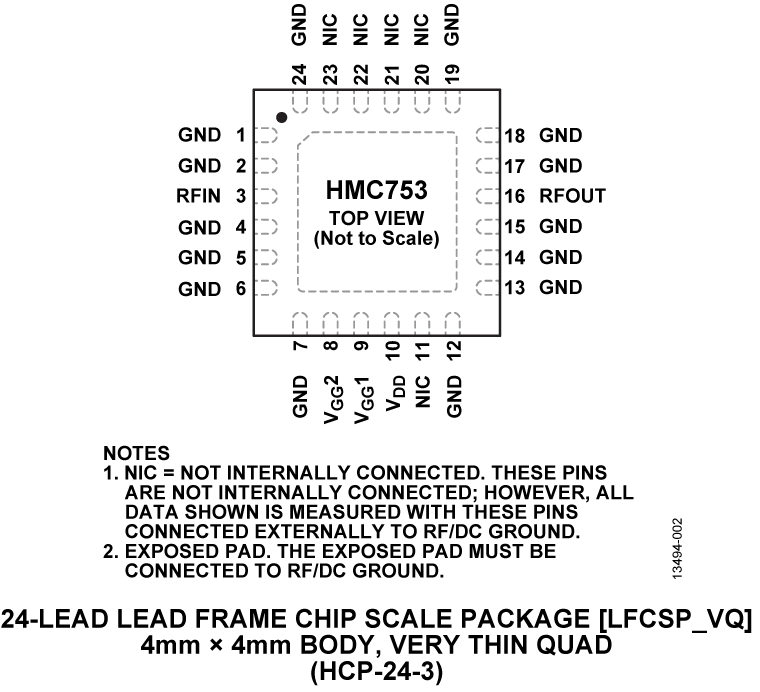

- 24 Lead Plastic 4x4mm
SMT Package: 16mm²
The HMC753 is a GaAs MMIC Low Noise Wideband Amplifier housed in a leadless 4x4 mm plastic surface mount package. The amplifier operates between 1 and 11 GHz, providing up to 16.5 dB of small signal gain, 1.5 dB noise figure, and output IP3 of +30 dBm, while requiring only 55 mA from a +5V supply. The P1dB output power of up to +18 dBm enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The HMC753 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for high capacity microwave radios or VSAT applications. This versatile LNA is also available in die form as the HMC-ALH444.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radios
- Military & Space
- Test Instrumentation.
Documentation
Data Sheet 1
Application Note 3
Tape & Reel Specification 1
Product Selection Guide 1
Quality Documentation 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC753LP4E | 24-Lead QFN (4mm x 4mm w/ EP) | ||
| HMC753LP4ETR | 24-Lead QFN (4mm x 4mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
Mar 29, 2023 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products |
||
| HMC753LP4E | PRODUCTION | |
| HMC753LP4ETR | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Tools & Simulations
S-Parameter 1
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Open ToolSys-Parameter Models for Keysight Genesys
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
Open ToolEvaluation Kits
HMC753LP4E Evaluation Board
