Overview

Features and Benefits

  • -13.5 to +18 Gain Control in 0.5 dB Steps
  • Power-up State Selection
  • High Output IP3: +32 dBm
  • TTL/CMOS Compatible Serial, Parallel, or latched Parallel Control
  • ±0.25 dB Typical Gain Step Error
  • Single +5V Supply
  • 32 Lead 5x5 mm SMT Package: 25 mm2

Product Details

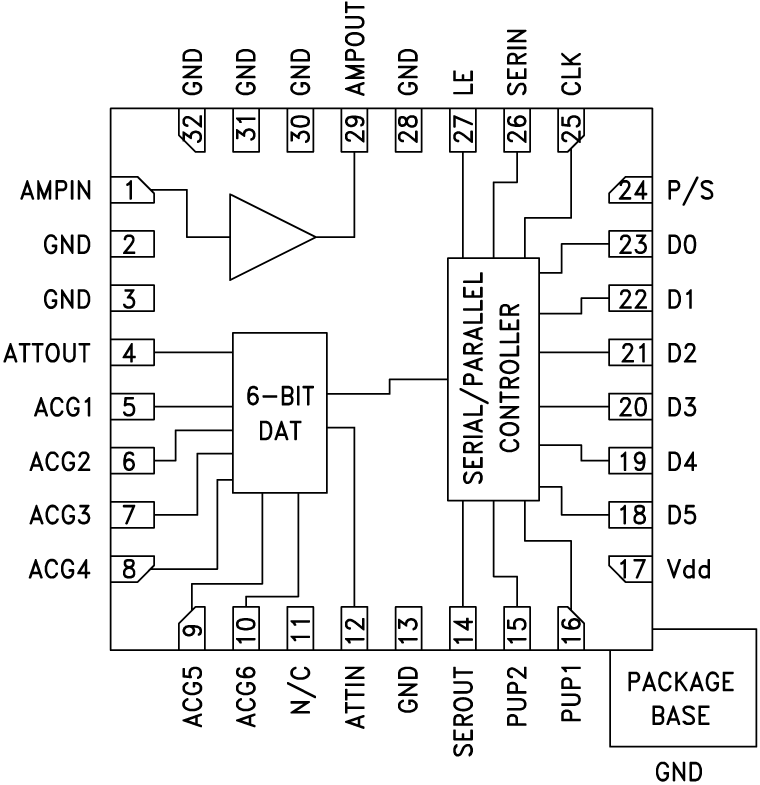

The HMC625BLP5E is a digitally controlled variable gain amplifier which operates from DC to 5 GHz, and can be programmed to provide anywhere from 13.5 dB attenuation, to 18 dB of gain, in 0.5 dB steps. The HMC625BLP5E delivers noise figure of 6 dB in its maximum gain state, with output IP3 of up to +32 dBm in any state. The dual mode control interface is CMOS/ TTL compatible, and accepts either a three wire serial input or a 6 bit parallel word. The HMC625BLP5E also features a user selectable power up state and a serial output port for cascading other Hittite serial controlled components. The HMC625BLP5E is housed in a RoHS compliant 5x5 mm QFN leadless package, and requires no external matching components.

Applications

  • Cellular/3G infrastructure
  • WiBro / WiMAX / 4G
  • Microwave radio & VSAT
  • Test equipment and sensors
  • IF & RF applications

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

Tools & Simulations

S-Parameters

Design Tools

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
