HMC6147A Data Sheet3/22/2019
Features and Benefits
- Conversion Gain: 13 dB
- Excellent Image Rejection: 25 dBc
- Output IP3: +12 dBm
- High Output IP3: +27 dBm
- 16 Lead 5x5 mm Ceramic Package: 25 mm²

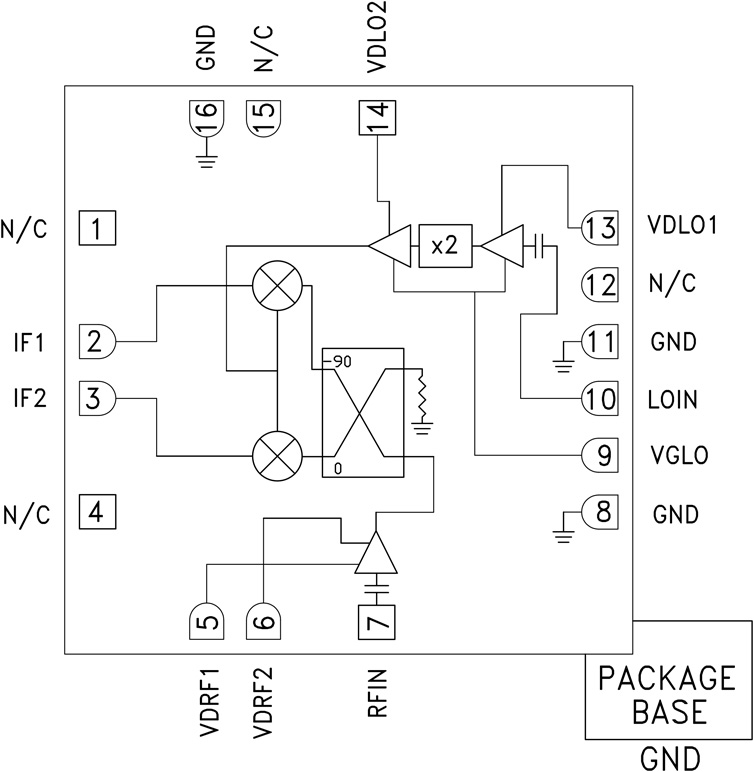

The HMC6147ALC5A is a compact GaAs MMIC I/Q downconverter in a leadless RoHS compliant SMT package. This device provides a small signal conversion gain of 13 dB with 25 dBc of sideband rejection. The HMC6147ALC5A utilizes a low noise amplifier to drive the I/Q mixer where the LO is driven by a X2 multiplier. IF1 and IF2 mixer inputs are provided and an external 90° hybrid is needed to select the required sideband.
The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC 6147ALC5A is a much smaller alternative to hybrid style single sideband converter assemblies and it eliminates the need for wire bonding by allowing the use of surface mount manufacturing techniques.
- Point-to-Point & Point-to-Multi-Point Radio
- Military Radar, EW & ELINT
- Satellite Communications
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
