HMC609-Die

Low Noise Amplifier Chip, 2 - 4 GHz

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
S-Parameter HMC609-Die S-Parameters Download 16.36 KB
Part Models 2
1ku List Price
price unavailable
Features
  • Gain Flatness: 0.2 dB
  • Output IP3: +36 dBm
  • Gain: 20.5 dB
  • Output P1dB: +22 dBm
  • 50 Ohm Matched Input/Output
  • Die Size: 2.11 x 1.32 x 0.10 mm
Additional Details
show more Icon

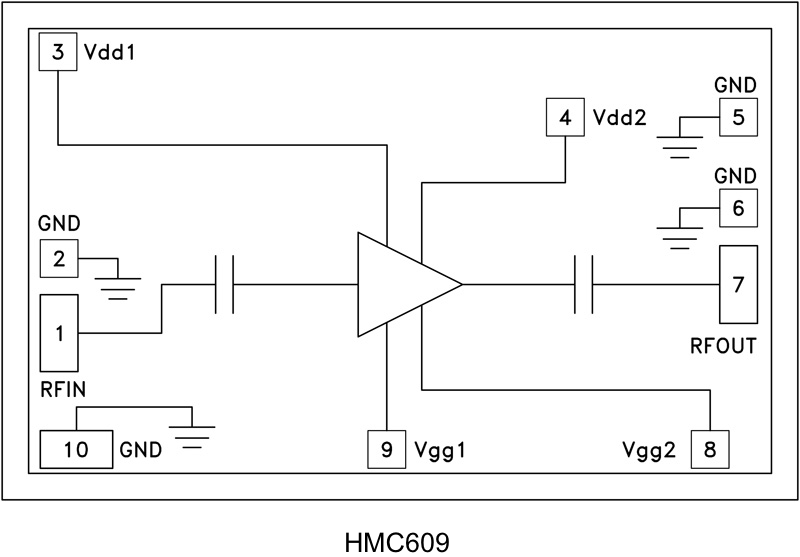

The HMC609 is a GaAs PHEMT MMIC Low Noise Amplifier (LNA) chip which operates from 2 to 4 GHz. The HMC609 features extremely flat performance characteristics including 20dB of small signal gain, 3dB of noise figure and output IP3 of +36 dBm across the operating band. The versatile LNA is ideal for hybrid and MCM assemblies due to its compact size, consistent output power and DC blocked RF I/O's. All data is measured with the chip in a 50 Ohm test fixture connected via one 0.025 mm (1 mil) diameter bondwire of minimal length 0.31 mm (12 mil).


Applications

  • Fixed Microwave
  • Point-to-Multi-Point Radios
  • Test & Measurement Equipment
  • Radar & Sensors
  • Military & Space
