HMC566LP4E Data Sheet10/20/2015692 K
Features and Benefits
- Low Noise Figure: 2.8 dB
- High Gain: 21 dB
- High OIP3: +24 dBm
- Single Positive Supply: +3V @ 82 mA
- 50 Ohm Matched & DC Blocked I/Os
- 24 Lead Plastic 4x4mm
SMT Package: 16mm²

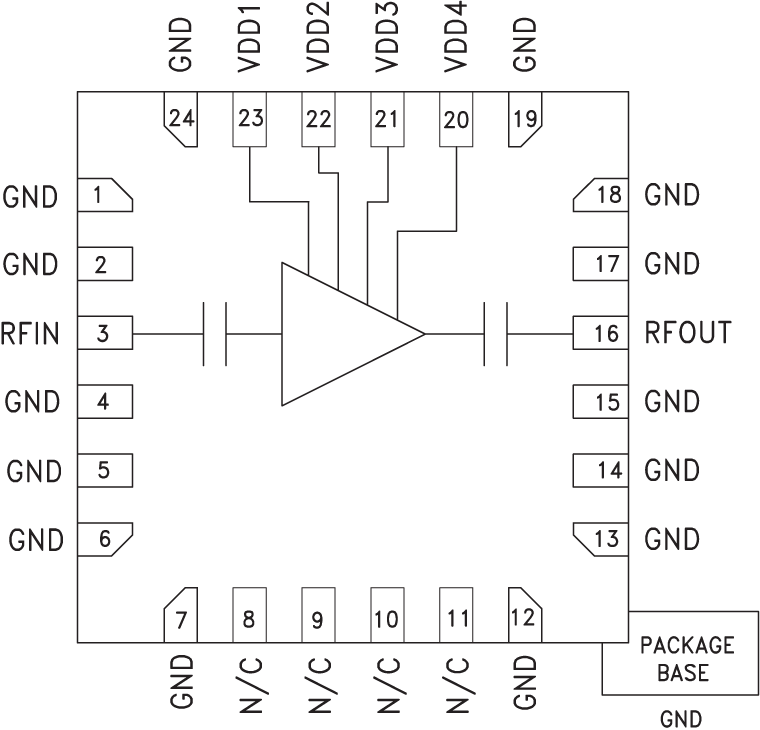

The HMC566LP4E is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) in a 4x4 mm SMT package which operates from 28 to 36 GHz. The HMC566LP4E provides 21 dB of small signal gain, 2.8 dB of noise figure and output IP3 of +24 dBm. This self-biased LNA is ideal for hybrid and MCM assemblies due to its compact size, single +3V supply operation, and DC blocked RF I/O’s. The RoHS packaged HMC566LP4E eliminates the need for wirebonding and allows the use of high volume surface mount manufacturing techniques. The HMC566LP4E is also available in chip form as the HMC566.
- Point-to-Point Radios
- Point-to-Multi-Point Radios & VSAT
- Military & Space
- Test Equipment and Sensors
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
This page contains ordering information for evaluating the HMC566LP4E.
Documentation & Resources
Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages (Rev. 0)8/9/2019247 K
Thermal Management for Surface Mount Components General Application Note11/11/2015189 K
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/20189M
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/20170 M
Package/Assembly Qualification Test Report: LP4, LP4B, LP4C, LP4K (QTR: 2013-00487 REV: 04)10/29/20151M
Semiconductor Qualification Test Report: PHEMT-A (QTR: 2013-00267)4/22/2015779 K
4 x 4 mm QFN Tape Specification (LP4, LP4B, LP4C, LC4, LC4B)10/28/2015458 K
