HMC382 Data Sheet4/22/2015571 K
Features and Benefits
- Noise Figure: 1 dB
- Output IP3: +30 dBm
- Gain: 17 dB
- Externally Adjustable Supply Current
- Single Positive Supply: +5V
- 50 Ohm Matched Input/Output

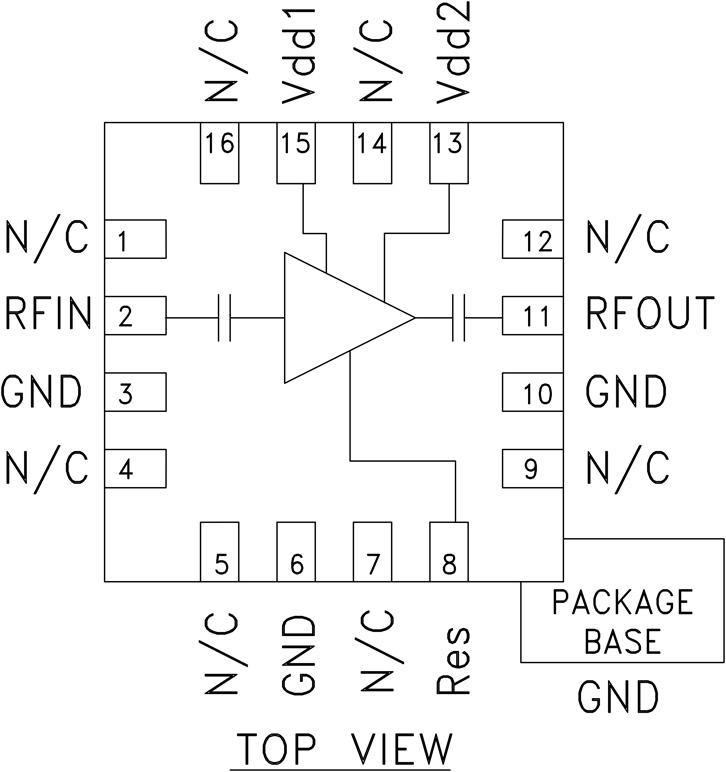

The HMC382LP3 & HMC382LP3E high dynamic range GaAs PHEMT MMIC Low Noise Amplifiers are ideal for GSM & CDMA cellular basestation front-end receivers operating between 1.7 and 2.2 GHz. This LNA has been optimized to provide 1.0 dB noise figure, 17 dB gain and +30 dBm output IP3 from a single supply of +5V. The HMC382LP3 & HMC382LP3E feature an externally adjustable supply current which allows the designer to tailor the linearity performance of the LNA for each application. For applications which require improved noise figure, please see the HMC618LP3(E).
- Cellular/3G Infrastructure
- Base Stations & Repeaters
- CDMA, W-CDMA, & TD-SCDMA
- GSM/GPRS & EDGE
Markets and Technologies
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
Evaluation Kits (1)
This page contains ordering information for evaluating the HMC382LP3.
Documentation & Resources
Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages (Rev. 0)8/9/2019247 K
Thermal Management for Surface Mount Components General Application Note11/11/2015189 K
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/20189M
Package/Assembly Qualification Test Report: 16L 3x3mm QFN Package (QTR: 11003 REV: 02)5/3/20191 M
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/20170 M
Semiconductor Qualification Test Report: PHEMT-B (QTR: 2013-00233)10/29/2015772 K
Package/Assembly Qualification Test Report: LP2, LP2C, LP3, LP3B, LP3C, LP3D, LP3F, LP3G (QTR: 2014-0364)10/29/20151 M
LP3, LC3, LC3B Tape and Reel Outline Dimensions4/1/2015381 K
Tools & Simulations
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|HMC382LP3E||Material Declaration||Reliability Data||16-Lead LFCSP (3mm x 3mm x 0.9mm w/EP)|
|HMC382LP3ETR||Material Declaration||Reliability Data||16-Lead LFCSP (3mm x 3mm x 0.9mm w/EP)|
|Wafer Fabrication Data|
