Overview
Features and Benefits
- Precision Voltage, Temperature, and Current Measurement System
- Internal Time Base is Accurate and Temperature Stable
- Absolute and Relative Capacity Estimated from Coulomb Count, Discharge Rate, Temperature and Battery Cell Characteristics
- Accurate Warning of Low Battery Conditions
- Automatic Backup of Coulomb Count and Age Estimation to Nonvolatile (NV) EEPROM
- Gain and Tempco Calibration Allows the Use of Low-Cost Sense Resistors
- 24-Byte Battery/Application Parameter EEPROM
- 16-Byte User EEPROM
- Unique ID and Multidrop 1-Wire® Interface
- Tiny 8-pin TSSOP & 10-pin TDFN Package Embeds Easily in Battery Packs Using Thin Prismatic Cells
Product Details
The DS2780 remains in production, however, for new projects, we recommend ModelGauge m5 MAX17211 fuel gauge.

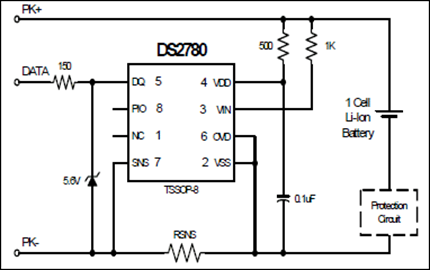

The DS2780 measures voltage, temperature and current, and estimates available capacity for rechargeable Lithium Ion and Lithium Ion Polymer batteries. Cell characteristics and application parameters used in the calculations are stored in on-chip EEPROM. The available capacity registers report a conservative estimate of the amount of charge that can be removed given the current temperature, discharge rate, stored charge and application parameters. Capacity estimation reported in mAh remaining and percentage of full.Applications
- 3G Multimedia Wireless Handsets
- Digital Still Cameras
- Handheld PC Data Terminals
- Subnotebook Computers
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
DS2780 Reliability Data1/12/2023
-
Getting Started with the DS27803/31/2005
-
Tutorial: Improve Sensor Performance and SNR in Pulse Oximeter Designs6/21/2010
-
Important Design Considerations for Heart-Rate and Fitness Monitors5/10/2010
-
Introduction to Hearing Aids and Important Design Considerations5/10/2010
-
Storing Fuel Gauge Parameters in the DS27848/16/2007
-
Storing Battery Fuel Gauge Parameters in the DS27813/13/2006
-
Storing Battery Fuel Gauge Parameters in DS27809/8/2005
Tools & Simulations
Software Development
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|
DS2780E+ | Material Declaration | Reliability Data | Thin Shrink Small-Outline Package | |
DS2780E+T&R | Material Declaration | Reliability Data | Thin Shrink Small-Outline Package | |
DS2780G+ | Material Declaration | Reliability Data | Thin Dual Flatpack No Leads | |
DS2780G+T&R | Material Declaration | Reliability Data | Thin Dual Flatpack No Leads | |
Wafer Fabrication Data | DS2780 Reliability Data |
