Features and Benefits
- High-impedance input for isolated voltage measurement
- Fixed gain = 1
- Low offset error and drift: ±5 mV (maximum) at 25°C and −22 μV/°C (typical)
- Low gain error and drift: ±0.5% (max) and ±42 ppm/°C (maximum)
- Voltage-supply range
- VDD1: 4.5 V to 5.5 V
- VDD2: 4.5 V to 5.5 V
- Bandwidth: 210 kHz
- Isolation voltage: 5000 V RMS
- Safety and regulatory approvals (pending)
- UL recognition: 5000 V RMS for 1 minute per UL 1577
- CSA Component Acceptance Notice #5A
- VDE certificate of conformity
- DIN V VDE V 0884-11 (VDE V 0884-11)
- VIORM = 1401 V peak
- Wide temperature range
- −40°C to +125°C ambient operation
- 150°C maximum junction temperature
- AEC-Q100 qualified for automotive applications
The ADuM4195-1 is an isolation amplifier based on Analog Devices, Inc., iCoupler® technology. The ADuM4195-1 has very low offset and gain error, making it ideal for many isolated voltage sensing applications.
Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over a lifetime and is unstable at high temperatures, the ADuM4195-1 transfer function does not change over its lifetime, and is stable over a wide temperature range of −40°C to +125°C.
The ADuM4195-1 has been certified to provide galvanic isolation up to 5 kV RMS according to UL1577.
The ADuM4195-1 is packaged in a small 8-lead wide body SOIC package with increased creepage.
- DC-DC converter
- On-board chargers
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

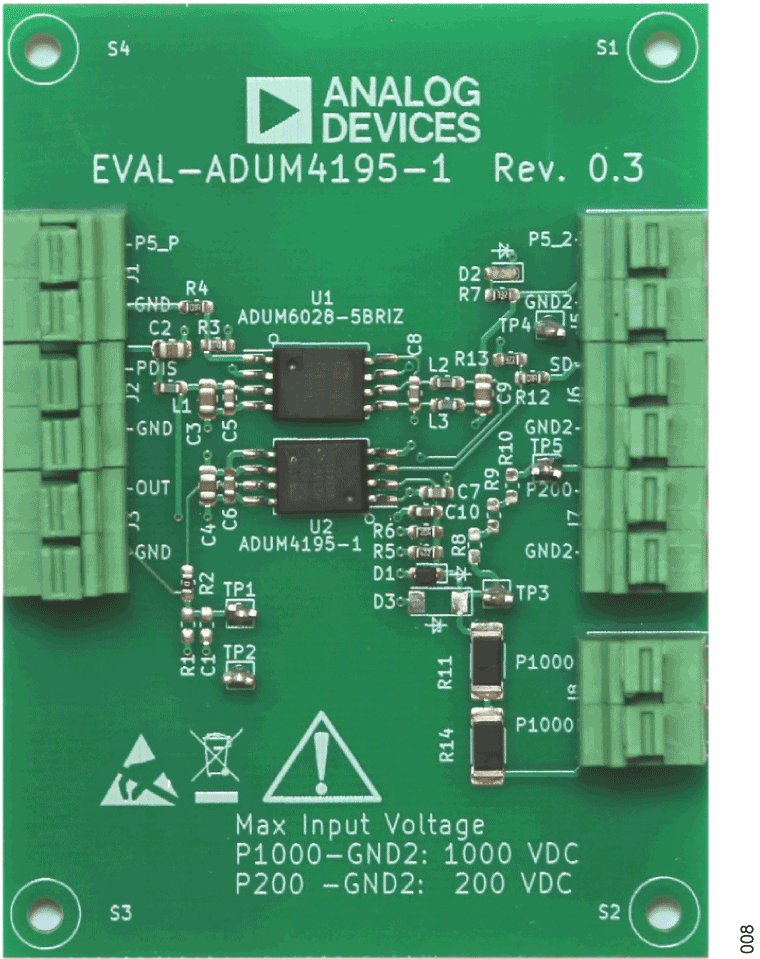

The EVAL-ADuM4195-1EBZ is a compact isolated DC voltage monitoring board with an isolated on-board power supply to facilitate the setup and testing of the performance characteristics of the ADUM4195-1.
On the input side of the board, two separate inputs are available: The P1000 input is pre-configured to accept up to 1 kV DC, while the P200 input can be user-configured for voltages up to 200 V DC. Additional connectors provide access to the isolated 5 V DC supply and the shutdown (SD) input of the ADUM4195-1.
On the output side of the board, the output of the ADUM4195-1 is directly accessible (pre-configured) or may be first-order low-pass filtered by adding a resistor and a capacitor. A single 5 V DC supply is sufficient to power both the input and output side of the board, while the optional power disable (PDIS) pin can be used to disable the on-board supply in applications where low-power consumption is at premium.
Full specifications for the ADuM4195-1 are available in the ADuM4195-1 data sheet, which must be consulted in conjunction with the user guide when working with the EVAL-ADuM4195-1EBZ.
Features & Benefits
- ADuM4195-1 isolated amplifier in a SOIC-8 package
- ADuM6028-5BRIZ isolated on-board power supply
- Isolated 5 V DC accessible through extra terminals
- Two separate input options:
- Maximum 1,000 V DC pre-configured
- User-configurable maximum 200 V DC
- Input reverse-polarity protection
